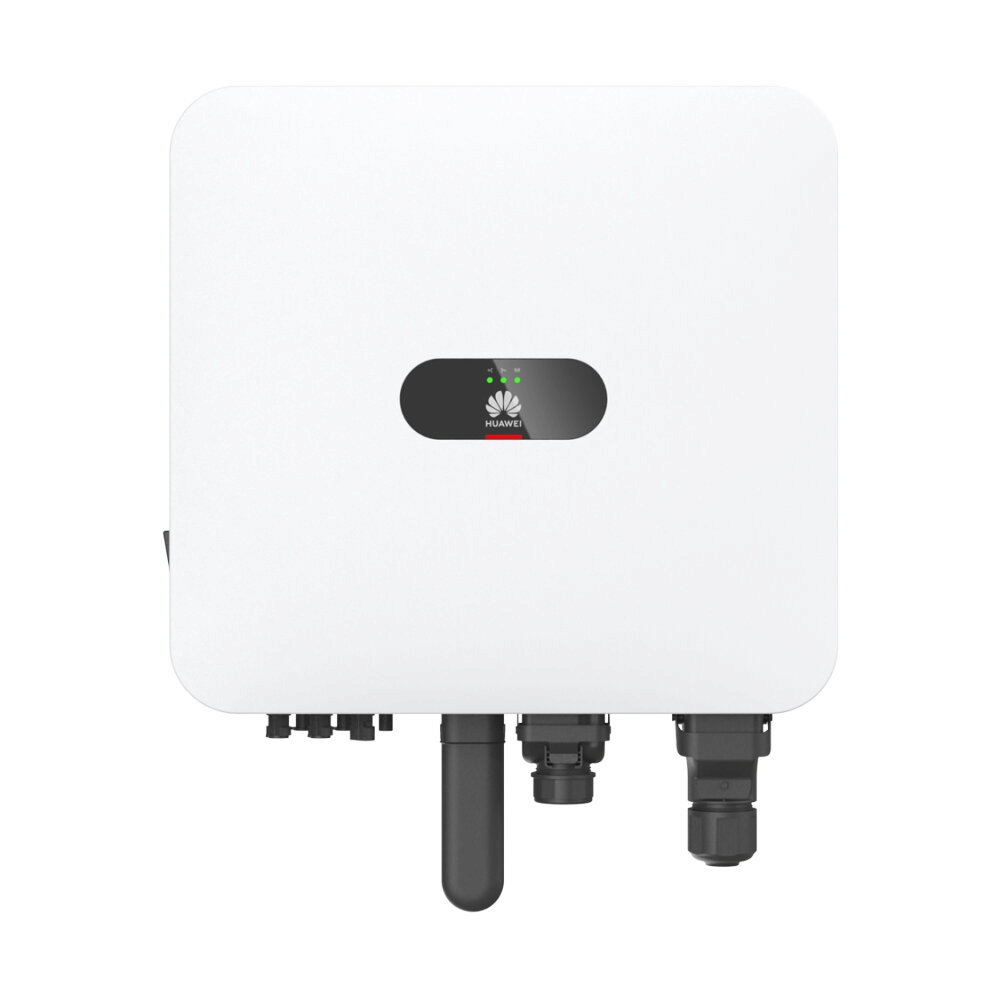

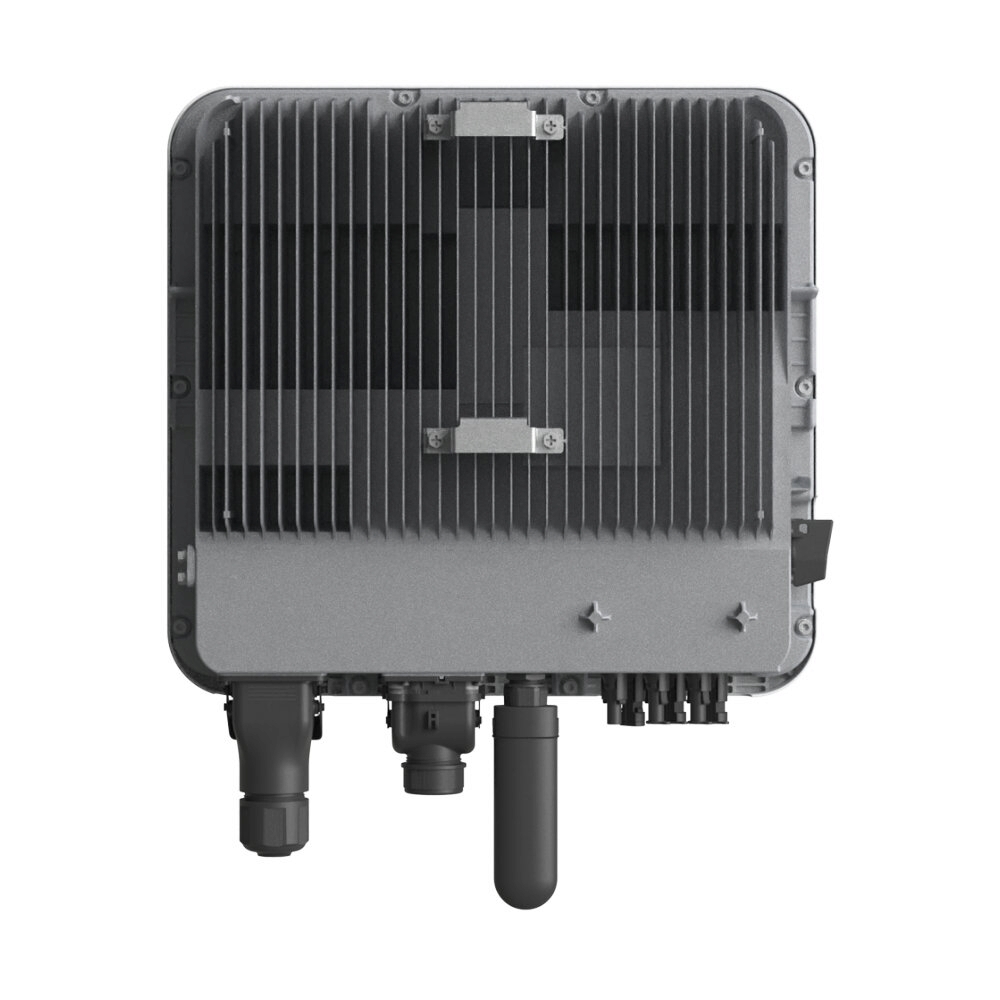

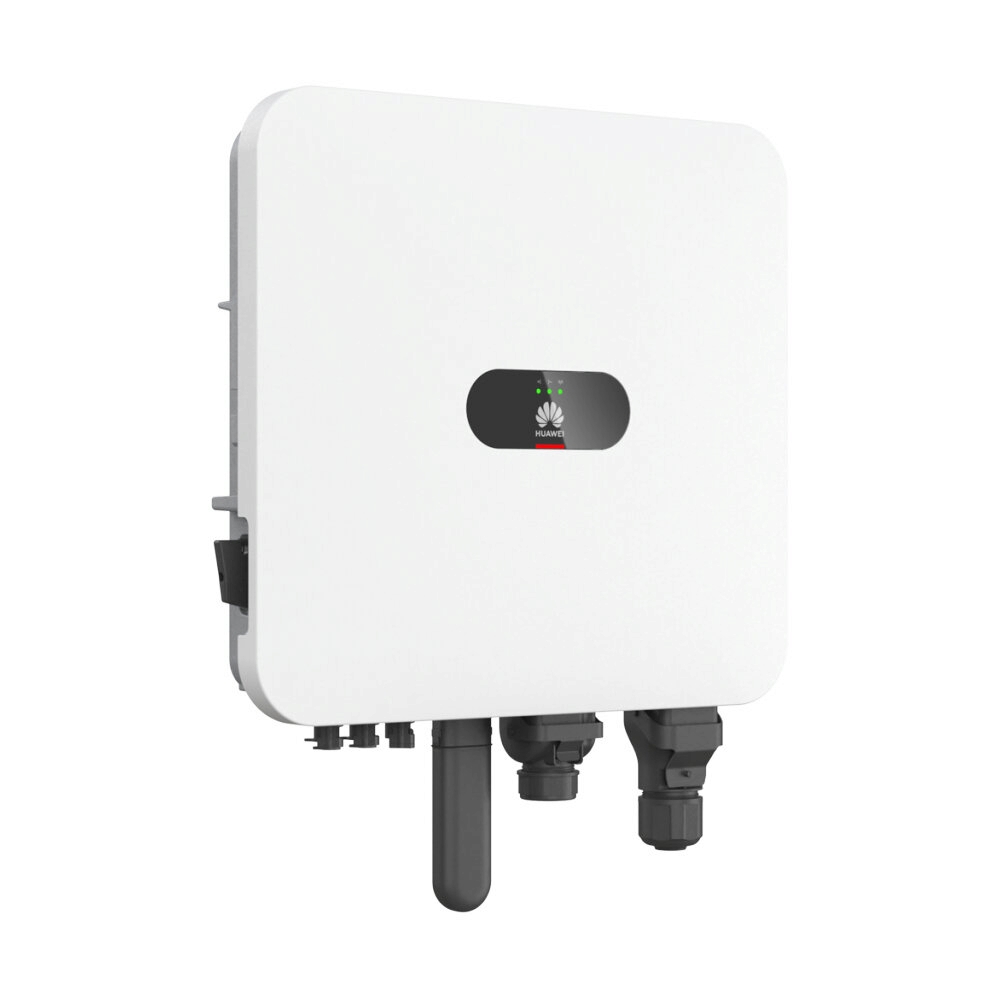

INVERTER HUAWEI HYBRID (SUN2000-10K-MAP0)

SUN2000-10K-MAP0

• IEC61727, IEC62116, MEA/PEA, G99, Philippine Grid Code Resolution No. 07, NRS 097-2-1, EN50549-1, VDE4105,
UTE15-712-1/VFR 2019, UNE217002, NTS631, RD244(UNE217001), PPDS, ROGA, TOR Erzeuger, CEI 0-21:2020-12
V1, C10/C11

• Max. efficiency : 98.6%
• European weighted efficiency : 98.1%

• Recommended max. PV power : 18,000 Wp
• Max. input voltage : 1,100 V
• Max. input voltage : 1,100V
• Operating voltage range : 160- 1,000V
• Startup voltage : 160V
• Rated input voltage : 600V
• Number of MPP trackers:  2
• Max. input per MPP tracker : 1
• Max. input current per MPPT: 16A
• Max. short-circuit current : 22A
• Compatible battery : LUNA2000-5/10/15-S0 / LUNA2000-7/14/21-S1
• Operating voltage range : 600 ~ 980 V
• Max. operating current : 20 A
• Max. charging power : 12,000 W
• Max. discharging power : 11,000 W

• Grid connection : Three-phase
• Rated output power : 10,000 W
• Max. apparent power : 11,000 VA
• Rated output voltage : 220 V AC/380 V AC, 230 V AC/400 V AC, 240 V AC/415 V AC 3W/N + PE
• Overload capability : 110%
• Rated AC grid frequency : 50 Hz/60 Hz
• Max. output current : 16.7 A
• Adjustable power factor : 0.8 leading ... 0.8 lagging
• Max. total harmonic distortion : ≤ 3%
• Compatible backup device : SmartGuard-63A-T0 (3 phase)
• Rated output power : 10,000 W
• Rated output voltage : 220 V AC/380 V AC, 230 V AC/400 V AC, 240 V AC/415 V AC 3W/N + PE
• 110% overload : Continuous
• 150% overload : 1 min (3-phase) / 5 min (Single-phase)
• 200% overload : 10 seconds
• Automatic switchover time : ≤ 20 ms (with SmartGuard-63A-T0)

• RS485; WLAN / Ethernet via Smart Dongle-WLAN-FE (Optional)
• 4G/3G/2G via Smart Dongle-4G (Optional); EMMA (Optional

• Asymmetric load: Yes, supports 100% three-phase asymmetric load
• Anti-islanding protection: Yes
• AC surge protection: Yes, compatible with TYPE II protection class according to EN/IEC 61643-11
• AC overcurrent protection: Yes
• AC short-circuit protection: Yes
• AC overvoltage protection: Yes
• Residual current detection: Yes
• Ripple receiver control: Yes
• Input-side disconnection device: Yes
• DC reverse polarity protection: Yes
• Insulation detection: Yes
• DC surge protection: Yes, compatible with TYPE II protection class according to EN/IEC 61643-11
• Arc fault protection: Yes
• Connector temperature detection: Yes (PV & Battery connectors)
• Battery charging from grid: Yes

• Operating temperature range: –25°C - +60°C (–13°F - +140°F)
• Relative operating humidity: 0% - 100% RH
• Max. operating altitude: 4,000m
• Cooling: Natural convection
• Noise: ≤29dB
• IP rating: IP66
• Display: LED Indicators; Integrated WLAN + FusionSolar APP
