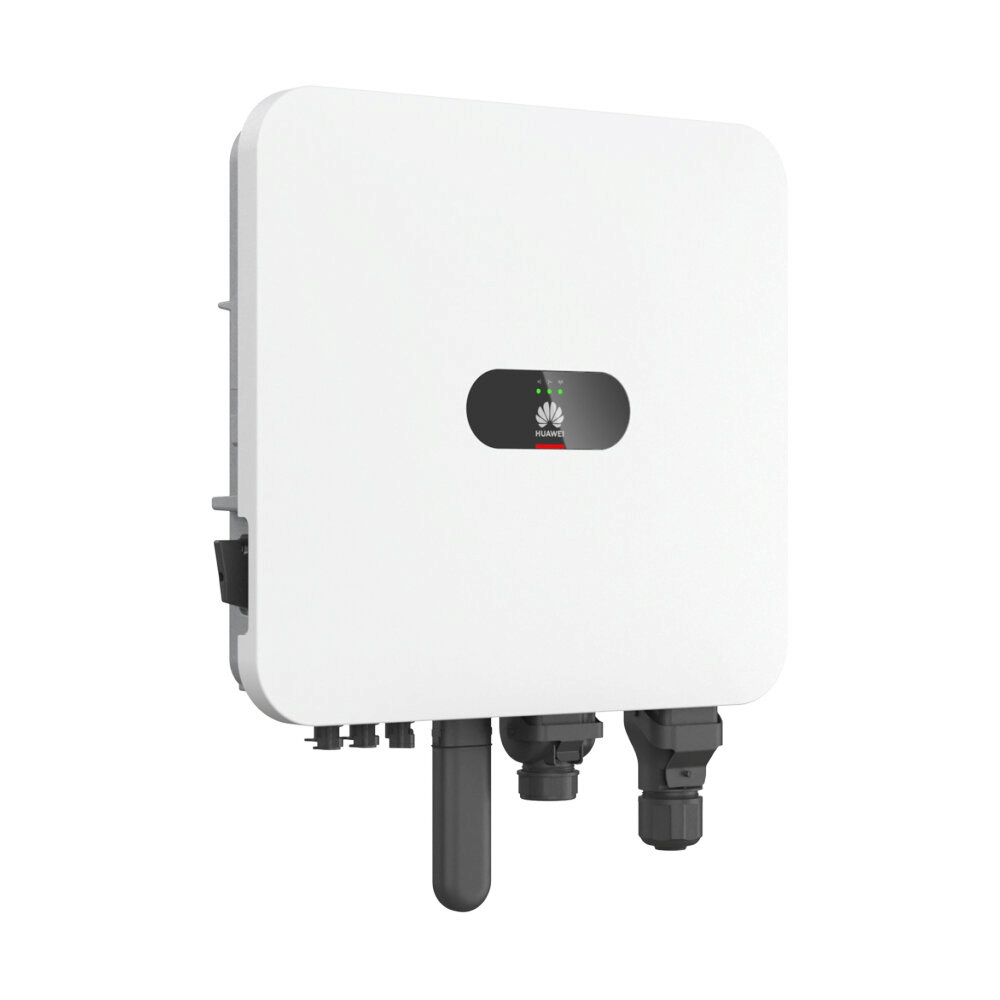

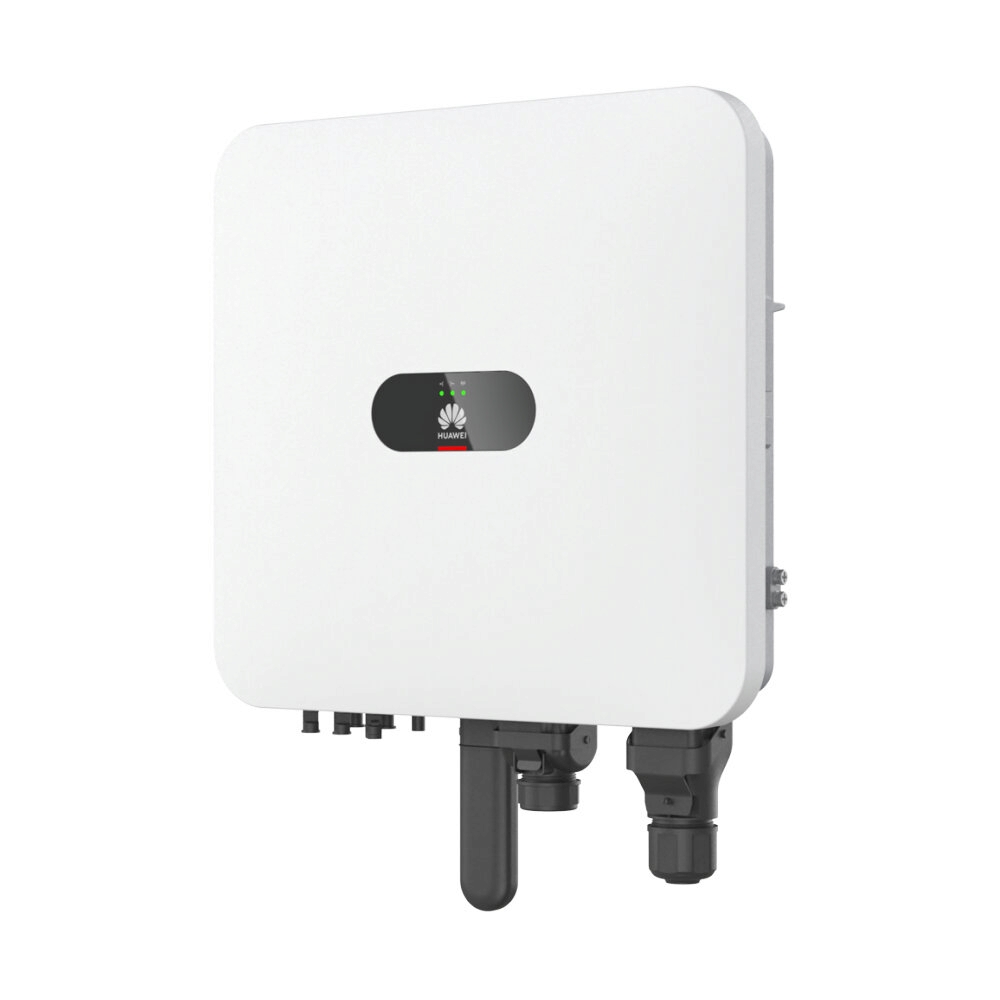

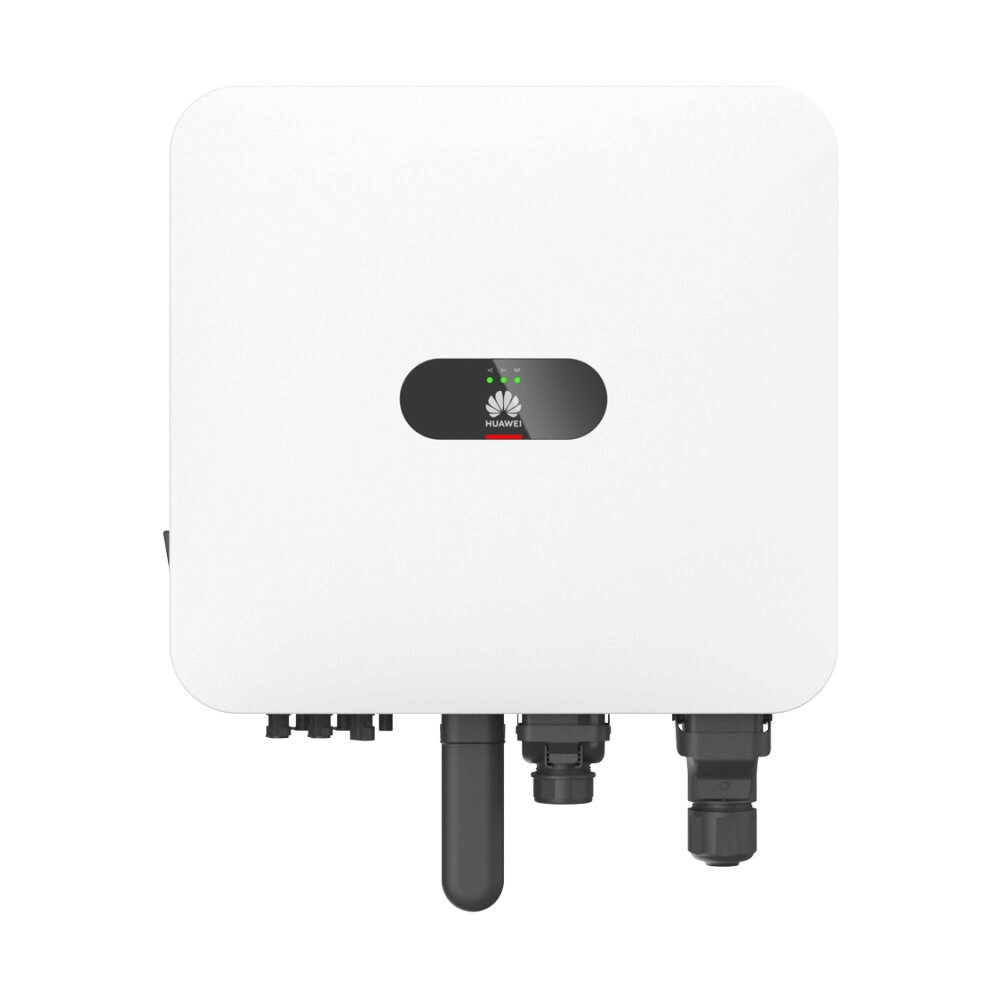

INVERTER HUAWEI HYBRID (SUN2000-5K-MAP0)

SUN-2000-5K-MAP0

• เป็นอินเวอร์เตอร์ที่มีประสิทธิภาพสูง มีความยืดหยุ่นในการใช้งานทั้งแบบ On-Grid และ Hybrid (ต่อแบตเตอรี่ได้) พร้อมคุณสมบัติความปลอดภัยและระบบตรวจสอบที่ทันสมัย เหมาะสำหรับผู้ที่ต้องการระบบโซลาร์เซลล์ที่ครบวงจรและอัจฉริยะ

• IEC61727, IEC62116, MEA/PEA, G99, Philippine Grid Code Resolution No. 07, NRS 097-2-1, EN50549-1, VDE4105,UTE15-712-1/VFR 2019, UNE217002, NTS631, RD244(UNE217001), PPDS, ROGA, TOR Erzeuger, CEI 0-21:2020-12 V1, C10/C11

• Max. efficiency : 98.4%
• European weighted efficiency : 97.5%

Input (PV)
• Recommended max. PV power : 9,000 Wp
• Max. input voltage : 1,100 V
• Operating voltage range : 160 - 1,000 V
• Startup voltage : 160 V
• Rated input voltage : 600 V
• Max. input current per MPPT : 16 A
• Max. short-circuit current : 22 A
• Number of MPP trackers : 2
• Max. input per MPP tracker : 1
Input (DC Battery)
• Compatible battery : LUNA2000-5/10/15-S0 / LUNA2000-7/14/21-S1
• Operating voltage range : 600 ~ 980 V
• Max. operating current : 20 A
• Max. charging power : 12,000 W
• Max. discharging power : 5,500 W

Output (On Grid)
• Grid connection : Three-phase
• Rated output power : 5,000 W
• Max. apparent power : 5,500 VA
• Rated output voltage : 220 V AC/380 V AC, 230 V AC/400 V AC, 240 V AC/415 V AC 3W/N + PE
• Overload capability : 110%
• Rated AC grid frequency : 50 Hz/60 Hz
• Max. output current : Max. output current
• Max. output current : 0.8 leading
• Max. total harmonic distortion : <3%
Output (Off Grid)
• Compatible backup device : SmartGuard-63A-T0 (3 phase)
• Rated output power : 5,000 W
• Rated output voltage : 220 V AC/380 V AC, 230 V AC/400 V AC, 240 V AC/415 V AC 3W/N + PE
• 110% overload : Continuous
• 150% overload : 5 min (3-phase) / 5 min (Single-phase)
• 200% overload :10 seconds
• Automatic switchover time : < 20 ms (with SmartGuard-63A-T0)

• Asymmetric load: Yes, supports 100% three-phase asymmetric load
• Input-side disconnection device: Yes
• Anti-islanding protection: Yes
• DC reverse polarity protection: Yes
• Insulation detection: Yes
• DC surge protection: Yes, compatible with TYPE II protection class according to EN/IEC 61643-11
• AC surge protection: Yes, compatible with TYPE II protection class according to EN/IEC 61643-11
• Residual current detection: Yes
• AC overcurrent protection: Yes
• AC short-circuit protection: Yes
• AC overvoltage protection: Yes
• Arc fault protection: Yes
• Connector temperature detection: Yes (PV & Battery connectors)
• Ripple receiver control: Yes
• Battery charging from grid: Yes

DC MBUS compatible optimizer : SUN2000-450W-P2, SUN2000-600W-P


• Operating temperature range: –25°C - +60°C (–13°F - +140°F)
• Relative operating humidity: 0 % - 100% RH
• Max. operating altitude: 4,000 m
• Cooling: Natural convection
• Noise: ≤ 29 dB
• Display: LED Indicators; Integrated WLAN + FusionSolar APP
• Communication: RS485; WLAN / Ethernet via Smart Dongle-WLAN-FE (Optional); 4G/3G/2G via Smart Dongle-4G (Optional); EMMA (Optional)
• IP rating: IP66
• Nighttime power: < 5.5 W
