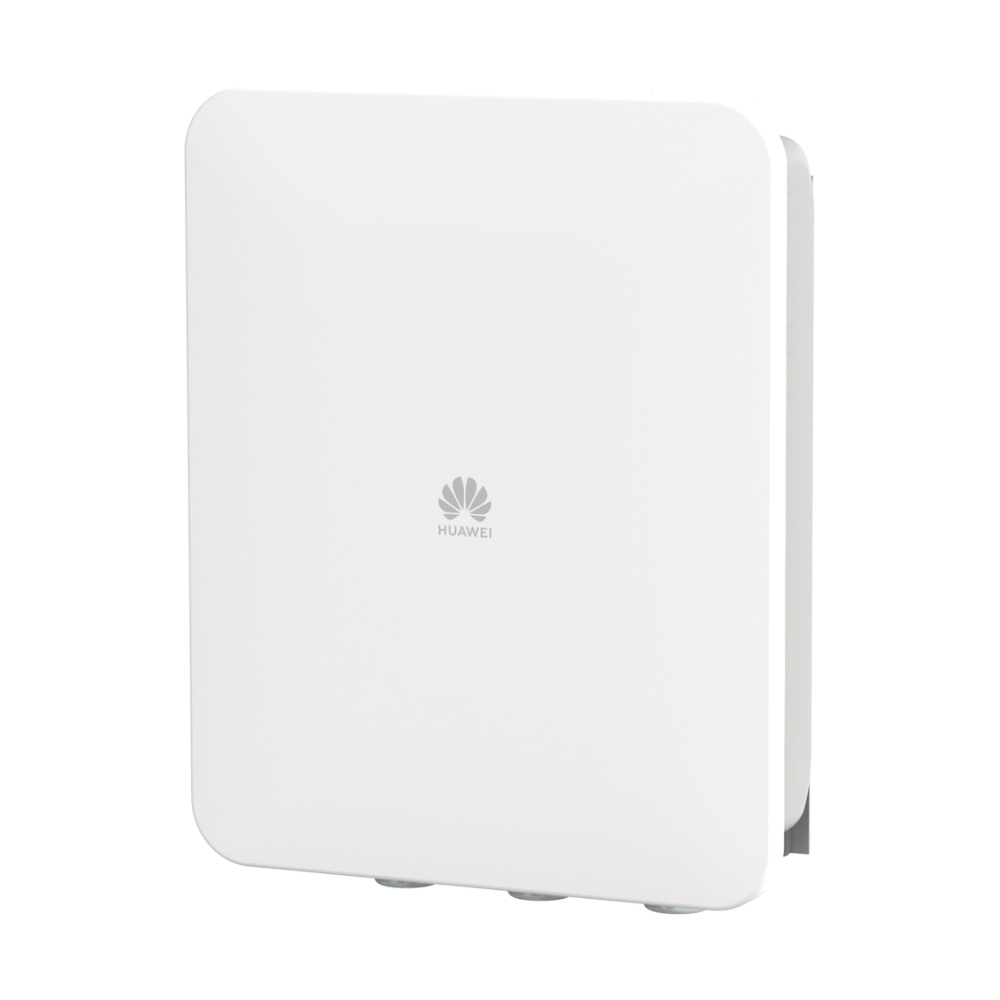

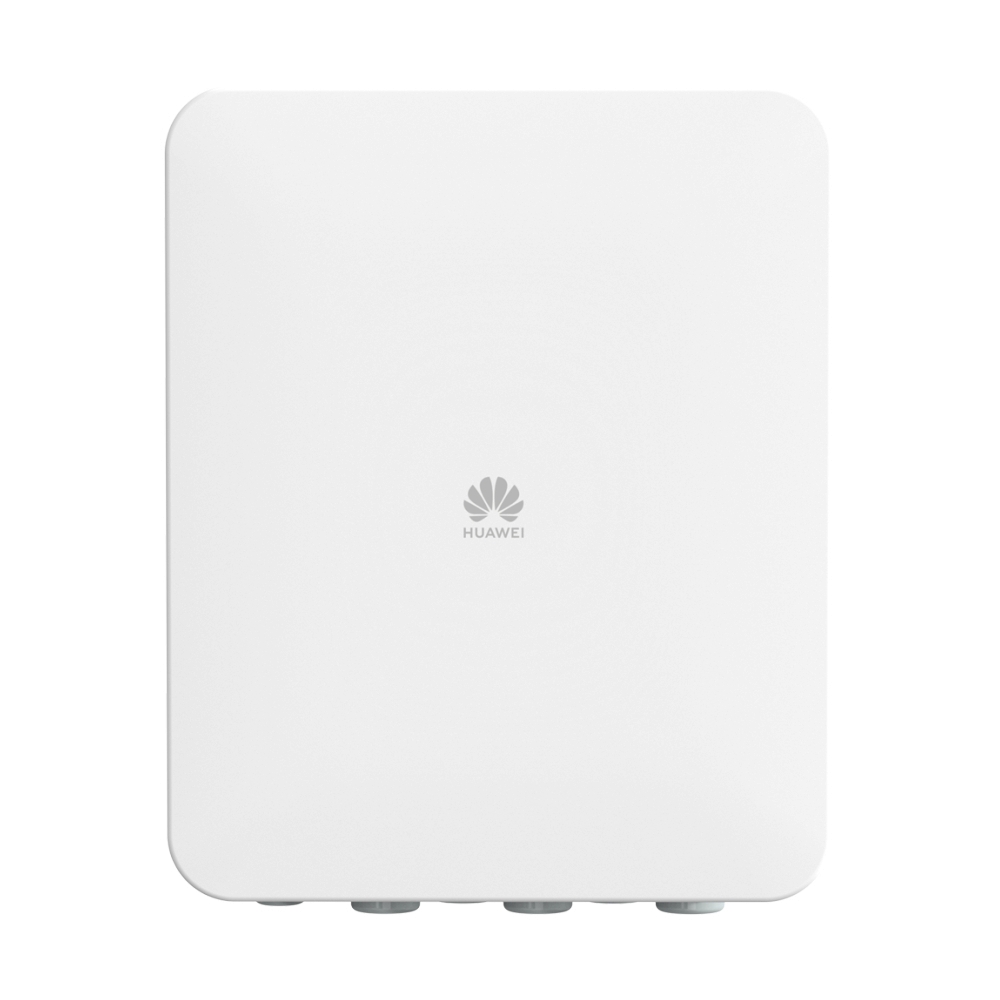

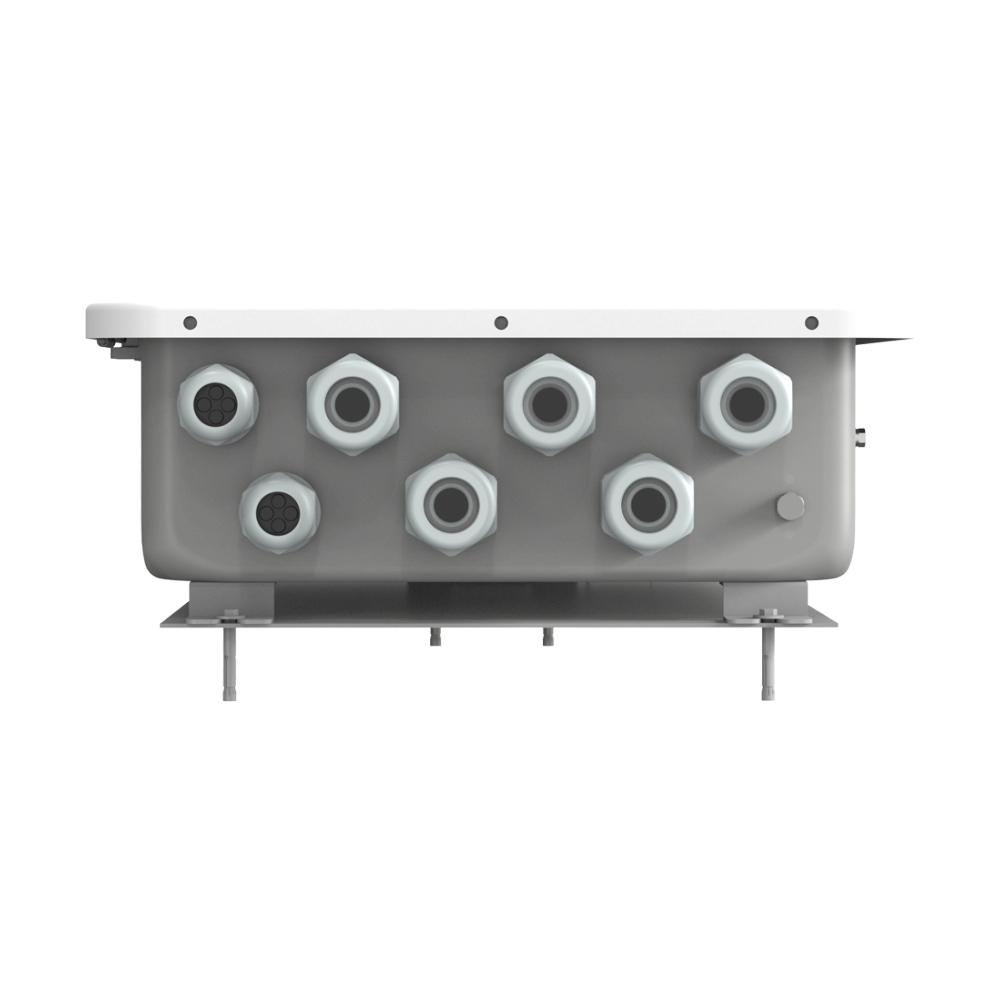

HUAWEI SMART GUARD (G-63A-T0)

G-63A-T0

• อุปกรณ์สำหรับทำระบบ Backup ระบบโซล่าสามารถจ่ายไฟได้ตอนไฟฟ้าดับ.

• AC voltage (nominal) : 380 / 400 / 415 V, 220 / 230 / 240 V, L1 / L2 / L3 / N + PE
• Max. current (from / to Grid) : 63 A
• Max. current (from / to Inverter) : 60 A
• Max. current (to Backup Load) : 63 A
• Max. current (to Non-Backup Load) : 63 A
• Low-Voltage ride-through : Supported
• Switchover time : ≤20 ms (MAP0),≤100 ms (M1 / MB0)2
• Bypass operation mode : Manual
• DG mode : Remote control

• Power output : 9.5 - 13.2 V @ 100 mA, ≤3 m
• LAN : 10/100 Mbps,≤100 m
• WAN : 10/100 Mbps,≤100 m
• WLAN : AP Mode, 802.11b/g/n (2.412 GHz - 2.484 GHz)
• RS485 : 9600/19,200/115,200 bps,×2,≤50 m
• Digital input : ×2,≤20 m; Avtive port$^3$
• Digital output : ×2,≤20 m
• DG Do Port : Passive Port, 1−100 mA≤24 V
• ATS : Need prepare the ATS, which supports automatic control and automatic switch-in and reset.

• Degree of protection : IP55

• Current range : ≤ 63 A
• Energy accuracy : ± 1%
