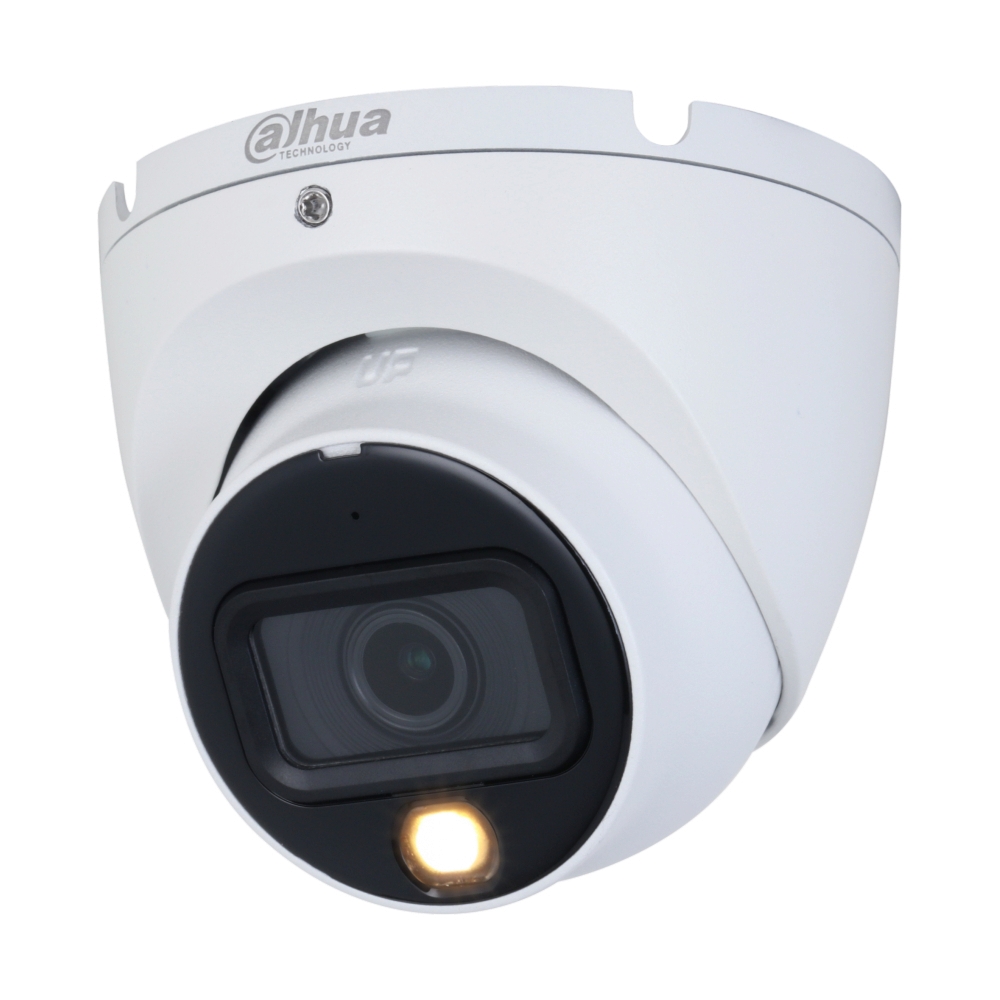

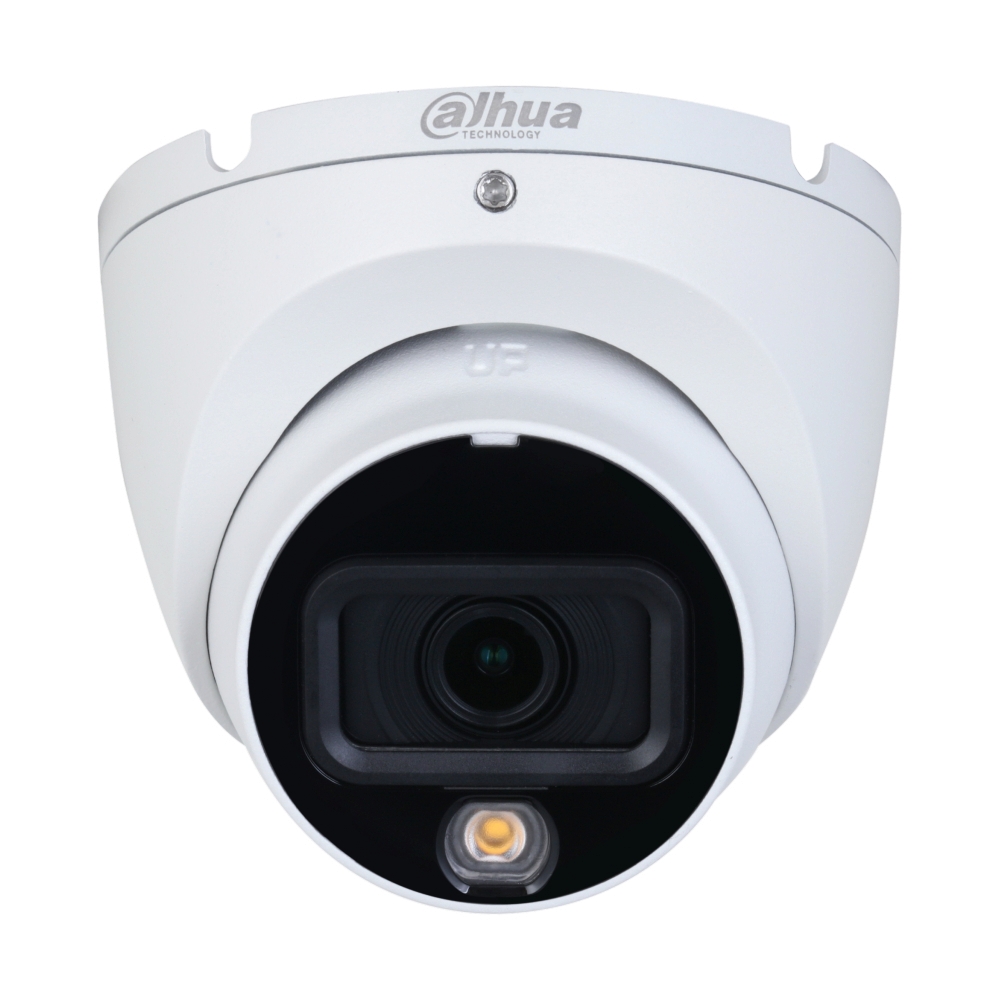

กล้องวงจรปิด 3.6mm HDCVI DAHUA HDW1200TLMP-IL-A
- Image Sensor : 2MP CMOS
- Max. Resolution : 1920 x 1080
- Lens Type : 3.6mm
- Video Output : CVI/CVBS/AHD/TVI switchab
- IR Distance : 20m
- Frame Rate : Max. 30 fps@1080p
- Day/Night Mode : Auto(ICR)/Color/B/W
- Audio Port : Built-in mic
- Protection : IP67
- Casing Material: Metal
- Smart Dual Light
- Super Adapt
รายละเอียดสินค้า
ข้อมูลผลิตภัณฑ์

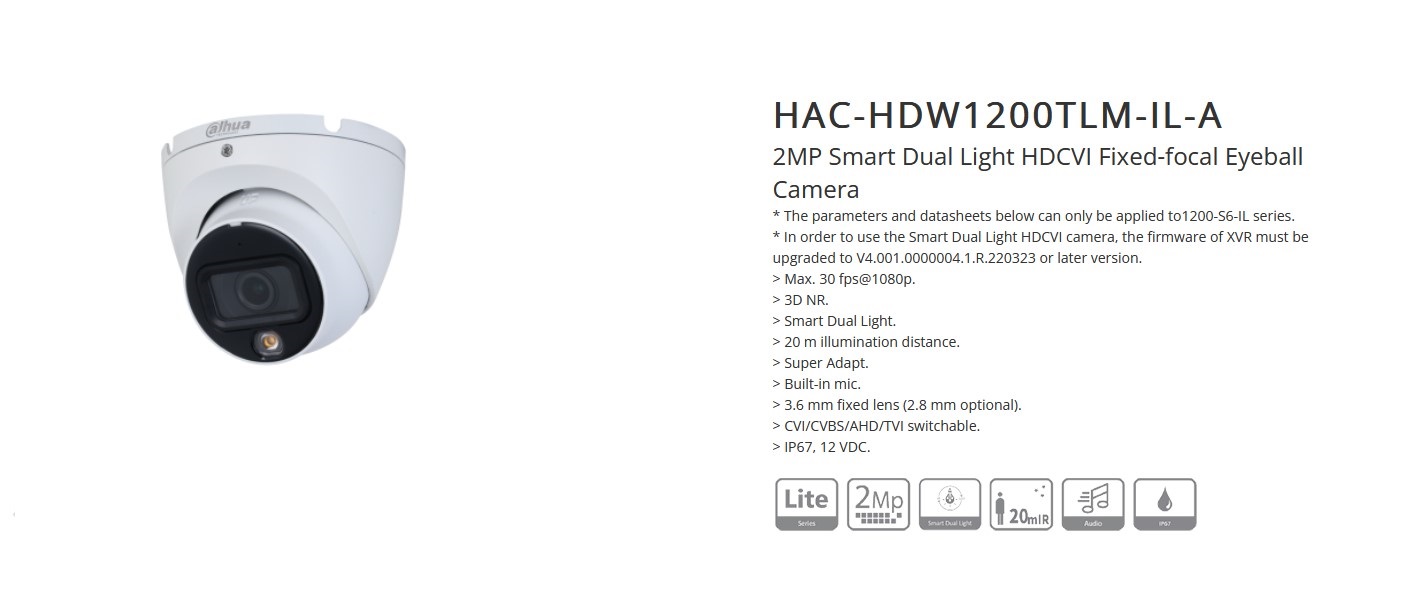

HAC-HDW1200TLM-IL-A
• 2MP CMOS
• 3.6mm
• M12
• H: 83°; V: 48°; D: 105°
• Pan: 0°–360°
• Tilt: 0°–78°
• Rotation: 0°–360°
• PAL: 1/25 s–1/100000 s
• NTSC: 1/30 s–1/100000 s
• 0.01 [email protected] (Color, 30 IRE)
• 0.001 [email protected] (B/W, 30 IRE)
• 0 lux (Illuminator on)
• IR: 20 m (65.62 ft)
• Warm light: 20 m (65.62 ft)
• 1920 (H) × 1080 (V)
N/A
• CVI
PAL: 1080p@25 fps
NTSC: 1080p@30 fps
• AHD
PAL: 1080p@25 fps
NTSC: 1080p@30 fps
• TVI
PAL: 1080p@25 fps
NTSC: 1080p@30 fps
• CVBS
PAL: 960H
• Built-in mic
N/A
• Smart Dual Light.
• 12 VDC ± 30%
• Max 2.6W (12 VDC, IR on)
• Operating Temperature : –40 °C to +60 °C (–40 °F to +140 °F)
• Operating Humidity : <95% (RH), non-condensing
• Storage Temperature : –40 °C to +60 °C (–40 °F to +140 °F)
• Storage Humidity : <95% (RH), non-condensing
• IP67
• Metal
N/A
