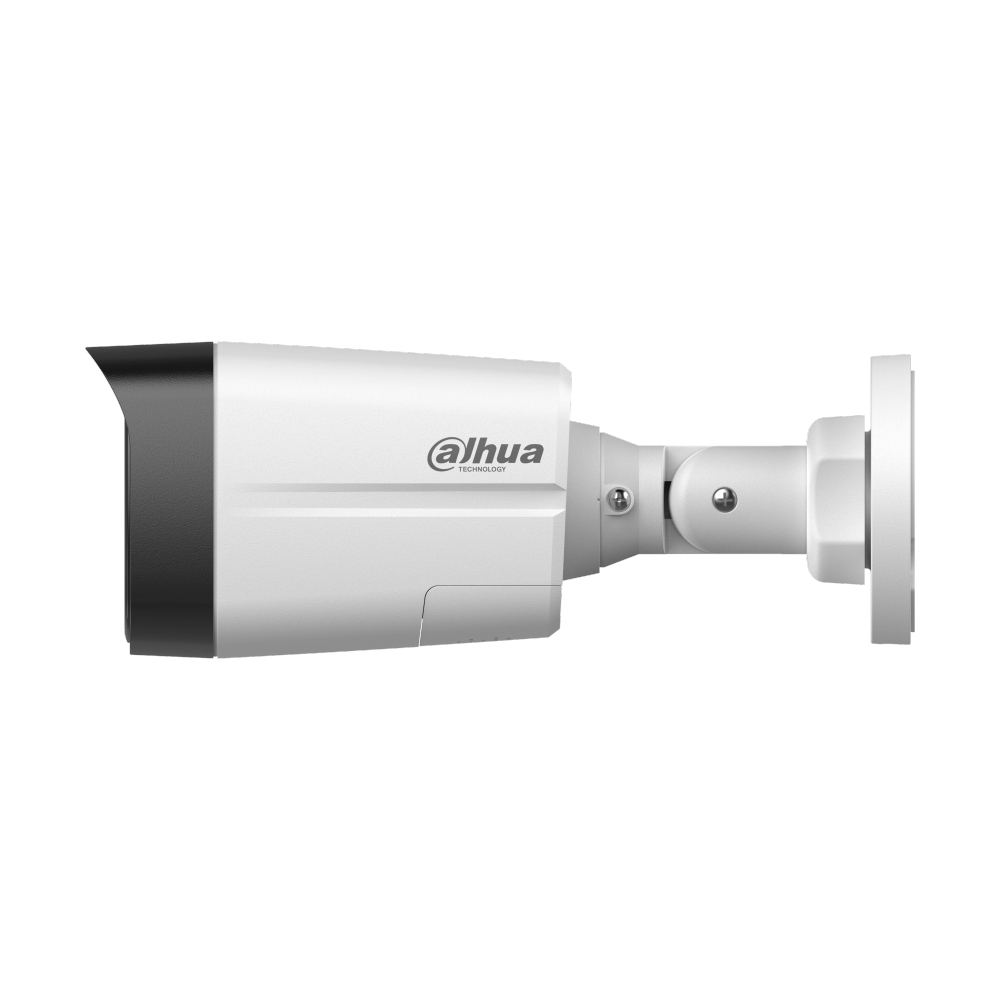

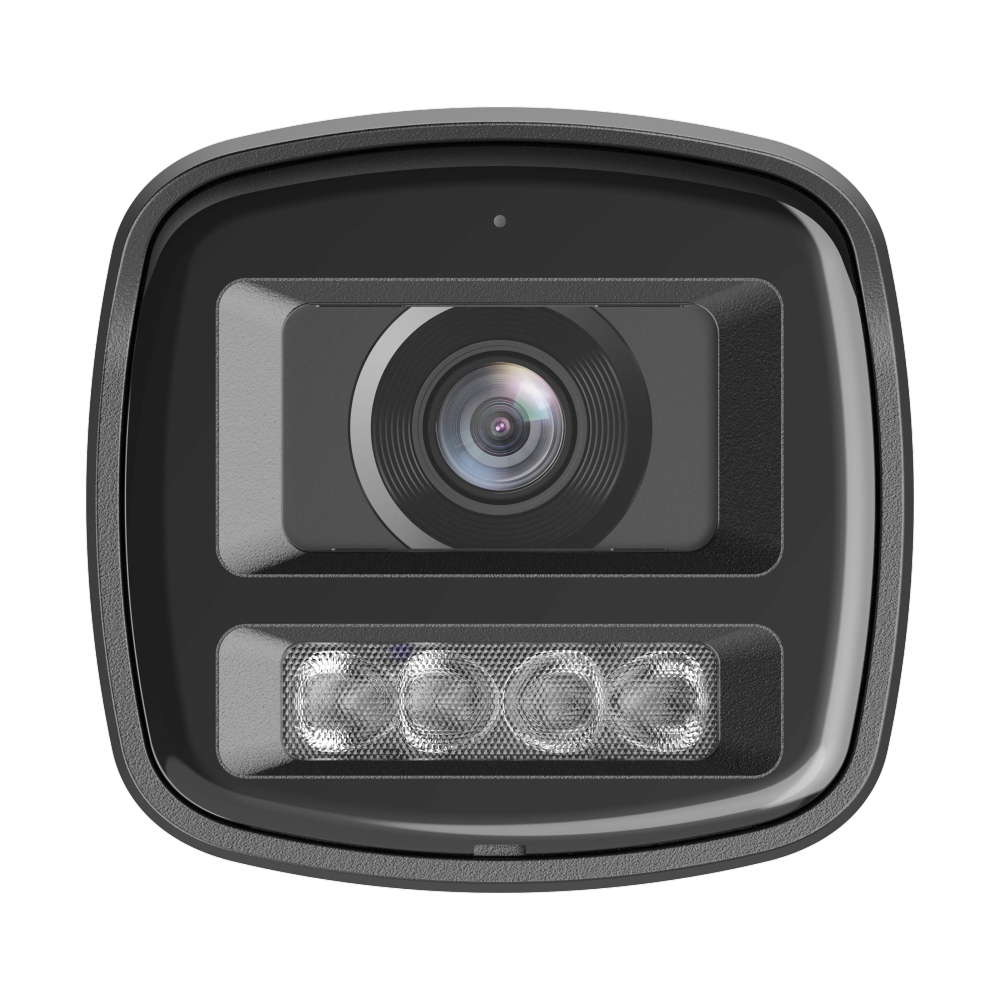

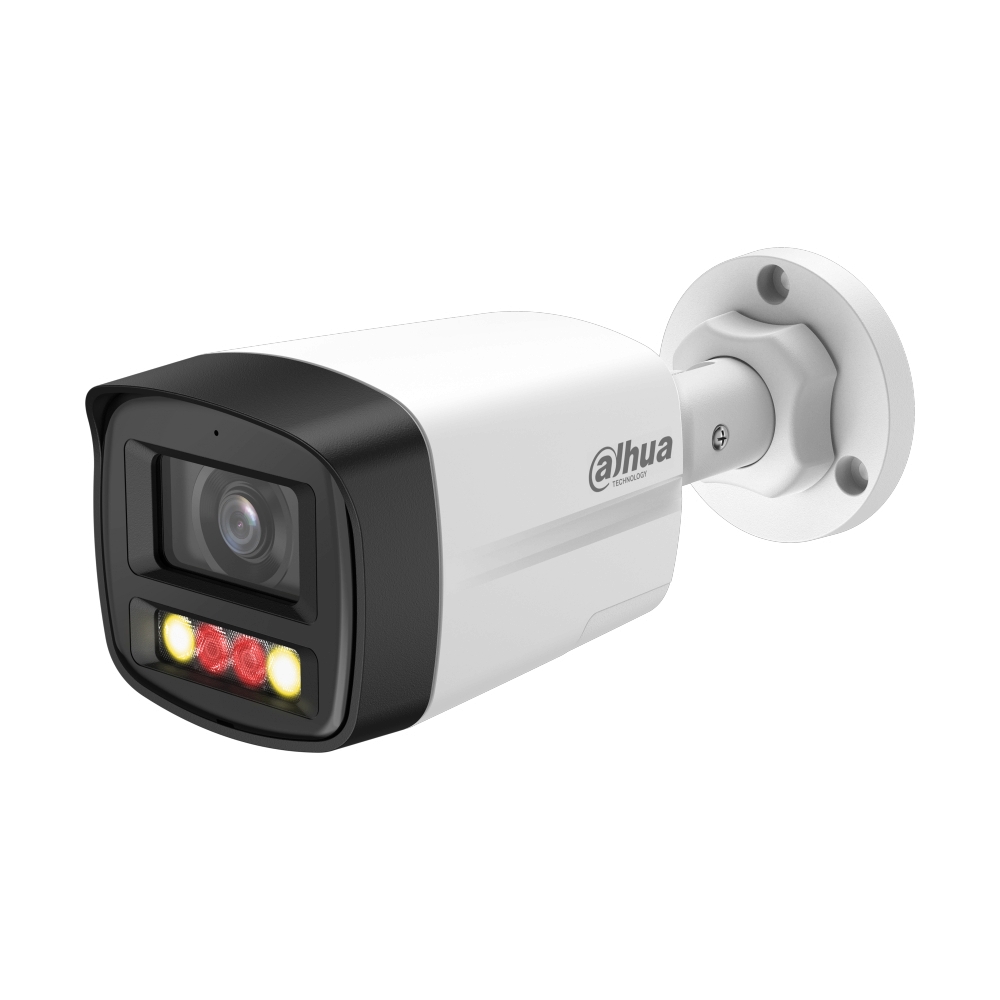

กล้องวงจรปิด 2.8mm IP Camera DAHUA HFW1439TL1-PV
- Image Sensor : 4MP , 1/2.9" CMOS
- Max. Resolution : 2560 (H) × 1440 (V)
- Lens Type : 2.8mm
- Video Output : Network Camera
- IR Distance : 50m
- Frame Rate
- Main stream : 2560 × 1440@(1–25/30 fps)
- 704 × 576@(1–25 fps)/704 × 480@(1–30 fps)
- Day/Night Mode : Auto(ICR)/Color/B/W
- Audio Port : Built-in Mic , built-in speaker , support two-way talk.
- Protection : IP67
- Casing Material : Metal+plastic
ข้อมูลผลิตภัณฑ์
• HFW1439TL1-PV
• 4MP , 1/2.9" CMOS
• 2.8mm
• M12
• 2.8 mm: 1.1 m (3.61 ft)
N/A
• H: 94°; V: 51°; D: 110°
• Pan: 0°–360°
• Tilt: 0°–90°
• Rotation: 0°–360°
• Auto/Manual 1/3 s–1/100,000 s
• 0.006 [email protected] (Color, 30 IRE)
• 0.0006 [email protected] (B/W, 30 IRE)
• 0 lux (Illuminator on)
• 3D NR
• 50m
• Auto(ICR)/Color/B/W
• >56 dB
N/A
• 2560 (H) × 1440 (V)
• H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)
• Smart H.265+; Smart H.264+
• Main stream: 2560 × 1440@(1–25/30 fps)
• sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps)
• 6 (Total bandwidth: 24 M)
NONE
• 1x RJ-45 (10/100 Base-T)
N/A
• Network disconnection; IP conflict; illegal access; motion detection; video tampering;audio detection ;SMD (human); security exception
• ONVIF (Profile S & Profile T); CGI
• IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; DHCP; DNS; DDNS; NTP; Multicast; ICMP; IGMP?P2P; Auto Registration
N/A
• 12 VDC/PoE (802.3af)
• Basic: 1.9 W (12 VDC); 2.4 W (PoE)
• Max.: 11.5 W (12 VDC); 13.1 W (PoE) (H.265 + intelligence on + WDR + IR intensity + warm light deterrence + speaker)
• Operating Temperature : –40 °C to +60 °C (–40 °F to +140 °F)
• Operating Humidity : ≤95% (RH), non-condensing
• Storage Temperature : –40 °C to +60 °C (–40 °F to +140 °F)
• Storage Humidity : ≤95% (RH), non-condensing
• IP67
N/A
