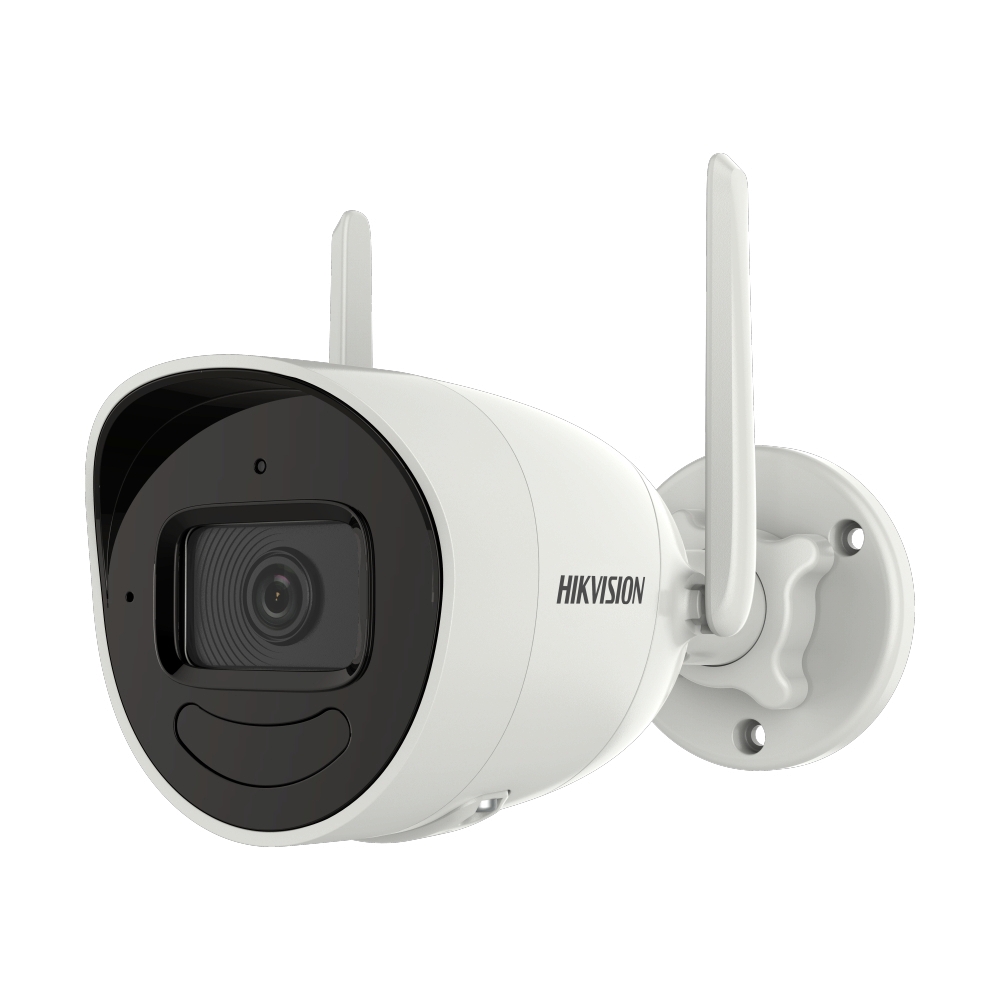

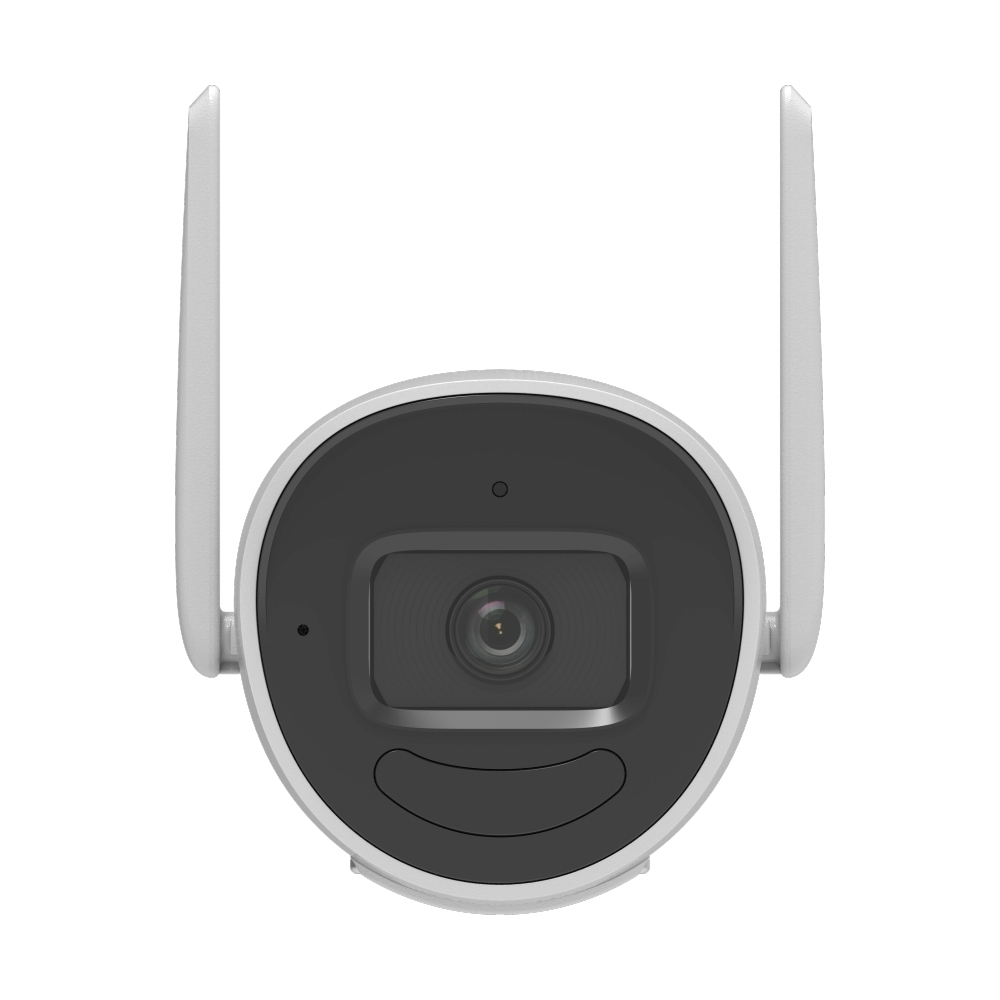

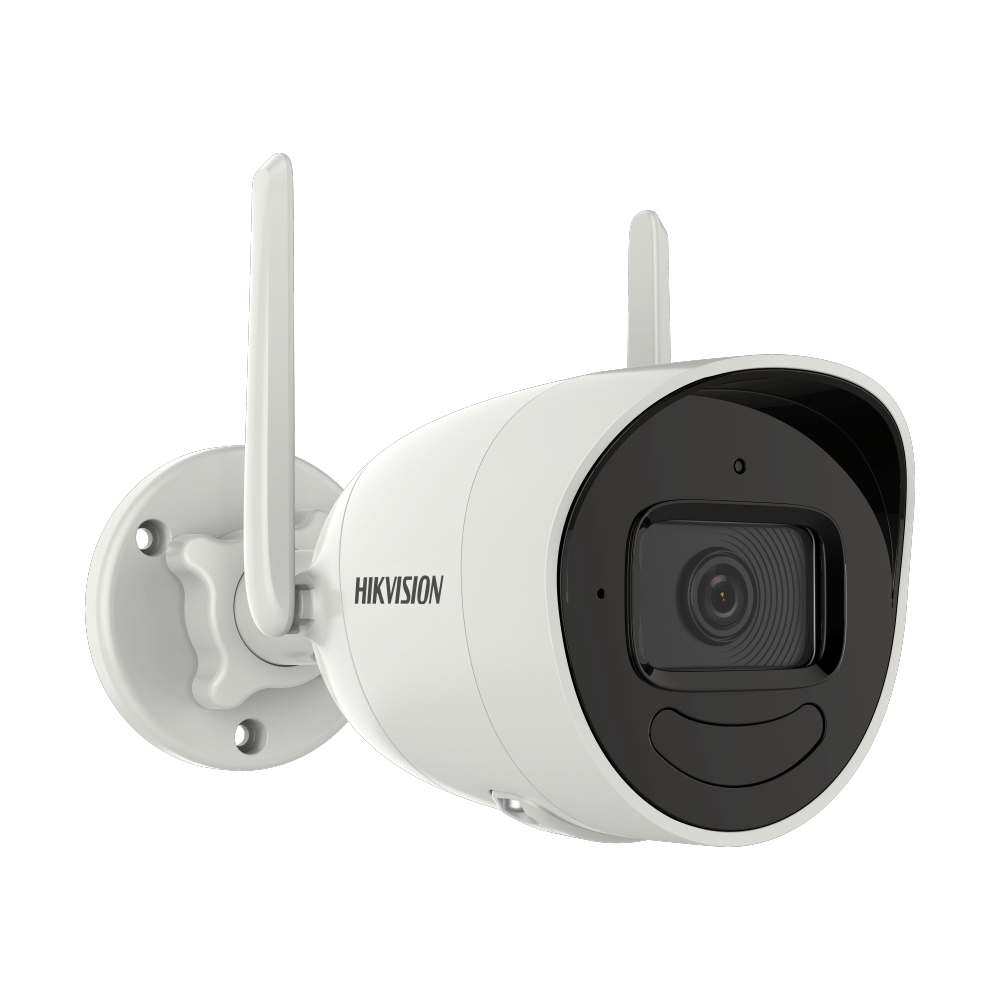

กล้องไร้สาย Smart Camera (2.0MP) HIKVISION DS-2CV2021G2-IDW

DS-2CV2021G2-IDW

• 2MP , 1/2.7" Progressive Scan CMOS

• 2.8mm

• M12

N/A

N/A

• horizontal FOV 95°, vertical FOV 53°, diagonal FOV 111°

• Pan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360°

• 1/3 s to 1/100,000 s

• Color: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR

• 30m

• IR cut filter

N/A

• 120 dB

• 1920 × 1080

• Main Stream
50 Hz: 20 fps (2560 × 1440), 25 fps (1920 × 1080, 1280 × 720)
60 Hz: 20 fps (2560 × 1440), 30 fps (1920 × 1080, 1280 × 720)
• Sub-Stream
50 Hz: 25 fps (1280 x 720, 640 × 480, 640 × 360)
60 Hz: 30 fps (1280 x 720, 640 × 480, 640 × 360)

Two-Way

NONE

• Transfer Rate 11n : up to 300 Mbps
• Wi-Fi Protocol 802.11n:  OFDM,802.11b: DSSS,802.11g: OFDM
• Frequency Range : 2.412 GHz to 2.472 GHz
• Channel Bandwidth : 20/40 MHz
• Modulation
802.11n: BPSK, QPSK, 16QAM, and 64QAM
802.11b: DBPSK and DQPSK, CCK
802.11g: BPSK, QPSK, 16QAM, and 64QAM
• Wireless Range : Up to 120 m (The performance varies based on actual environment)
• Antenna 2 Antennas

NONE

Micro SD Card Slot (up to 512GB)

• 1x RJ45 10 M/100 M self-adaptive Ethernet port

• YES

• Motion detection, exception

NONE

TCP/IP, ICMP, HTTP, HTTPS, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP™, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour

• Anti-banding, heartbeat, mirror, password protection, watermark, IP address filter

NONE

• 12 VDC ± 25%

• max. 6 W

• Storage Conditions -30 °C to 60 °C (-22 °F to 140 °F)
• Humidity 95% or less (non-condensing)
• Startup and Operating Conditions -30 °C to 60 °C (-22 °F to 140 °F)
• Humidity 95% or less (non-condensing)

• IP66

N/A
