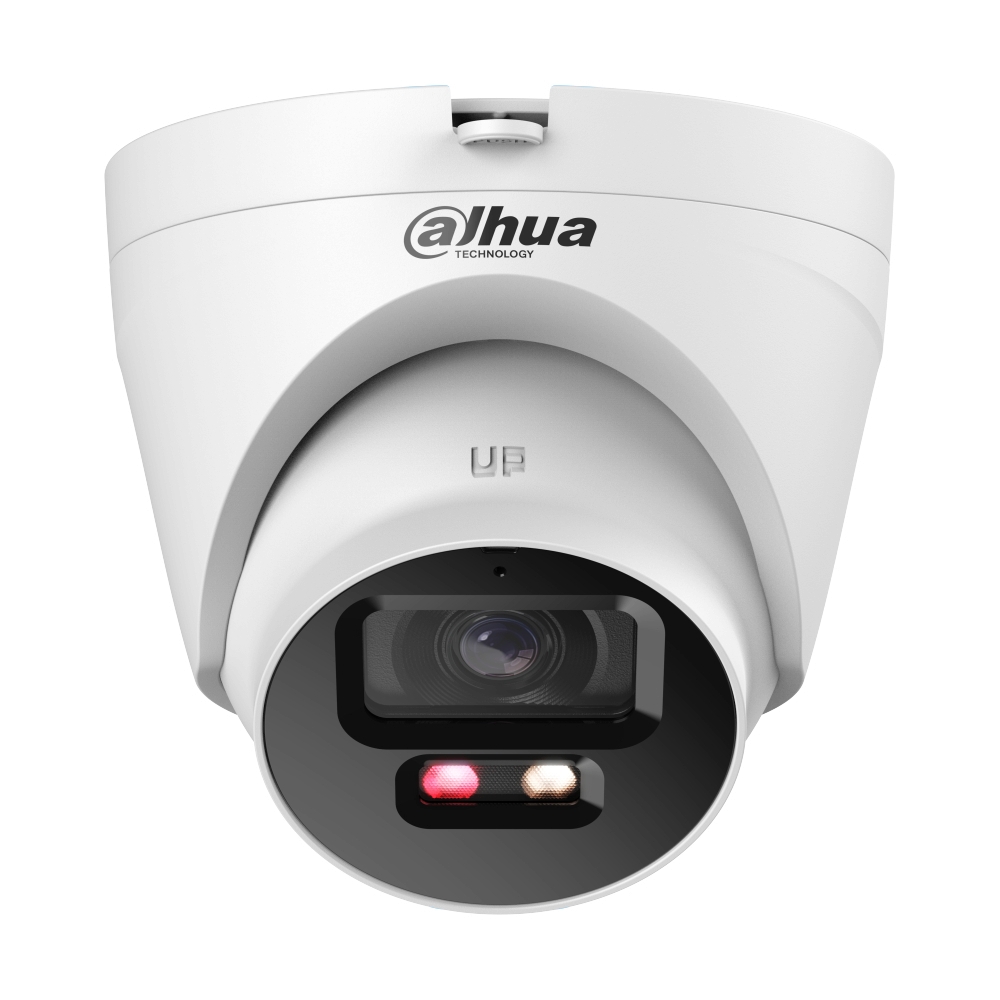

กล้องวงจรปิด 3.6mm IP Camera DAHUA HDW1239V-PV
- Image Sensor : 2MP , 1/2.9" CMOS
- Max. Resolution : 1920 (H) × 1080 (V)
- Lens Type : 3.6mm
- Video Output : Network Camera
- IR Distance : 30m
- Frame Rate
- Main stream: 1920 × 1080@(1–25/30 fps)
- Sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps)
- Day/Night Mode : Auto(ICR)/Color/B/W
- Audio Port : Built-in Mic , built-in speaker , support two-way talk.
- Protection : IP67
- Casing Material : Metal+plastic
ข้อมูลผลิตภัณฑ์
HDW1239V-PV
• 2MP , 1/2.8" CMOS
• 3.6mm
• M12
• 3.6 mm: 1.1 m (3.61 ft)
N/A
• H: 88°; V: 46°; D: 103°
• Pan: 0°–360°
• Tilt: 0°–78°
• Rotation: 0°–360°
• Auto/Manual 1/3 s–1/100,000 s
• 0.006 [email protected] (Color, 30 IRE)
• 0.0006 [email protected] (B/W, 30 IRE)
• 0 lux (Illuminator on)
• 3D NR
• 30m
• Auto(ICR)/Color/B/W
• >56 dB
• 120 dB
• 1920 (H) × 1080 (V)
• Smart H.265+; Smart H.264+
• Main stream: 1920 × 1080@(1–25/30 fps)
• Sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps)
• 6 (Total bandwidth: 24 M)
NONE
• 1x RJ-45 (10/100 Base-T)
• YES
• Network disconnection; IP conflict; illegal access;
motion detection; video tampering;audio detection
;SMD (human); security exception
• ONVIF (Profile S & Profile T); CGI
• IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP;
RTMP; SMTP; FTP; DHCP; DNS; DDNS; NTP; Multicast;
ICMP; IGMP?P2P; Auto Registration
• Siren and Light Active Deterrence
• Smart Dual Light
• Human Detection
• 12 VDC/PoE (802.3af)
• Basic: 1.8 W (12 VDC); 2.5 W (PoE);
• Max.: 8.5 W (12 VDC); 10 W (PoE) (H.265 + intelligence on + WDR + IR intensity + warm light deterrence + speaker)
• Operating Temperature –40 °C to +60 °C (–40 °F to +140 °F)
• Operating Humidity ≤95% (RH), non-condensing
• Storage Temperature –40 °C to +60 °C (–40 °F to +140 °F)
• Storage Humidity ≤95% (RH), non-condensing
• IP67
N/A
