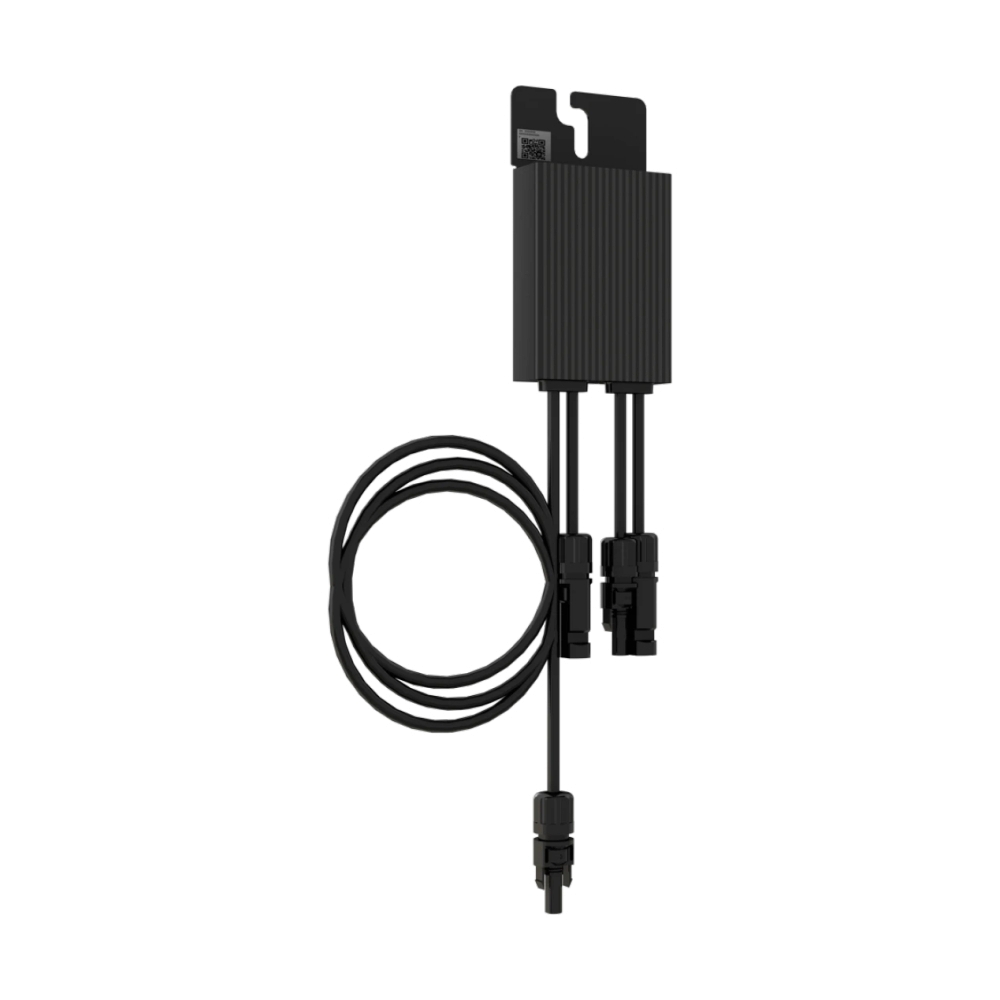

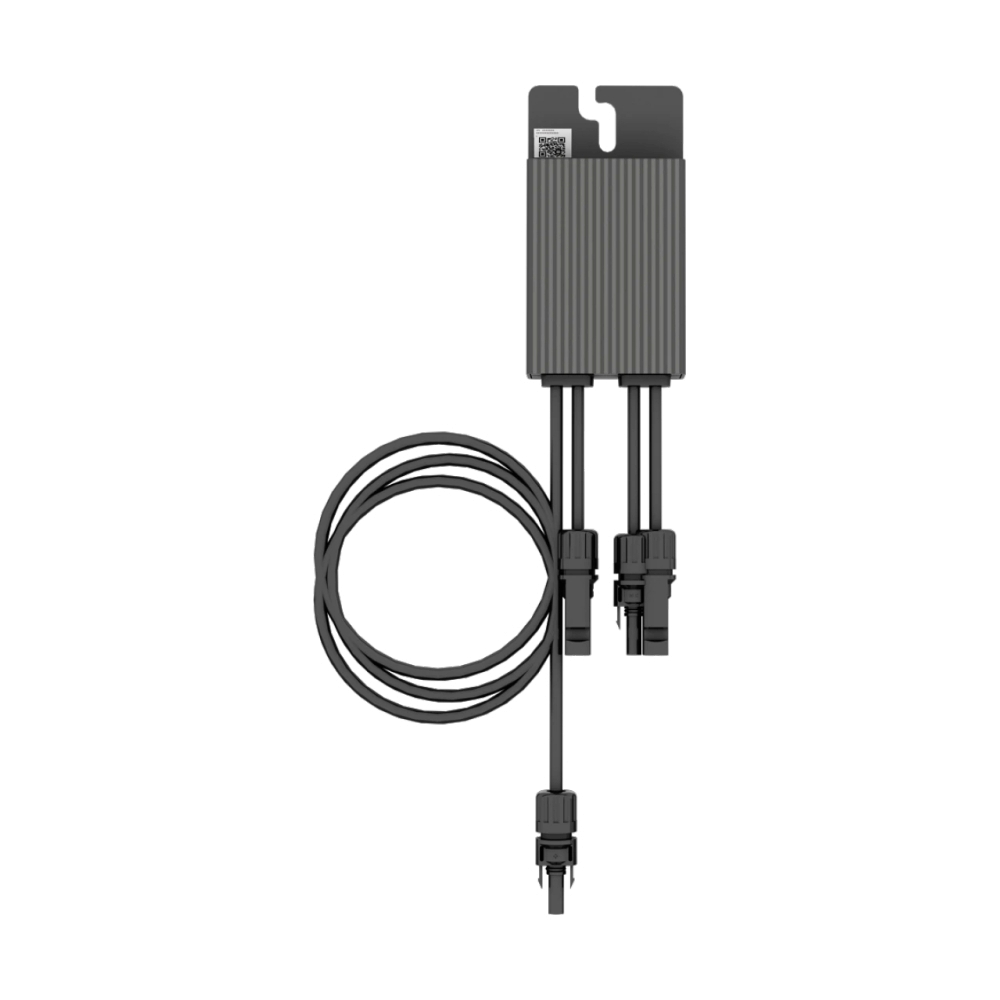

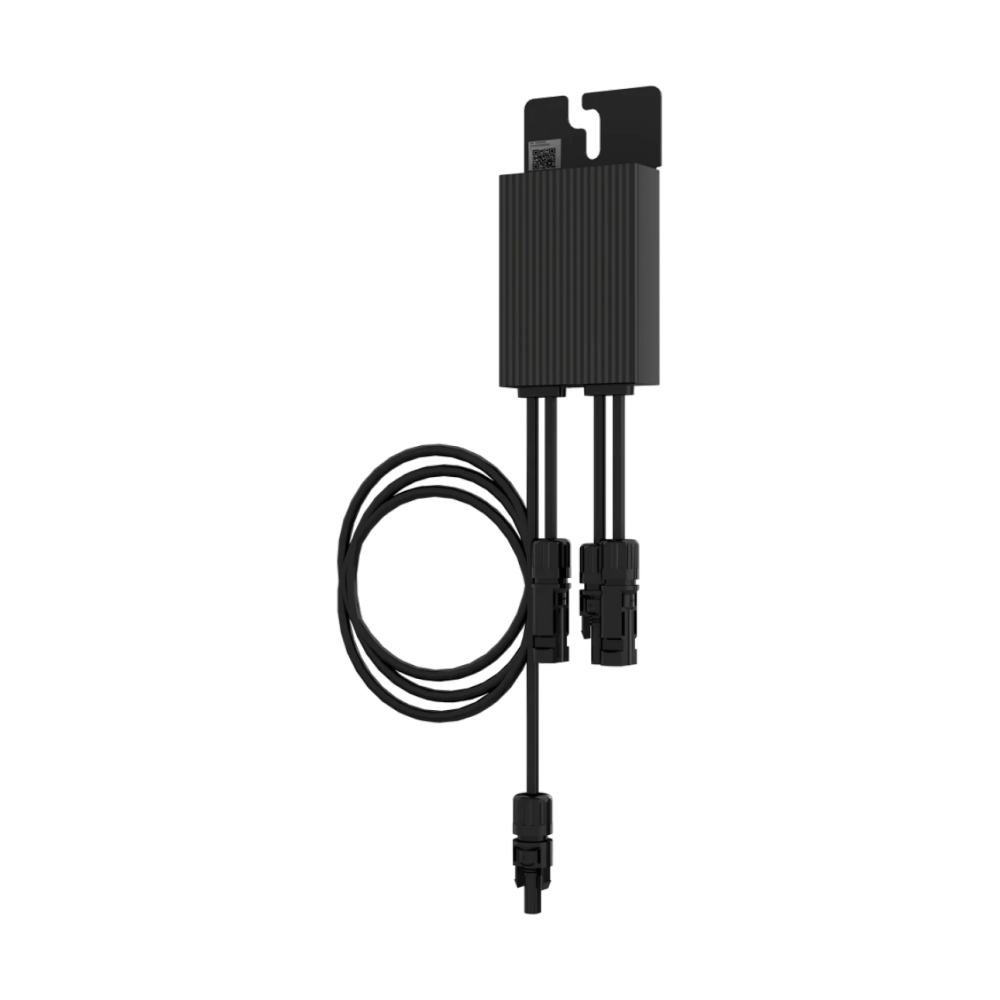

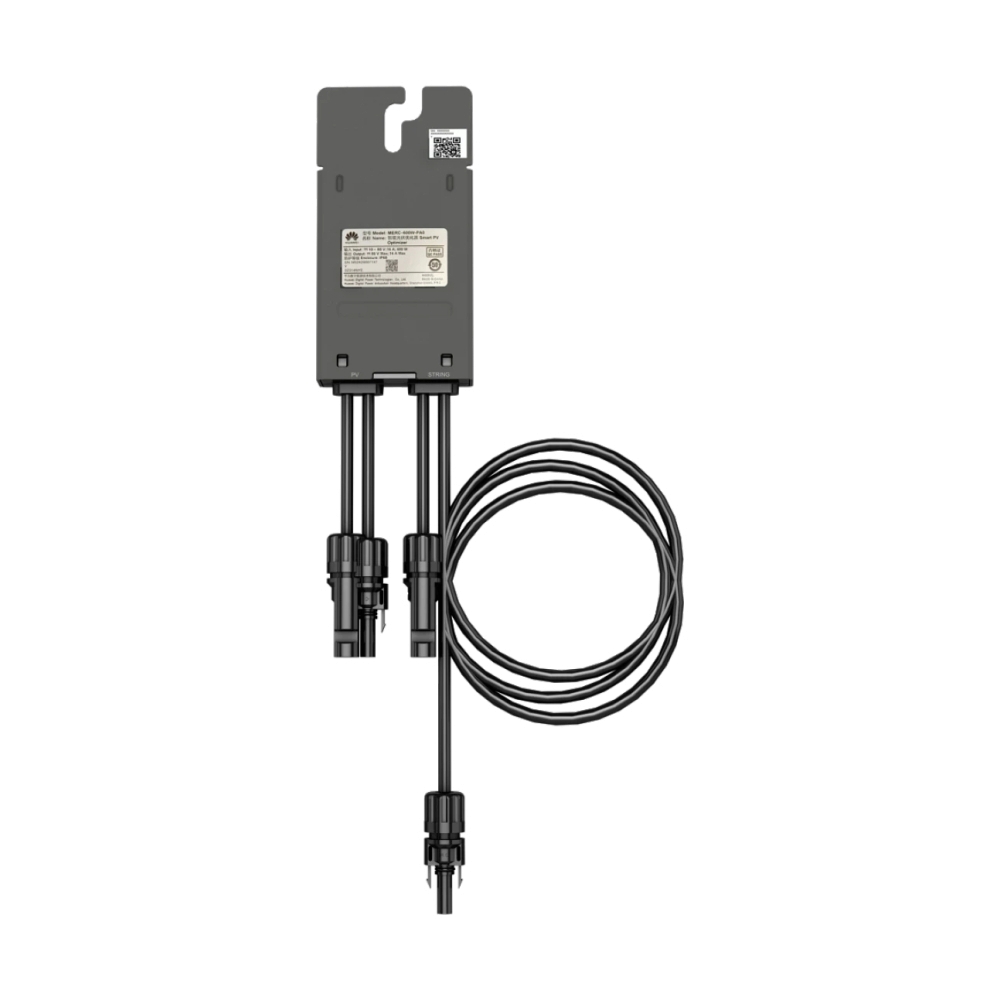

HUAWEI Smart PV Optimizer MERC-600W-PA0
- Max. input voltage : 80 V
- Max. short-circuit current : 16 A
- Rated input DC power : 600 W
- MPPT operating voltage range : 10–80 V
- Protection degree : IP 68
ข้อมูลผลิตภัณฑ์
MERC-600W-PA0
• อุปกรณ์เพิ่มประสิทธิภาพพลังงานสำหรับแผงโซลาร์เซลล์
• Rated input DC power 1 : 600 W
• Absolute max. input voltage : 80 V
• MPPT operating voltage range : 10–80 V
• Max. short-circuit current (Isc) : 16 A
• Max. efficiency : 99.5%
• Weighted efficiency : 99.0%
• Overvoltage category : II
• Max. output voltage : 80 V
• Max. output current : 16 A
• Output bypass 2 : Yes
• Output voltage during standby per optimizer : 1 V
• Communication protocol : MBUS
• Safety : IEC62109-1 (Class II Safety)
• EMC : IEC61000-6-1, IEC61000-6-2, IEC61000-6-3, IEC61000-6-4, EN • 55011:2016/A2:2021, EN62920:2017/A1:2021
• RoHS : Yes
• Fire Safety : NEC 2020
• Installation part (optional) : Frame mounting bracket / T-shaped bolt 3
• Input connector : Staubli MC4
• Input wire length : 0.1 m
• Output connector : Staubli MC4
• Output wire length : (+) 2.225 m / (-) 0.1 m
• Operating temperature/humidity range 4 : –40°C to +85°C / 0%-100%
• IP rating : IP68
