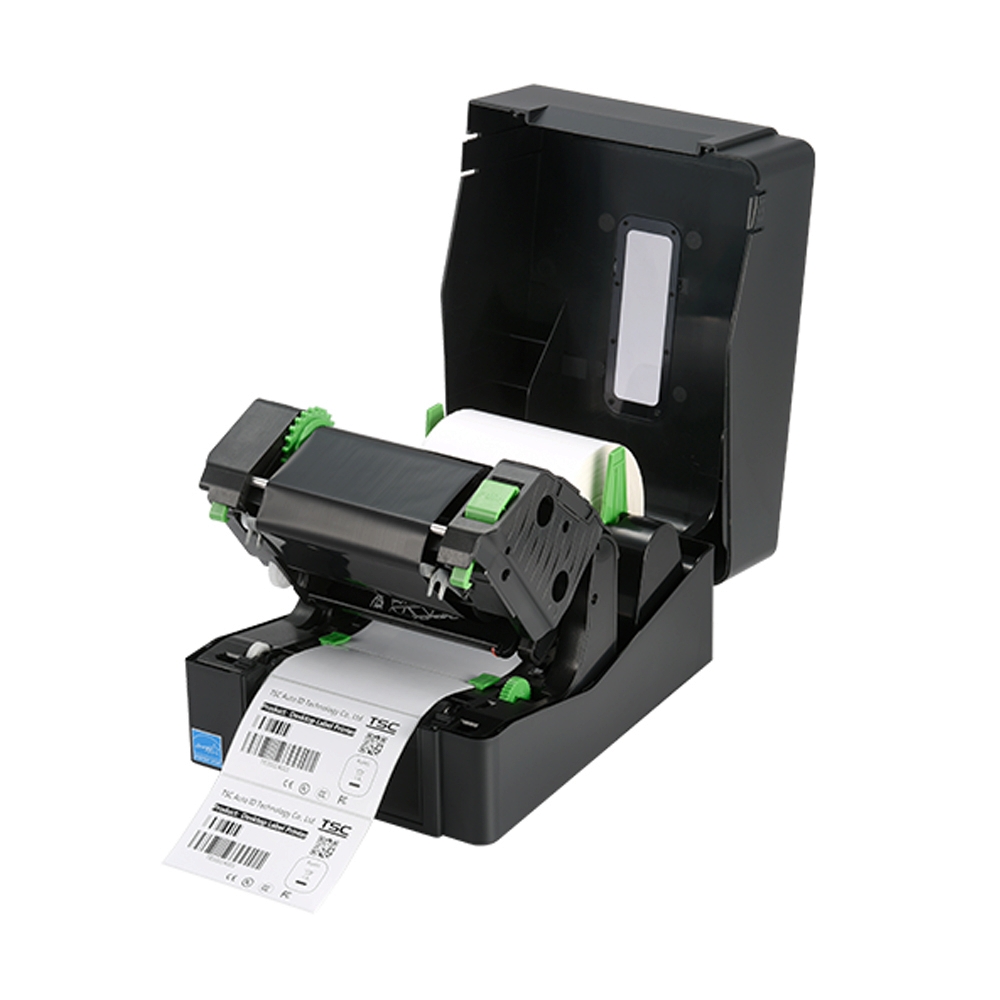

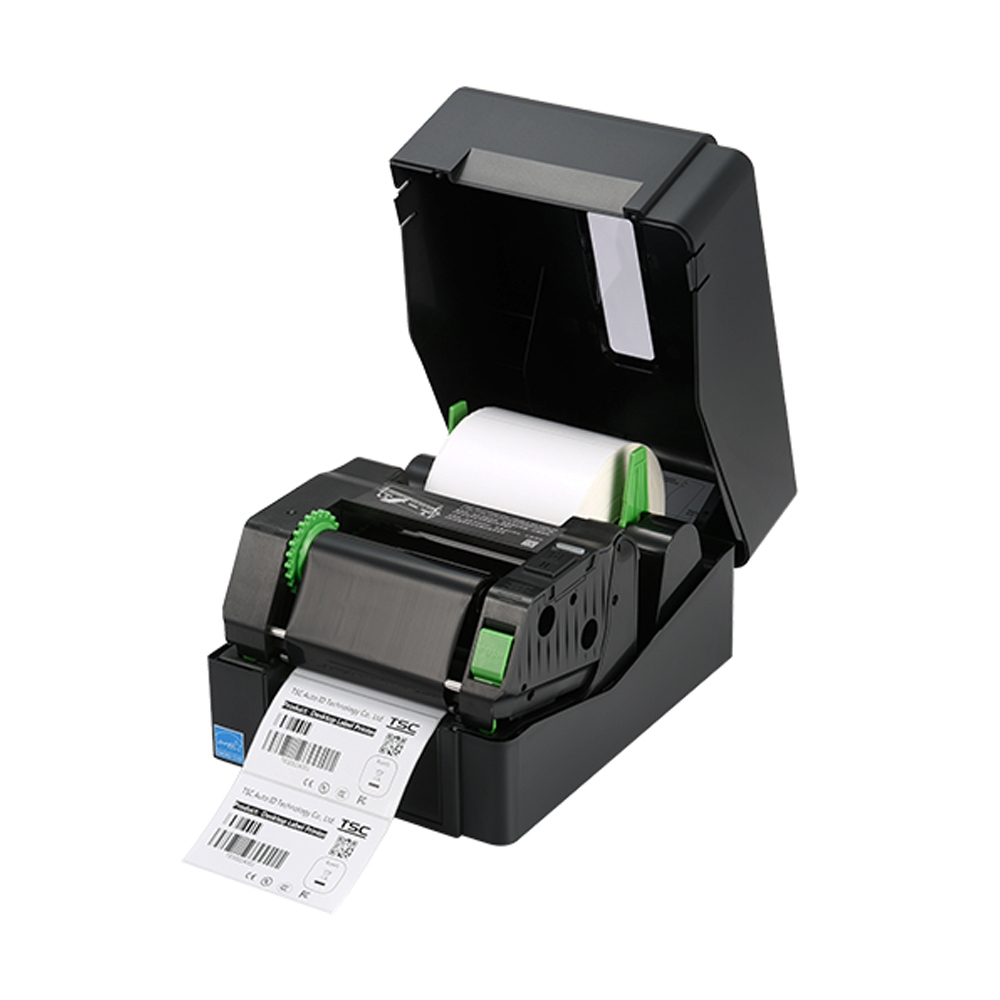

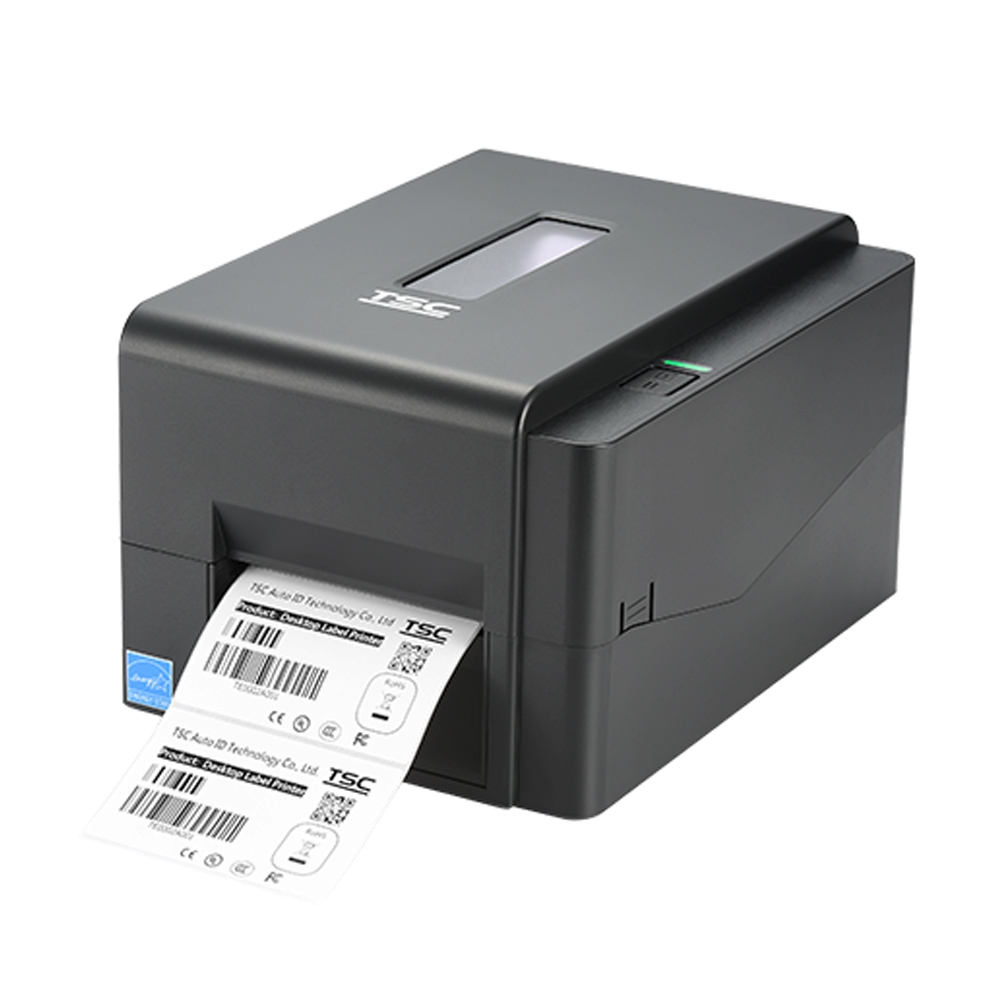

Printer Barcode TSC TE310
- Print Method : Direct Thermal & Thermal Transfer
- Resolution : 300 DPI
- Print Speed : 127 mm/วินาที
- Interface : USB / LAN / Serial
- Memory : Flash 128 MB, SDRAM 64 MB
- ใช้กับริบบอน : 110 x 300 (แกน 1 นิ้ว) (สำหรับ Thermal Transfer)
- ใช้กับกระดาษ : ความกว้าง 0.8 - 4.4 นิ้ว
- Print mechanism for kiosk applications
- Internally scalable true type fonts
- TSPL-EZD firmware emulates TPLE, TPLZ, and TPLD languages out of the box
- Free Windows® drivers and label design software (available via download)
- ENERGY STAR® qualified
ข้อมูลผลิตภัณฑ์
TE310
Direct Thermal & Thermal Transfer
400 MHz 32-bit RISC CPU
RAM 64 MB SDRAM
Flash 128 MB
300 dpi (12 dots/mm)
Up to 5 ips (127 mm/s)
4.16" (105.7 mm)
450" (11.430 mm)
Internal Label Capacity : 5" (127 mm) OD
Max. Media Width : 0.8" - 4.4" (20 - 112 mm)
Media Type : Continuous; Die-Cut; Black Mark; Fan-Fold; Notched (Outside Wound)
Media Core Diameter : 1" - 1.5" (25.4 - 38 mm)
Label length : 5 ~ 11,430 mm (0.2" ~ 450")
Max. Ribbon Length : 300 Meters
Ribbon Width : 1.6" - 4.3" (40 - 110 mm)
USB / LAN
Serial RS-232
USB Host
1 x power switch
1 x feed and pause button
1 x LED (3 colors: green, amber & red)
Transmissive gap sensor
Black mark reflective sensor (position adjustable)
Ribbon end sensor
Head open sensor
8 alpha-numeric bitmap fonts
Monotype Image® true type font engine with one CG Triumvirate Bold Condensed scalable
1D bar code
Code 128UCC, Code 128 subsets A, B, C, EAN128, Interleaved 2 of 5, Interleaved 2 of 5 with check digit, Code 39, Code 39 with check digit, Code 93, EAN13, EAN8, UPCA, UPCE, EAN and UPC 2 (5) digits add-on, Codabar, Postnet, MSI, MSI with check digit, PLESSEY, China post, ITF14, Code 11, TELEPEN, TELEPENN, PLANET, Code49, Deutsche Post Identcode, Deutsche Post Leitcode, LOGMARS
2D bar code
GS1 DataBar, GS1 DataMatrix, Maxicode, AZTEC, PDF417, QR Code, Micro PDF 417
Font and barcode rotation
0, 90, 180, 270 degree
N/A
Windows
Mac
Linux
Operation: 5 ~ 40°C, 25 ~ 85% non-condensing
Storage: -40 ~ 60°C, 10 ~ 90% non-condensing
External universal switching power supply
Input : AC 100-240V, 2.5A, 50-60Hz
Output : DC 24V, 2.5A, 60W
Enterprise Printer Management : TSC Console
Programming Languages : TSPL-EZD
• Windows labeling software CD disk
• Quick start guide
• USB cable
• Power cord
• External universal switching power supply
• 1" label spindle, fixing tab x 2, 1.5" adapter x 2
• 1" ribbon spindle x 2 for 300M ribbon
• 1" ribbon paper core
