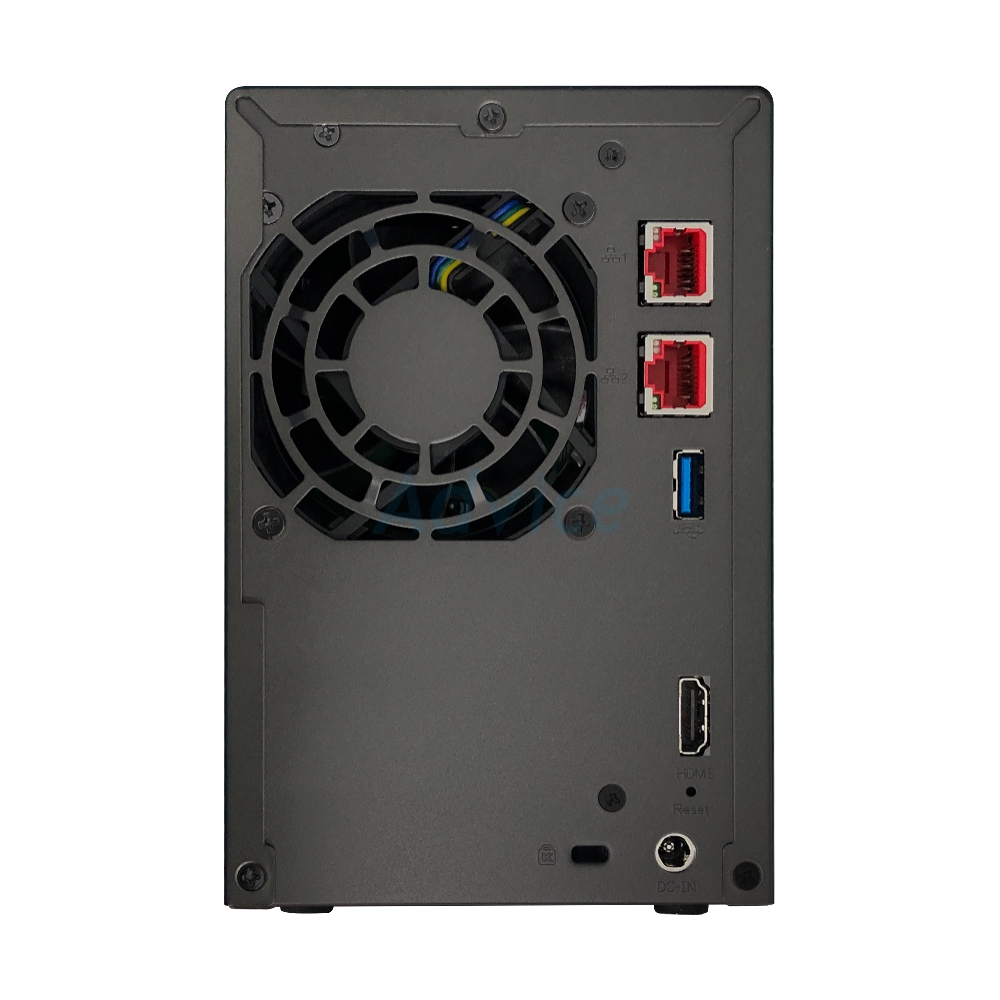

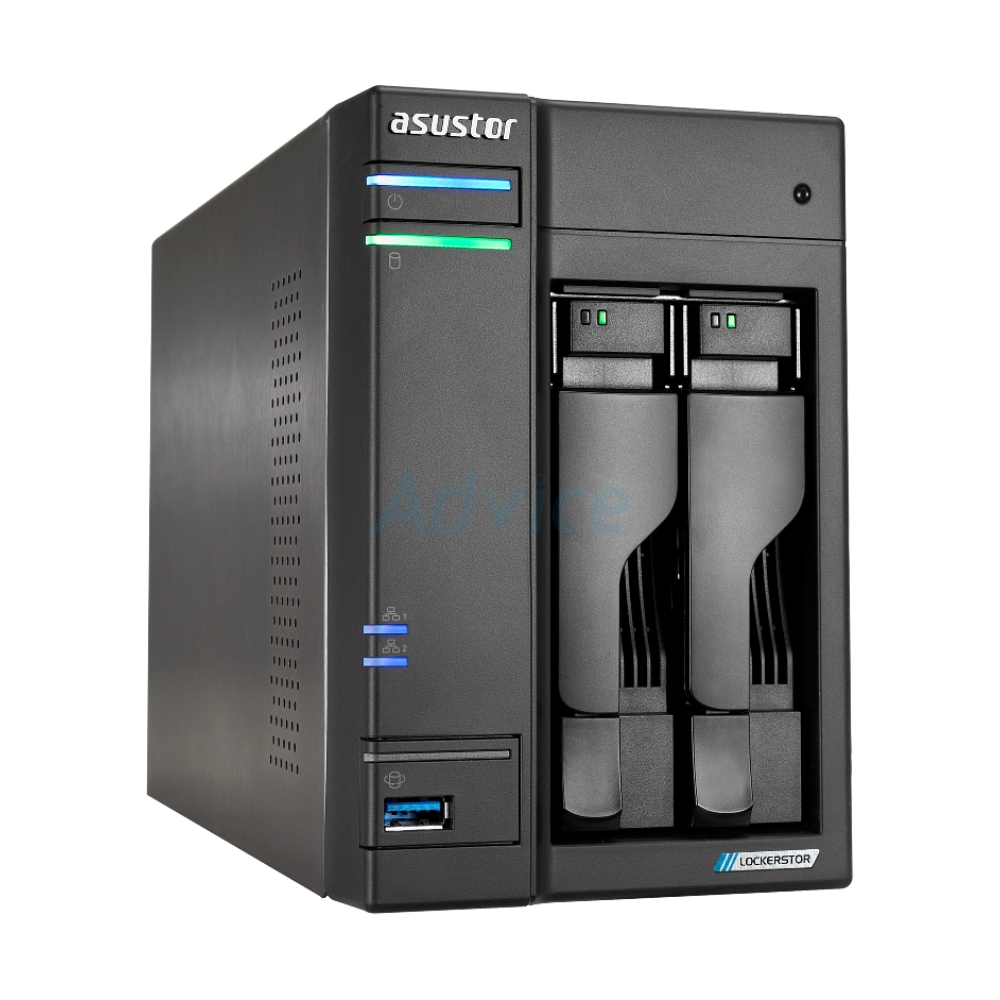

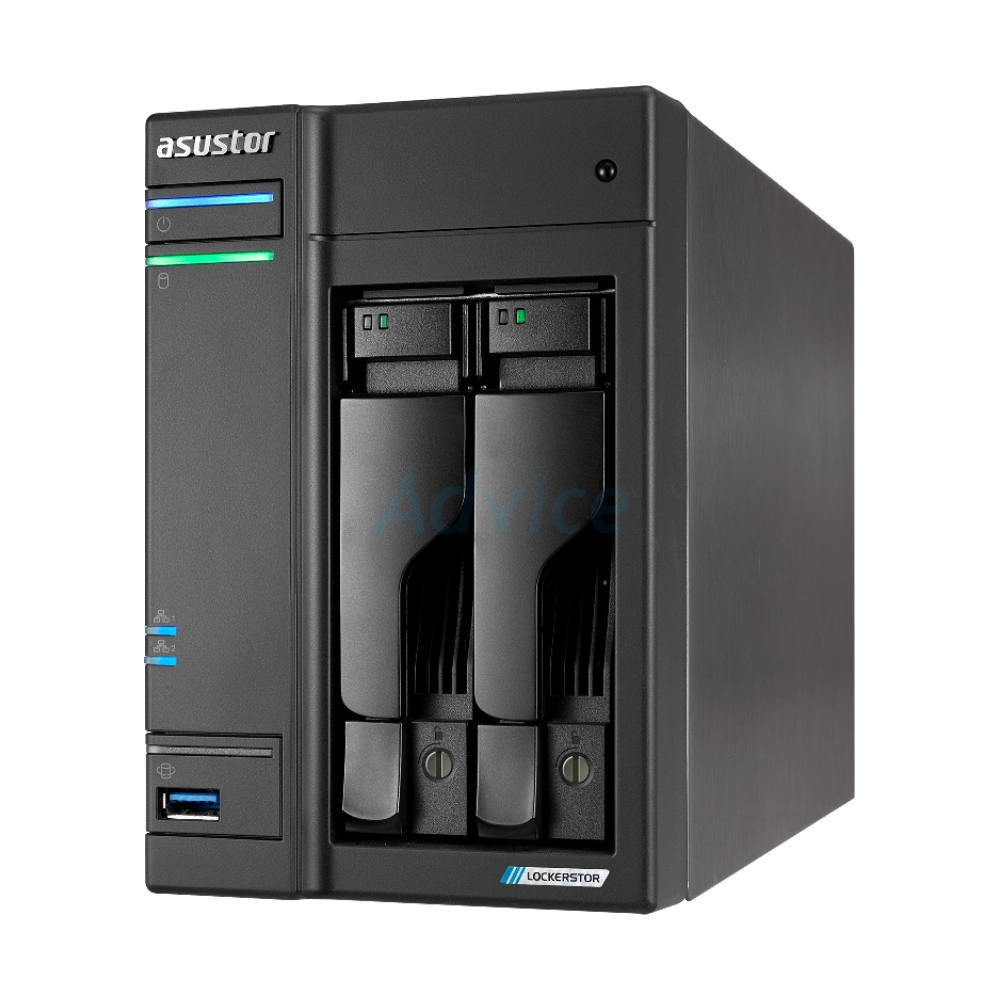

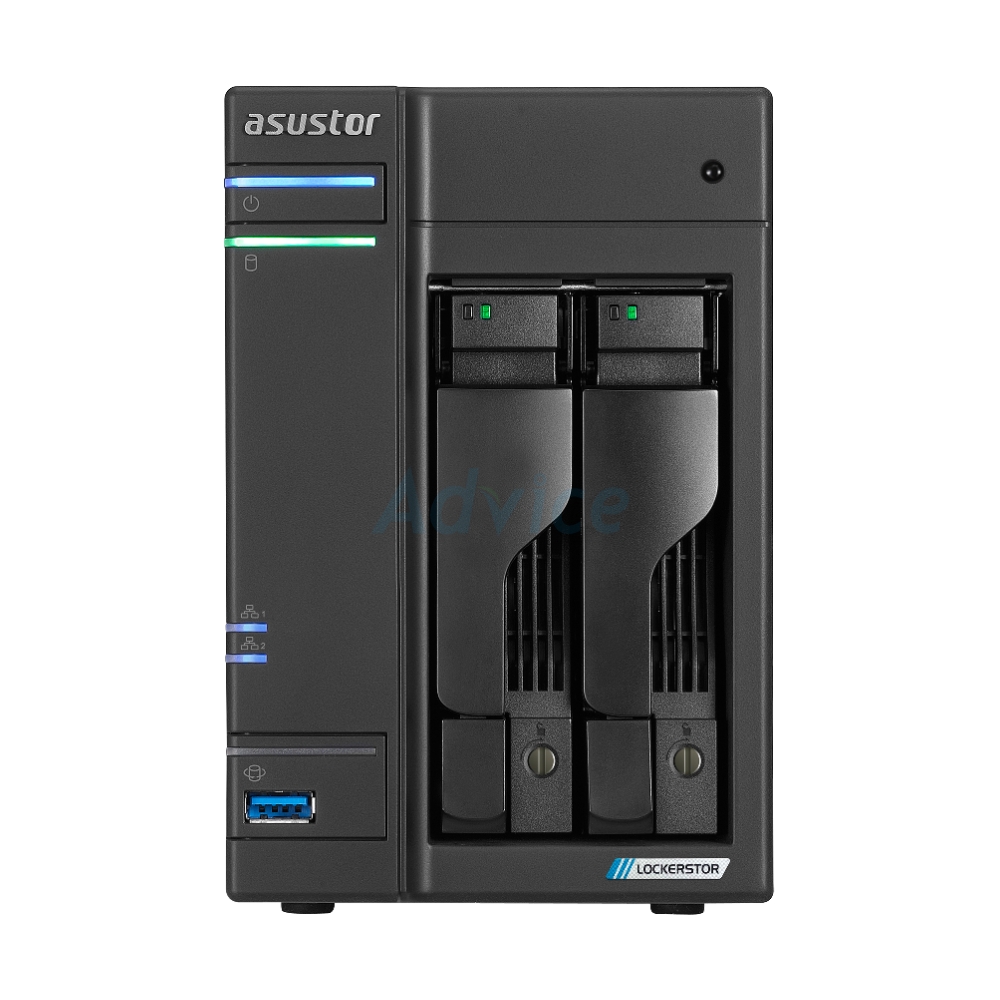

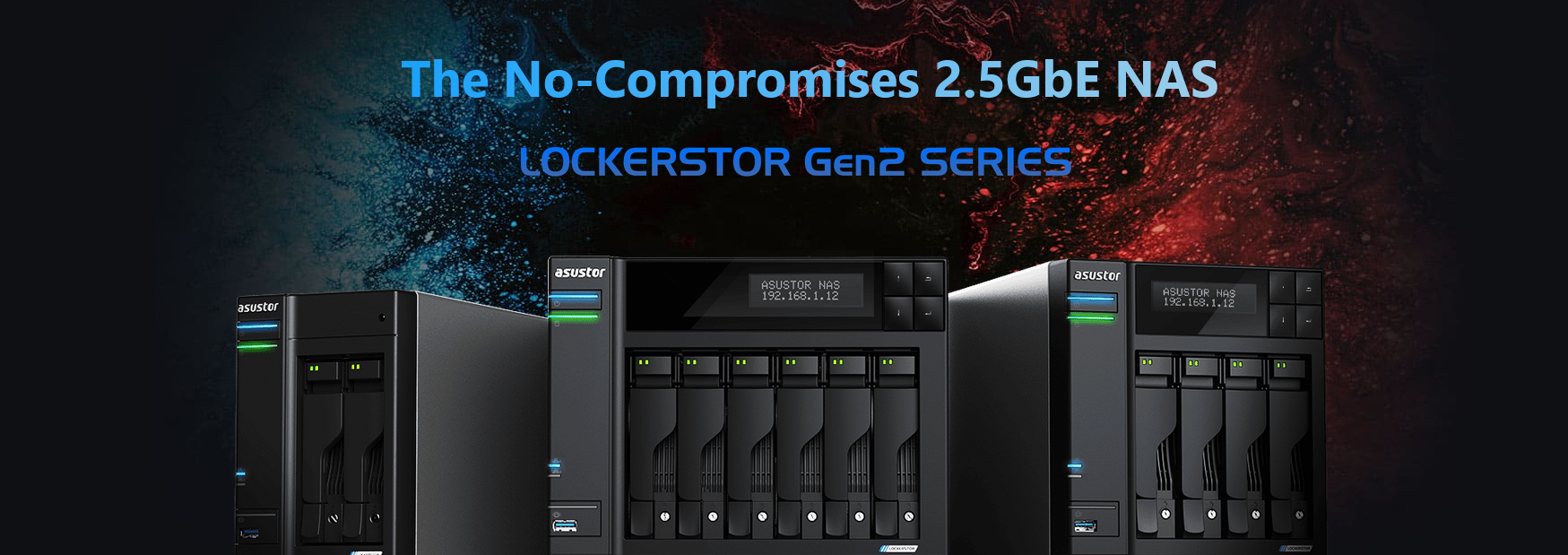

NAS Asustor (AST-AS6702T, Without HDD.)

AST-AS6702T,

• CPU Model : Intel Celeron N5105
• CPU Architecture : x64 64-bit
• CPU Frequency : Quad-Core 2.0GHz (burst up 2.90 GHz)

• ADM

• 4GB SO-DIMM DDR4

• Total Memory Slots : 2
• Memory Expandable up to : 16GB (2x 8GB)

• Drive Bays : 2
• M.2 Drive Slots : 4

• SATA SSD
• M.2 2280 NVMe

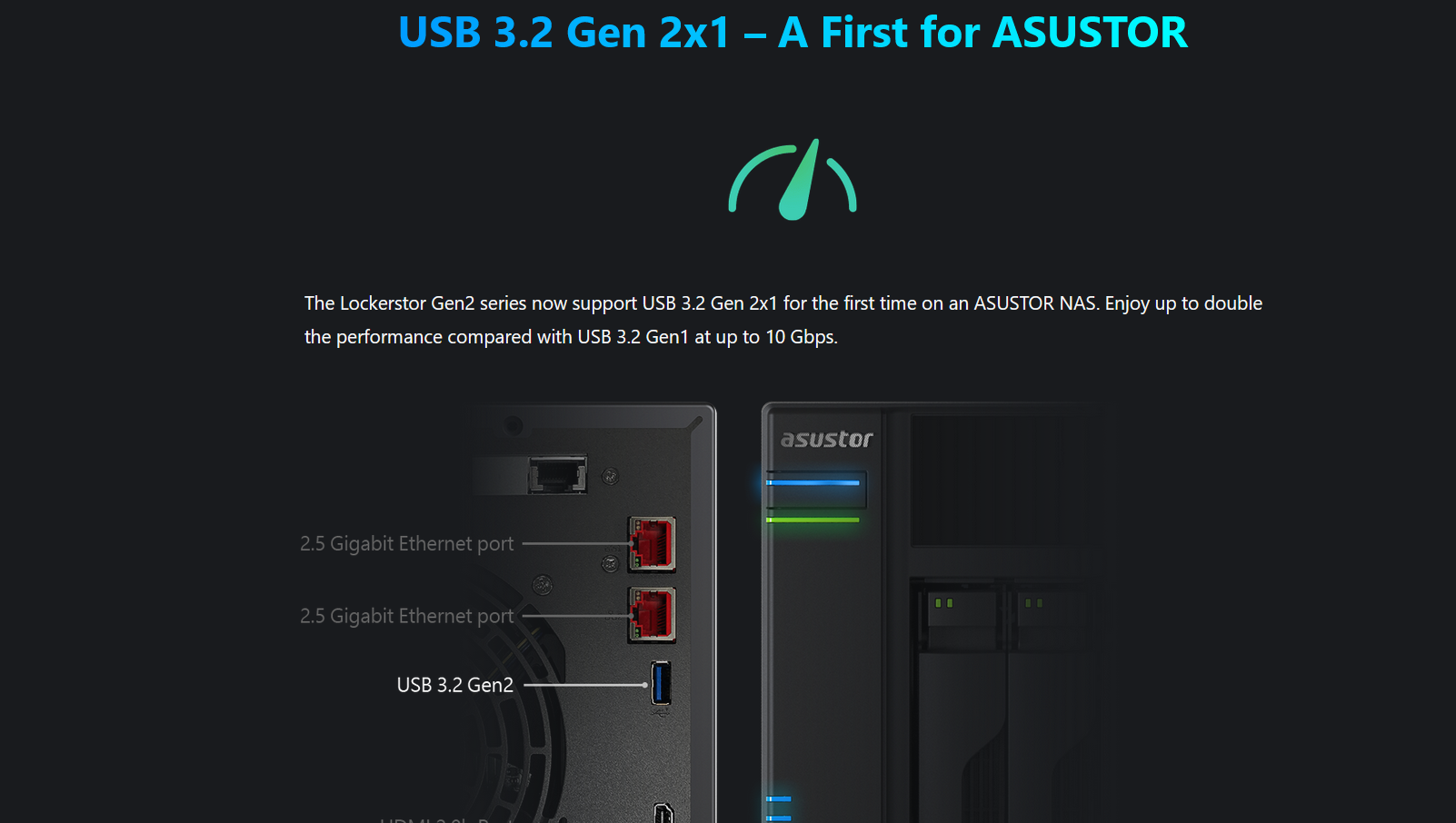

• 2x USB 3.2 Gen 2 (10Gbps)

• 2x 2.5 Gigabit Ethernet (2.5G/1G/100M)

• 2x SATA SSD
• 4x M.2 2280 NVMe PCIe 3.0 x1
• 1x HDMI 2.0b

NONE

• YES

N/A

N/A

• Single
• JBOD
• RAID 0
• RAID 1

• AES 256-Bit Encryption
• Firewall: Prevent Unauthorized Access
• Alert Notifications: E-mail, SMS
• Encrypted Connections: HTTPS, FTP over SSL/TLS, SSH, SFTP, Rsync over SSH
• Built-in Hardware Encryption Engine

• Windows 10, 11, Server 2016, Server 2019, Server 2022
• macOS
• UNIX, Linux, and BSD

• Web-based File Management
• ISO File Mounting
• Share Links
• Task Monitor
• Browse Files on Local PC
• Thumbnail Previews
• Data Access via External Optical Drive
• Supports video playback

• Internal Drive: EXT4 ,Btrfs
• External Drive: FAT32, NTFS, EXT3, EXT4, HFS+, exFAT ,Btrfs

• SMB / CIFS
• AFP
• NFS
• FTP และ FTPS
• SFTP
• WebDAV
• iSCSI / IP-SAN

N/A

• เพลิดเพลินกับการดาวน์โหลด อัปโหลด และสตรีมเนื้อหาด้วยการแปลงรหัส 4K
• เพิ่มการระบายอากาศสำหรับ SSD
• รองรับ Wake on LAN และ Wake on WAN

• 1x 70mm

• 100V to 240V AC

• 21 W (Operation);
• 13.5 W (Disk Hibernation)
• 0.79 W (Sleep Mode)

• Operation Temperature : 0°C~40°C (32°F~104°F)
• Storage Temperature :  -20°C~70°C (-4°F~158°F)

• FCC, CE, VCCI, BSMI, C-TICK, KCC, BIS, CCC, UKCA

• 1x AS6702T Unit
• 1x AC Power Cord
• 1x AC Power Adapter
• 2x RJ-45 LAN Cable(Cat 5e)
• 8x Flat Head Screw (for 3.5" HDD)
• 8x Flat Head Screw (for 2.5" HDD)
• Power Cord Bracket
• Quick Installation Guide
