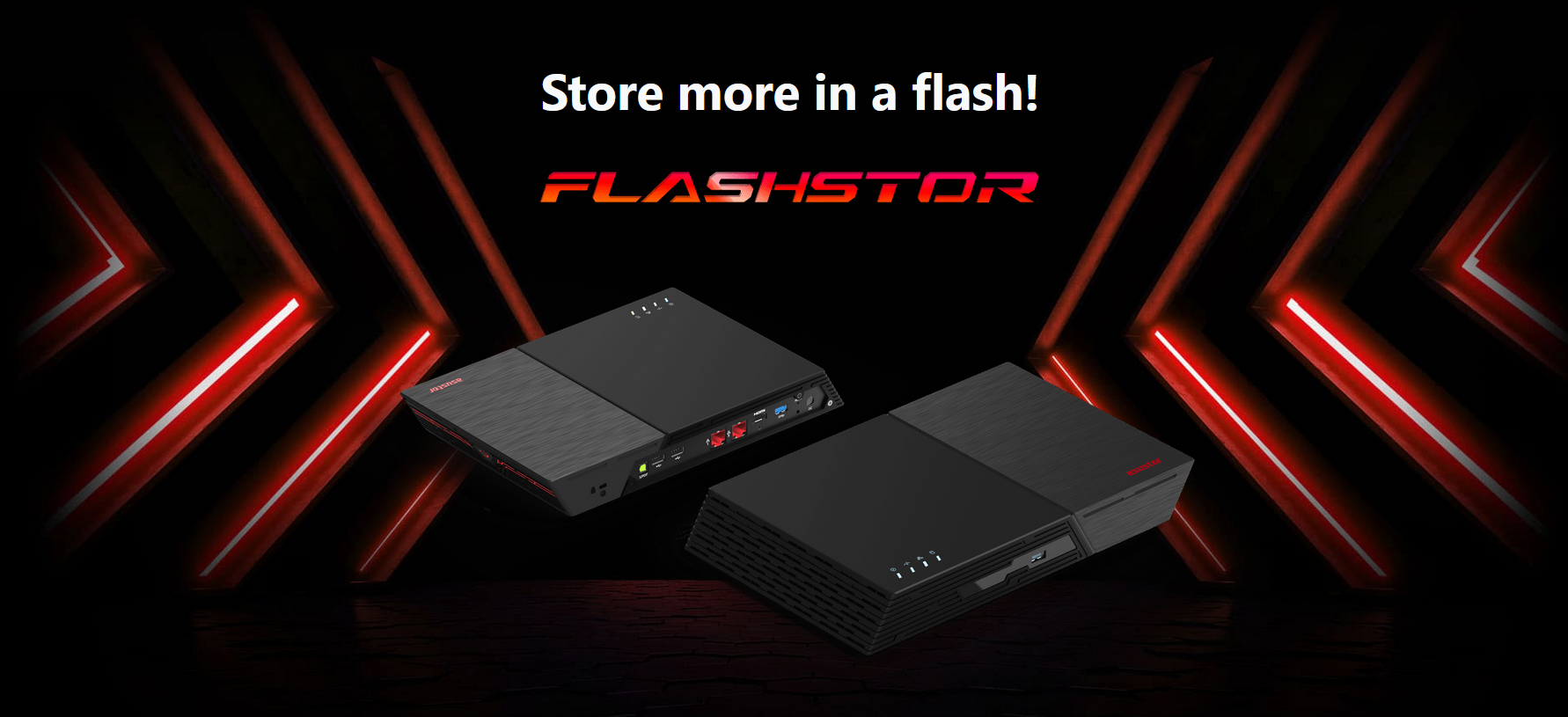

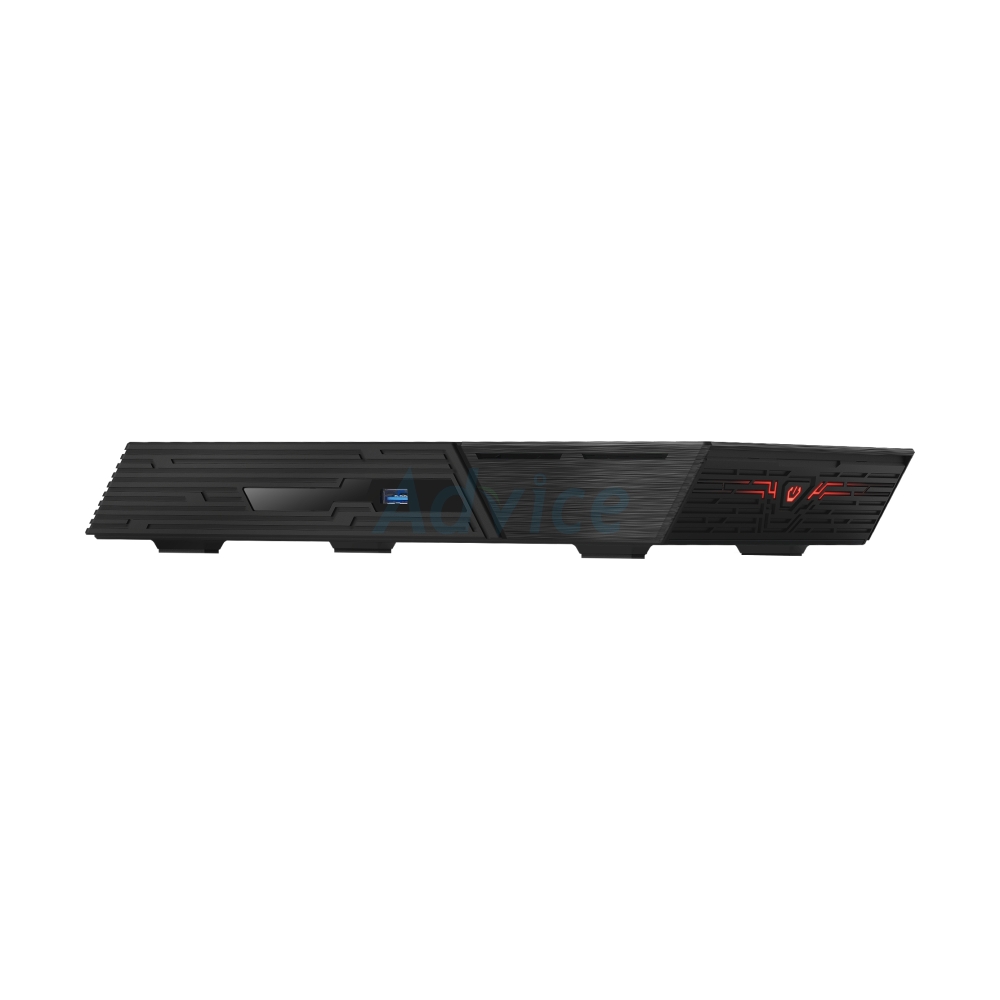

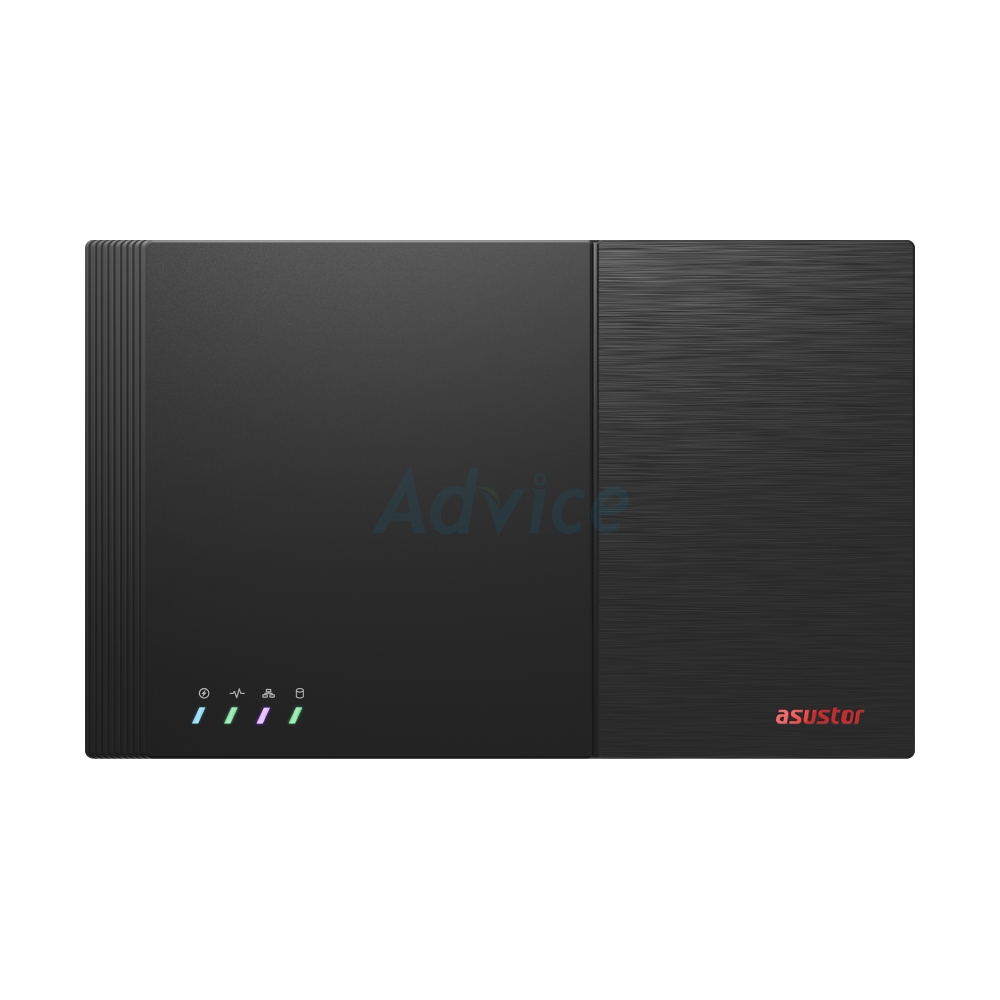

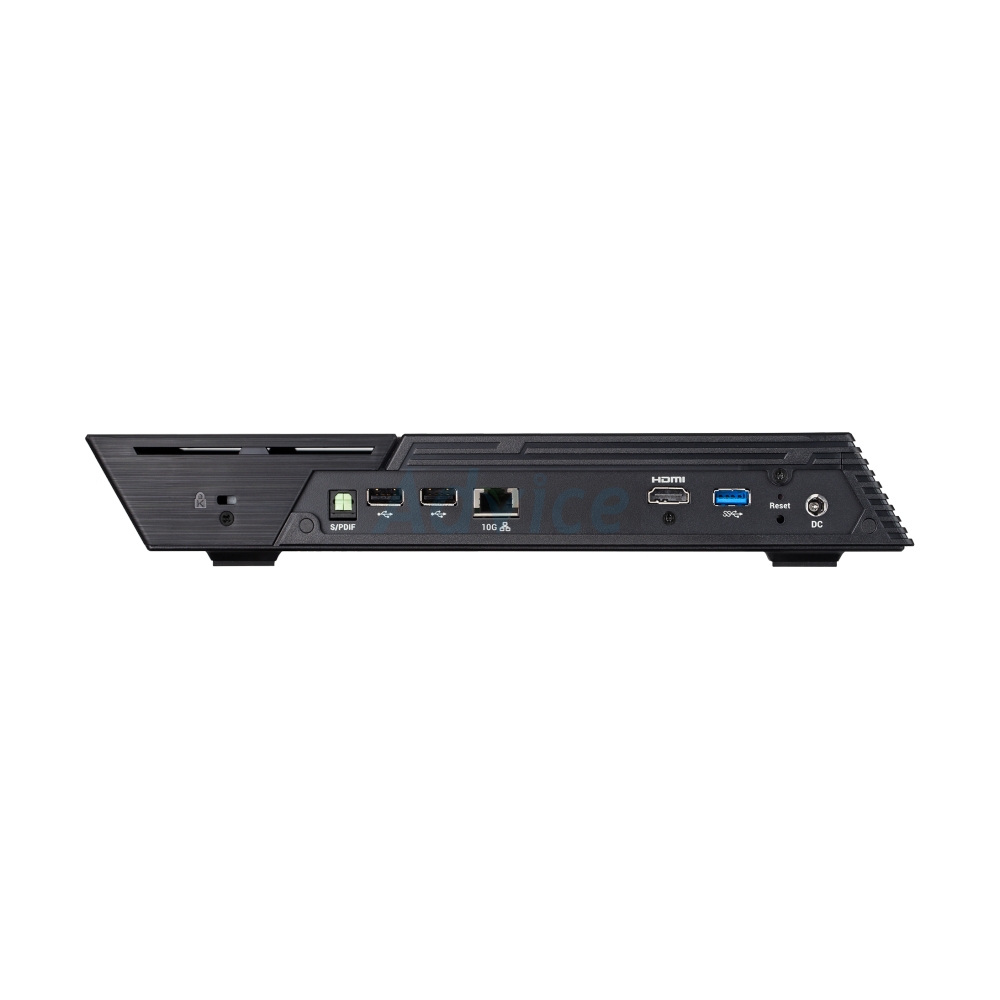

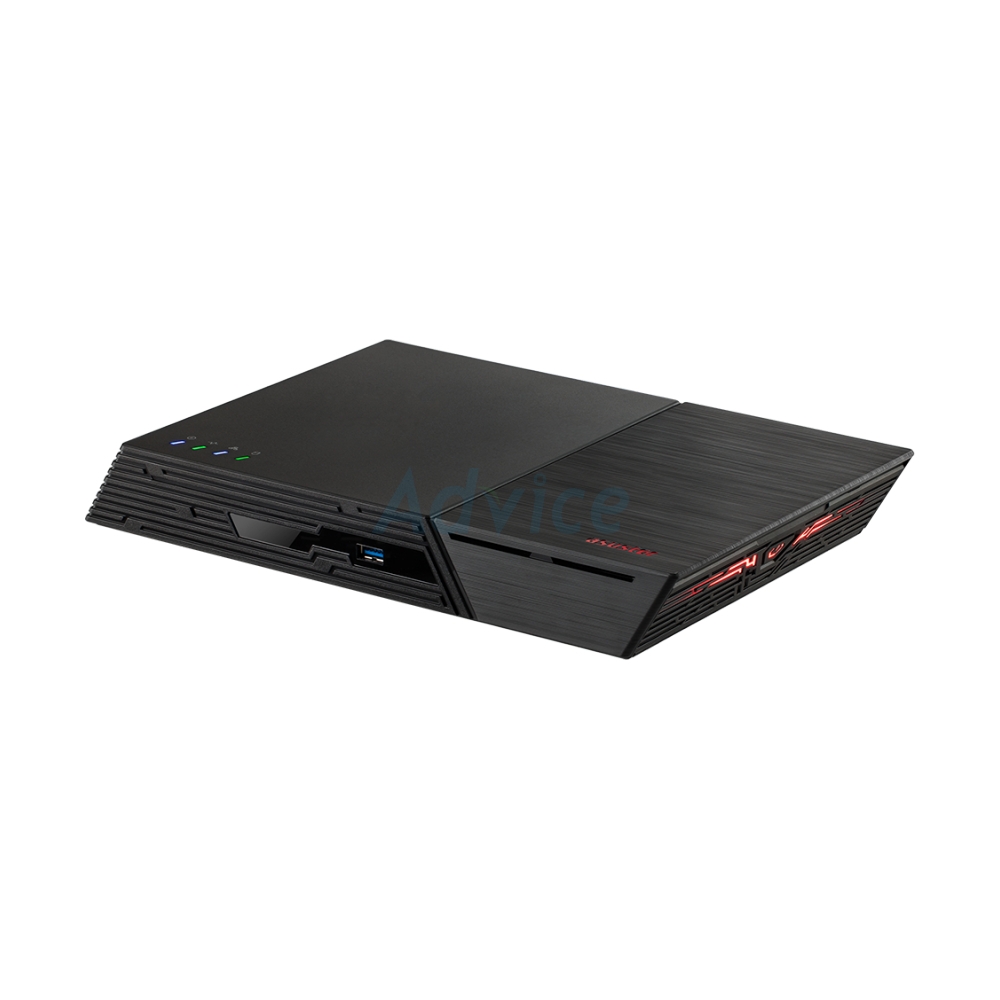

NAS Asustor (AST-FS6712X, Without HDD.)

AST-FS6712X

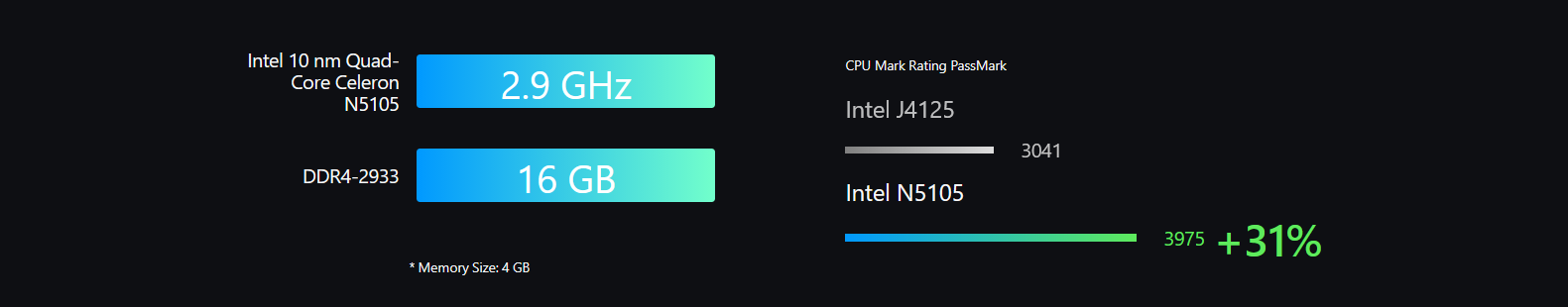

• CPU Model :  Intel Celeron N5105
• CPU Architecture  : x64 64-bit
• CPU Frequency : Quad-Core 2.0GHz (burst up 2.90 GHz)

• ADM

• 4GB SO-DIMM DDR4

• Total Memory Slots : 2
• Memory Expandable up to : 16GB (2x 8GB)

• 12

• 12x M.2 2280 NVMe

• 2x USB 3.2 Gen 2 (10Gbps)
• 2 x USB 2.0

• 1x 10 Gigabit Ethernet (10G/5G/2.5G/1G/100M/10M)

• 12x  PCIe 3.0 x1
• 1x HDMI 2.0b
• 1x S/PDIF

N/A

N/A

N/A

N/A

• Single
• JBOD
• RAID 0
• RAID 1
• RAID 5
• RAID 6
• RAID 10

• ES 256-Bit Encryption
• Firewall: Prevent Unauthorized Access
• Alert Notifications: E-mail, SMS
• Encrypted Connections: HTTPS, FTP over SSL/TLS, SSH, SFTP, Rsync over SSH
• Built-in Hardware Encryption Engine: AS10/11/31/32/33/40/52/53/54/6/61/62/63/64/65/66/67/70/71/FS67 Series
• RAID Scrubbing: detects the integrity and consistency of RAID 5 and RAID 6 drive data.

• Windows 10, 11, Server 2016, Server 2019, Server 2022
• macOS
• UNIX, Linux, and BSD

• Web-based File Management
• ISO File Mounting
• Share Links
• Task Monitor
• Browse Files on Local PC
• Thumbnail Previews
• Data Access via External Optical Drive
• Supports video playback

• Internal Drive: EXT4 ,Btrfs
• External Drive: FAT32, NTFS, EXT3, EXT4, HFS+, exFAT ,Btrfs

• SMB / CIFS
• AFP
• NFS
• FTP และ FTPS
• SFTP
• WebDAV
• iSCSI / IP-SAN

N/A

• เอาต์พุต S/PDIF เพื่อคุณภาพเสียงที่น่าทึ่ง
• การแปลงรหัสฮาร์ดแวร์ 4K ที่ราบรื่น
• รองรับ Wake on LAN

• 1x 80mm

• 1100V to 240V AC

• 126 W

• Operation Temperature : 0°C~40°C (32°F~104°F)
• Storage Temperature :  -20°C~70°C (-4°F~158°F)

• FCC, CE, VCCI, BSMI, C-TICK, KCC, BIS, CCC, UKCA

• 1x AST-FS6712X Unit
• 1x AC Power Cord
• 1x AC Power Adapter
• 2x 10GbE LAN Cable(Cat 6a)
• Power Cord Tie
• Quick Installation Guide
