ข้อมูลสินค้ากล้องวงจรปิด 3.6mm HDCVI DAHUA HFW1200RLP-IL-A
DAHUA

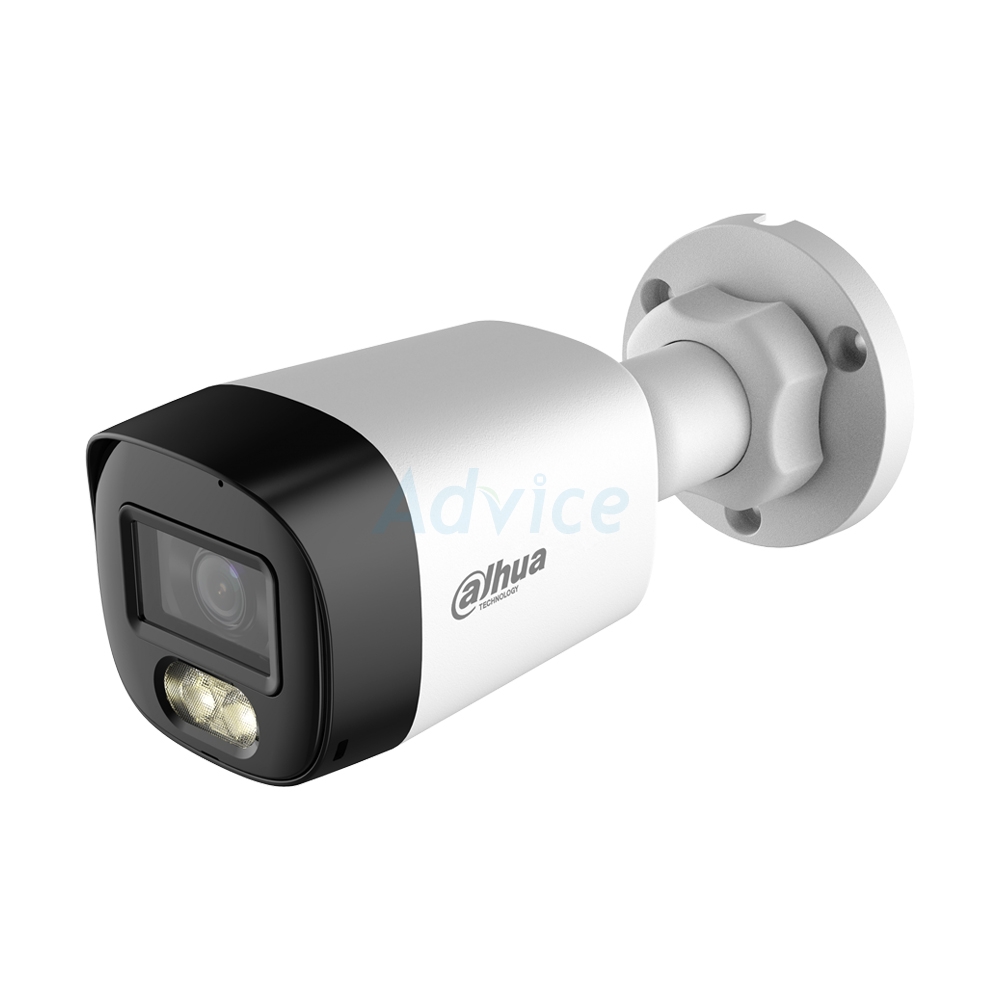

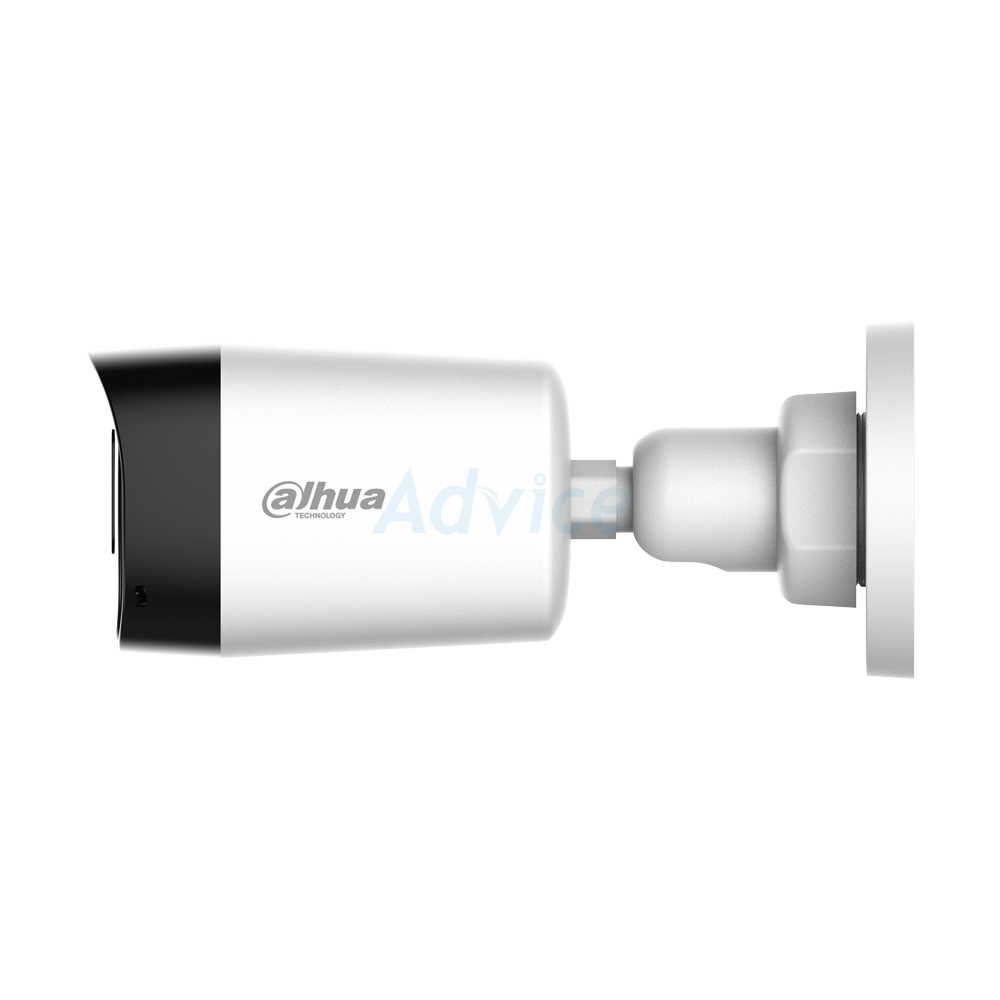

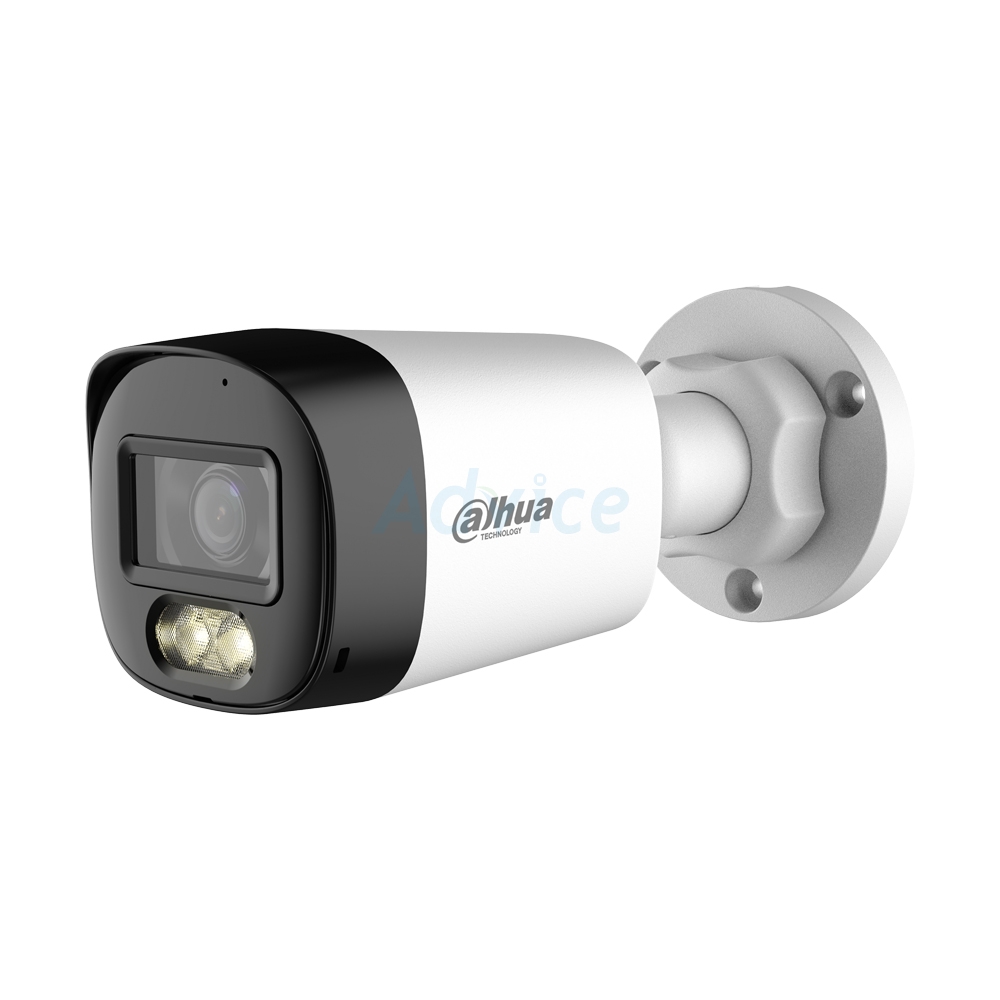

กล้องวงจรปิด 3.6mm HDCVI DAHUA HFW1200RLP-IL-A
ประกัน 3 ปี
รหัสสินค้า: A0178964
- Image Sensor : 2MP , CMOS
- Max. Resolution : 1080P (1920×1080)
- Lens Type : 3.6mm
- Video Output : AHD/CVI/TVI/CVBS Switch
- IR Distance : 30m
- Frame Rate : 25/30fps@1080P
- Day/Night Mode : Auto(ICR)/Color/B/W
- Audio Port : Built-in mic
- Protection : IP67
- Casing Material : Plastic
ราคาหน้าร้าน ฿520
ข้อมูลผลิตภัณฑ์
BrandDAHUA
Model
HFW1200RL-IL-A
Image Sensor
• 2MP ,CMOS
Lens
• 3.6mm
Lens Mount
• M12
Angle of View
• H : 83°
• V : 48°
• D : 105°
Adjustment Angle
• Pan: 0°–360°
• Tilt: 0°–90°
• Rotation: 0°–360°
Shutter
• PAL : 1/25 s–1/100,000 s
• NTSC : 1/30 s–1/100,000 s
Min. Illumination
• 0.01 [email protected] (Color, 30 IRE)
• 0.001 [email protected] (B/W, 30 IRE)
• 0 lux (Illuminator on)
IR
• 30m
Video Resolution
• 1920 (H) × 1080 (V)
Video Compression
N/A
Frame Rate
• 25/30 fps
Audio
• Built-in Mic
Interface
N/A
Functions
N/A
Power
• 12 VDC (±30%)
Power Consumption
• Max 2.6 W (12 VDC, IR on)
Working Environment
• Operating Temperature : –40 °C to +60 °C (–40 °F to +140 °F)
• Operating Humidity : <95% (RH), non-condensing
• Storage Temperature : –40 °C to +60 °C (–40 °F to +140 °F)
• Storage Humidity : <95% (RH), non-condensing
Ingress Protection
• IP67
Material
• Plastic
Package Contents
N/A
