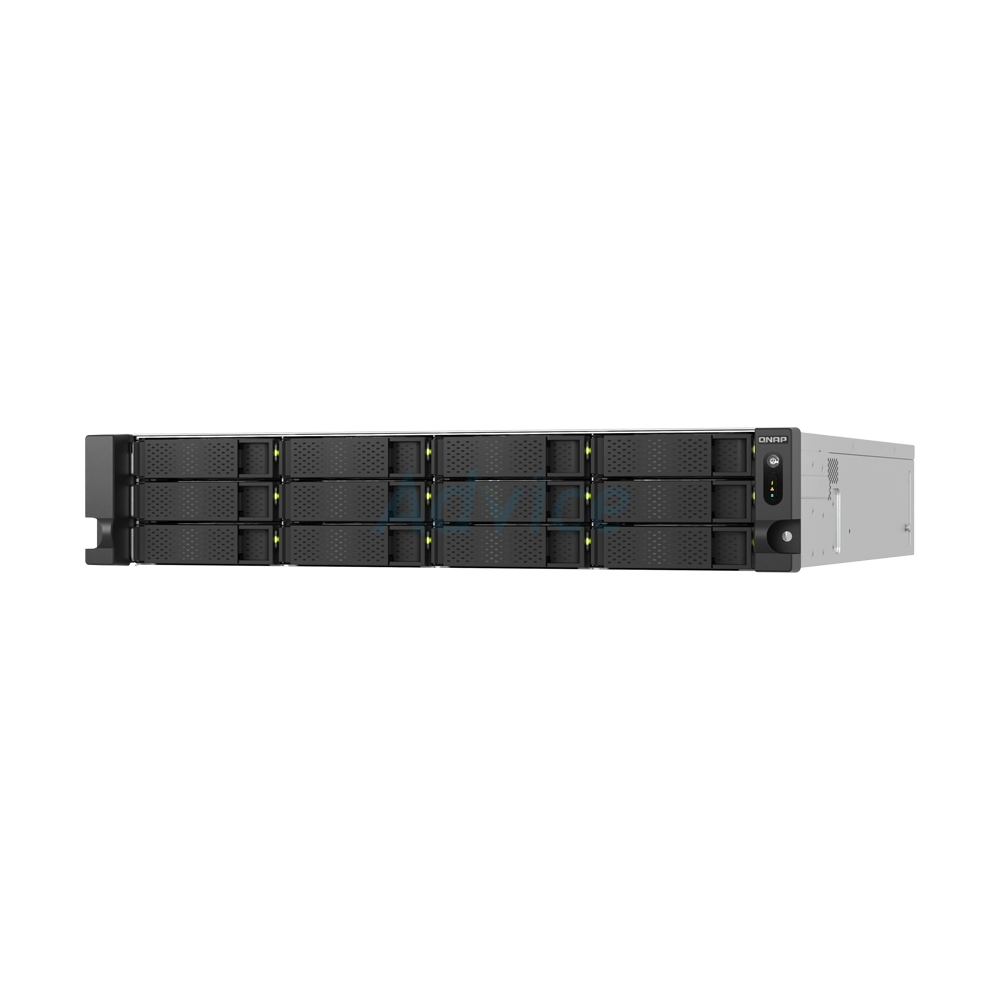

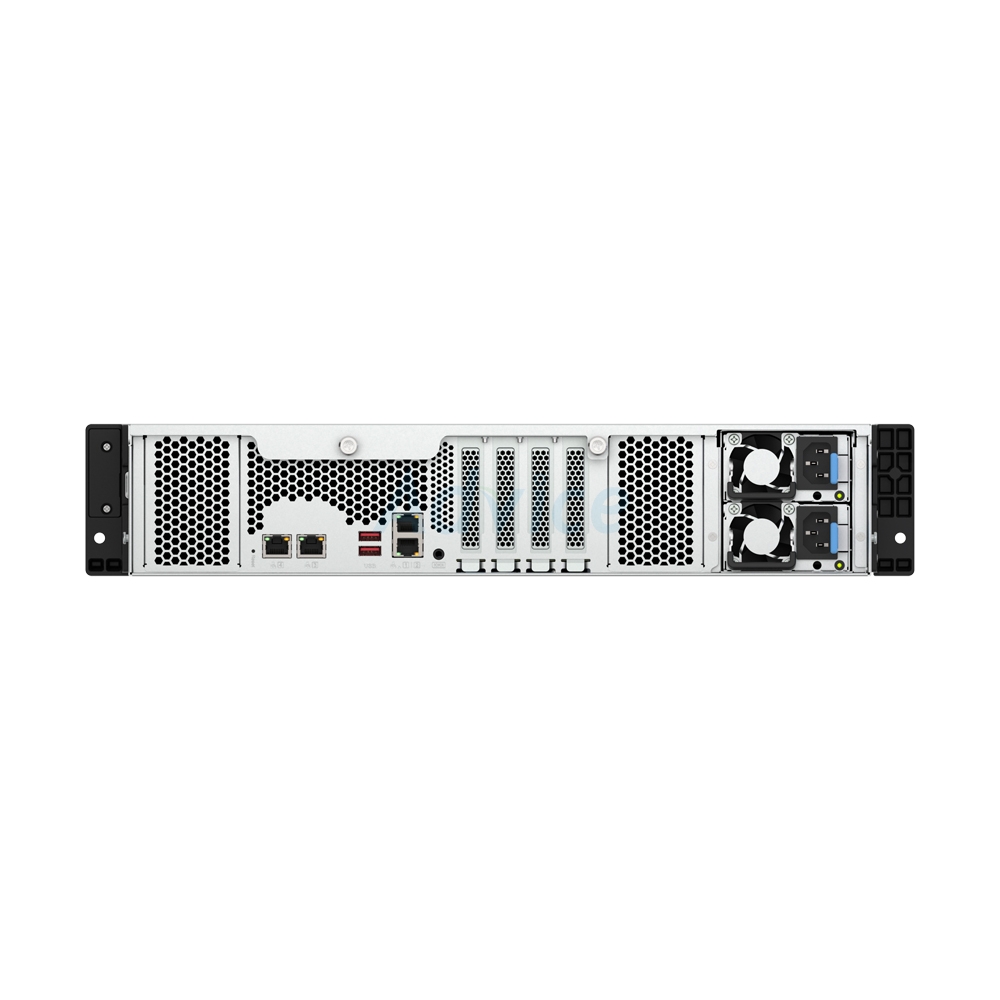

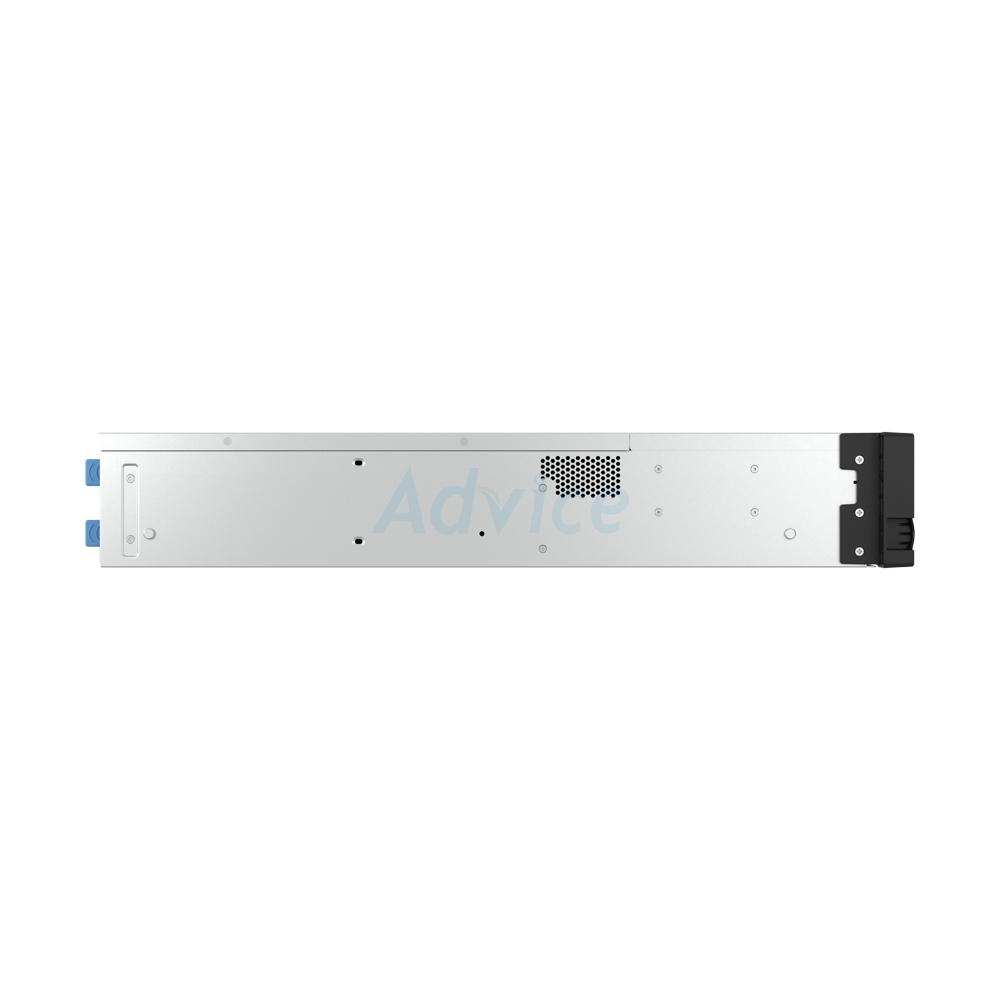

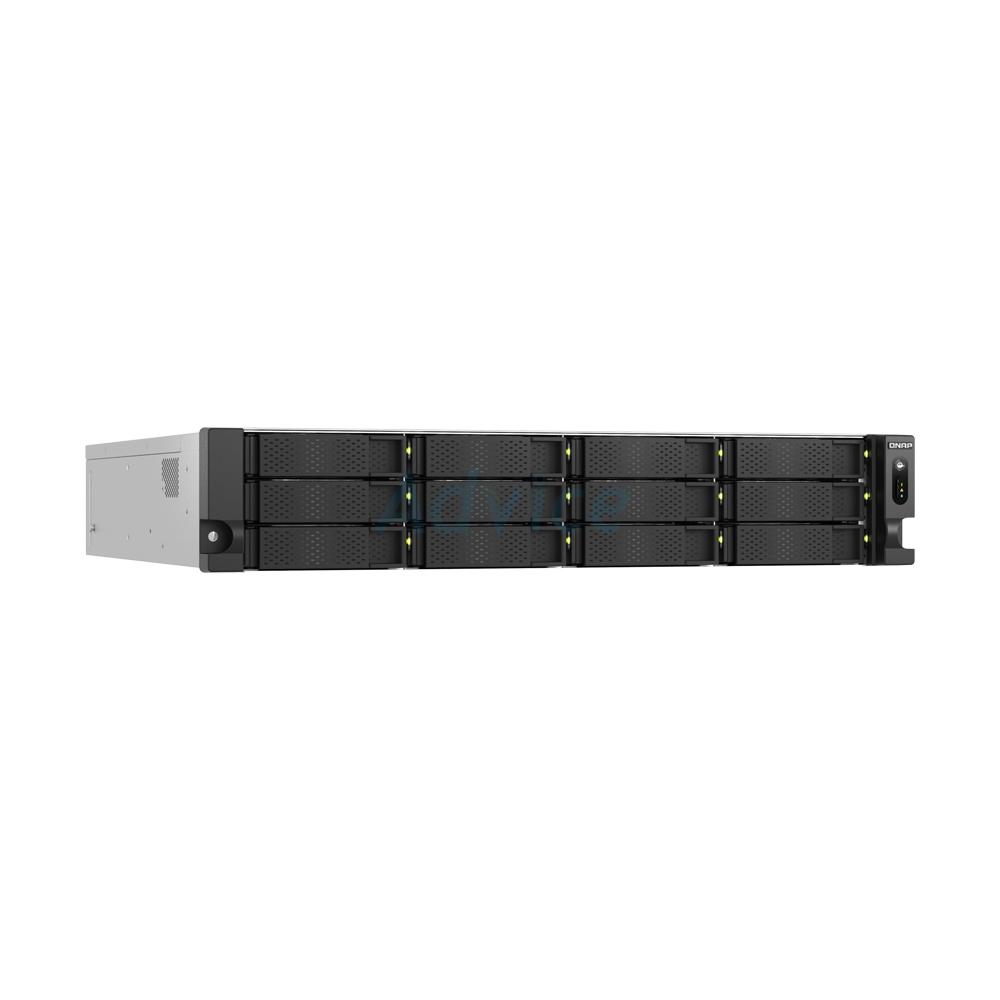

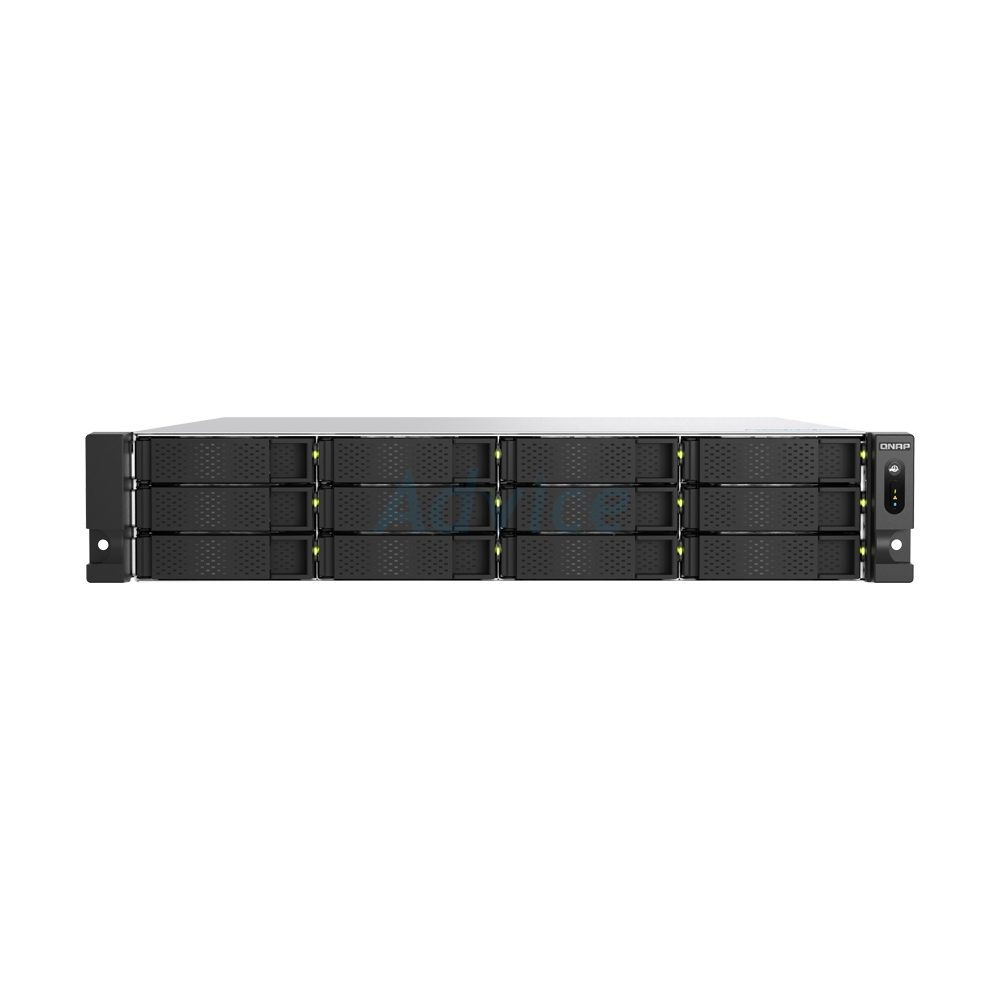

NAS QNAP (TS-h1277AXU-RP-R7-32G, Without HDD.)

TS-h1277AXU-RP-R7-32G

• AMD Ryzen™ 5 7000 series 6-core/12-thread processor, burst up to 5.1 GHz

• QTS

• 32 GB UDIMM DDR5

• 4 x UDIMM DDR5 (Support optional ECC memory)
• Maximum Memory : 192 GB (4 x 48 GB)

• 12

• 12x 3.5-inch SATA 6Gb/s, 3Gb/s

• 2x Type-A USB 3.2 Gen 2 10Gbps

• 2x (2.5G/1G/100M/10M)
• 2x 10GBASE-T (10G/5G/2.5G/1G/100M)

• 2x M.2 2280 PCIe Gen 5 x2
• 3x PCIe Gen 4 x 4

NONE

• Power Status, HDD 1-12, M.2 SSD 1-2, Status, LAN, storage expansion port status

• Power, Reset

N/A

• 8-bay (and more): JBOD, Single, RAID 0, 1, 5, 6, 10, 50, 60
• 6-bay: JBOD, Single, RAID 0, 1, 5, 6, 10, 50
• 4-bay: JBOD, Single, RAID 0, 1, 5, 6, 10
• 2-bay: JBOD, Single, RAID 0, 1

• Domain Security
• Security Counselor

• Apple Mac OS 10.10 or later
• Ubuntu 14.04, CentOS 7, RHEL 6.6, SUSE 12 or later Linux
• IBM AIX 7, Solaris 10 or later UNIX
• Microsoft Windows 7, 8, 10 and 11
• Microsoft Windows Server 2008 R2, 2012, 2012 R2, 2016, 2019 and 2022

• User customization, Central

• File sharing across Windows, Mac, and Linux/UNIX
• Microsoft networking (CIFS/SMB)
• Apple networking (AFP)
• NFS version 2/3/4/4.1 services

N/A

N/A

• สล็อต M.2 PCIe Gen 5 แบบคู่
• 2.5GbE และ 10GbE เป็นมาตรฐาน
• พื้นที่จัดเก็บระดับเพตะไบต์

• System fan: 3 x 60mm, 12VDC

• 550W(x2), 100-240V

• Power Consumption: Disk Standby Mode : 82.247 W
• Power Consumption: Operating Mode, Typical  : 367.65 W

• Operating Temperature : 0 - 40 °C (32°F - 104°F)
• Storage Temperature : -20 - 70°C (-4°F - 158°F)

N/A

• 1x TS-h1277AXU-RP
• 1x 10Gbase-T Ethernet cable
• 48x Flat head screw (for 2.5" HDD )
• 36x Flat head screw (for 3.5" HDD)
• 2x Power cord
• Quick Installation Guide (QIG)
