ข้อมูลสินค้าเครื่องบันทึก DVR 32CH. HDCVI DAHUA XVR5232AN-5M-I3/T

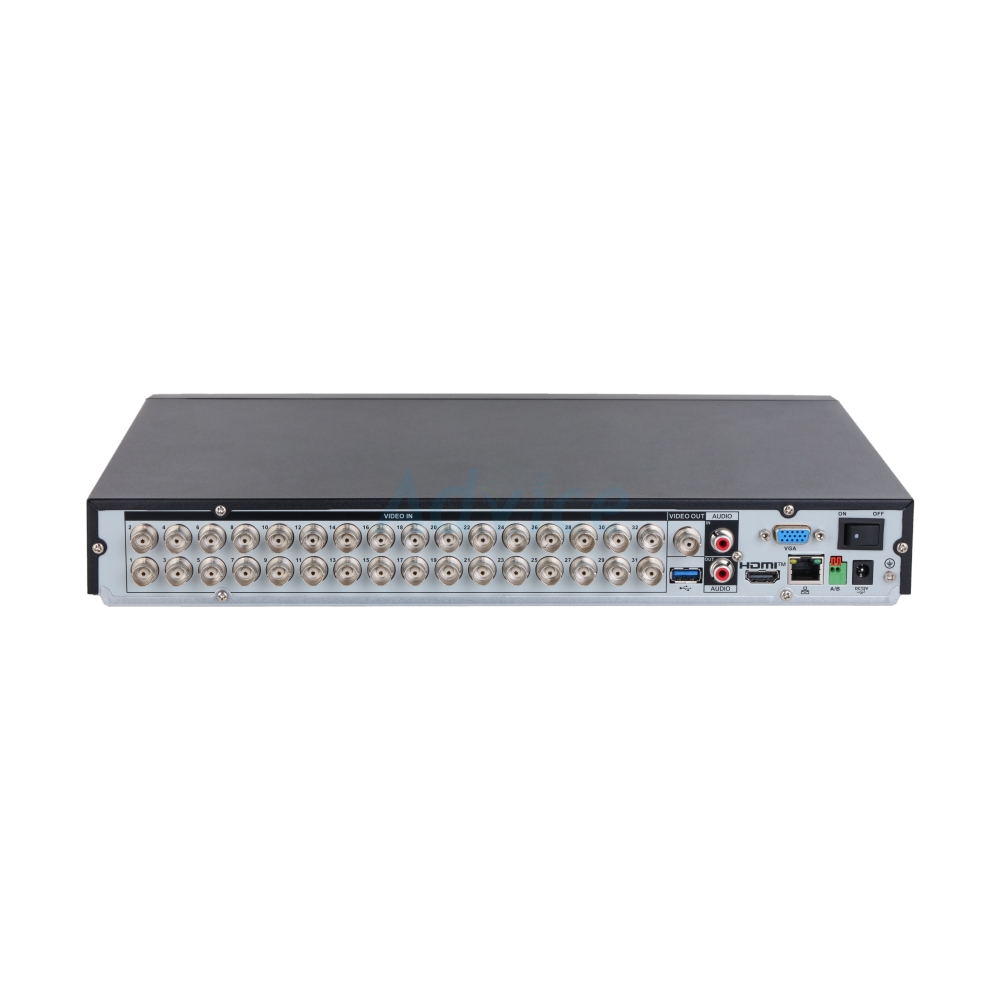

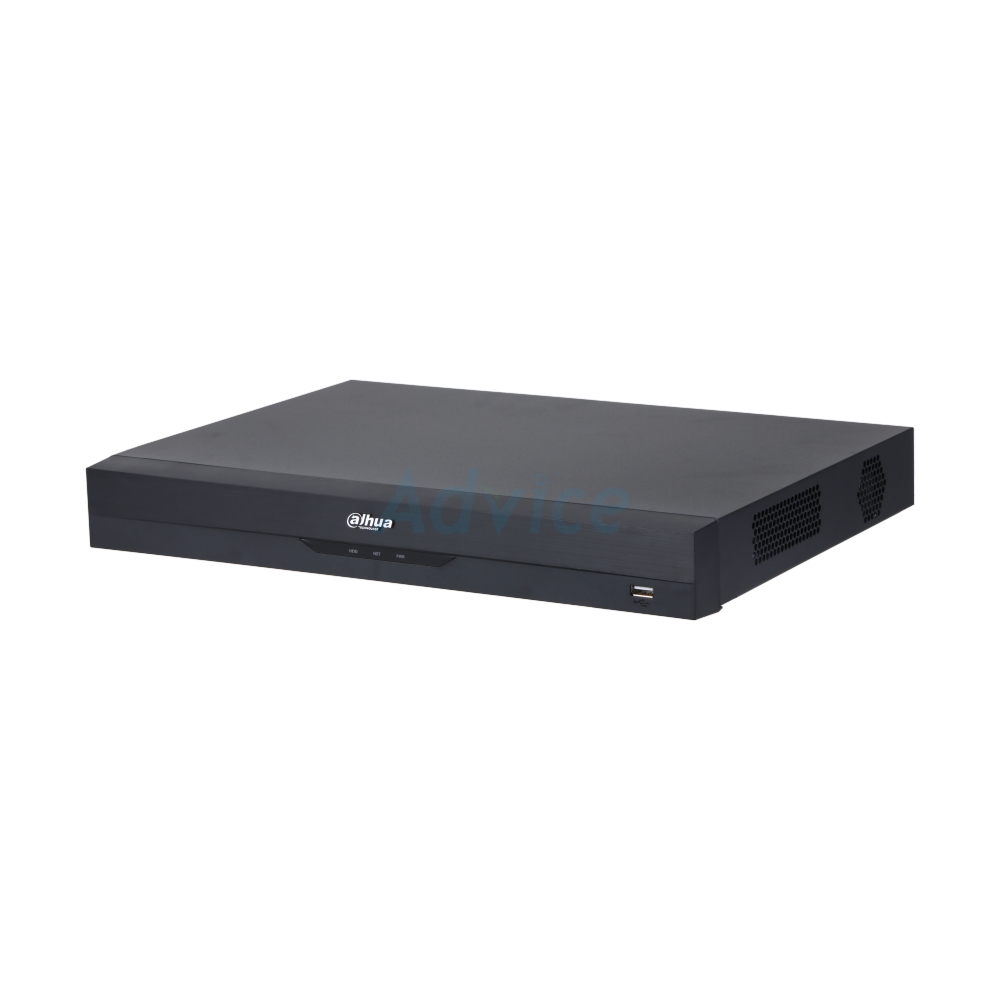

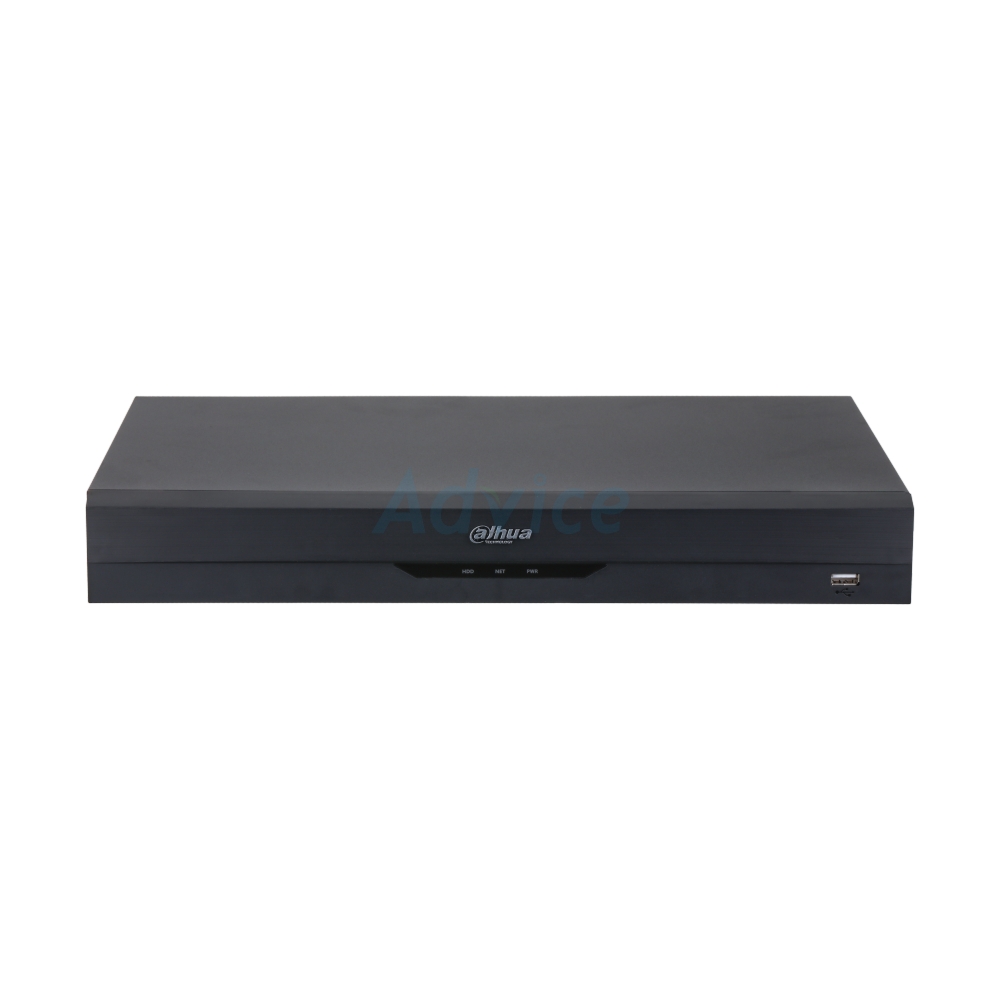

เครื่องบันทึก DVR 32CH. HDCVI DAHUA XVR5232AN-5M-I3/T
DAHUA

เครื่องบันทึก DVR 32CH. HDCVI DAHUA XVR5232AN-5M-I3/T

ประกัน 3 ปี
รหัสสินค้า: A0179592
  • Analog Camera Input : 32 Ch.
  • Video Compression : AI Coding; Smart H.265+; H.265; Smart H.264+; H.264
  • Encoding Resolution
    • Main stream : 16-ch 5 MP@(1 fps-12 fps)/ 5M-N@(1 fps-25 fps),others 5M-N@(1 fps-12 fps) ,  16-ch 4M-N/1080p@(1fps-25 fps), others 4M-N/1080p@(1 fps-15 fps) . 1080N/720p/960H/D1/CIF@(1 fps-25/30 fps)
    • Sub stream : D1, CIF@(1–15fps)
  • Interface
    • 1x (10/100 Mbps Ethernet port, RJ-45)
    • 1x CVBS Output
    • 1x Audio Input
    • 1x Audio Output
    • 1x TV Output
    • 1x RS-485 for PTZ control
    • 2x USB (1 front USB 2.0 port, 1 rear USB 3.0 port)
    • 1x VGA
    • 1x HDMI
    • 2x SATA
  • Video output : HDMI/VGA independent output
  • Capacity  : up to 16 TB. This limit varies depending on the environment temperature.
  • 8-channel AcuPick for analog channels which improves the efficiency of target retrieval.
  • 8-channel perimeter protection for analog channels which supports tripwire and intrusion detection powered by AI.
  • 4-channel face recognition for analog channels which supports face comparison.
คำค้นหาDVR32CHHDCVIDAHUAXVR5232AN-5M-I3/Tเครื่องบันทึกDVR / NVRDVRNVRเครื่องบันทึกภาพจากกล้องวงจรปิดระบบบันทึกภาพ32ch6937552415058
ราคาหน้าร้าน ฿11,640

ข้อมูลผลิตภัณฑ์

BrandDAHUA
Model

XVR5232AN-5M-I3/T

Supported Camera Types

• Supports HDCVI/AHD/TVI/CVBS/IP video inputs.

Video/Audio input

• Analog Camera Input : 32 BNC ports, supports HDCVI/AHD/TVI/CVBS auto-detect
- CVI : 5 MP@25 fps; 5 MP@20 fps; 5 MP@10/12.5 fps; 4 MP@25/30 fps; 1080p@25/30 fps; 720p@50/60 fps; 720p@25/30fps.
- TVI : 5 MP(2560 × 1944)@20 fps; 5 MP(2960 × 1665)@20/25 fps; 4 MP@25/30 fps; 1080p@25/30 fps; 720p@25/30 fps.
- AHD : 5 MP@20 fps; 4 MP@25/30 fps; 1080p@25/30 fps; 720p@25/30 fps.
- IP Camera Input : 32 channels (analog channels are converted to IP channels)
• Video Compression : AI Coding; Smart H.265+; H.265; Smart H.264+; H.264
• Audio Input : 1-channel RCA , 32-channel BNC (Coaxial Audio)
• Two-way Talk : Yes (share the same audio input with the first channel)

Video/Audio output

• HDMI : 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720
• VGA : 1920 × 1080, 1280 × 1024, 1280 × 720
• Multi-screen Display : 1/4/8/9/16/25/36
• Audio Output : 1-channel RCA
• TV Output : 1 channel
• Audio Compression : G.711a; G.711u; PCM

Recording

• Main stream
- 16-ch 5 MP@(1 fps-12 fps)/ 5M-N@(1 fps-25 fps),others 5M-N@(1 fps-12 fps)
- 16-ch 4M-N/1080p@(1fps-25 fps), others 4M-N/1080p@(1 fps-15 fps)
- 1080N/720p/960H/D1/CIF@(1 fps-25/30 fps)
• Sub stream: D1/CIF@(1 fps-15 fps)
• Record Mode :  General; alarm; motion detection; intelligent
• Recording Playback  : 1/4/9/16
• Backup Method : USB device and network
• Playback Mode : Instant playback; general playback; event playback; tag playback; smart playback

Network

• Network Protocol : HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; P2P
• Mobile Phone Access : IOS; Android
• Interoperability : ONVIF 22.12(Profile T; Profile S; Profile G); CGI; SDK
• Browser : Chrome; IE; Safari; Edge; Firefox

Interface

• 1x (10/100/1000 Mbps Ethernet port, RJ-45)
• 1x CVBS Output
• 1x Audio Input
• 1x Audio Output
• 1x RS-485
• 2x USB (1 front USB 2.0 port, 1 rear USB 3.0 port)
• 1x VGA
• 1x HDMI
• 2x SATA

Storage

• up to 16TB capacity for each disk. The maximum HDD capacity varies with environment temperature.

Power Supply

• DC 12V, 5A

Power Consumption

• <16 W (without HDD)

Working Environment

• Operating Temperature : –10 °C to +55 °C (14 °F to +131 °F)
• Operating Humidity : 10%–90% (RH)

ONVIF

• ONVIF 24.12 (Profile T; Profile S; Profile G); CGI; SDK

PoE

NONE

Package Contents

N/A
