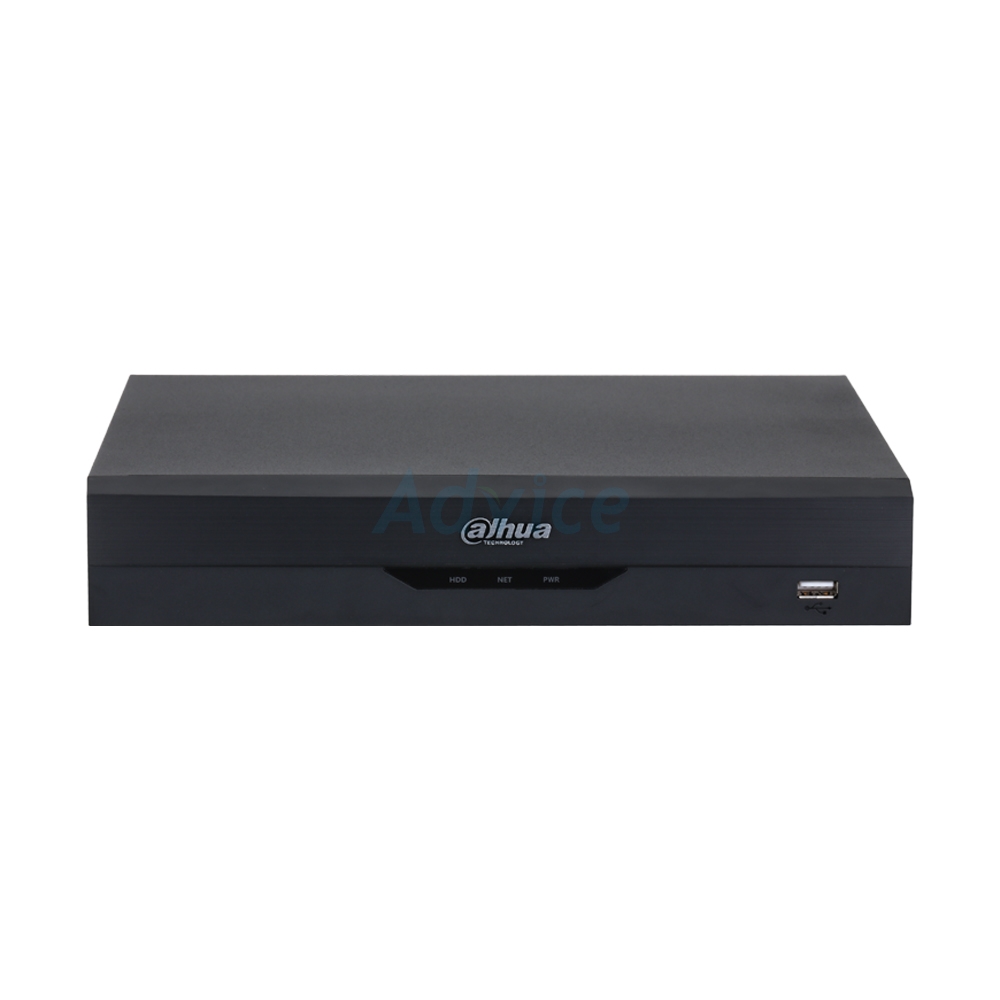

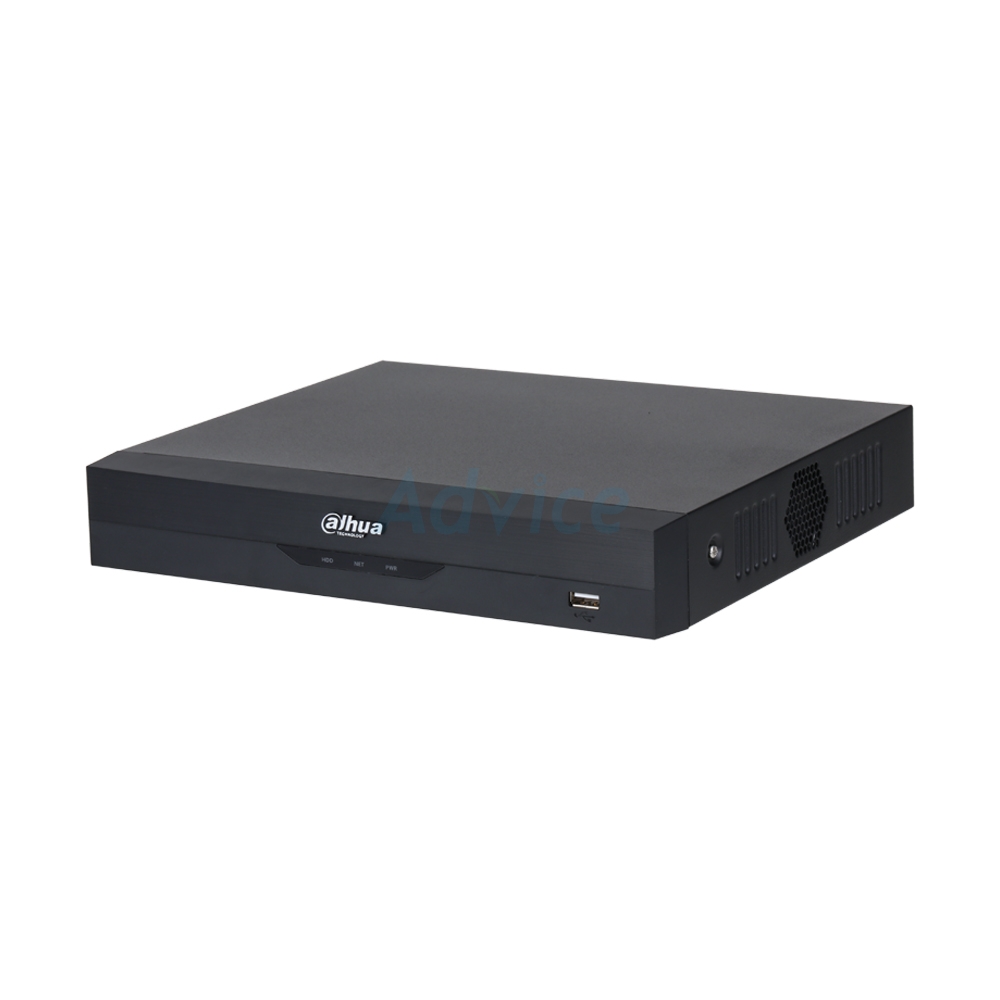

เครื่องบันทึก DVR 16CH. HDCVI DAHUA XVR5116HS-5M-I3/T
- Analog Camera Input : 16 Ch.
- Video Compression : AI Coding; Smart H.265+; H.265; Smart H.264+; H.264
- Encoding Resolution
- Main stream : 8-ch 5 MP@(1 fps-12 fps)/ 5M-N@(1 fps-25 fps), others 5M-N@(1 fps-12 fps) , 8-ch 4M-N/1080p@(1 fps-25 fps), others 4M-N/1080p@(1 fps-15 fps) , 1080N/720p/960H/D1/CIF@(1 fps-25/30 fps)
- Sub stream : D1/CIF@(1 fps-15 fps)

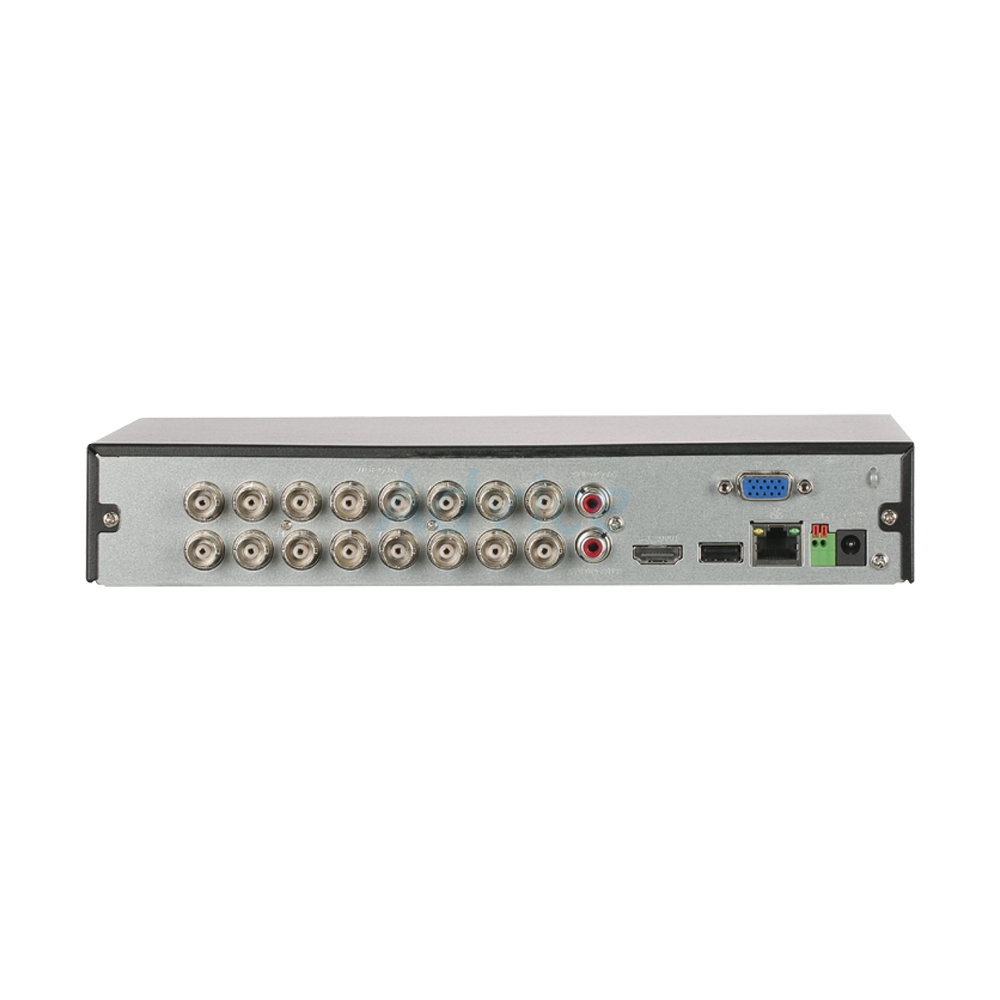

- Interface
- 1x (10/100 Mbps Ethernet port, RJ-45)
- 1x Audio Input
- 1x Audio Output
- 1x RS-485
- 2x (1 front USB 2.0 port, 1 rear USB 3.0 port)
- 1x VGA
- 1x HDMI
- 1x SATA
- Video output : HDMI/VGA independent output
- up to 16 TB. This limit varies depending on the environment temperature.
- 8-channel AcuPick for analog channels which improves the efficiency of target
- 8-channel perimeter protection for analog channels which supports tripwire and intrusion detection powered by AI
- 4-channel face recognition for analog channels which supports face comparison.
- 16-channel SMD Plus for analog channels or 24-channel SMD by camera which allows the device to trigger accurate alarms for humans and vehicles
- 16-channel AI Coding saves on storage and bandwidth while maintaining the details of targets in videos
ข้อมูลผลิตภัณฑ์
XVR5116HS-5M-I3/T
• Supports HDCVI, AHD, TVI, CVBS and IP video input.
• Analog Camera Input : 16 BNC ports
• Camera Input
- CVI : 5 MP@25 fps; 5 MP@20 fps; 5 MP@10/12.5 fps; 4 MP@25/30 fps; 1080p@25/30 fps; 720p@50/60 fps; 720p@25/30fps.
- TVI : 5 MP(2560 × 1944)@20 fps; 5 MP(2960 × 1665)@20/25 fps; 4 MP@25/30 fps; 1080p@25/30 fps; 720p@25/30 fps.
- AHD: 5 MP@20 fps; 4 MP@25/30 fps; 1080p@25/30 fps; 720p@25/30 fps.
- IP Camera Input Up to 24 channels of IPC access 8 IP channels by default + 16 channels (analog channels are converted to IP channels)
• Audio Input : 1-channel RCA , 16-channel BNC (Coaxial Audio)
• Two-way Talk : Coaxial two-way talk: 16-channel BNC
• HDMI : 3840 × 2160, 2560 × 1440, 1920 × 1080, 1280 × 1024, 1280 × 720
• VGA : 1920 × 1080, 1280 × 1024, 1280 × 720
• Third-party Camera Access : Panasonic; Sony; Hanwha; Axis; Arecont; ONVIF
• Audio Output : 1-channel RCA
• Record Mode : General , alarm, motion detection, intelligent
• Recording Playback : 1/4/9/16
• Backup Method : USB device and network
• Playback Mode : Instant playback, general playback, event playback, tag playback, smart playback
• Encode Enhancement disabled
- Main stream : Channels 1-4 5M-N@(1 fps–25 fps), others 5M-N@(1 fps–12 fps),Channels 1-4 4M-N/1080p@(1 fps–25/30 fps), others 4M-N/1080p@(1 fps–15 fps),1080N/720p/960H/D1/CIF@(1 fps–25/30 fps)
- Sub stream : D1/CIF@(1 fps–15 fps)
• Encode Enhancement enabled
- Main stream : 8-ch 5 MP@(1 fps-12 fps)/ 5M-N@(1 fps-25 fps), others 5M-N@(1 fps-12 fps), 8-ch 4M-N/1080p@(1 fps-25 fps), others 4M-N/1080p@(1 fps-15 fps), 1080N/720p/960H/D1/CIF@(1 fps-25/30 fps)
- Sub stream: D1/CIF@(1 fps-15 fps)
• It changes to D1/CIF@(1 fps-12 fps) when Main stream is 5 MP/5M-N.
N/A
• Network Protocol : HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server; P2P; Auto • Registration; IP Search (Supports IP camera, DVR, NVS, etc.)
• Mobile Phone Access : iOS; Android
• Interoperability : ONVIF 24.12 (Profile T; Profile S; Profile G); CGI; SDK
• Browser : Chrome; IE, Safari, Edge, Firefox
• 1x (10/100 Mbps Ethernet port, RJ-45)
• 1x Audio Input
• 1x Audio Output
• 1x RS-485
• 2x (1 front USB 2.0 port, 1 rear USB 3.0 port)
• 1x VGA
• 1x HDMI
• 1x SATA
• up to 16 TB. This limit varies depending on the environment temperature.
• 12 VDC, 2 A
• <12 W (without HDD)
• Operating Temperature :–10 °C to +55 °C (+14 °F to +131 °F)
• Storage Temperature : –20 °C to +60 °C (–4 °F to +140 °F)
• Operating Humidity : 10%–90% (RH), non-condensing
• ONVIF 24.12 (Profile T; Profile S; Profile G); CGI; SDK
