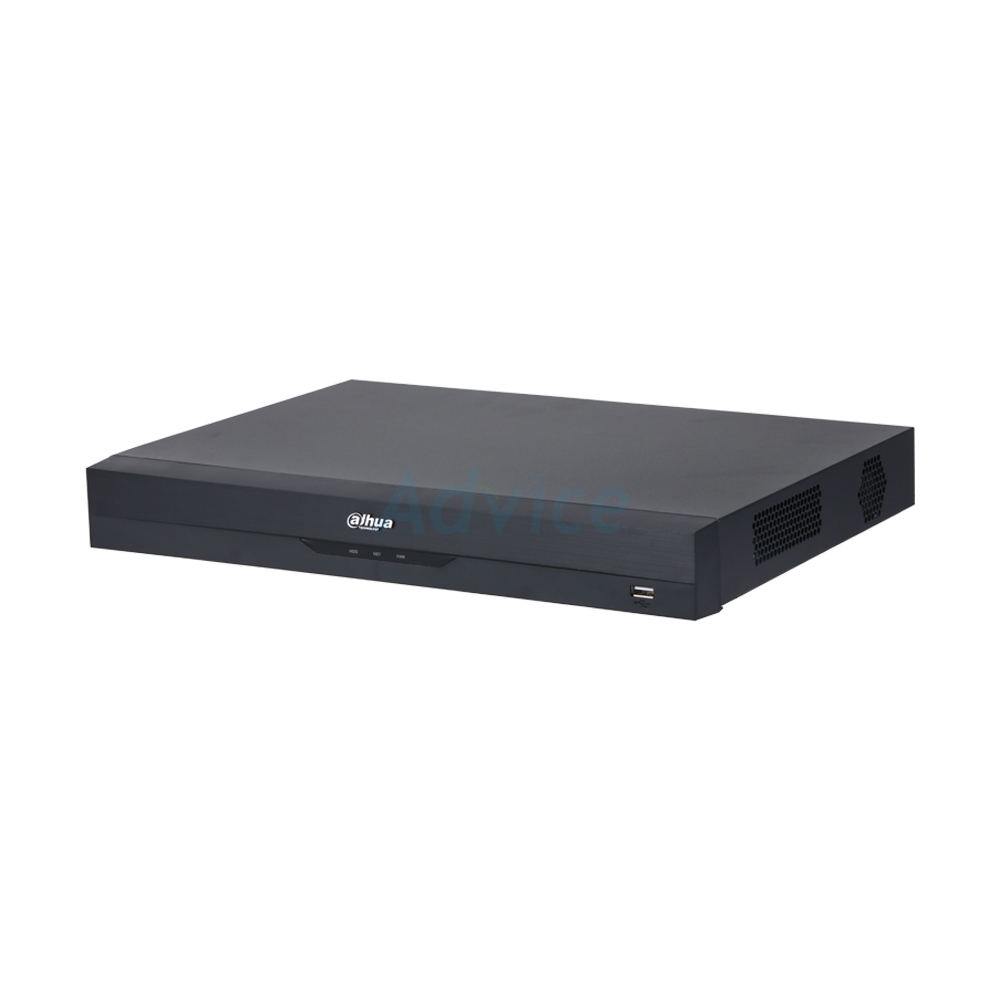

เครื่องบันทึก DVR 32CH. HDCVI DAHUA XVR4232AN-I/T
- Analog Camera Input : 32 Ch.
- Video Compression : AI Coding; Smart H.265+; H.265; Smart H.264+; H.264
- Encoding Resolution
- Main stream : the 1st channel 1080N/720p@(1 fps–25/30 fps), others 1080N/720p@(1 fps–15 fps); 960H/D1/CIF@(1 fps–25/30 fps)
- Sub stream : CIF@(1 fps–7 fps)

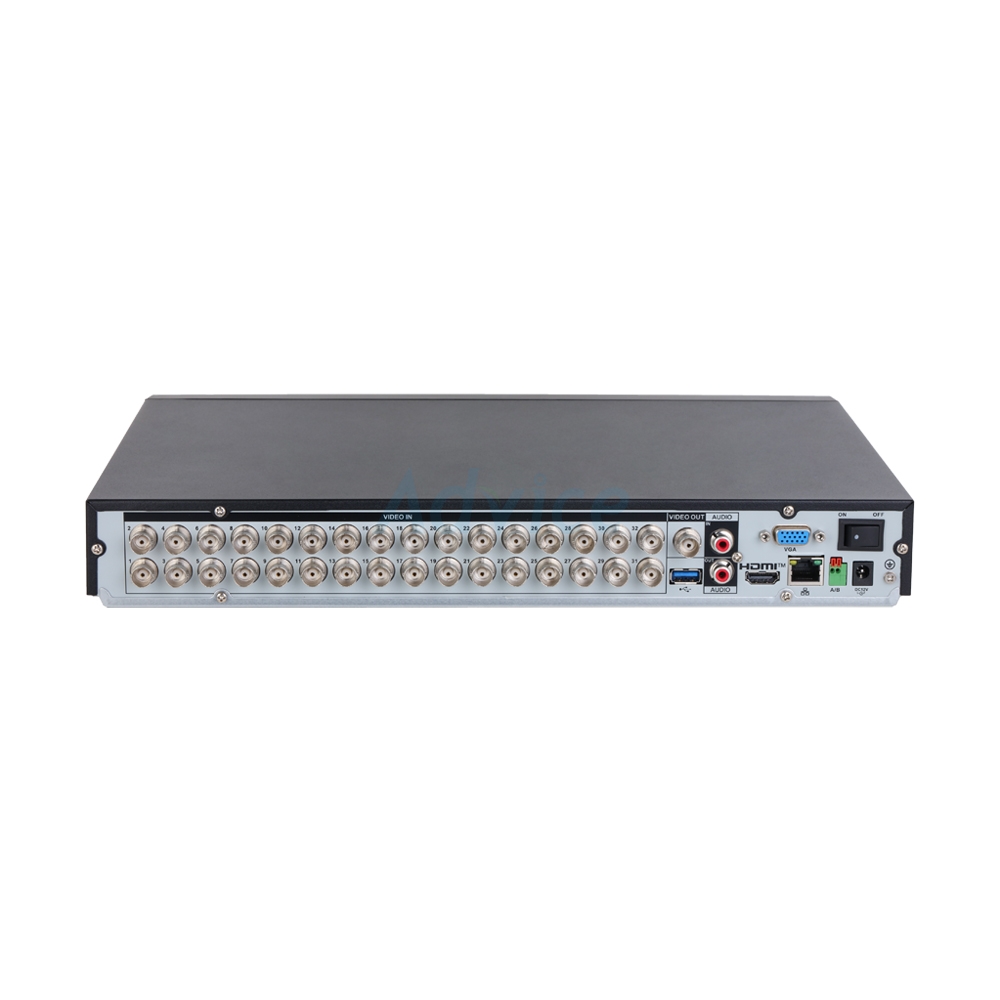

- Interface
- 1x (10/100/1000 Mbps Ethernet port, RJ-45)
- 1x Audio Input
- 1x Audio Output
- 1x CVBS Output
- 1x RS-485
- 2x USB (1 front USB 2.0 port, 1 rear USB 3.0 port)
- 1x VGA
- 1x HDMI
- 2x SATA
- Video output : HDMI/VGA independent output
- Capacity : up to 16 TB. This limit varies depending on the environment temperature.
- 32-channel two-way talk over coaxial cable allows for seamless communication between the camera, client and recorder.
- 32-channel SMD Plus for analog channels or 36-channel SMD by camera which allows the device to trigger accurate alarms for humans and vehicles.
- 8-channel AI Coding saves on storage and bandwidth while maintaining the details of targets in videos.
ข้อมูลผลิตภัณฑ์
XVR4232AN-I/T
• Supports HDCVI, AHD, TVI, CVBS and IP video input
• Analog Camera Input : 32 BNC ports
• Camera Input
- CVI : 1080p@25/30 fps; 720p@25/30 fps.
- TVI : 1080p@25/30 fps; 720p@25/30 fps.
- AHD : 1080p@25/30 fps; 720p@25/30 fps.
• IP Camera Input : Up to 20 channels of IPC access 4 IP channel by default + 16 channels (analog channels are converted to IP channels)
• Video Bit Rate : 32 kbps–4096 kbps
• Audio Input : 1-channel RCA , 32-channel BNC (Coaxial Audio)
• Two-way Talk : Coaxial two-way talk: 32-channel BNC
• HDMI : 1920 × 1080, 1280 × 1024, 1280 × 720
• VGA : 1920 × 1080, 1280 × 1024, 1280 × 720
• Third-party Camera Access : Panasonic; Sony; Hanwha; Axis; Arecont; ONVIF
• Audio Output : 1-channel RCA
• CVBS Output : 1 channel
• Record Mode : General, alarm, motion detection
• Recording Playback : 1/4/9/16
• Backup Method : USB device and network
• Playback Mode : Instant playback, general playback, event playback, tag playback, smart playback
• Main stream : the 1st channel 1080N/720p@(1 fps–25/30 fps), others 1080N/720p@(1 fps–15 fps); 960H/D1/CIF@(1 fps–25/30 fps)
• Sub stream : CIF@(1 fps–7 fps)
N/A
• Network Protocol : HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.)
• Mobile Phone Access : iOS; Android
• Interoperability : ONVIF 24.12 (Profile T; Profile S; Profile G); CGI; SDK
• Browser : Chrome; IE; Safari; Edge; Firefox
• 1x (10/100/1000 Mbps Ethernet port, RJ-45)
• 1x Audio Input
• 1x Audio Output
• 1x CVBS Output
• 1x RS-485
• 2x USB (1 front USB 2.0 port, 1 rear USB 3.0 port)
• 1x VGA
• 1x HDMI
• 2x SATA
• up to 16 TB. This limit varies depending on the environment temperature.
• 12 VDC, 4 A
• <12 W (without HDD)
• Operating Temperature : –10 °C to +55 °C (+14 °F to +131 °F)
• Storage Temperature : –20 °C to +60 °C (–4 °F to +140 °F)
• Operating Humidity : 10%–90% (RH), non-condensing
• ONVIF 24.12 (Profile T; Profile S; Profile G); CGI; SDK
NONE
N/A
