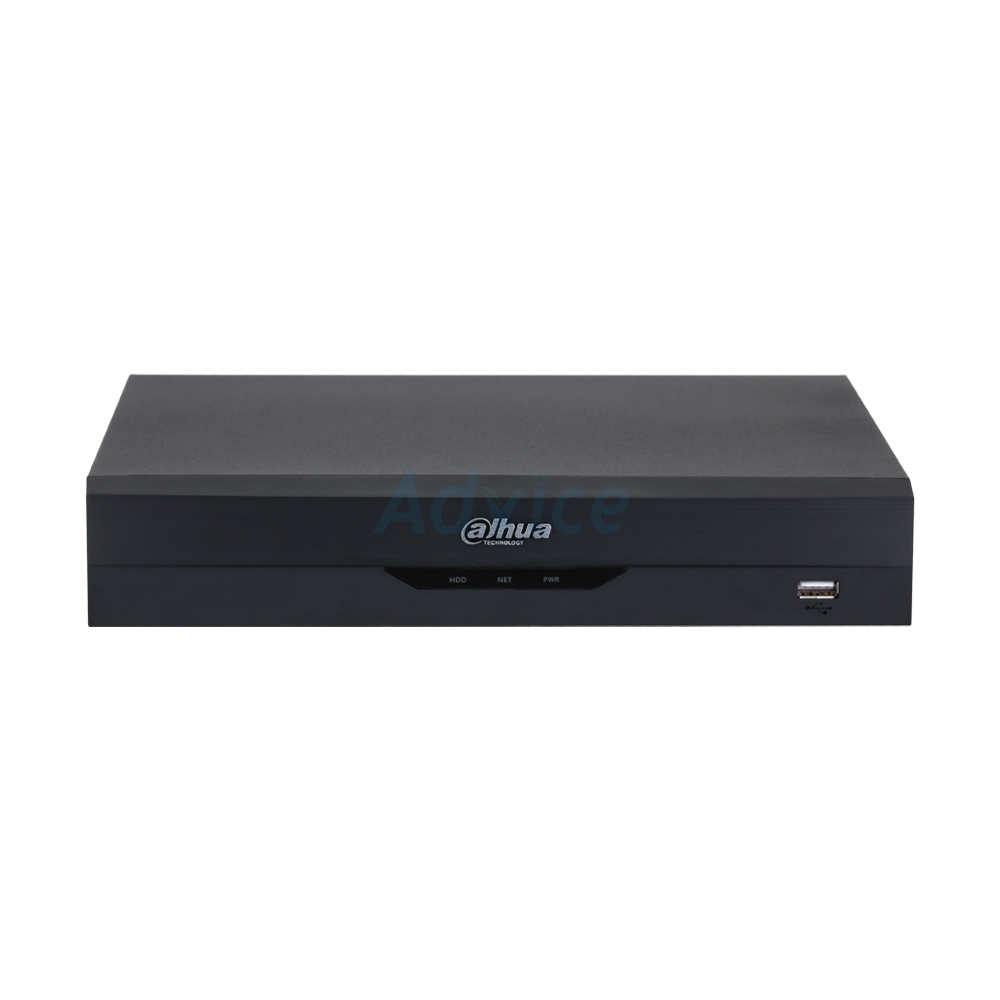

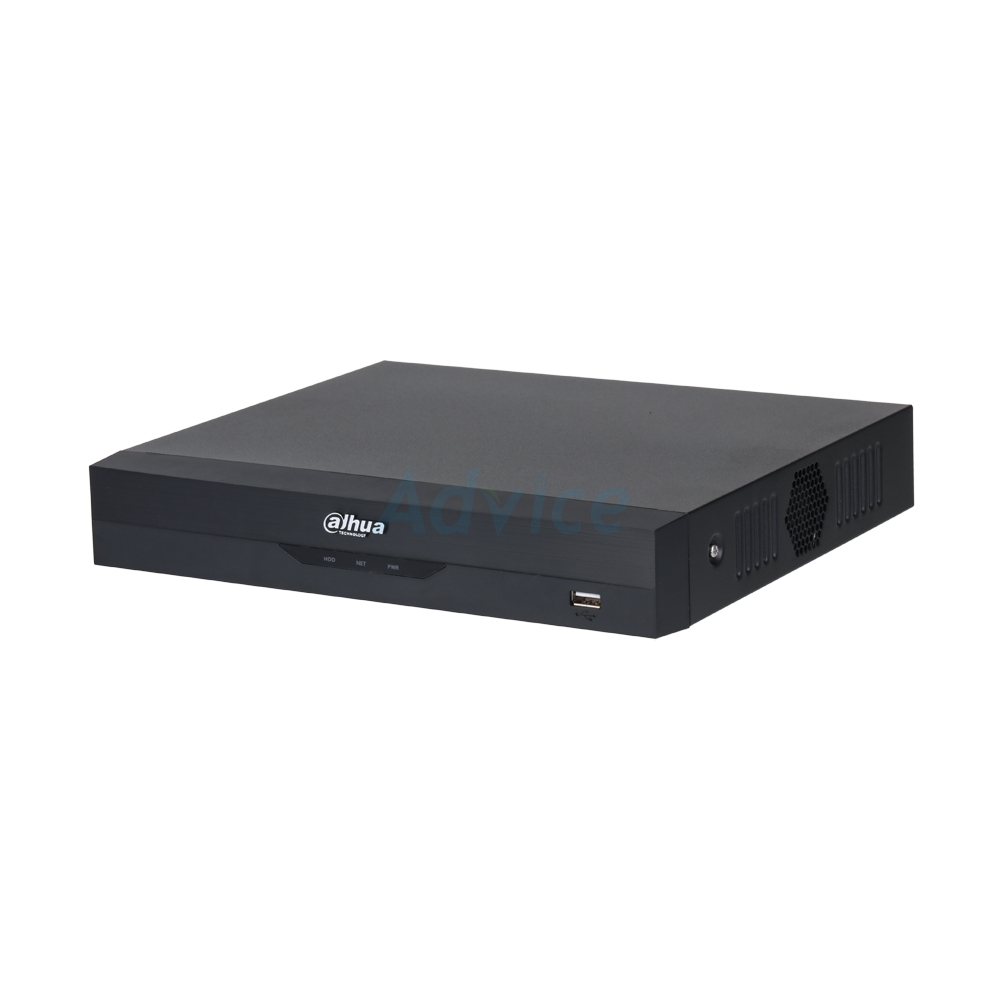

เครื่องบันทึก DVR 4CH. HDCVI DAHUA XVR4104HS-I/T

XVR4104HS-I/T

• Supports HDCVI, AHD, TVI, CVBS and IP video input.

• Analog Camera Input :  4 BNC ports
• Camera Input
- CVI : 1080p@25/30 fps; 720p@25/30 fps
- TVI : 1080p@25/30 fps; 720p@25/30 fps
- AHD : 1080p@25/30 fps; 720p@25/30 fps
• IP Camera Input : Up to 5 channels of IPC access 1 IP channel by default + 4 channels (analog channels are converted to IP channels)
• Audio Input : 1-channel RCA , 4-channel BNC (Coaxial Audio)
• Two-way Talk : Coaxial two-way talk: 4-channel BNC

• HDMI : 1920 × 1080, 1280 × 1024, 1280 × 720
• VGA : 1920 × 1080, 1280 × 1024, 1280 × 720
• Third-party Camera Access : Panasonic; Sony; Hanwha; Axis; Arecont; ONVIF
• Audio Output : 1-channel RCA

• Record Mode : General, alarm, motion detection
• Recording Playback : 1/4
• Backup Method : USB device and network
• Playback Mode : Instant playback, general playback, event playback, tag playback, smart playback

• Main stream : 1080N/720p/960H/D1/CIF@(1 fps–25/30 fps)
• Sub stream : CIF@(1 fps–15 fps)

N/A

• Network Protocol : HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.)
• Mobile Phone Access : iOS; Android
• Interoperability : ONVIF 24.12 (Profile T; Profile S; Profile G); CGI; SDK
• Browser : Chrome, IE, Safari, Edge, Firefox

• 1x (10/100 Mbps Ethernet port, RJ-45)
• 1x Audio Input
• 1x Audio Output
• 1x RS-485
• 2x (1 front USB 2.0 port, 1 rear USB 2.0 port)
• 1x VGA
• 1x HDMI
• 1x SATA

• up to 16 TB. This limit varies depending on the environment temperature.

• 12 VDC, 1.5 A

• <4 W (without HDD)

• Operating Temperature : –10 °C to +55 °C (+14 °F to +131 °F)
• Storage Temperature : –20 °C to +60 °C (–4 °F to +140 °F)
• Operating Humidity : 10%–90% (RH), non-condensing

• ONVIF 24.12 (Profile T; Profile S; Profile G); CGI; SDK

NONE

N/A
