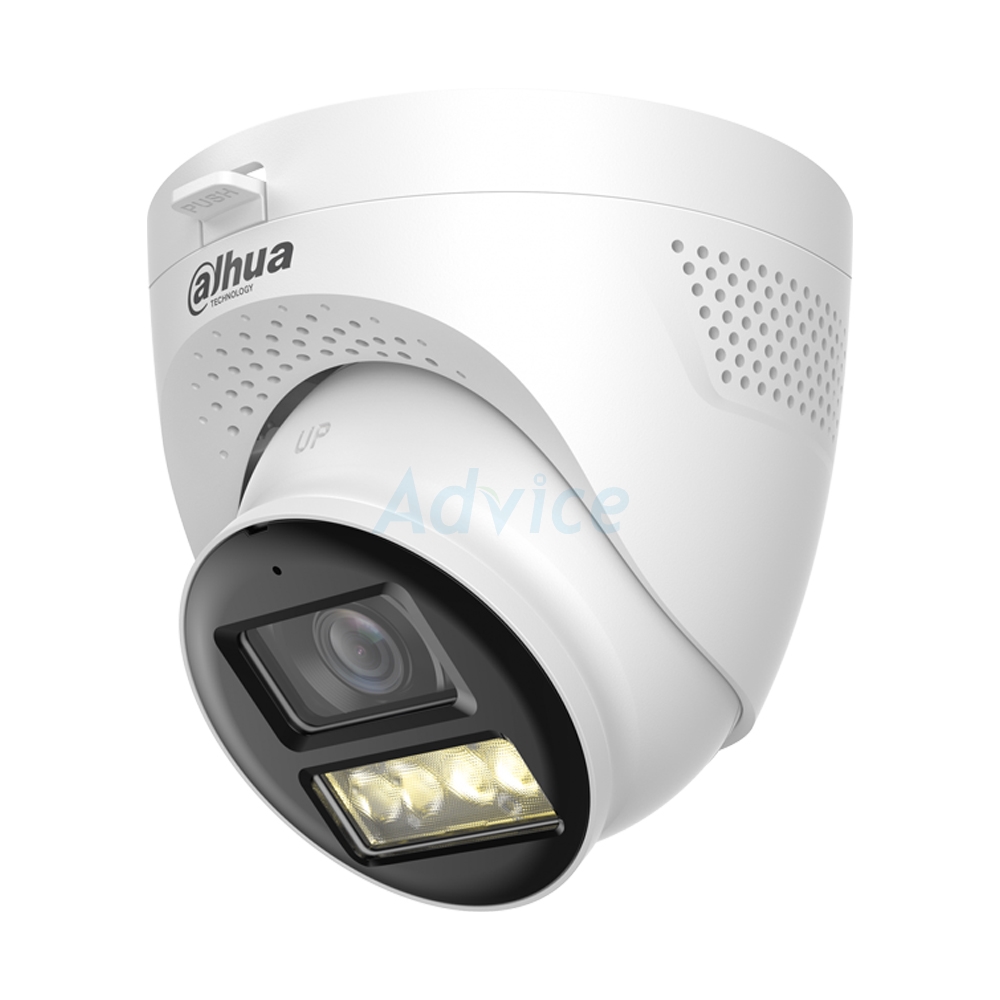

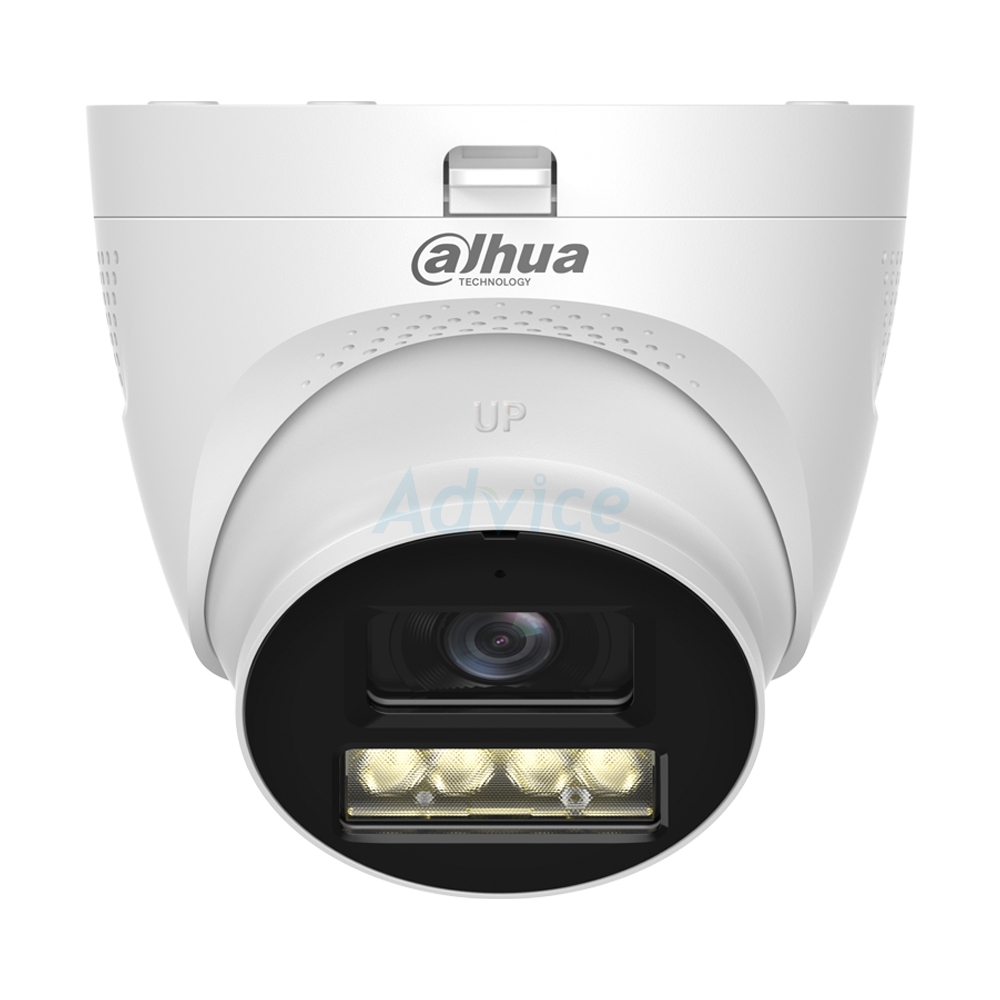

กล้องวงจรปิด 3.6mm HDCVI DAHUA HDW1500TQP-IL-T

HDW1500TQP-IL-T

5MP CMOS

3.6mm

• M12

• H: 90.1°
• V: 47.8°
• D: 109.3°

• Pan : 0°–360°
• Til t: 0°–75°
• Rotation : 0°–360°

• PAL : 1/25 s–1/100,000 s
• NTSC : 1/30 s–1/100,000 s

• 0.01 [email protected] (Color, 30 IRE)
• 0.001 [email protected] (B/W, 30 IRE)
• 0 lux (Illuminator on)

• 40m

• 5M (2880 × 1620); 4M (2560 × 1440); 1080p (1920 × 1080); 720p (1280 × 720); TVI 5M 16:9 (2960 × 1665)

N/A

• CVI
- PAL : 5M@25 fps;[email protected] fps; 4M@25 fps; 1080p@25 fps
- NTSC : 5M@25 fps; 5M@20 fps; 5M@10 fps; 4M@30 fps; 1080p@30 fps
• AHD
- PAL : 4M@25 fps
- NTSC : 4M@30 fps
• TVI
- PAL : 5M 16:9@20 fps
- NTSC : 5M 16:9@20 fps
• CVBS
- PAL : 960H
- NTSC : 960H

• Two-way Talk

N/A

• Smart Light+
• Smart Dual Light.

• 12 VDC (±30%) (It is recommended to use a power adapter to supply the power for one camera)

• Max 9.5 W (12 VDC, WLED on)

• Operating Temperature : –40 °C to +60 °C (–40 °F to +140 °F)
• Operating Humidity : <95% (RH), non-condensing
• Storage Temperature : –40 °C to +60 °C (–40 °F to +140 °F)
• Storage Humidity : <95% (RH), non-condensing

• IP67

• Dome (metal + plastic) + plastic enclosure

N/A
