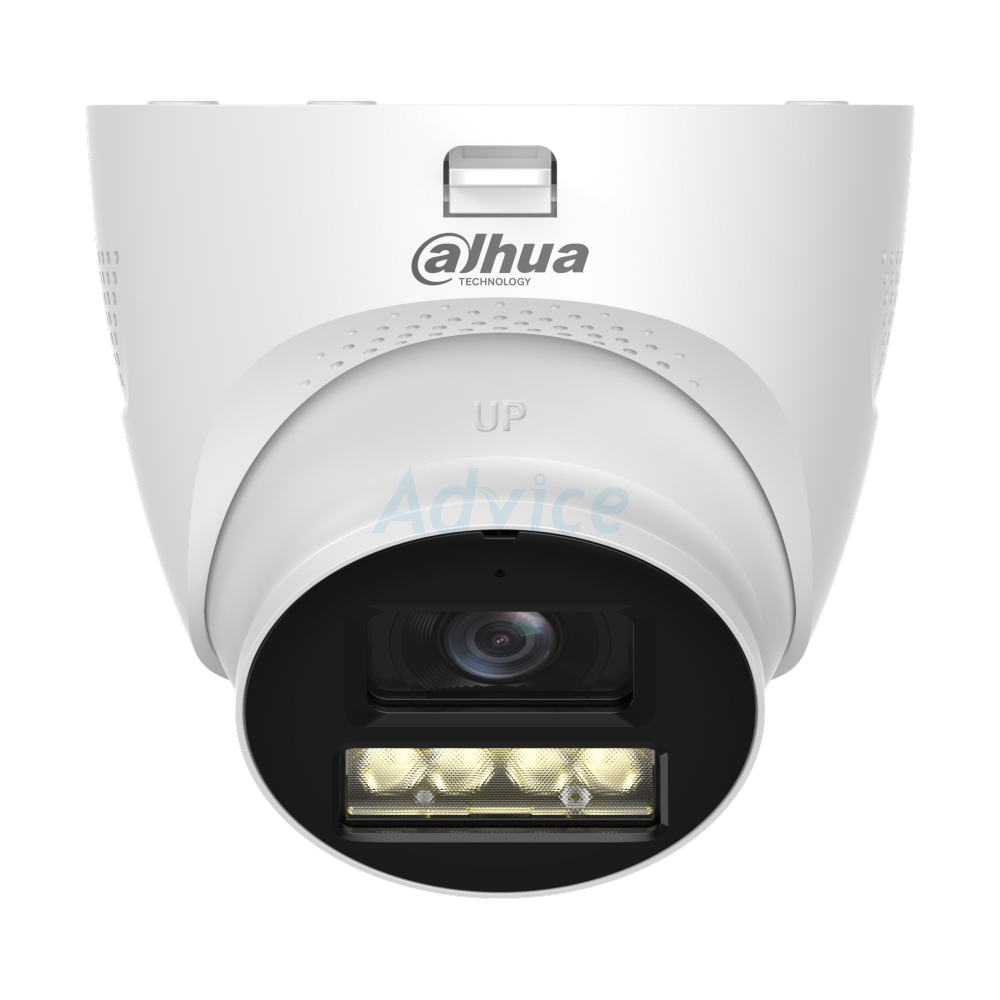

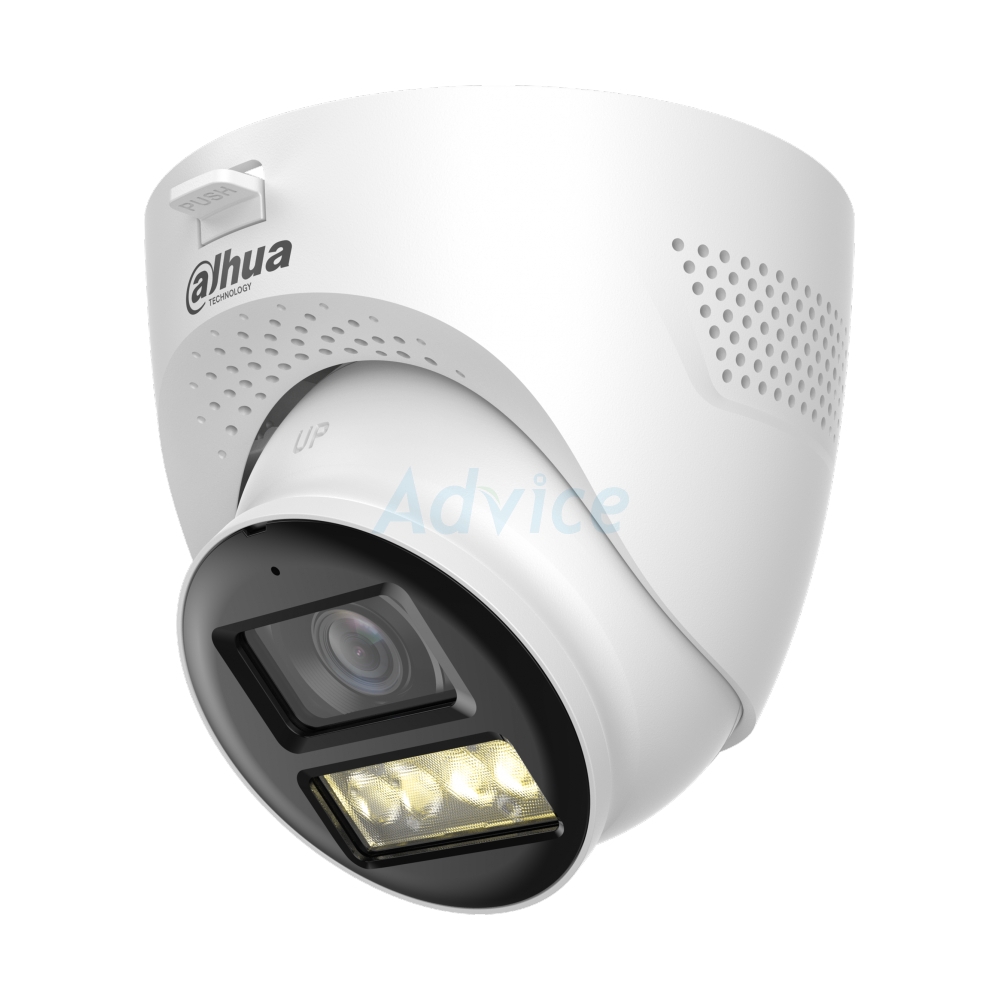

กล้องวงจรปิด 2.8mm HDCVI DAHUA HDW1200TQP-IL-T
- Image Sensor : 2MP , CMOS
- Max. Resolution : 1920 × 1080
- Lens Type : 2.8mm
- Video Output : CVI/CVBS/AHD/TVI switchable
- IR Distance : 40m
- Frame Rate : Max. 30 fps@1080p
- Day/Night Mode : Auto(ICR)/Color/B/W
- Audio Port : Two-way Talk
- Protection : IP67
- Casing Material : Dome (metal + plastic) + plastic enclosure
รายละเอียดสินค้า
ข้อมูลผลิตภัณฑ์
HDW1200TQP-IL-T
• 2MP , CMOS
• 2.8mm
• M12
• H : 111.3°
• V : 60.8°
• D : 134.2°
• Pan : 0°–360°
• Tilt : 0°–78°
• Rotation : 0°–360°
• PAL: 1/25 s–1/100,000 s
• NTSC: 1/30 s–1/100,000 s
• 0.01 [email protected] (Color, 30 IRE)
• 0.001 [email protected] (B/W, 30 IRE)
• 0 lux (Illuminator on)
• 40m
• 1080p (1920 × 1080); 960H (960 × 576/960 × 480)
N/A
• CVI: PAL : 1080p@25 fps; NTSC: 1080p@30 fps
• AHD: PAL : 1080p@25 fps; NTSC: 1080p@30 fps
• TVI: PAL : 1080p@25 fps; NTSC: 1080p@30 fps
• CVBS: PA L: 960H; NTSC: 960H
• Two-way Talk
N/A
• Smart Dual Light
• Smart Light+
• 12 VDC (±30%) (It is recommended to use a power adapter to supply the power for one camera)
• Max 9.37 W (12 VDC, IR on)
• Operating Temperature : –40 °C to +60 °C (–40 °F to +140 °F)
• Operating Humidity : <95% (RH), non-condensing
• Storage Temperature : –40 °C to +60 °C (–40 °F t<95% (RH), non-condensing
• IP67
• Dome (metal + plastic) + plastic enclosure
N/A
