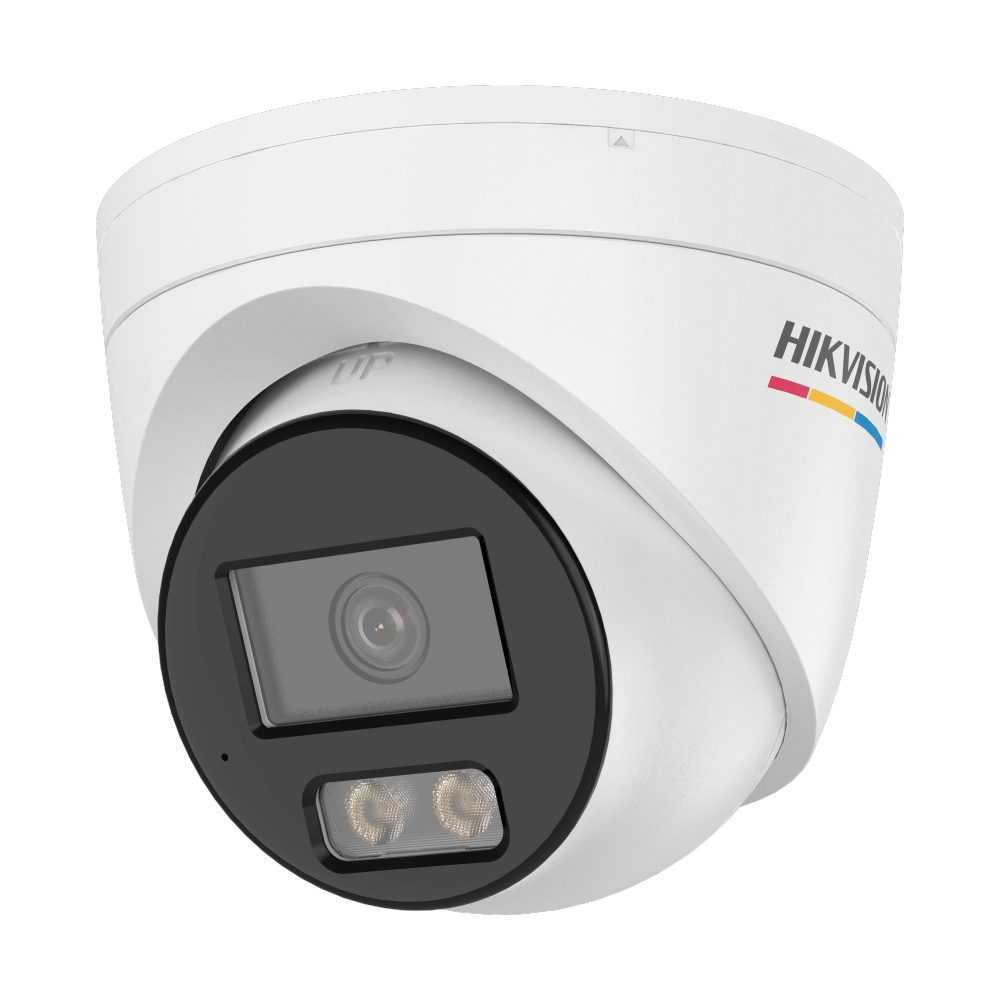

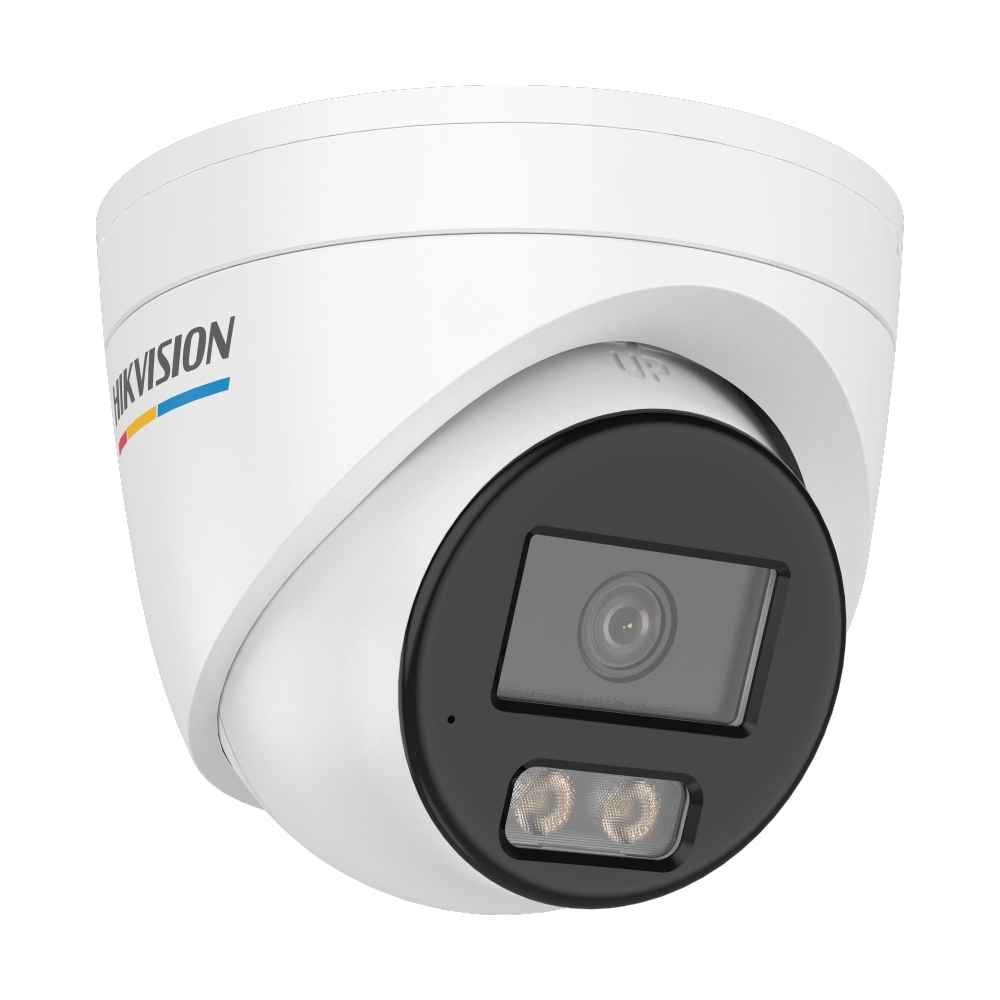

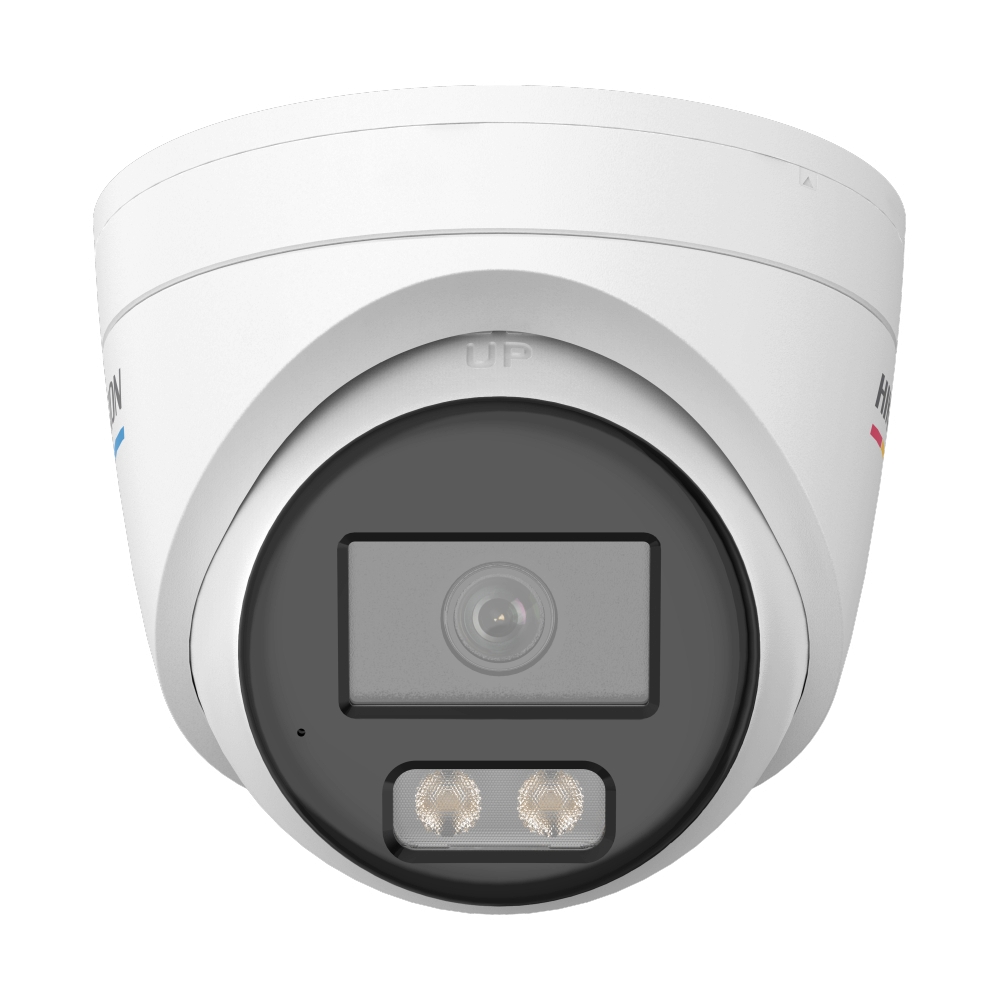

กล้องวงจรปิด 2.8mm IP Camera HIKVISION DS-2CD1347G3H-LIU

DS-2CD1347G3H-LIU

• 4MP , 1/1.8" Progressive Scan CMOS

• 2.8mm

• M16

• Color: 0.0001 Lux @ (F1.0, AGC ON)

N/A

N/A

• 2.8 mm, horizontal FOV 104°, vertical FOV 54.4°, diagonal FOV 126.7°

• Pan: 0° to 360°,tilt: 0° to 75°,rotate: 0° to 360°

• 1 s to 1/100,000 s

• 30m

• ColorVu

N/A

• 120 dB

• 2560 × 1440

• Main stream: H.265+/H.265/H.264+/H.264,
• Sub-stream: H.265/H.264/MJPEG

Main Stream
• 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
• 60 Hz: 24 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
Sub-Stream
• 50 Hz: 25 fps (768 × 432, 640 × 360)
• 60 Hz: 24 fps (768 × 432, 640 × 360)

• Up to 32 users
• 3 user levels: administrator, operator, and user

NONE

• 1x RJ45 10 M/100 M self-adaptive Ethernet port

N/A

• Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception

• ONVIF (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP

• TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, RTCP, NTP, IPv4, IPv6, IGMP, UDP, QoS, FTP, SMTP

• Heartbeat,mirror,flash log,password reset via email,password protection,anti-banding

• 12 VDC ± 25%, 0.64 A
• PoE: IEEE 802.3af, Class 3, max. 9.21 W

• Max. 7.68 W,Ø5.5 mm coaxial power plug,reverse polarity

• Storage Conditions : -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Startup and Operating Conditions : -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

• IP67: IEC 60529-2013

N/A
