ข้อมูลสินค้าGigabit Switching Hub DAHUADH-S3010-8GT-60 (7)
DAHUA

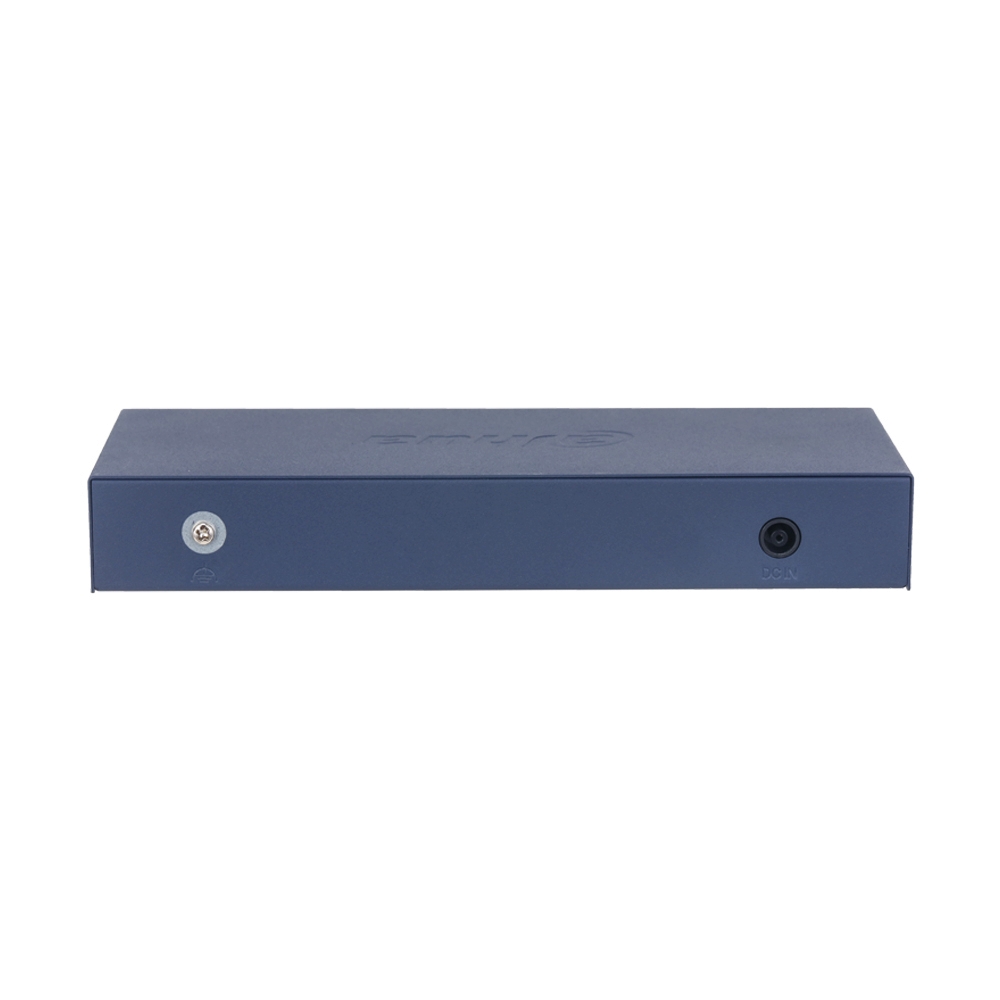

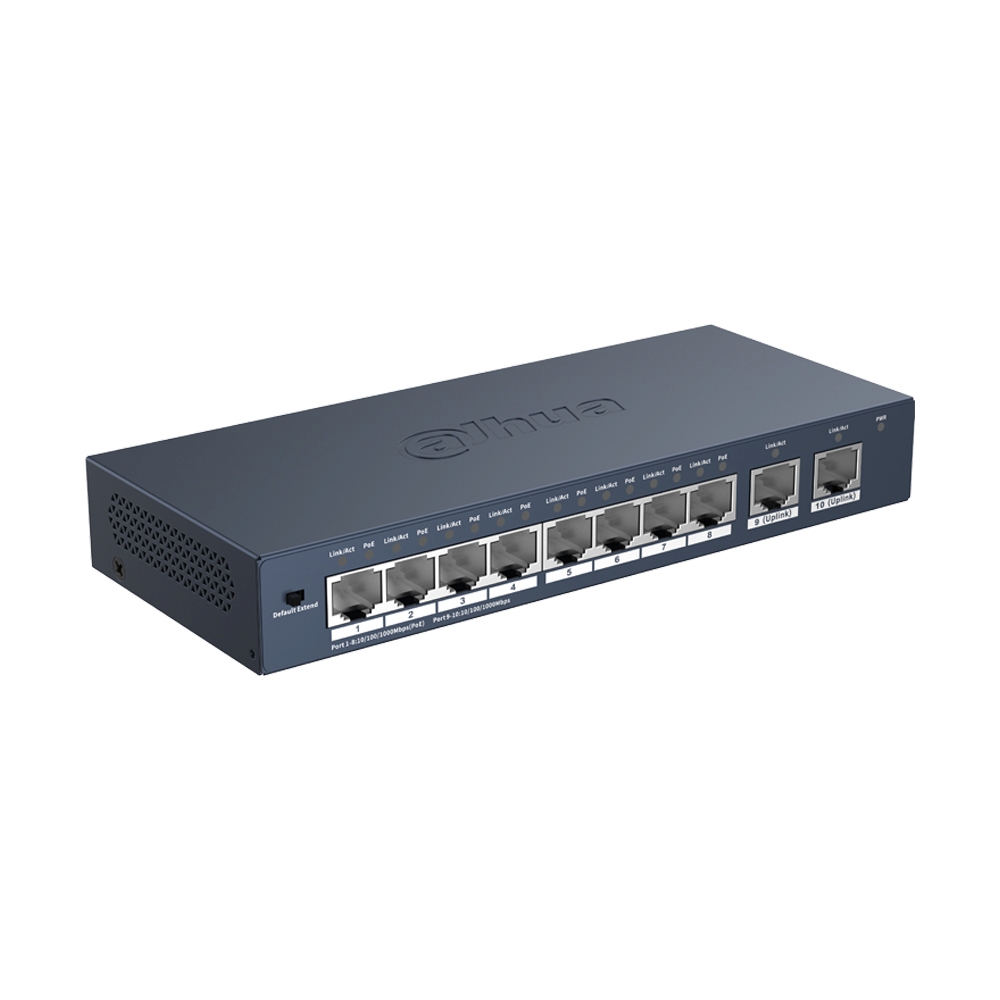

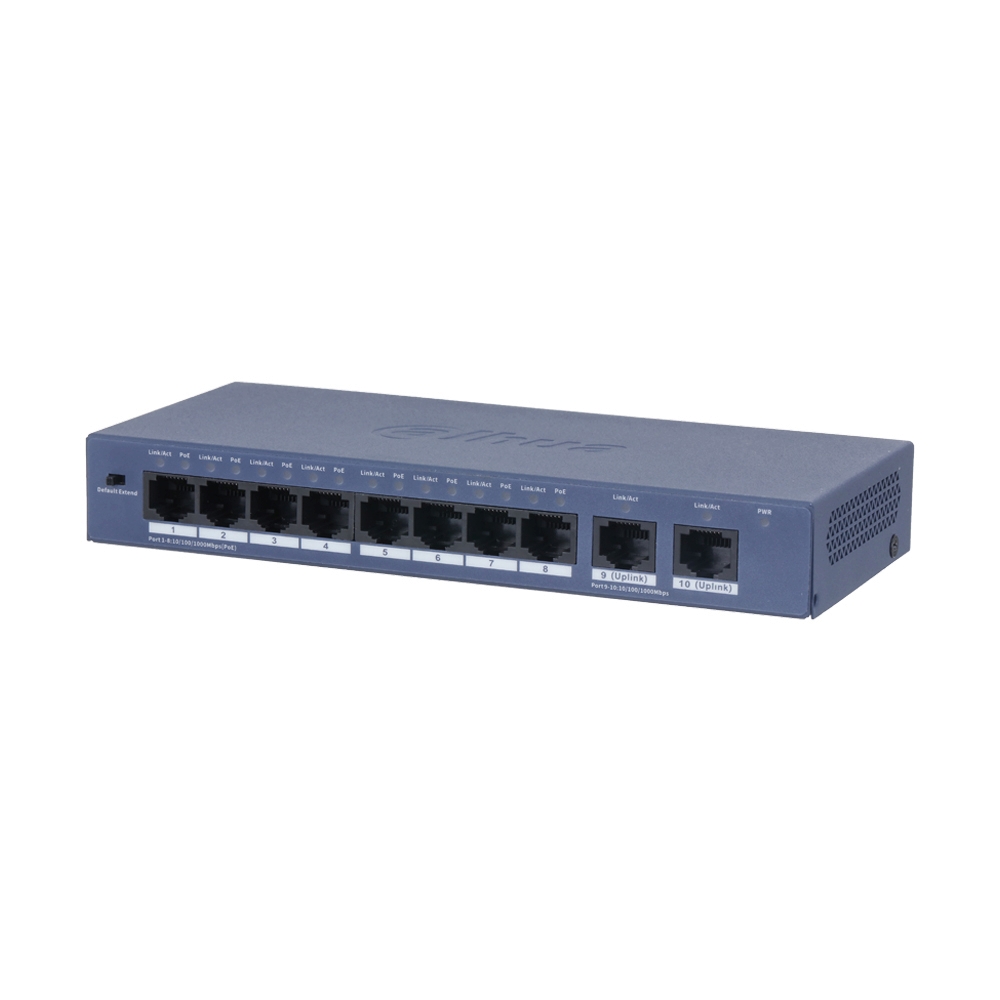

Gigabit Switching Hub DAHUADH-S3010-8GT-60 (7)
ประกัน 3 ปี
รหัสสินค้า: A0181798
- Standards and Protocols : IEEE802.3; IEEE802.3u; IEEE802.3ab; IEEE802.3x,IEEE 802.3af; IEEE 802.3at
- Interface
- 8x RJ45 10/100/1000Mbps ( Power budget 60W)
- 2x RJ45 10/100/1000Mbps (Uplink)
- Switching Type : Unmanaged
- Switching Capacity : 20Gbps
- Casing : Sheet Metal
- Easy to install, and is plug and play.
- Performs long-distance transmission.
ราคาหน้าร้าน ฿1,355
ข้อมูลผลิตภัณฑ์
BrandDAHUA
Model
DH-S3010-8GT-60
Network Interface
• 8x RJ45 10/100/1000Mbps ( Power budget 60W)
• 2x RJ45 10/100/1000Mbps (Uplink)
USB Port
NONE
Standards and Protocols
• IEEE802.3; IEEE802.3u; IEEE802.3ab; IEEE802.3x,IEEE 802.3af; IEEE 802.3at
Switching Capacity
• 20Gbps
MAC Address Table
• 2K
Forwarding Rate
• 14.88 Mpps
Jumbo Frame
• 9216 Byte
Buffer Architecture
• 1 Mbits
CPU
N/A
CPU Memory
N/A
Flash Memory
N/A
LED Indicators
• YES
Management
NONE
Fan Quantity
NONE
Material
• Sheet Metal
PoE
• Port 1-8≤30 W, total≤60 W
Power Supply
• External power supply: 53 V, 50/60 Hz, max 1.22 A
Power Consumption
• Idling: 2.2 W
• Full load: 67.5 W
Environment
• Operating Temperature : –10 °C to +55 °C (+14 °F to +131 °F)
• Operating Humidity : 10%–90% (RH), non-condensing
• Storage Temperature : –40 °C to +75 °C (–40 °F to +167 °F)
• Storage Humidity : 5%–95% (RH), non-condensing
Package Contents
• 1x DH-S3010-8GT-60
• 1× User Manual
• 1× Legal and Regulatory Information
• 1× Power Adapter
