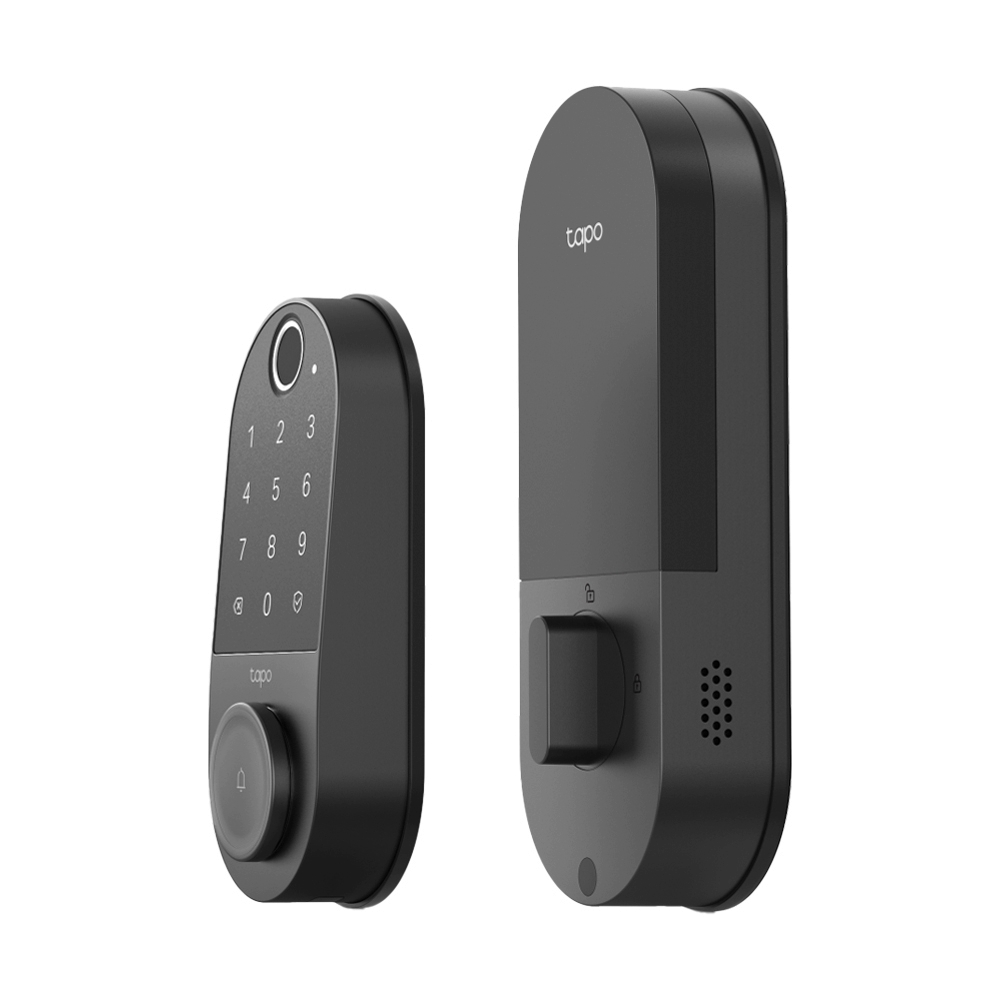

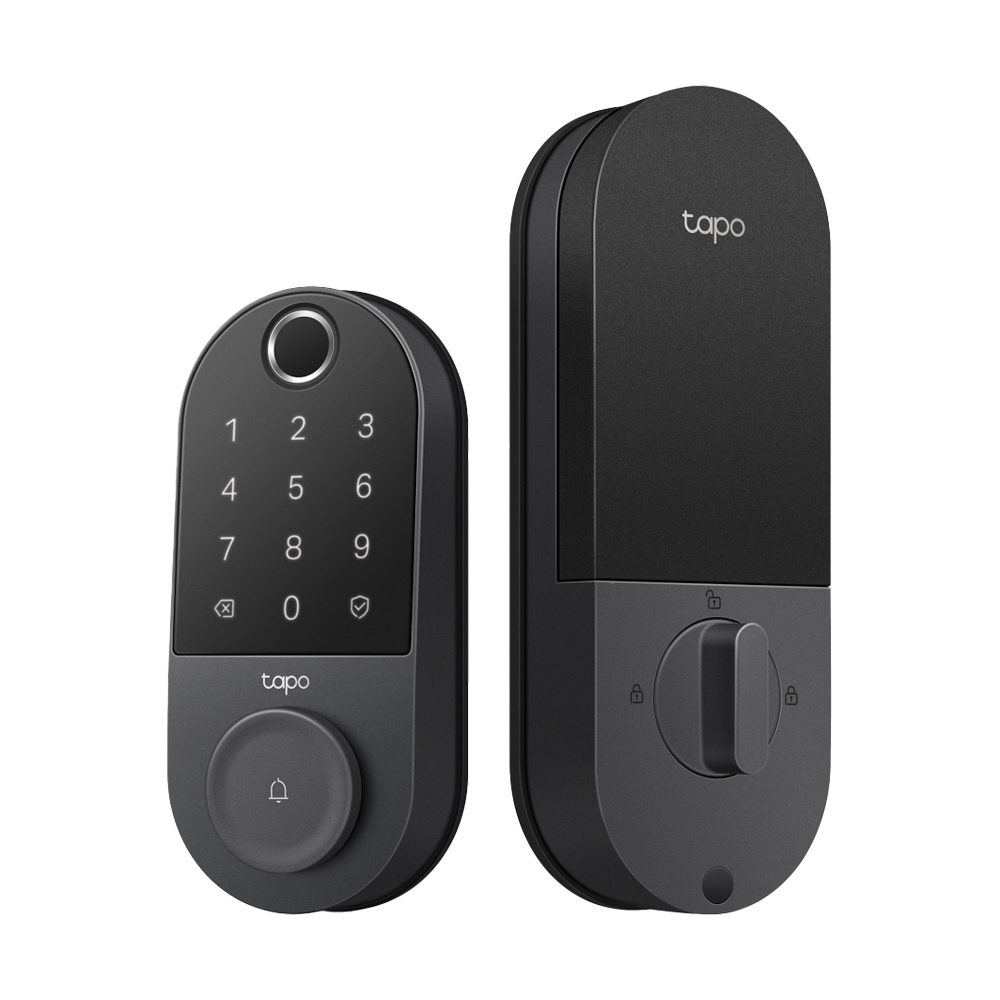

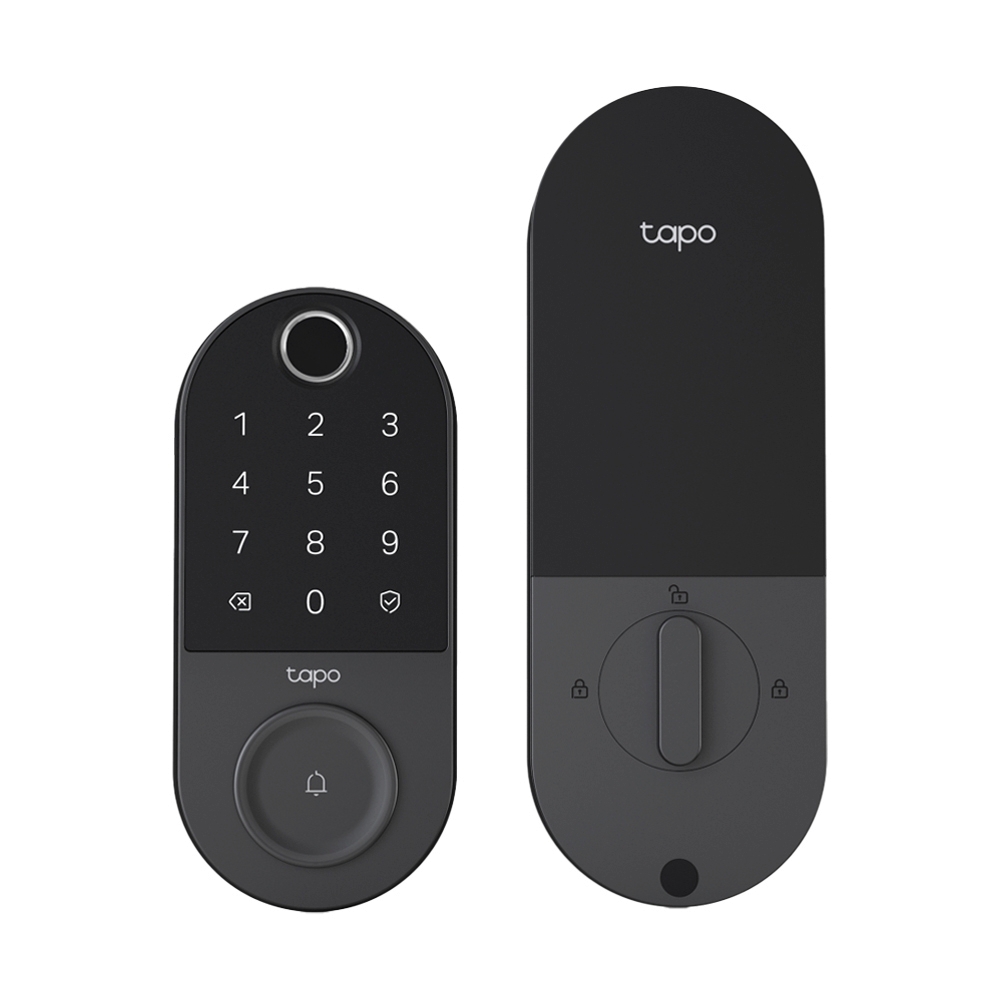

Smart Door Lock TP-LINK TAPO#DL110

TAPO DL110

NONE

LOCK
• One-time Code : Yes
• Emergency Unlock : Yes
• Menchanical Key    Yes
• Automatic Locking : Yes
• Weatherproofing : IP65 (Exterior Only)
• BHMA Certification : Grade 2

• Connectivity : Wi-Fi Mode Select (รองรับการเชื่อมต่อผ่านแอป Tapo)
• Smart Integration: Works with Alexa, Google Home, Samsung SmartThings

N/A

• 100

NONE

• 200

• Power Source : 10000 mAH Rechargeable Lithium-ion Battery
• Input Voltage : 100-240 V, 50/60 Hz
• Output Voltage : 4.2 V
• DC Power Connector Size : type C
• Power Cord Length : 0.5m
• Typical Power Consumption : 1.65mW (WiFi mode standby)
• Maximum Power Consumption : 3.54W

• Network Connectivity : Connect via Wi-Fi and BLE 5.0
• Wireless Connectivity : IEEE 802.11b/g/n, 2.4 GHz Wi-Fi
• Protocol : TCP/IP, ICMP, DNS, HTTPS, TCP, UDP
• Transmission Rate : typical 15Mbps

• Smart Integration : Google Assistant, Amazon Alexa, SmartThings, IFTTT
• Mounting : Door-Mounted
• Operating Temp : -30°C to 70°C (Exterior) , -10°C to 55°C (Interior)
• Operating Humidity : 10–90% RH
Door Compatibility
• Backset: 60/70mm (2.36/2.76 in)
• Minimum Distance: 65mm (2.56 in)
• Cross Bore: 38/54mm (1.50/2.13 in)
• Door Hole Diameter: 25.4mm (1 in)
• Door Thickness: 35-55mm (1.38-2.17 in)
• Latch Hole Depth: ≥25.4mm (≥1 in)

• Tapo App: iOS 12 or higher, Andriod 5.0 or higher
