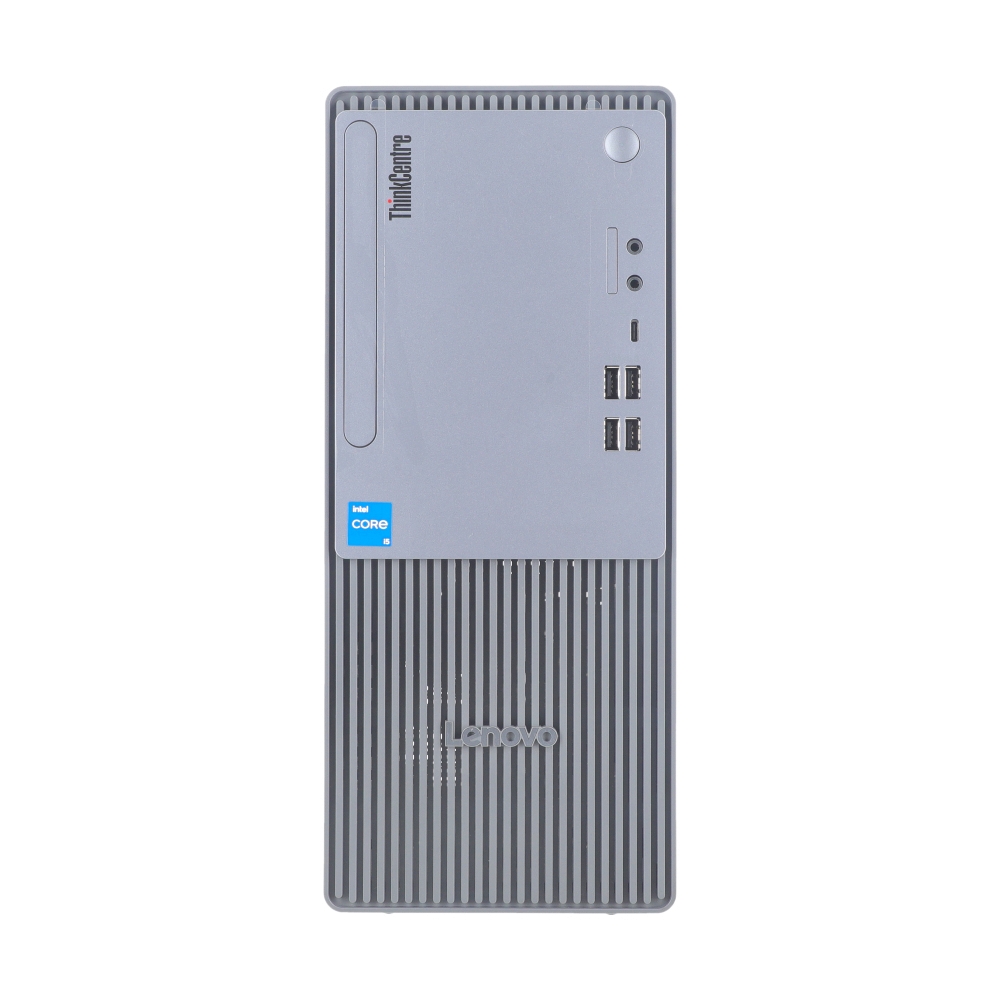

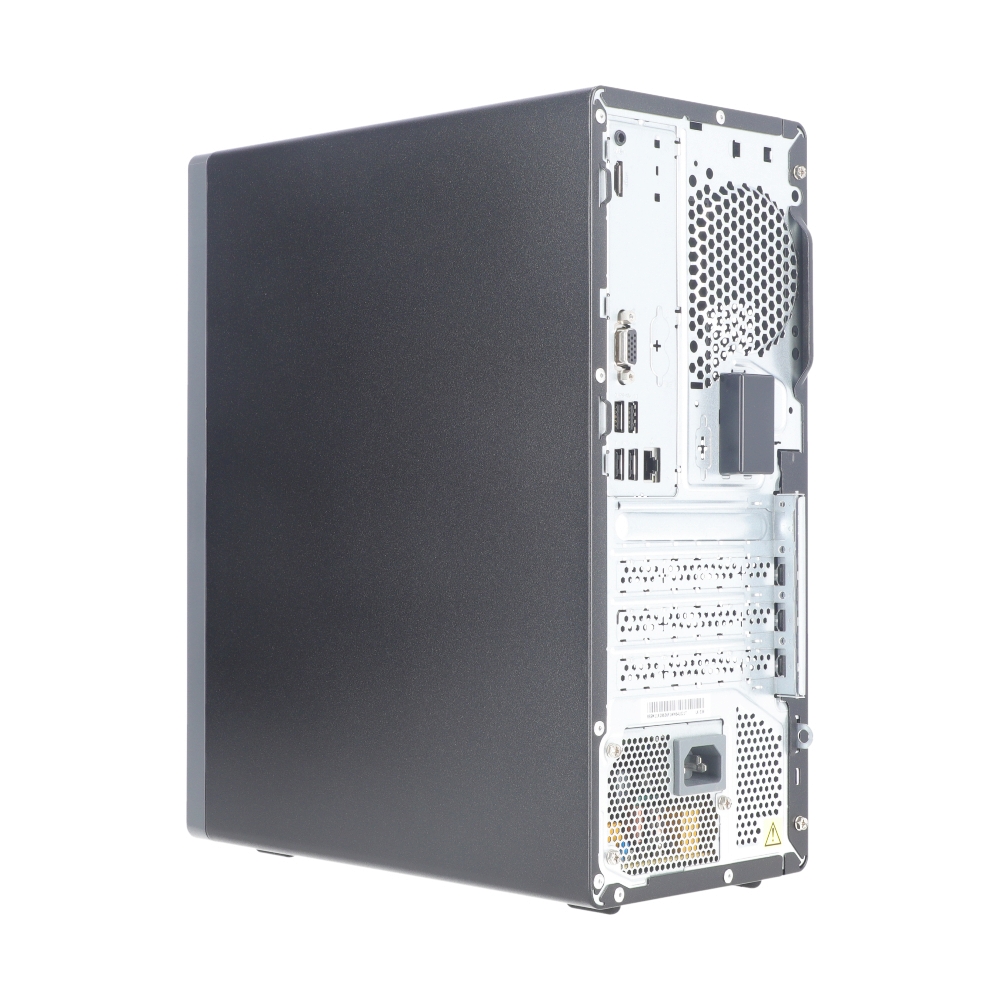

PC Lenovo ThinkCentre Neo 30t G5 (13K6000PTA)

ThinkCentre Neo 30t G5 (13K6000PTA)

Intel Core i5-13420H (2.1GHz Up to 4.6GHz, 8C/12T, 12MB Intel Smart Cache)

None

Intel SoC Platform

Intel UHD Graphics (Integrated Graphics)

16GB (1x 16GB) DDR5-5200 SO-DIMM

2x DDR5 SODIMM slots, dual-channel capable

Up to 32GB DDR5-5200

512GB SSD M.2 2280 PCIe 4.0x4 NVMe Opal 2.0

Up to three drives, 1x 3.5" HDD + 2x M.2 SSD
• 3.5" HDD bay is only for customer self upgrade
• M.2 SSD up to 1TB each

To install a HDD storage, 3.5'' HDD screws, 3.5'' HDD SATA cable and SATA power cable is needed

• One PCIe® 4.0 x16, full-height, length ≤ 233.6mm, height ≤ 117.5mm
• One PCIe® 3.0 x1, full-height, (length ≤ 185mm, height ≤ 100mm) or (length ≤ 118mm, height ≤ 110mm)
• One M.2 slots (for WLAN)

Front Ports
1x USB-C® (USB 5Gbps / USB 3.2 Gen 1), with data transfer and 15W charging
2x USB-A (USB 5Gbps / USB 3.2 Gen 1)
2x USB-A (USB 10Gbps / USB 3.2 Gen 2)

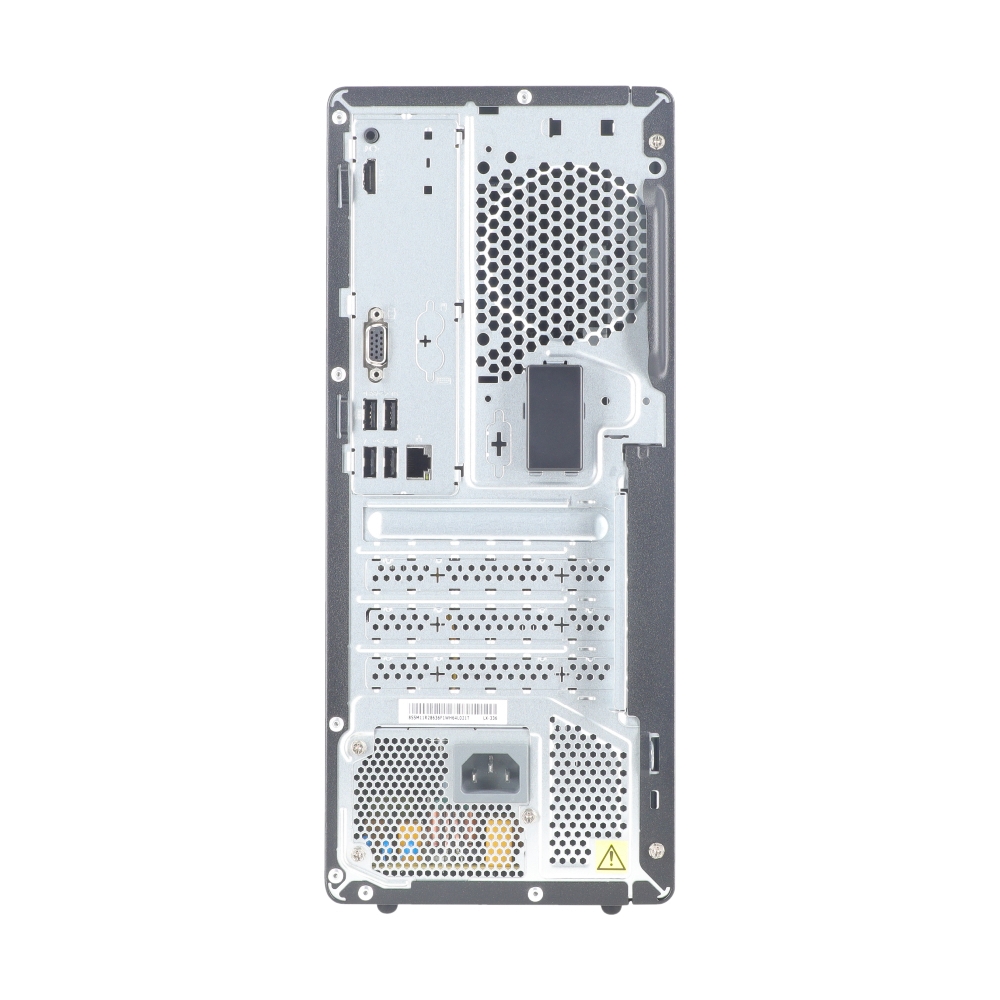

Rear Ports
2x USB-A (Hi-Speed USB / USB 2.0)
2x USB-A (USB 5Gbps / USB 3.2 Gen 1), one supports Smart Power On
1x HDMI® 2.1 TMDS
1x VGA

None

High Definition (HD) Audio, Realtek® ALC623-CG codec

Front Ports
1x headphone / microphone combo jack (3.5mm)
1x microphone (3.5mm)

Rear Ports
1x line-out (3.5mm)

10/100/1000 LAN

Wi-Fi 6 (Intel AX203, 802.11ax)

Bluetooth 5.2

None

200W 90%

Yes

Yes

DOS
