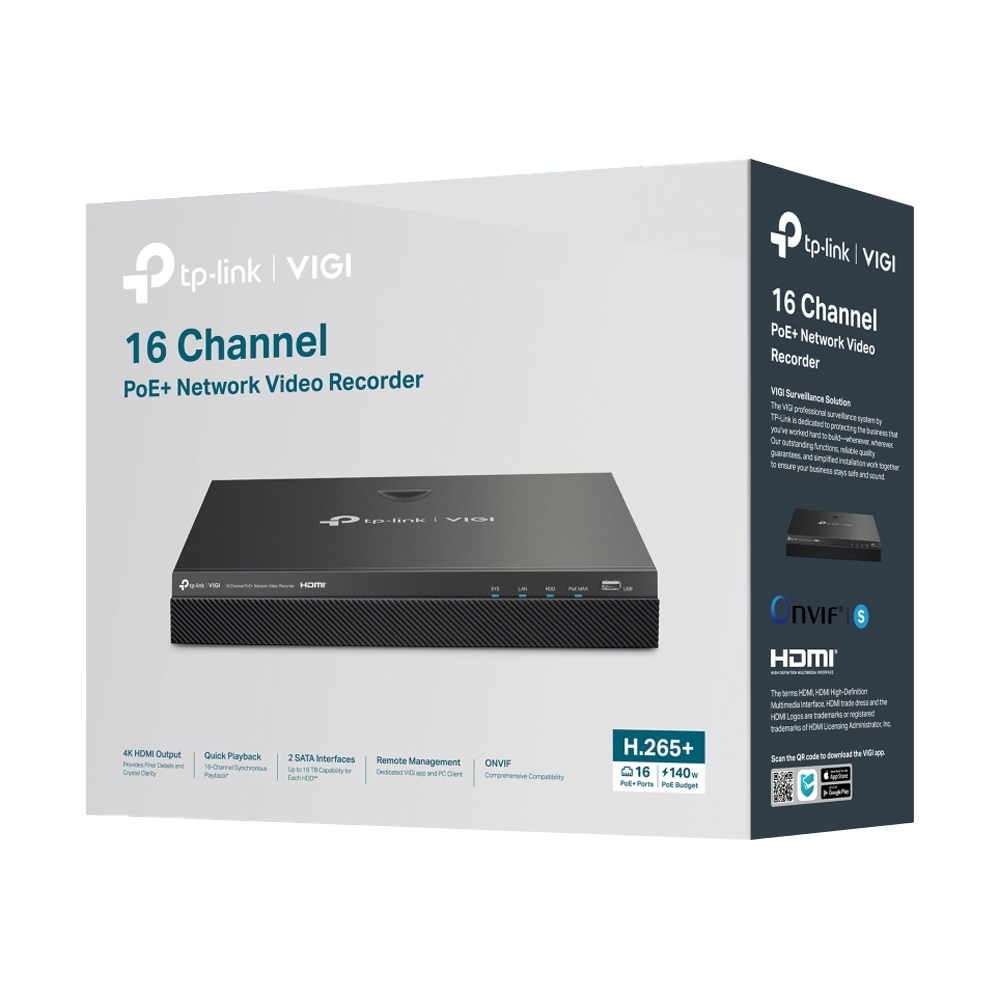

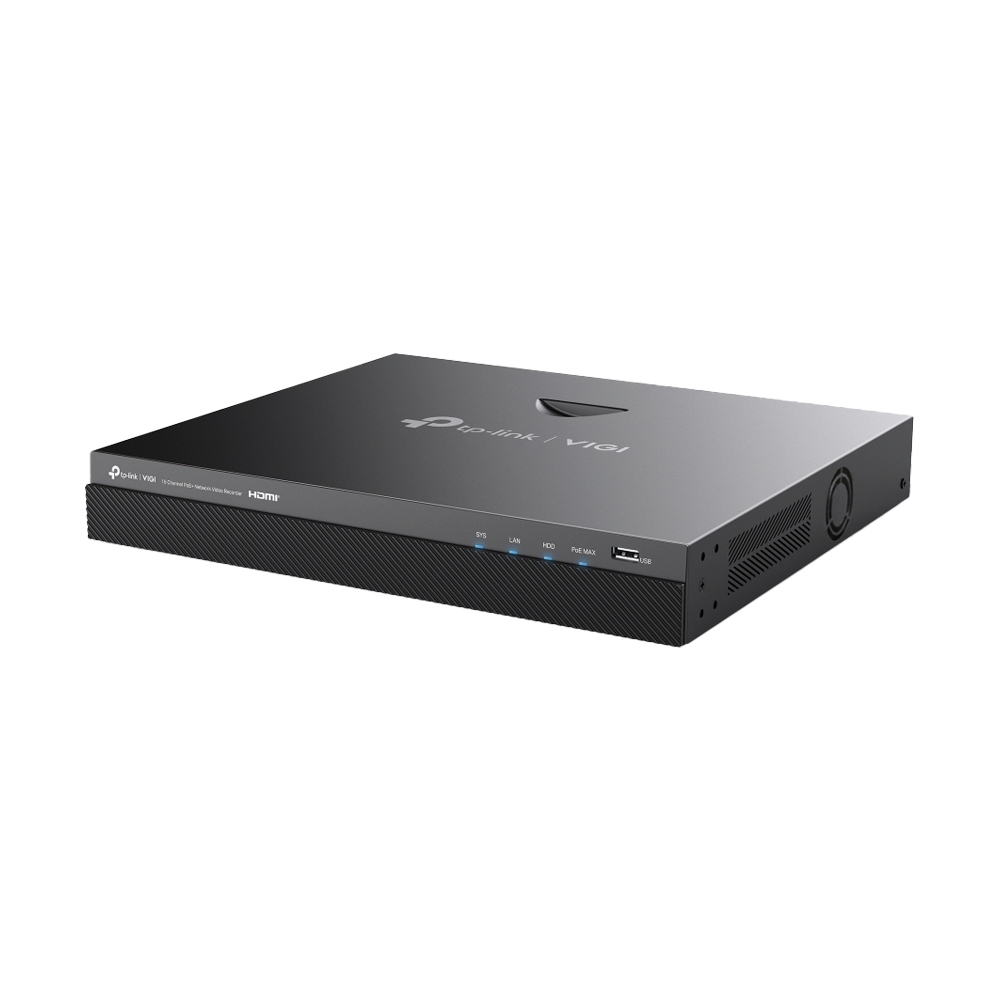

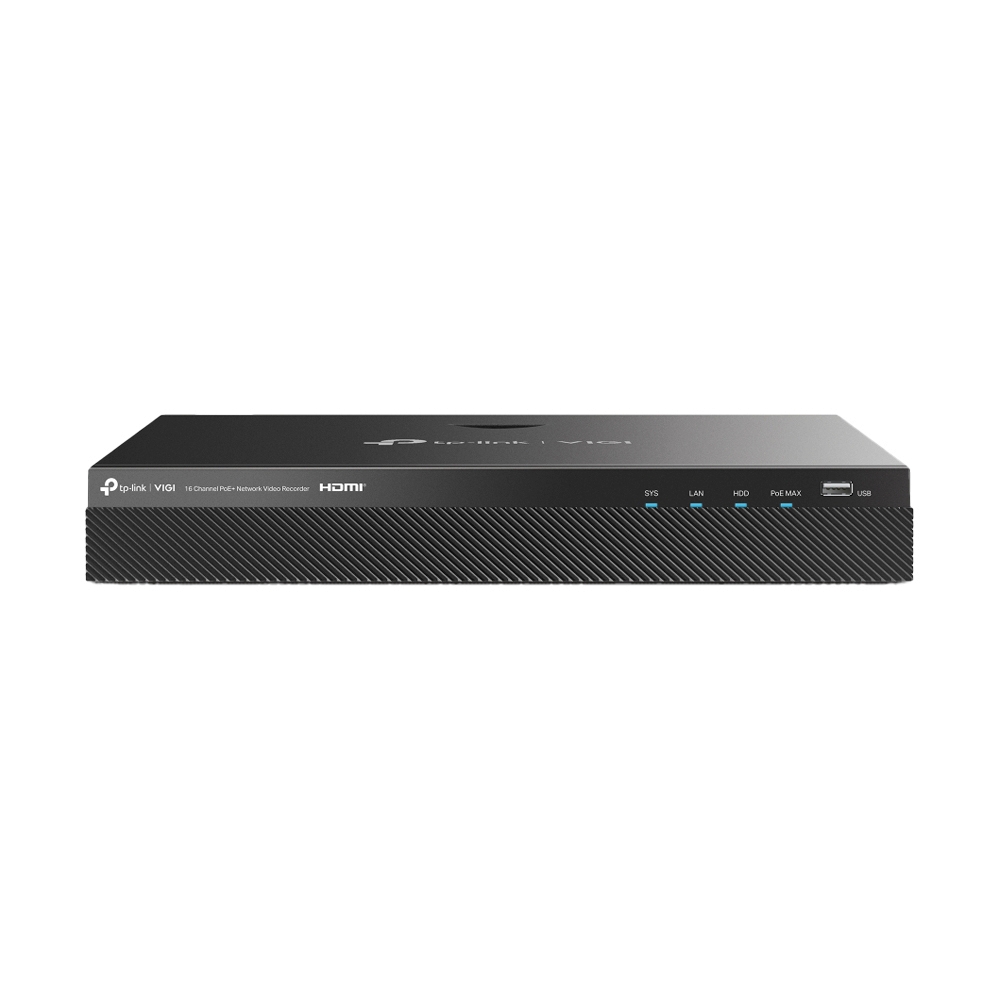

เครื่องบันทึก NVR 16CH. VIGI NVR2016H-16MP

NVR2016H-16MP

• IP Video Input : 16 Ch.
• Incoming Bandwidth : 320 Mbps

• HDMI Output Resolution : 1 Channel, Resolution: 3840x2160/30Hz, 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz
• VGA Output Resolution : 1 Channel, Resolution: 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz
• Video Output Mode : HDMI/VGA Independent Output
• Multi-View Display : 1/4/6/8/9/16
• Outgoing Bandwidth : 320 Mbps

• Audio Compression : G.711A/G.711U/G.726
• Video Compression : H.265+/H.265/H.264+/H.264
• Record Resolution : 8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
• Synchronous Playback : 16-Channel
• Capability : 25fps10-ch @ 3MP, 16-ch @ 1080P, 30fps 4-ch @ 8MP, 6-ch @ 5MP, 8-ch @ 4M

• Protocol : UPnP (Plug and Play), NTP (Network Timing), SMTP, DNS, TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, RTSP, SSL/TLS, RTP, IPv4, ARP
• Mobile Phone Access : Android, iOS
• Web Browser : Chrome (57+), Firefox (52+), Edge (91+), Safari (11+)
• Interoperability : ONVIF Profile S, CGI

• ONVIF Profile S, CGI

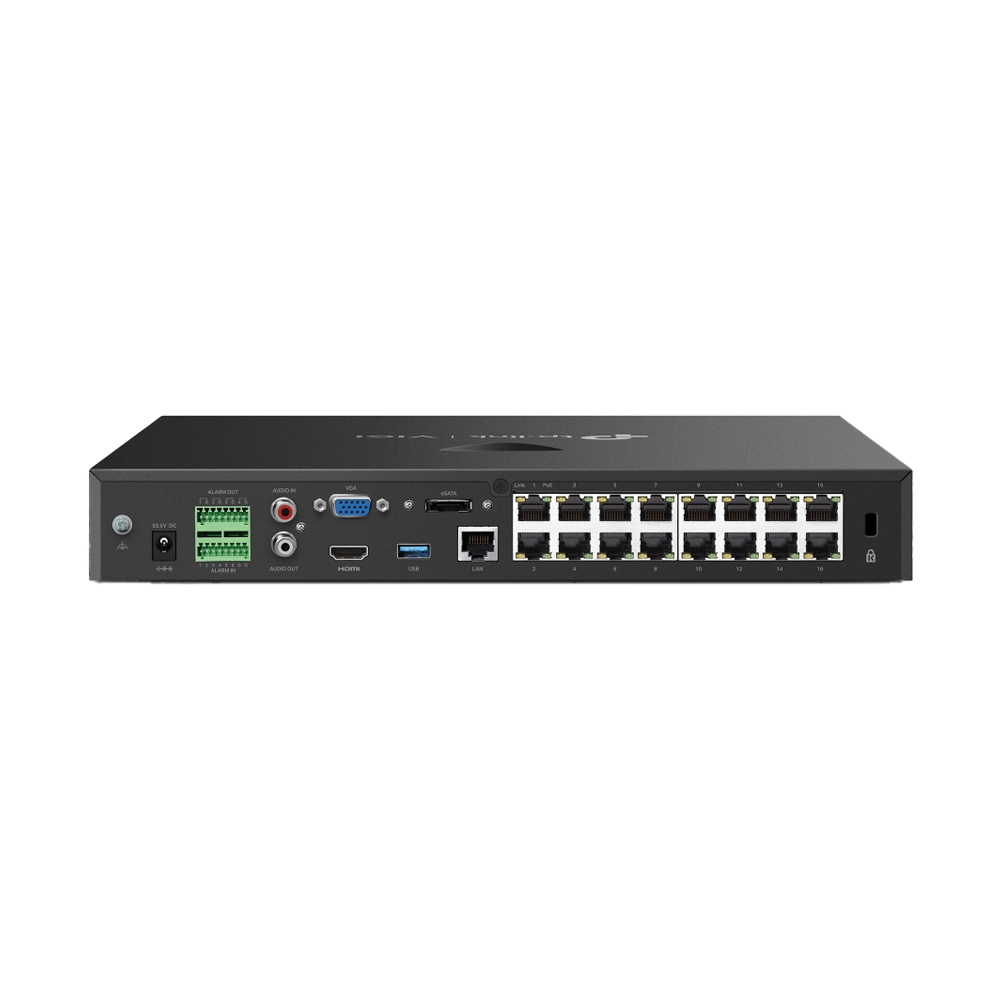

• 1x RJ-45 10/100/1000 Mbps
• 16x RJ-45 10/100/1000 Mbps PoE
• 2x SATA
• 1x eSATA
• 2x USB (1 Front USB 2.0 Port, 1 Rear USB 3.0 Port)
• 1x RCA Input
• 1x RCA Output
• 1x Alarm In/Out
• 1x HDMI
• 1x VGA

• Up to 16 TB Capacity for Each HDD

• 53.5V DC/3.37A

• 6.2 W (Without Disk)
• 40 W (With Disk)

• Standard : 802.3at/af Compliant
• Interface : 1-16, RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface
• PoE Budget : 140W Available for All PoE+ Ports, 30 W Max per Port

• Storage Temperature : -40–70 °C
• Storage Humidity : 10%~90% RH Non-Condensing

• VIGI Network Video Recorder
• Power Adapter
• Power Cable
• HDD Power Cables
• HDD Data Cables
• Mounting Accessories
• Mouse
• Quick Installation Guide
