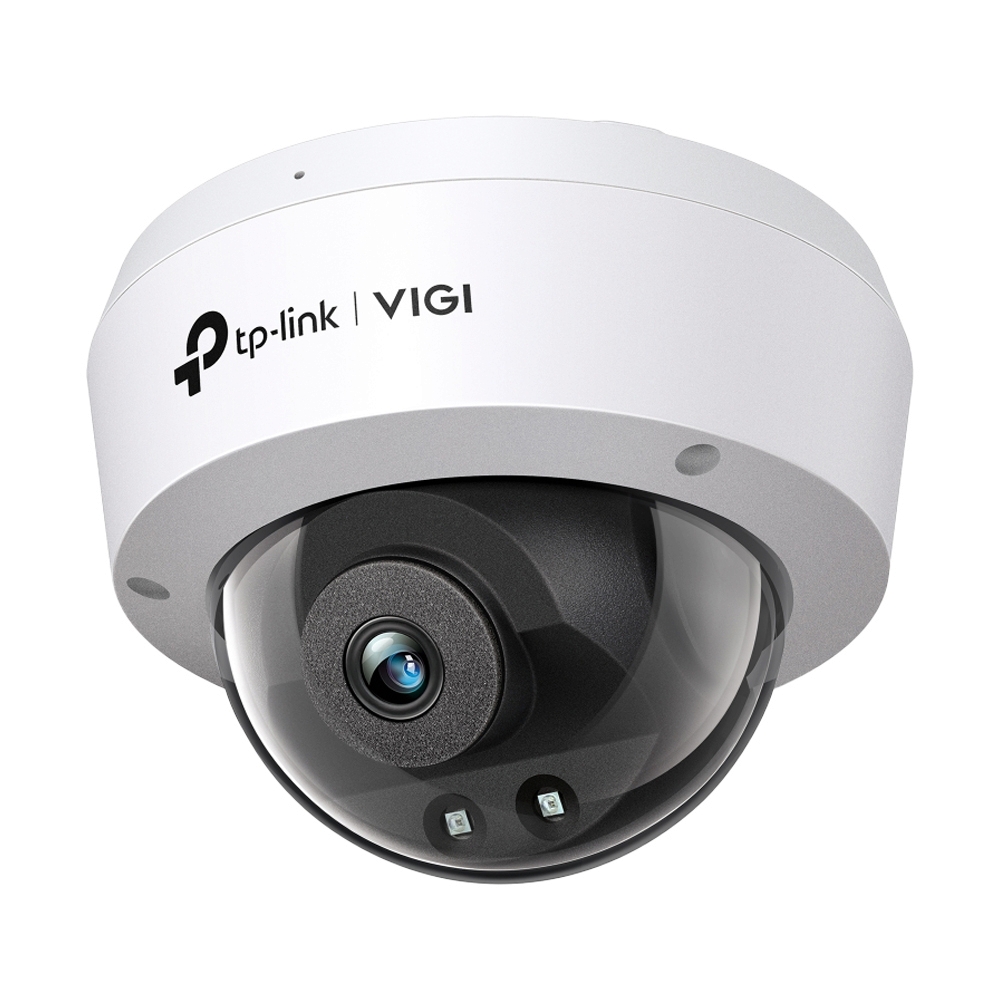

กล้องวงจรปิด 2.8mm IP Camera VIGI C220I

VIGI C220I

• 2MP , 1/3” Progressive Scan CMOS

• 2.8mm

• M12

• Color: 0.01 Lux; 0 Lux with IR

N/A

N/A

• Horizontal FOV:88.2°, Vertical FOV: 48.7°, Diagonal FOV: 106.5°

(Manual)
• Pan: 0° to 355°
• Tilt: 0° to 75°

• 1/3 to 1/10000 s

• 30m

• IR Cut Filter

• DWDR

• 1920 × 1080

• Main Stream: H.265+/H.265/H.264+/H.264
• Sub-Stream: H.265/H.264

Main Stream
• 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
• 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Sub-Stream
• 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
• 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

N/A

N/A

• 1x RJ45 10/100M Self-Adaptive Ethernet Port, PoE

N/A

N/A

• YES

• TCP/IP
• UDP
• ICMP
• HTTP
• HTTPS
• DHCP, DNS, RTSP
• NTP
• UPnP
• SSL/TLS
• FTP/SFTP
• RTP
• IPv4
• ARP
• SNMP
• IEEE 802.1x

• Human & Vehicle Classification
• Smart Detection

• PoE: 802.3af/at, class 0

• Max. 5.5 W

• Operating Temperature : -30–60 °C
• Storage Temperature : -40–60 °C
• Operating Humidity : 95% or Less (Non-Condensing)
• Storage Humidity : 95% or Less (Non-Condensing)

• IP67 Waterproof, IK10 Vandal Proof

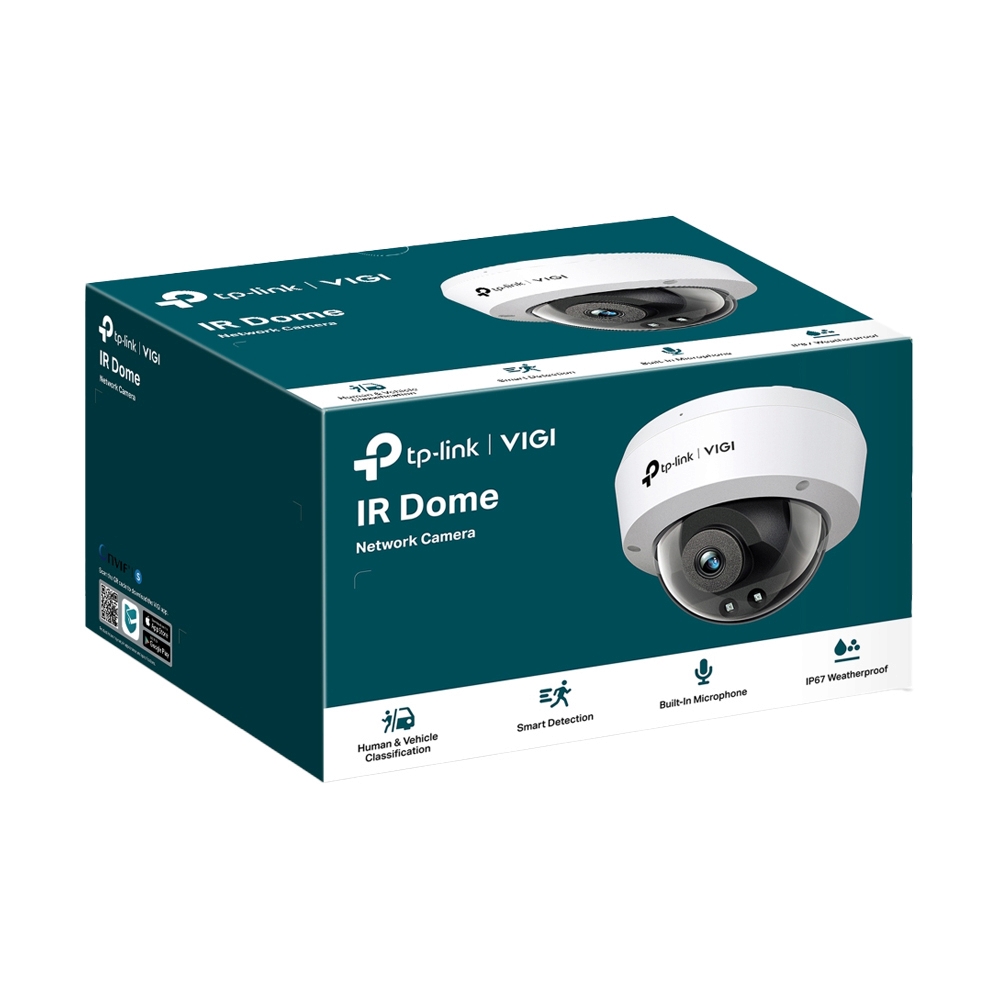

• VIGI Network Camera
• Quick Start Guide
• Waterproof Cable Attachments
• Mounting Accessories
