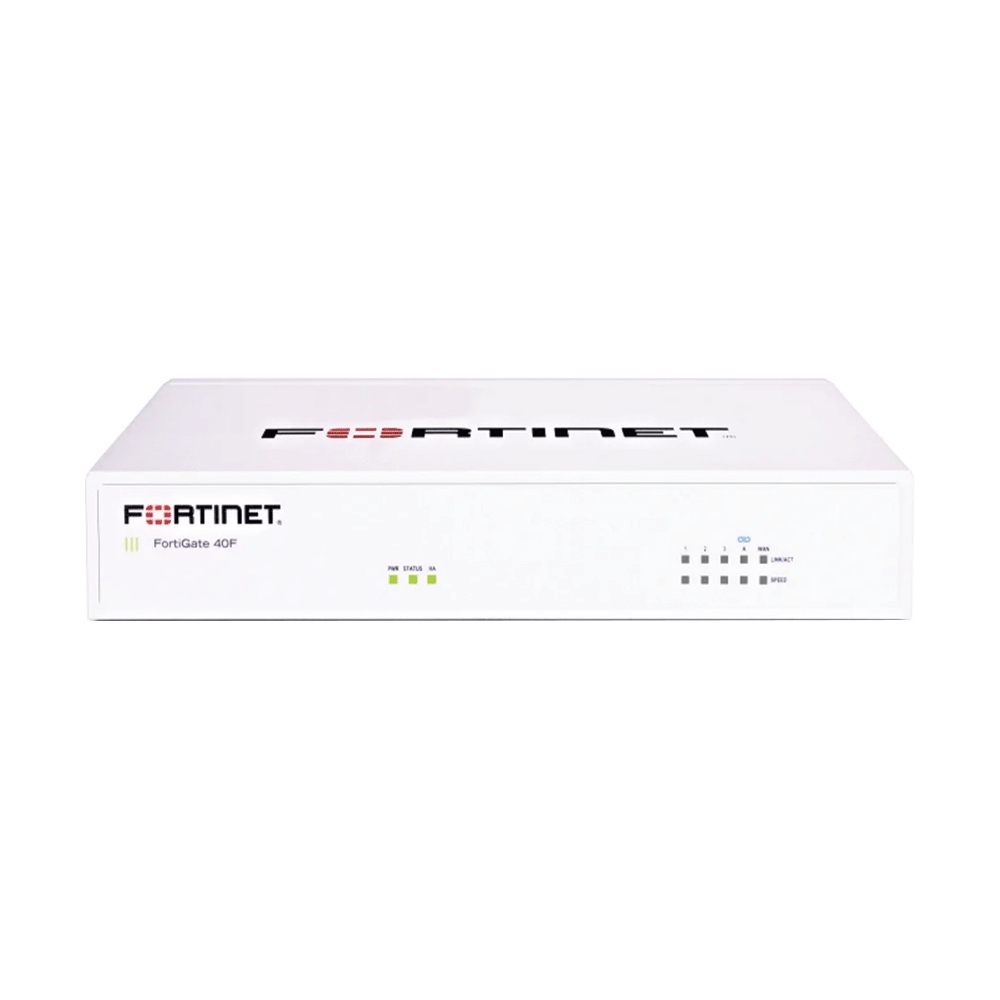

Firewall FortiGate 40F (FG-40F-BDL-950-12)

40F (FG-40F-BDL-950-12)

N/A

NONE

• YES

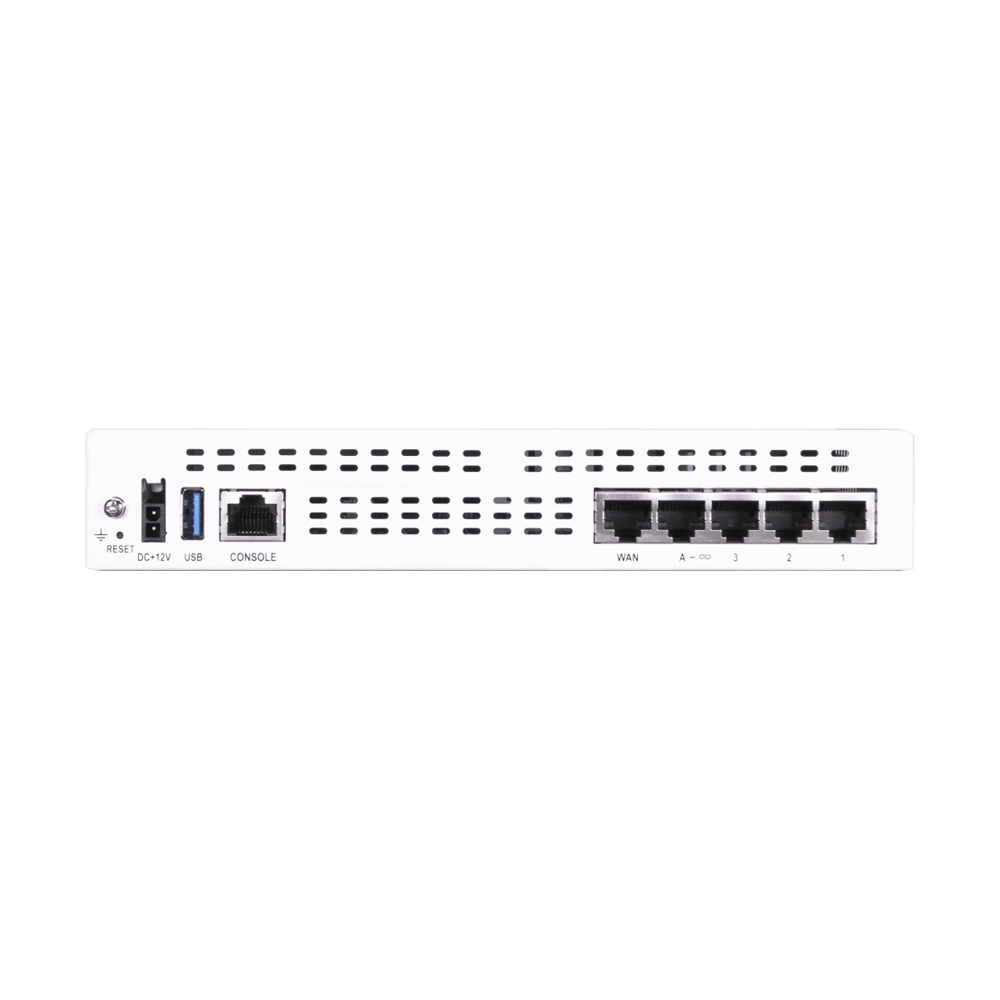

• 1x Console Port
• 1x GE RJ45 WAN/DMZ Ports
• 1x GE RJ45 FortiLink Ports
• 3x GE RJ45 Internal Ports

• 1x USB Port

• IPS Throughput : 1 Gbps
• NGFW Throughput : 800 Mbps
• Threat Protection Throughput : 600 Mbps

• IPsec VPN Throughput (512 byte) : 4.4 Gbps
• Gateway-to-Gateway IPsec VPN Tunnels : 200
• Client-to-Gateway IPsec VPN Tunnels : 250
• SSL-VPN Throughput : 490 Mbps
• Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) : 200
• SSL Inspection Throughput (IPS, avg. HTTPS) : 310 Mbps
• SSL Inspection CPS (IPS, avg. HTTPS) : 320
• SSL Inspection Concurrent Session (IPS, avg. HTTPS) : 55,000
• Application Control Throughput (HTTP 64K) : 990 Mbps
• CAPWAP Throughput (HTTP 64K) : 3.5 Gbps
• Virtual Domains (Default / Maximum) : 10 / 10
• Maximum Number of FortiSwitches Supported : 8
• Maximum Number of FortiAPs (Total / Tunnel) : 16 / 8
• Maximum Number of FortiTokens : 500
• High Availability Configurations : Active-Active, Active-Passive, Clustering

• Management Options : FortiManager, FortiCloud, Web UI (HTTPS), Command Line Interface (CLI / Console)
• Management Ports : 1x Console Port (RJ45), 1x USB Port

• IPv4 Firewall Throughput (1518 / 512 / 64 byte, UDP) : 5 / 5 / 5 Gbps
• Firewall Latency (64 byte, UDP) : 2.97 μs
• Firewall Throughput (Packet per Second) : 7.5 Mpps
• Concurrent Sessions (TCP) : 700,000
• New Sessions/Second (TCP) : 35,000
• Firewall Policies : 2,000

• IPsec VPN Throughput (512 byte) : 4.4 Gbps
• Gateway-to-Gateway IPsec VPN Tunnels : 200
• Client-to-Gateway IPsec VPN Tunnels : 250
• SSL-VPN Throughput : 490 Mbps
• Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) : 200

• YES

• Threat Protection : IPS (1 Gbps), NGFW (800 Mbps), Threat • Protection (600 Mbps), Application Control (990 Mbps)
High Performance Hardware : ประมวลผลด้วย SOC4 (System-on-a-Chip 4) Hardware Acceleration
• Security Fabric Integration : รองรับ FortiLink จัดการ FortiSwitch (สูงสุด 8 เครื่อง) และ FortiAP (สูงสุด 16 เครื่อง)
• Compact & Fanless : ขนาดเล็ก ทำงานเงียบไม่มีพัดลม เหมาะสำหรับสำนักงานขนาดเล็ก

N/A

• FortiOS

• Input Rating : 12Vdc, 3A
• Power Required : Powered by External DC Power Adapter, 100–240V AC, 50/60 Hz
• Current (Maximum) : 100V AC / 0.2A, 240V AC / 0.1A

NONE

• 7.74 W / 9.46 W

• Operating Temperature : 32°F to 104°F (0°C to 40°C)
• Storage Temperature : -31°F to 158°F (-35°C to 70°C)
• Humidity : 10% to 90% non-condensing

• USGv6/IPv6

N/A
