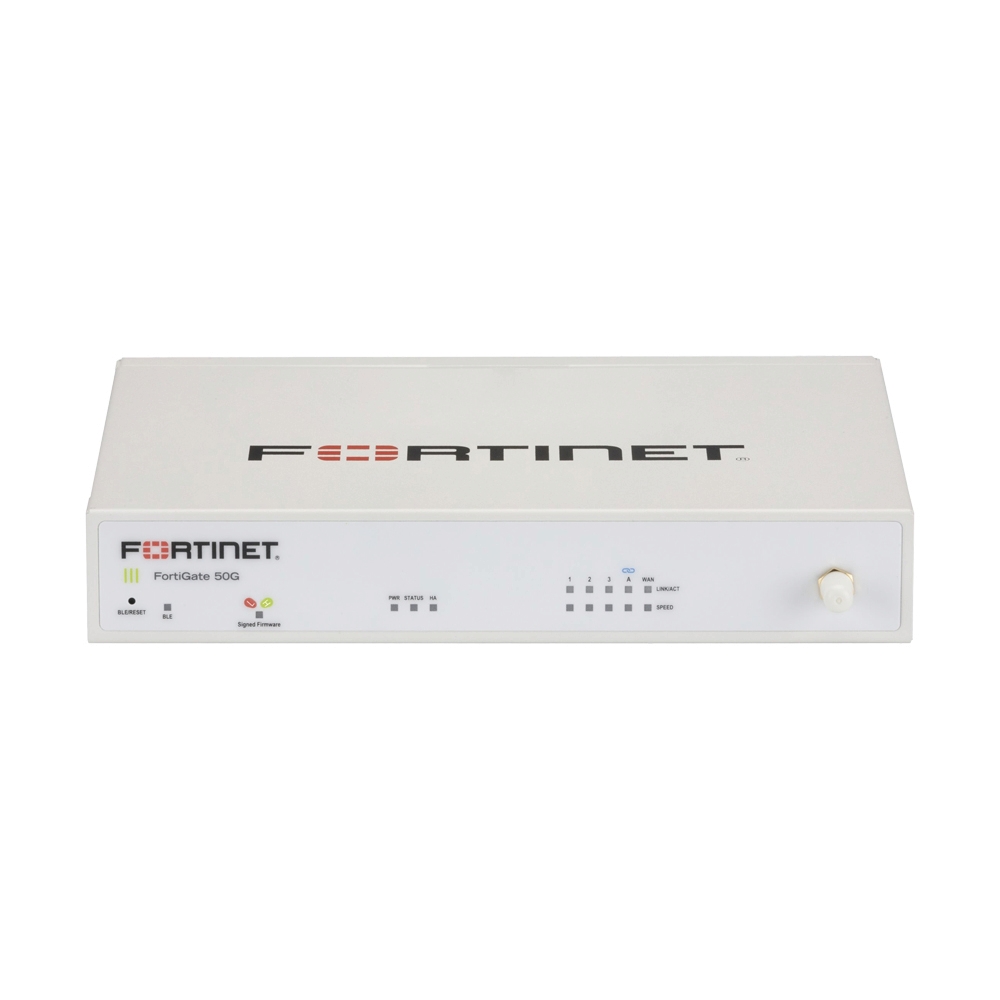

Firewall FortiGate 50G (FG-50G-BDL-950-12)

50G (FG-50G-BDL-950-12)

• Bluetooth Low Energy (BLE)

NONE

• YES

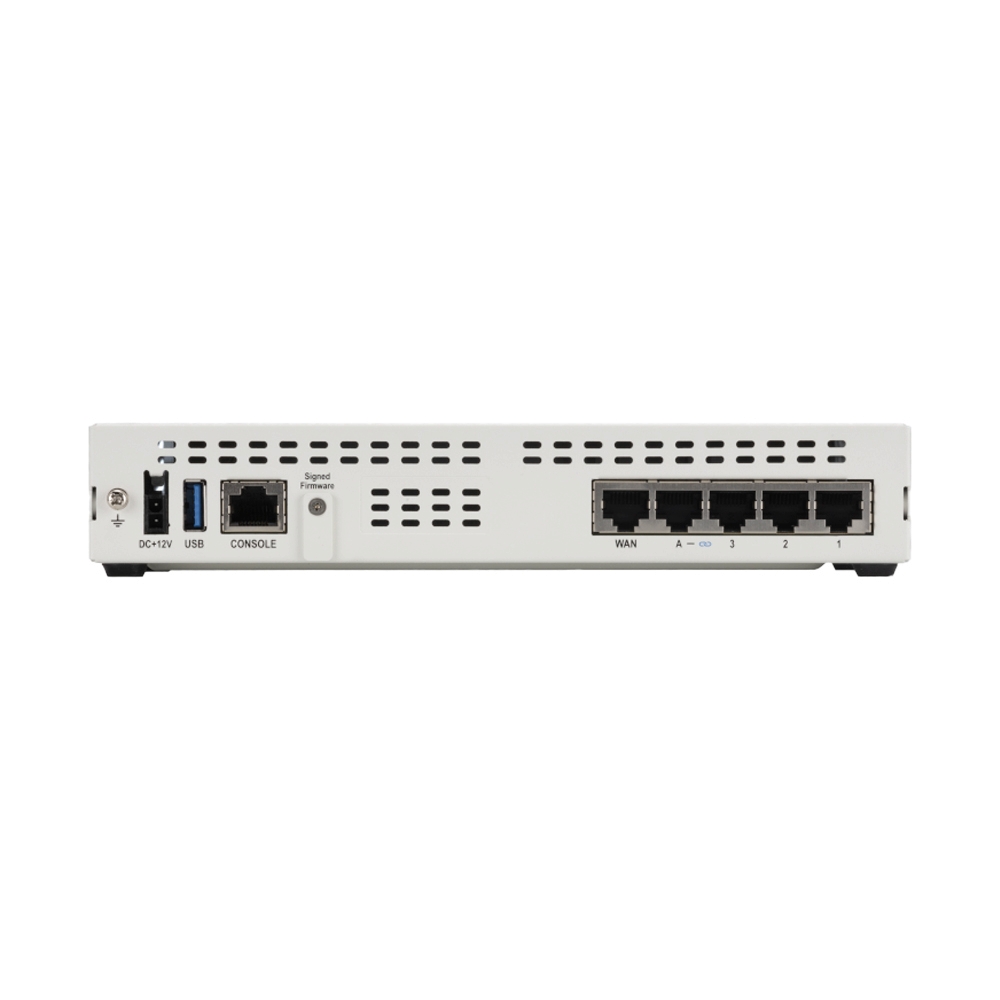

• 1x Console Port
• 1x GE RJ45 WAN Ports
• 1x GE RJ45 FortiLink Ports
• 3x GE RJ45 Internal Ports

• 1x USB Port

• IPS Throughput : 2.25 Gbps
• NGFW Throughput : 1.25 Gbps
• Threat Protection Throughput : 1.1 Gbps

• IPsec VPN Throughput (512 byte) : 4.5 Gbps
• Gateway-to-Gateway IPsec VPN Tunnels : 200
• Client-to-Gateway IPsec VPN Tunnels : 250
• SSL-VPN Throughput : —
• Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) : -
• SSL Inspection Throughput (IPS, avg. HTTPS) : 1.3 Gbps
• SSL Inspection CPS (IPS, avg. HTTPS) : 699
• SSL Inspection Concurrent Session (IPS, avg. HTTPS) : 74,000
• Application Control Throughput (HTTP 64K) : 2.8 Gbps
• CAPWAP Throughput (HTTP 64K) : 3.8 Gbps
• Virtual Domains (Default / Maximum) : 5 / 5
• Maximum Number of FortiSwitches Supported : 8
• Maximum Number of FortiAPs (Total / Tunnel Mode) : 16 / 8
• Maximum Number of FortiTokens : 500
• High Availability Configurations : Active-Active, Active-Passive, Clustering

• Management Options : FortiManager, FortiCloud, Web UI (HTTPS), Command Line Interface (CLI / Console)
• Management Ports : 1x Console Port (RJ45), 1x USB Port

• Firewall Throughput (1518 / 512 / 64 byte UDP packets) : 5 / 5 / 4 Gbps
• Firewall Latency (64 byte UDP packets) : 2.42 μs
• Firewall Throughput (Packets Per Second) : 6 Mpps
• Concurrent Sessions (TCP) : 720,000
• New Sessions/Second (TCP) : 85,000
• Firewall Policies : 2,000

• IPsec VPN Throughput (512 byte) : 4.5 Gbps
• Gateway-to-Gateway IPsec VPN Tunnels : 200
• Client-to-Gateway IPsec VPN Tunnels : 250
• SSL-VPN Throughput : —
• Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) : -

• YES

• Threat Protection : IPS (2.25 Gbps), NGFW (1.25 Gbps), Threat Protection (1.1 Gbps), Application Control (2.8 Gbps)
• High Performance Hardware : ประมวลผลด้วยชิป SP5 (Security Processing Unit 5) เพิ่มประสิทธิภาพระดับสูง
• Security Fabric Integration : รองรับ FortiLink จัดการ FortiSwitch (สูงสุด 8 เครื่อง) และ FortiAP (สูงสุด 16 เครื่อง)
• Built-in Security & Hardware Controls : มี TPM Module, BLE และ Signed Firmware Hardware Switch เพิ่มความปลอดภัยระดับฮาร์ดแวร์

• FortiOS

N/A

• Power Rating : 12VDC, 3A
• Power Required : Powered by External DC Power Adapter, 100–240V AC, 50/60 Hz
• Maximum Current : 100V/0.4A, 240V/0.2A

NONE

• 8.3 W

• Operating Temperature : 32°F to 104°F (0°C to 40°C)
• Storage Temperature : -31°F to 158°F (-35°C to 70°C)
• Humidity : 10% to 90% non?condensing

• USGv6/IPv6

N/A
