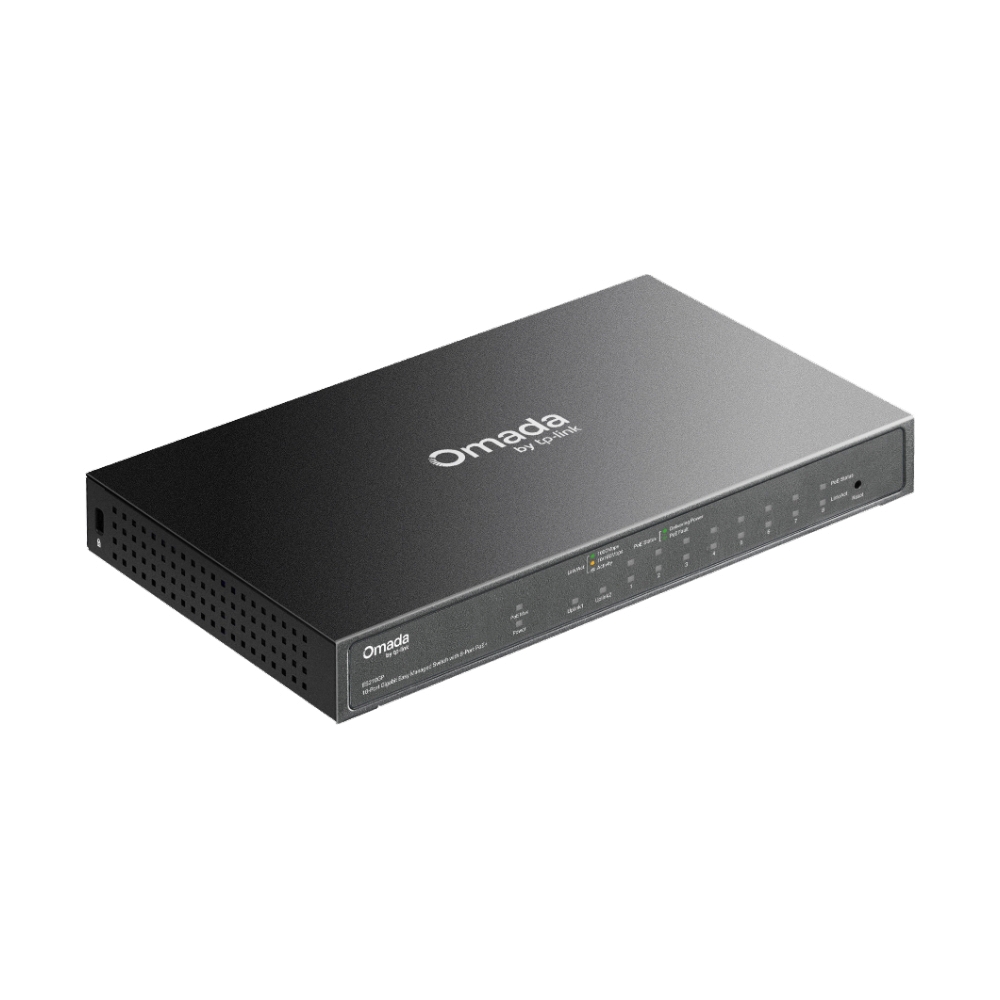

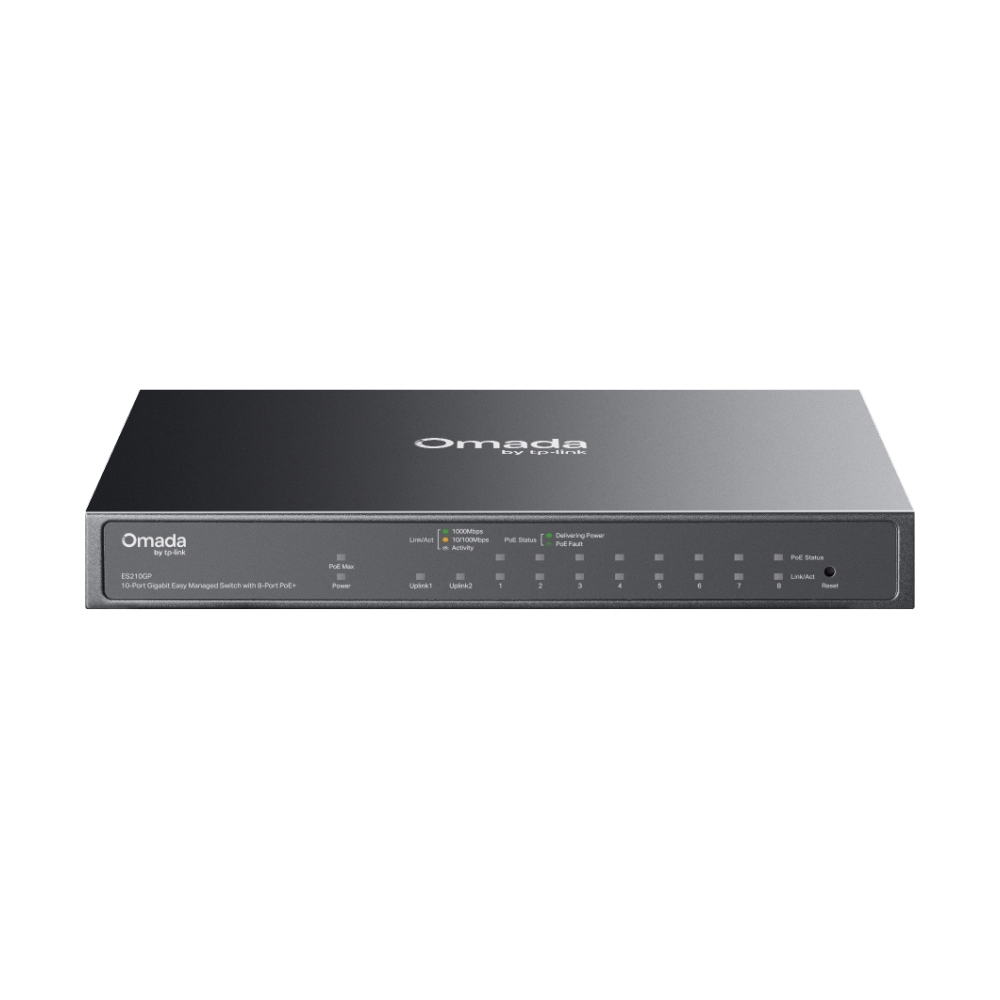

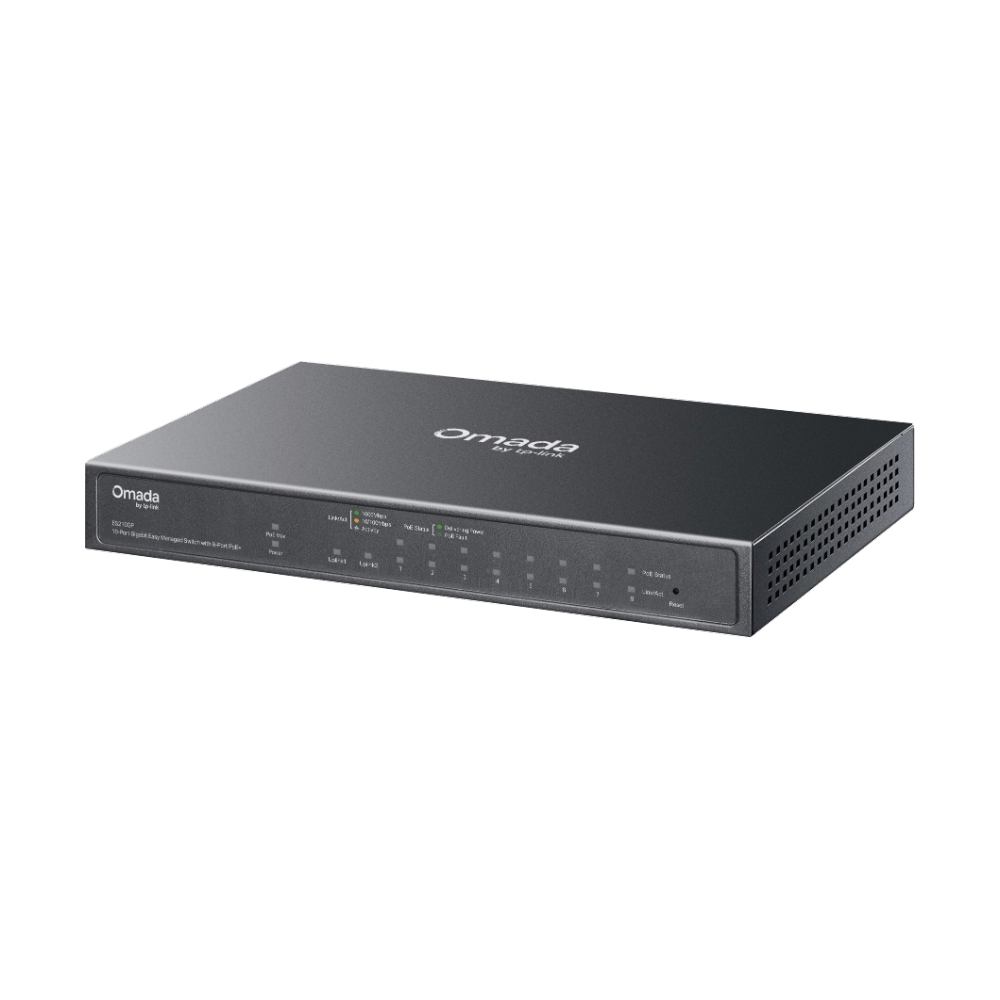

Gigabit Switching Hub 8 Port TP-LINK Omada ES210GP (8",8 PoE+)

ES210GP

• 8x 10/100/1000 Mbps PoE+ RJ45 Ports (PoE Power Budget 63 W)
• 1x 10/100/1000 Mbps RJ45 Port
• 1x Gigabit SFP/RJ45 Combo Port

NONE

• IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.3af, 802.3at

• 20Gbps

• Store-And-Forward

• 8K

• 14.88 Mpps

• 15 KB

• 4 Mbit

N/A

N/A

N/A

• YES

Centralized Management
• Omada App
• Omada Cloud-Based Controller
• Omada Hardware Controller
• Omada Software Controller
Management Features
• Web-based GUI
• DHCP Client
• Cable Diagnostics
• Automatic Device Discovery
• Batch Configuration
• Batch Firmware Upgrading
• Unified Configuration

• MTU VLAN
• Port-Based VLAN
• 802.1Q Tag VLAN
- Max 32 VLAN Groups
- 4K VID

• Physical Security Lock

NONE

L2 Features
• Static Link Aggregation
• Loop Prevention / Loopback Detection
• Flow Control
- 802.3x Flow Control
• Mirroring
- Port Mirroring
- One-to-One
- Many-to-One
- Ingress/Egress/Both
• Port Statistics
- Port Mirror Status
- Traffic Statistics
• 802.1ab LLDP
L2 Multicast
• IGMP Snooping
- IGMP v1/v2/v3 Snooping
- Fast Leave

N/A

• Fanless

• Metal

• Standard: 802.3af PoE and 802.3at PoE+ compliant
• PoE Ports: 8 ports
• PoE Budget: 63W available for all PoE+ ports, 30W max per port
• Fast PoE & Perpetual PoE

• AC/DC Adapter (Input: 100-240V AC
• Output: 53.5V DC/1.31A)

N/A

• Operating Temperature: 0°C~40°C (32°F~104°F)
• Storage Temperature: -40°C~70°C (-40°F~158°F)
• Operating Humidity: 10%~90% non-condensing
• Storage Humidity: 5%~90% non-condensing

• FCC, CE, RoHS

• ES210GP
• Power Adapter
• Power Cord
• Installation Guide
• Rubber Feet
