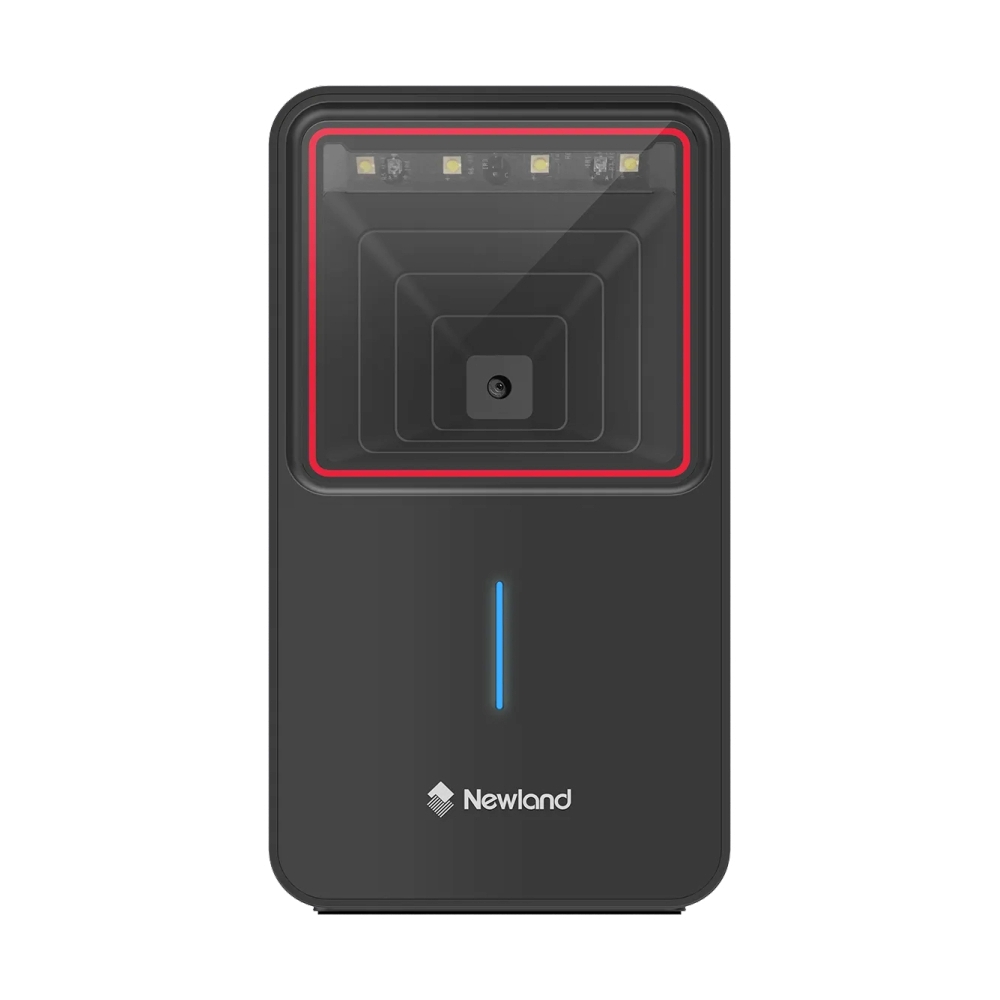

Barcode Scanner NEWLAND NLS-FR4280

NLS-FR4280-BT

1D, 2D

Bluetooth 5.0 BLE and HID, Bluetooth Dongle CDC/KBW/HID-POS    Communication Distance 50m/164ft (direct line of sight in the open space)

White LED

1080 x 1280 CMOS, ≥3mil

Motion Tolerance : 1.8m/s

Pitch: ±60°, Roll: 360°, Skew: ±65°

Horizontal 62°, Vertical 54°

EAN-13 : 10mm-130mm (13mil)
QR Code : 15mm-110mm (15mil)
Code 39 : 35mm-80mm (5mil)

15%

1D : EAN-13, EAN-8, UPC-A, UPC-E, ISSN, ISBN, Codabar, Code 128, Code93, ITF-6, ITF-14, 1D Interleaved 2 of 5, Industrial 2 of 5, Standard 2 of 5, Matrix 2 of 5, GS1 Databar, Code 39, Code32(Italian Pharma Code), Code 11, MSI-Plessey, Plessey

2D : PDF417, QR Code, Data Matrix, Micro QR, MICRO PDF 417, GM CODE, Hanxin Code, Maxicode, Aztec, Code ONE

Sense mode, continuous mode

Beep, LED

Operating Voltage : 5VDC±5%
Battery : 2000 mAh lithium-ion battery
Expected Charge Time : 5 hours
Expected Battery Life : 9.5 hours of continuous operation (scan once per 3 seconds)
16 hours of continuous operation (scan once per 10 seconds)

Operating Temperature : -10°C to 55°C (14°F to 131°F)
Storage Temperature : -40°C to 70°C (-40°F to 158°F)
Humidity : 5%~95% (non-condensing)
ESD : ±12 KV (air discharge); ±8 KV (contact discharge)
Drop : 1.5m/4.9ft
Sealing : IP52
Battery Charge Temperature : 0°C to 45°C (32°F to 113°F)

N/A

N/A
