ข้อมูลสินค้าPSU (80+ BRONZE) 750W GIGABYTE P750BS
GIGABYTE

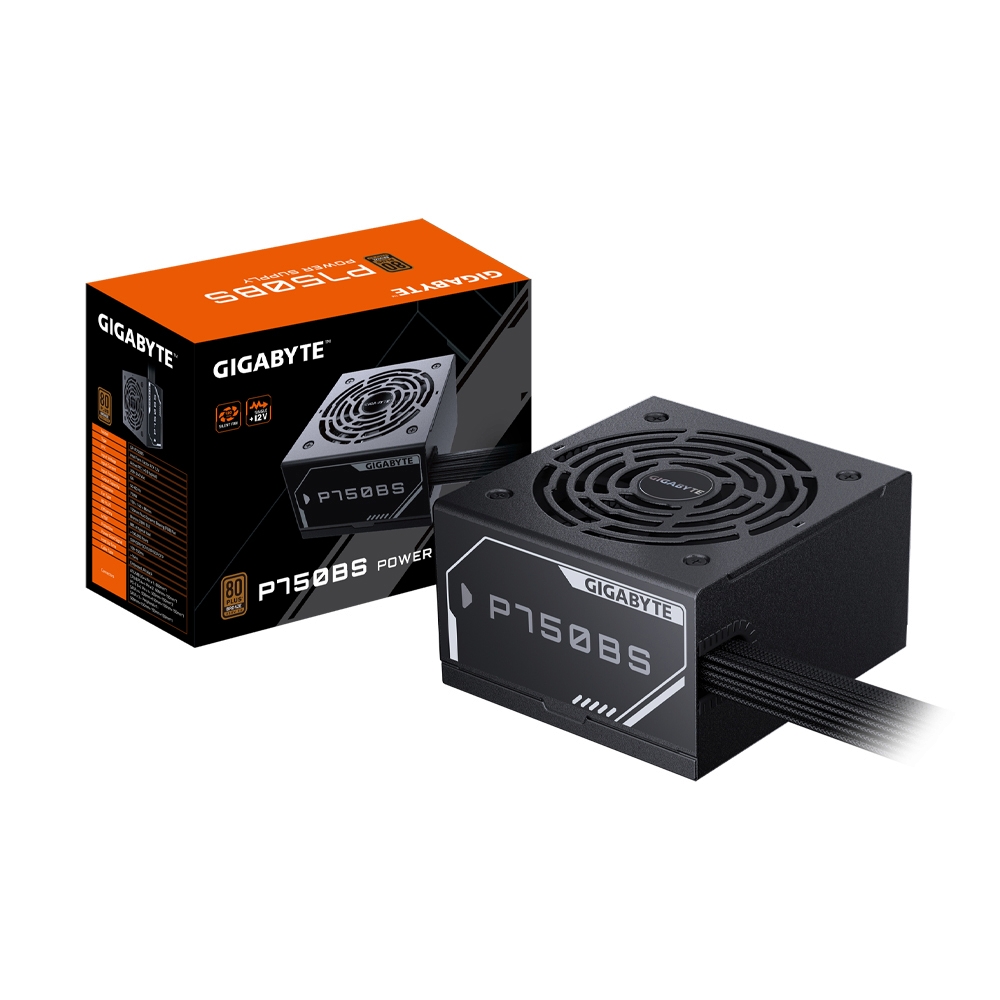

PSU (80+ BRONZE) 750W GIGABYTE P750BS
รหัสสินค้า: A0165186
- Maximum Power : 750W
- Energy Efficient : 80 Plus Bronze
- Type : Non Modular
- PCIe Connector : (6+2 Pin) x 4 Connector
- 80 PLUS Bronze certified (230V EU)
- 120mm Silent Fluid Dynamic Bearing (FDB) fan
- Soft-textured embossed cables
- Single +12V rail
- OVP/OPP/SCP/UVP/OCP/OTP protection
ราคาหน้าร้าน ฿1,840
รายละเอียดสินค้า
ข้อมูลผลิตภัณฑ์
BrandGIGABYTE
Model
P750BS
ATX Standard
Intel Form Factor ATX 12V
Power Capacity
750W
Certification
80 PLUS

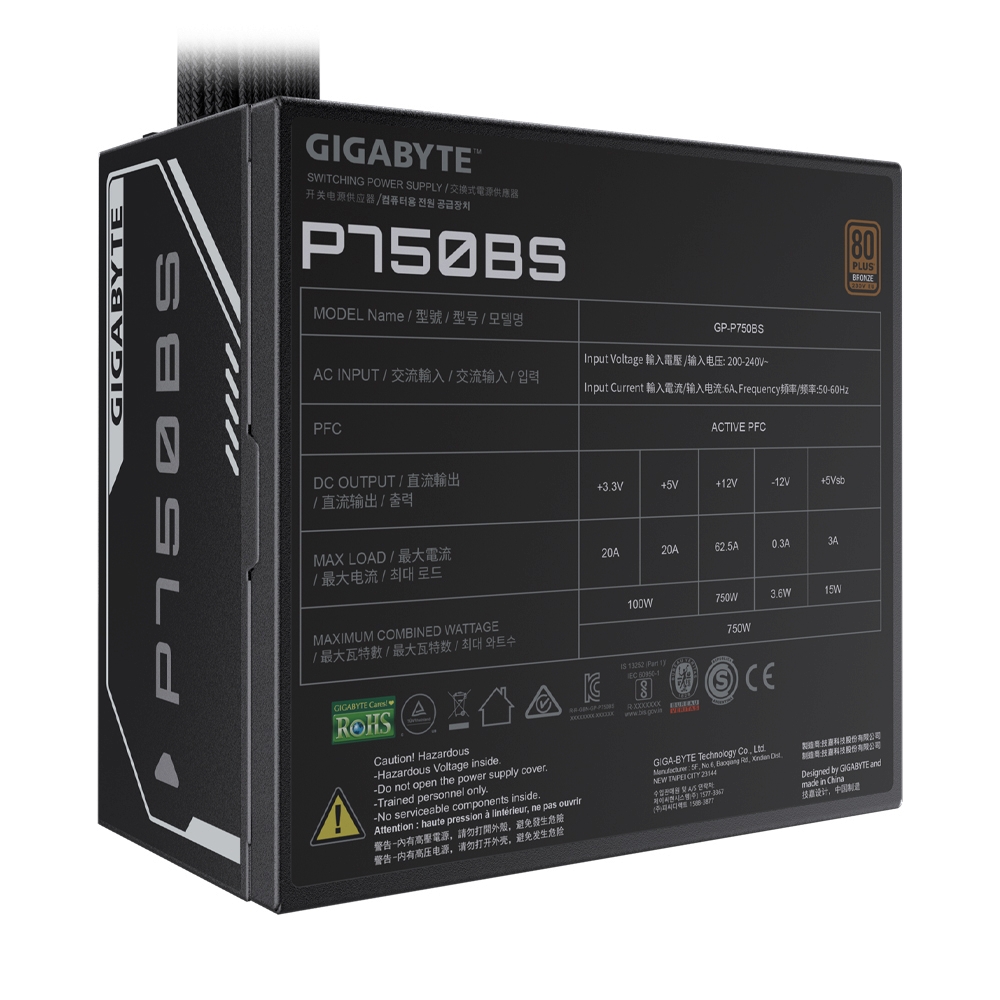

Input Voltage
200-240 Vac
Input Current
6 A
Input Frequency Range
60-50 Hz
Efficiency
Bronze (230V EU) 88% at typical load

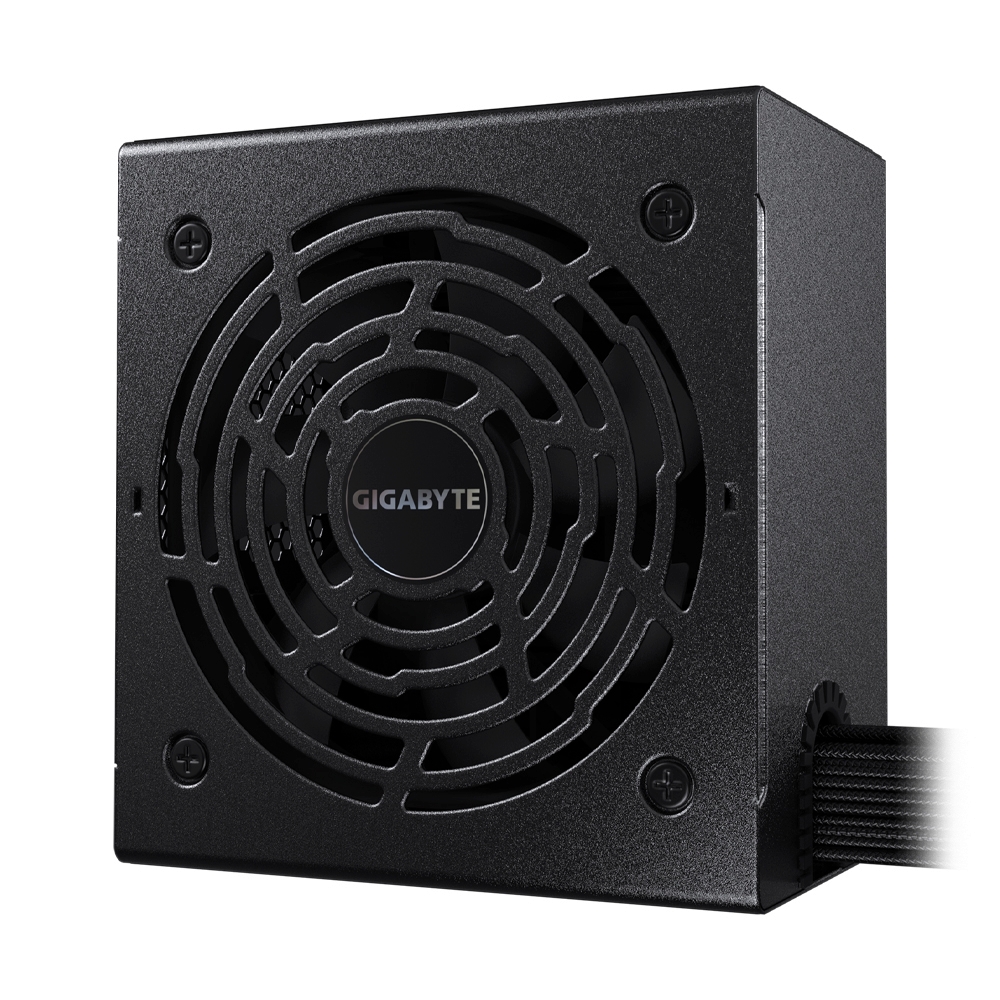

Fan Size
120mm Fluid Dynamic Bearing (FDB) Fan
MTBF
>100,000 hours
Operating Temperature
N/A
Protection (วงจรป้องกัน)
OVP/OPP/SCP/UVP/OCP/OTP
Safety Regulation (มาตรฐานรับรอง)
N/A
Modular
None
ATX Main Connector
ATX/MB 20+4 Pin x 1 : 600mm*1
CPU Power Connector
CPU/EPS 4+4 Pin x 2 : 600mm+150mm*1
PCIe Power Connector
PCI-E 6+2 Pin x 4 : 500mm+150mm*2
SATA Power Connector
SATA x 4 : 500mm+150mm+150mm+150mm*1
SATA x 3 + Peripheral x1 : 500mm+150mm+150mm+150mm*1
Peripheral Power Connector
Peripheral x1
Floppy Power Connector
None
RGB Power Connector
None
PSU Length
140 mm
Package Contents
N/A
