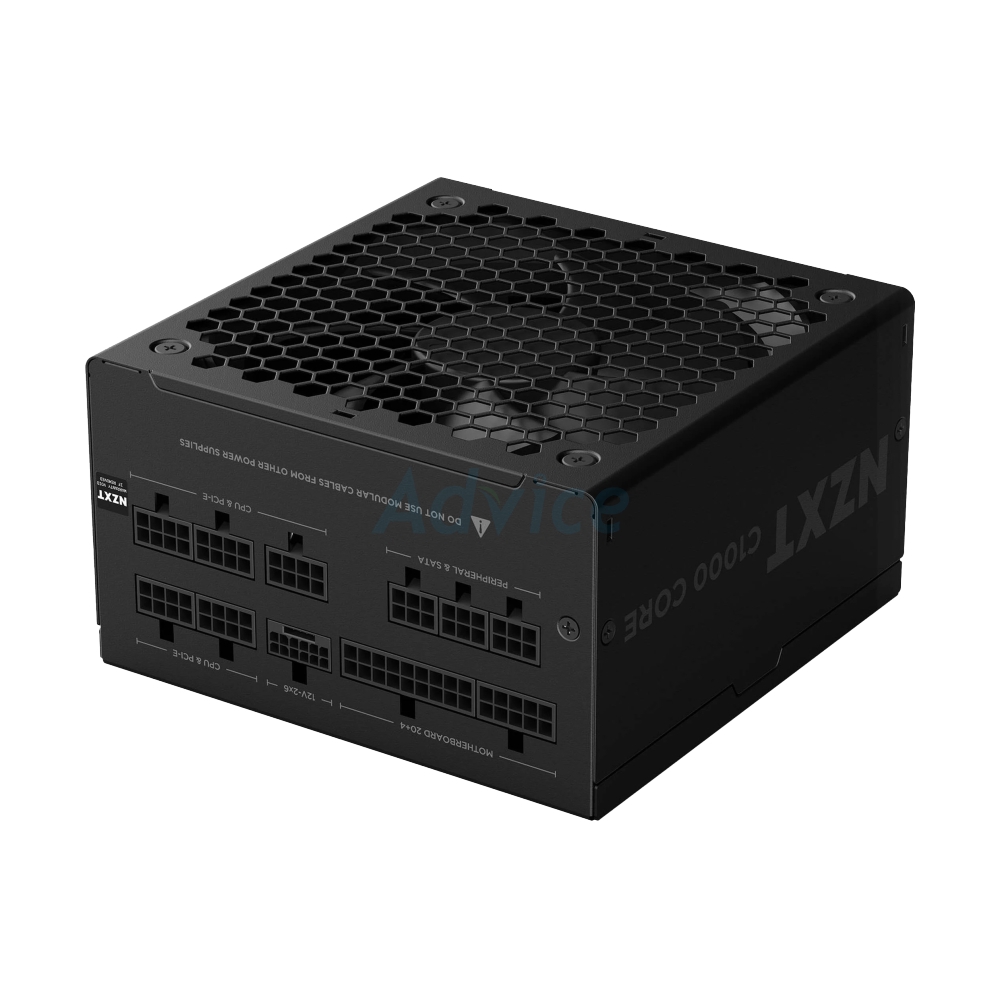

POWER SUPPLY (80+ GOLD) 1000W NZXT CORE (PA-0G3BB-US)
- Maximum Power : 1000W
- Energy Efficient : 80 Plus Gold
- Type : Full Modular
- PCIe 8 Pin (6+2) Pin Connector : 3 Connectors
- PCIe 12VHPWR (12+4) Connector : 1 Connector
- ATX 3.1 Certified, PCIE 5.1 Ready
- Whisper-Quiet Operation
- Ready for AMD & NVIDIA GPUs
- FDB Fan with Zero RPM Mode
- Premium 105°C-Rated Capacitors
- Fully Modular with Embossed Cables
รายละเอียดสินค้า
อ้างอิงจาก : www.nzxt.com
ข้อมูลผลิตภัณฑ์
C1000 Gold Core (PA-0G3BB-US)
ATX 3.1
1000W
80 PLUS GOLD
100 - 240 Vac
12A - 6A
50Hz - 60Hz
80 PLUS Rating : Gold
10% Load : 87% @ 115 V
20% Load : 92.22% @ 115 V
50% Load : 92.18% @ 115 V
100% Load : 89.1% @ 115 V
135 mm, PWM
100,000 hours
0 - 50°C (Continuous Full Load)
OVP (Over Voltage Protection)
UVP (Under Voltage Protection)
SCP (Short Circuit Protection)
OTP (Over Temperature Protection)
OPP (Over Power Protection)
OCP (Over Current Protection)
CE, UKCA, FCC, IC, BSMI, CB (IEC 62368-1 Ed. 3), RCM, KC
Full Modular
1 x 24-pin ATX Power Cable (600 mm)
1 x 4+4-pin CPU Power Cable (700 mm)
1 x 8-pin CPU Power Cable (700 mm)
3 x 6+2-pin PCIe Power Cable (650 mm)
1 x 16-pin (12+4) 12V-2x6 PCIe Power Cable (600W) (650 mm)
8 x SATA Cables (500 + 100 mm)
3 x Peripherals Cable (500 + 100 mm)
None
None
150mm
Power supply unit
24-pin ATX power cable
4+4-pin CPU power cable
8-pin CPU power cable
6+2-pin PCIe power cable x3
16-pin (12+4) 12V-2x6 PCIe power cable (600W)
SATA cable x2
Peripherals cable
screw x4 (#6-32)
AC power cord
