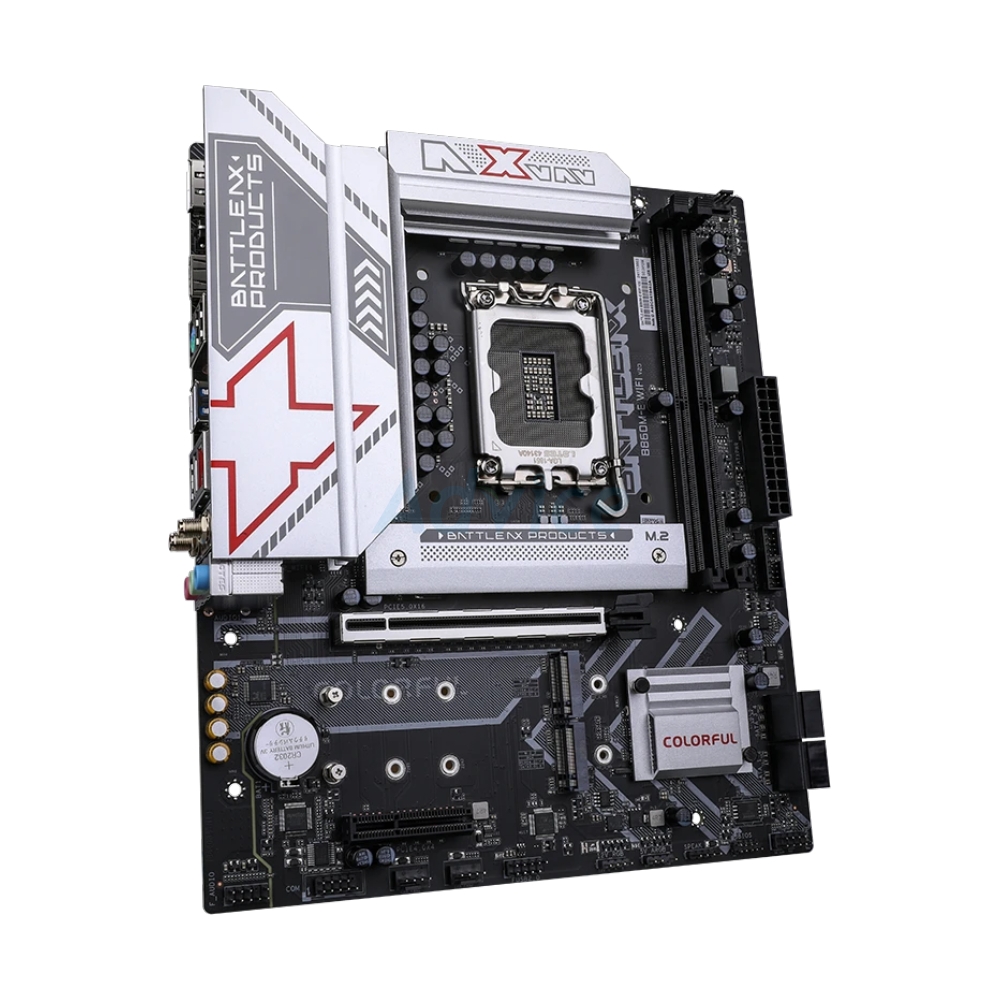

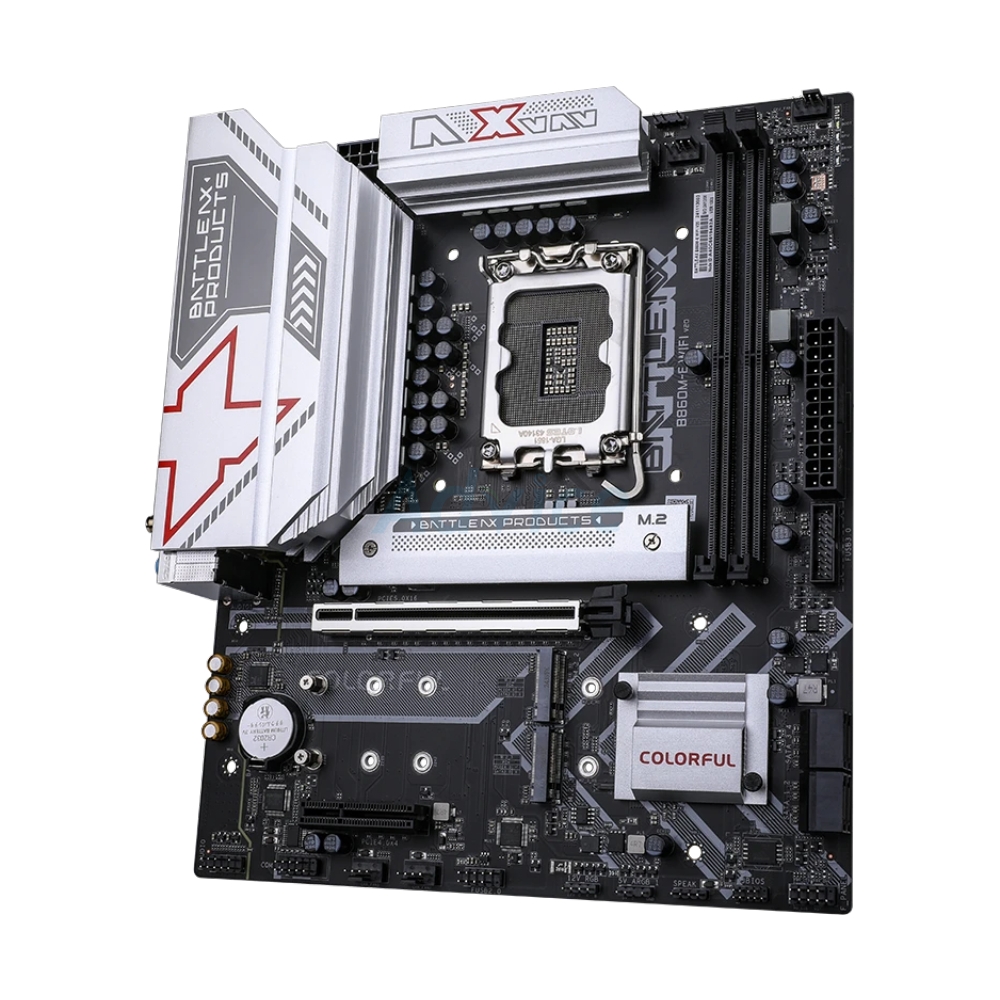

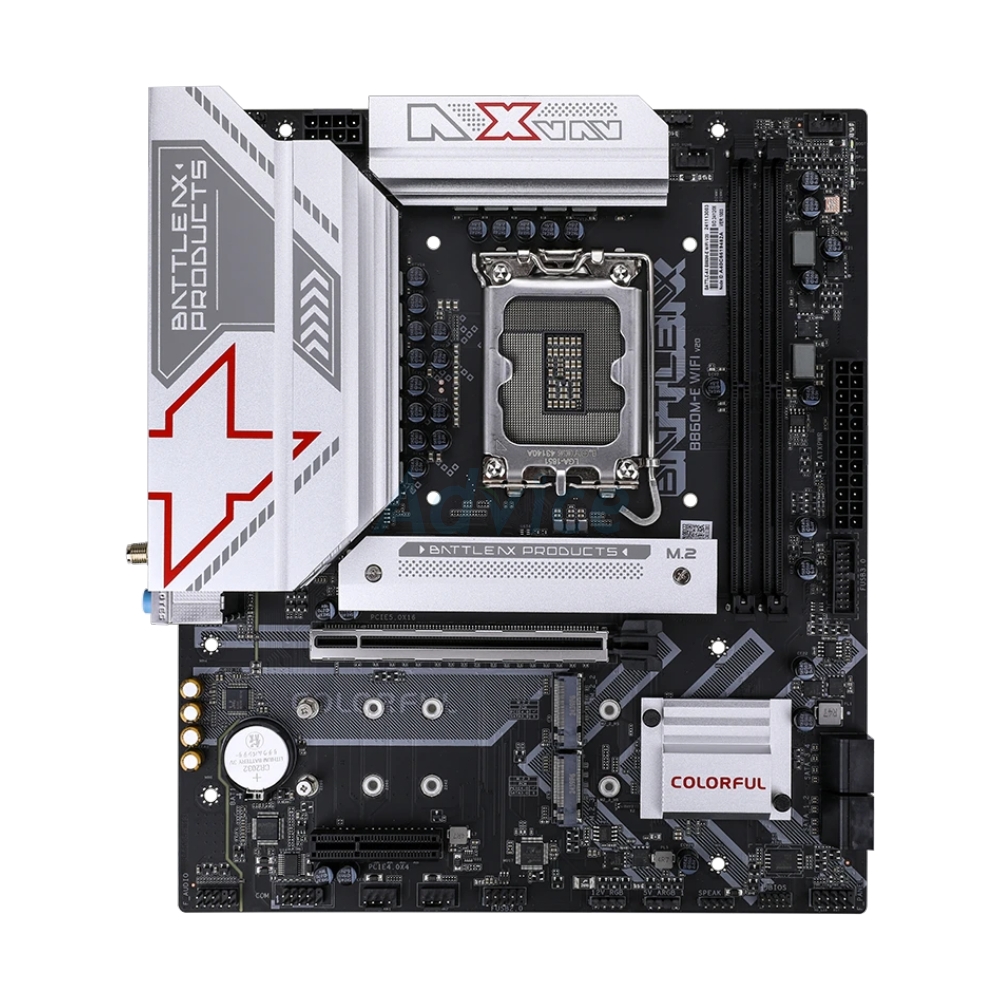

BATTLE-AX B860M-E WIFI V20 DDR5

Supports Intel® Core™ Ultra processors that fit the LGA 1851 slot of the motherboard

(*Please visit the Colorful official website www.colorful.cn for the latest processor support list)

Intel

1851

Intel B860

2 x DDR5 memory slots, supporting up to 96 GB of memory (a single slot can support a capacity of up to 48 GB)

- Support DDR5-7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400/6200/6000/5800/5600/5400/5200/5000/4800MHz memory

- Support Intel® Extreme Memory Profile (XMP) memory technology
- Support dual channel memory technology

(* Please visit www.colorful.cn for the latest memory compatibility list)

7600

1 x DP 1.4 interface, Supports up to 8K 60Hz resolution
1 x HDMI 2.0 interface, Supports up to 4K 60Hz resolution

None

Realtek ALC897 high fidelity decoding chip, Support up to 5.1 channels

1 x PCIe 5.0 x16 slot
1 x PCIe 4.0 x4 slot

PCIe 5.0

3 x M.2 slots and 4 x SATA 6Gb/s hard disk interfaces, Support the creation of RAID 0, RAID 1, RAID 5, and RAID 10 disk arrays using SATA hard disk devices

- M.2_1 slot: support 2242/2280 M.2 SSD (PCIe 5.0 x4, CPU channel)
- M.2_2 slot: support 2242/2260/2280 M.2 SSD (PCIe 4.0 x4, PCH channel)
- M.2_3 slot: support 2242/2260/2280 M.2 SSD (PCIe 4.0 x4, PCH channel)

NVMe

3

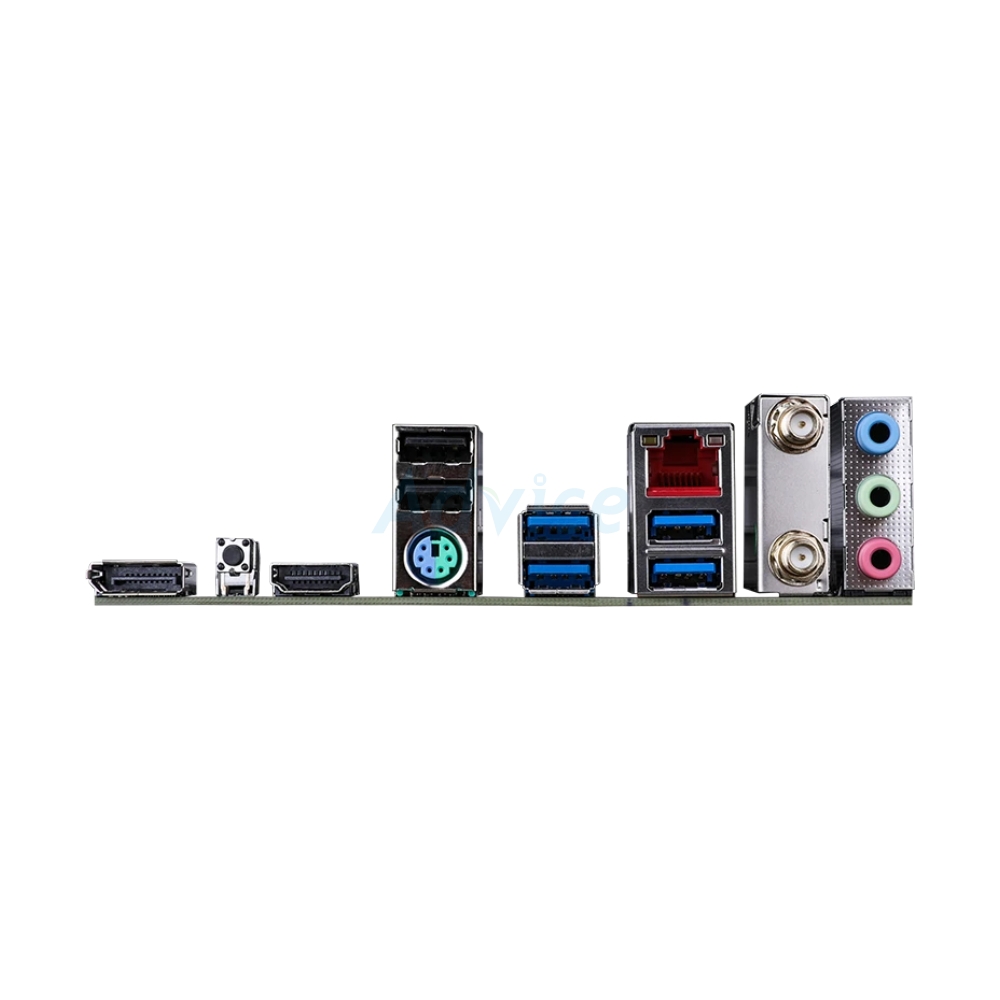

Back Panel
2 x USB 2.0 interfaces
4 x USB 3.2 Gen 1 5Gbps Type-A interfaces

Internal
1 x USB 2.0 pins can expand 2 USB 2.0 Type-A interfaces
1 x USB 3.2 Gen 1 pin can expand 2 USB 3.2 Gen 1 5Gbps Type-A interfaces

1 x USB 2.0 pins can expand 2 USB 2.0 Type-A interfaces
1 x USB 3.2 Gen 1 pin can expand 2 USB 3.2 Gen 1 5Gbps Type-A interfaces
1 x CPU fan pin
2 x System fan pins
1 x Water cooling pump pin
2 x 5V 3-pin ARGB pins
1 x 12V 4-pin RGB pin
1 x Front audio pin
1 x Front panel pin
1 x Speaker pin
1 x COM port pin
1 x BIOS burner pin

2 x USB 2.0 interfaces
4 x USB 3.2 Gen 1 5Gbps Type-A interfaces
1 x PS/2 interface
1 x DP 1.4 interface, Supports up to 8K 60Hz resolution
1 x HDMI 2.0 interface, Supports up to 4K 60Hz resolution
1 x 2.5G network interface
2 x Wi-Fi 6 antenna interfaces
3 x Audio interfaces
1 x CMOS clearing key

RTL8125BG 2.5Gbit LAN

AX101 WiFi 6 wireless network card, Bluetooth 5.2

Micro ATX

CPU fan speed is controllable, system fan speed is controllable, CPU temperature monitoring, system temperature monitoring, and each group of voltage monitoring

256M UEFI, support multiple languages

Support S3/S4 wake-up, network S5 wake-up, support USB wake-up, support timing boot, call boot

N/A

Windows 11

N/A
