H610M COMBO II (DDR4|DDR5)

Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700)
Supports Intel® Hybrid Technology
Supports Intel® Turbo Boost Max 3.0 Technology

Intel

1700

Intel H610

2 x DDR5 DIMM Slots : **
Dual Channel DDR5 Memory Technology
14th Gen Intel® Core™ Processors support DDR5 non-ECC, un-buffered memory up to 5600*
13th and 12th Gen Intel® Core™ Processors support DDR5 non-ECC, un-buffered memory up to 4800*
Max. capacity of system memory : 96 GB
Supports Intel® Extreme Memory Profile (XMP) 3.0

1 x DDR4 DIMM Slot : **
Supports DDR4 non-ECC, un-buffered memory up to 3200*
Supports ECC UDIMM memory modules (operate in non-ECC mode)
Max. capacity of system memory : 32 GB
Supports Intel® Extreme Memory Profile (XMP) 2.0

*Actual support may vary by CPU
Please refer to Memory Support List on ASRock's website for more information.
**Not compatible for mixed installation

DDR5 up to 5600
DDR4 up to 3200

Intel® Xe Graphics Architecture (Gen 12)
1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz
1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz
1 x D-Sub, supports max. resolution up to Full HD (1920x1080) 60Hz

*Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.

None

7.1 CH HD Audio (Realtek ALC897 Audio Codec)

CPU:
1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*

Chipset:
1 x PCIe 3.0 x1 Slot (PCIE2)*

*Supports NVMe SSD as boot disks

PCIe 5.0

Chipset:
1 x Ultra M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen3x4 (32 Gb/s) mode*
4 x SATA3 6.0 Gb/s Connectors

*Supports NVMe SSD as boot disks

NVMe

1

Chipset:
4 x USB 3.2 Gen1 (2 Rear, 2 Front)
6 x USB 2.0 (4 Rear, 2 Front)

1 x SPI TPM Header
1 x Chassis Intrusion and Speaker Header
1 x CPU Fan Connector (4-pin) (Smart Fan Speed Control)*
1 x Chassis Fan Connector (4-pin) (Smart Fan Speed Control)**
1 x 24 pin ATX Power Connector
1 x 8 pin 12V Power Connector
1 x Front Panel Audio Connector
1 x USB 2.0 Header (Supports 2 USB 2.0 ports)
1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)

*CPU_FAN1 supports the fan power up to 1A (12W).

**CHA_FAN1/WP supports the fan power up to 2A (24W).
CHA_FAN1/WP can auto detect if 3-pin or 4-pin fan is in use.

1 x PS/2 Mouse/Keyboard Port
1 x D-Sub Port
1 x HDMI Port
1 x DisplayPort 1.4
2 x USB 3.2 Gen1 Ports
4 x USB 2.0 Ports
1 x RJ-45 LAN Port
HD Audio Jacks: Line in / Front Speaker / Microphone

Gigabit LAN 10/100/1000 Mb/s
Realtek 8111H

None

Micro ATX

N/A

128Mb AMI UEFI Legal BIOS with GUI support

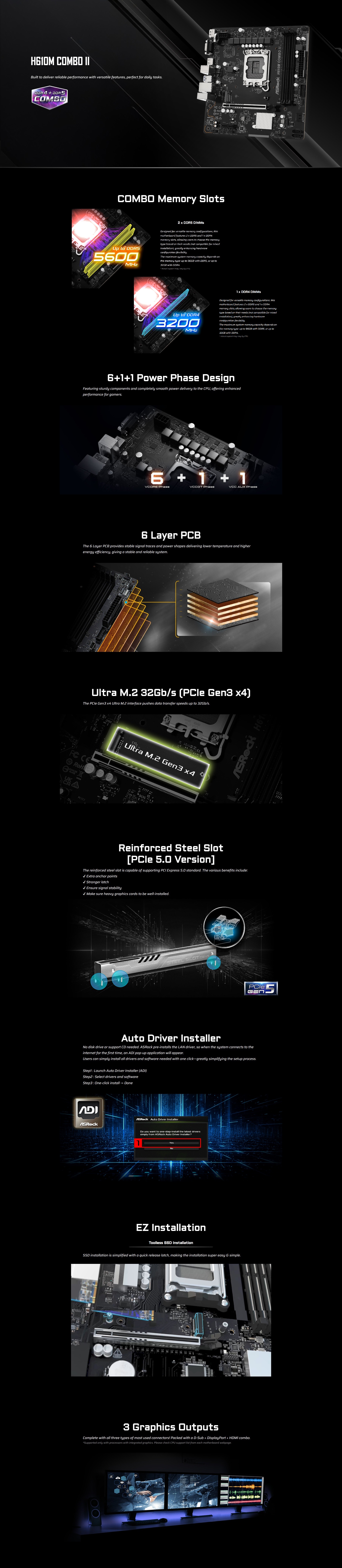

Superb Productivity
- PCIe Gen5 (Graphics)
- Dual Channel DDR5

Rock-Solid Durability
- 6+1+1 Power Phase

EZ Update
- ASRock Auto Driver Installer

Software
ASRock Motherboard Utility (A-Tuning)*

UEFI
ASRock EZ Mode
ASRock Full HD UEFI
ASRock My Favorites in UEFI
ASRock Auto Driver Installer
ASRock Instant Flash

*These utilities can be downloaded from ASRock Live Update & APP Shop.

Microsoft Windows^® 10 64-bit / 11 64-bit

1 x I/O Shield
2 x SATA Data Cables
