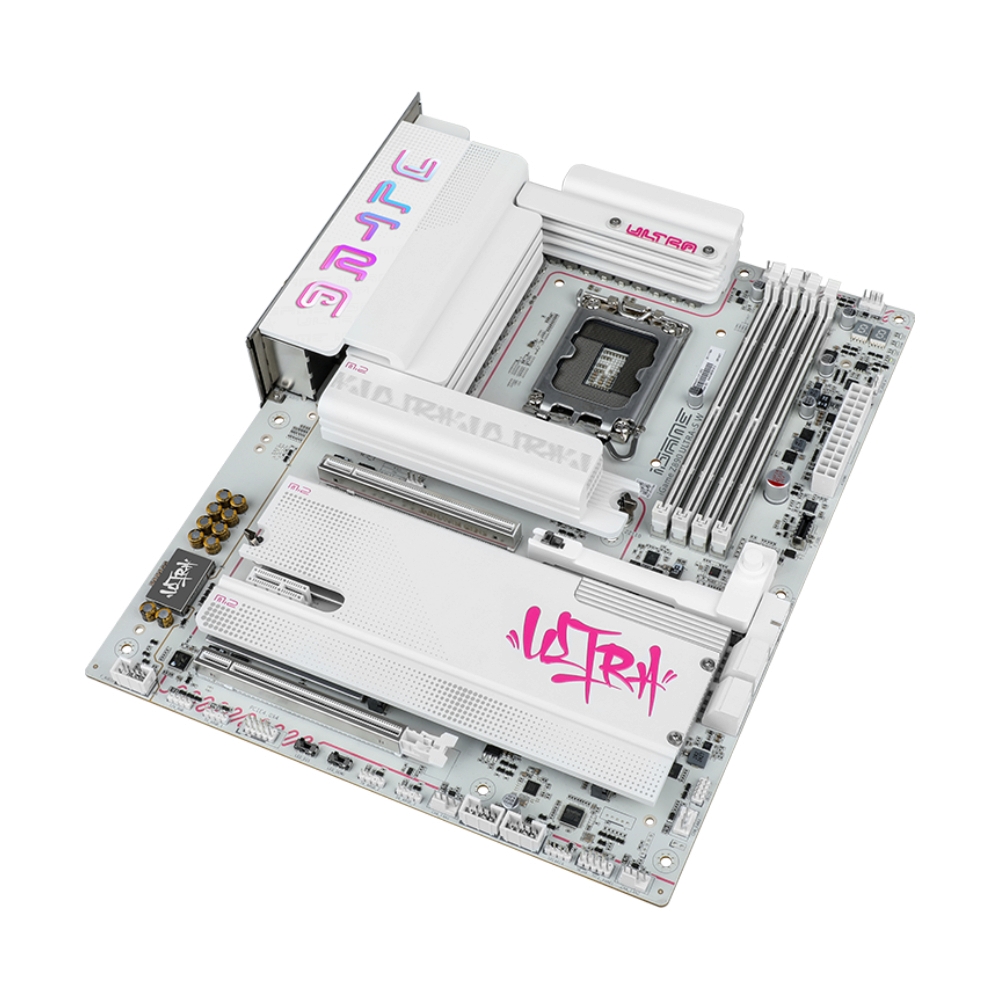

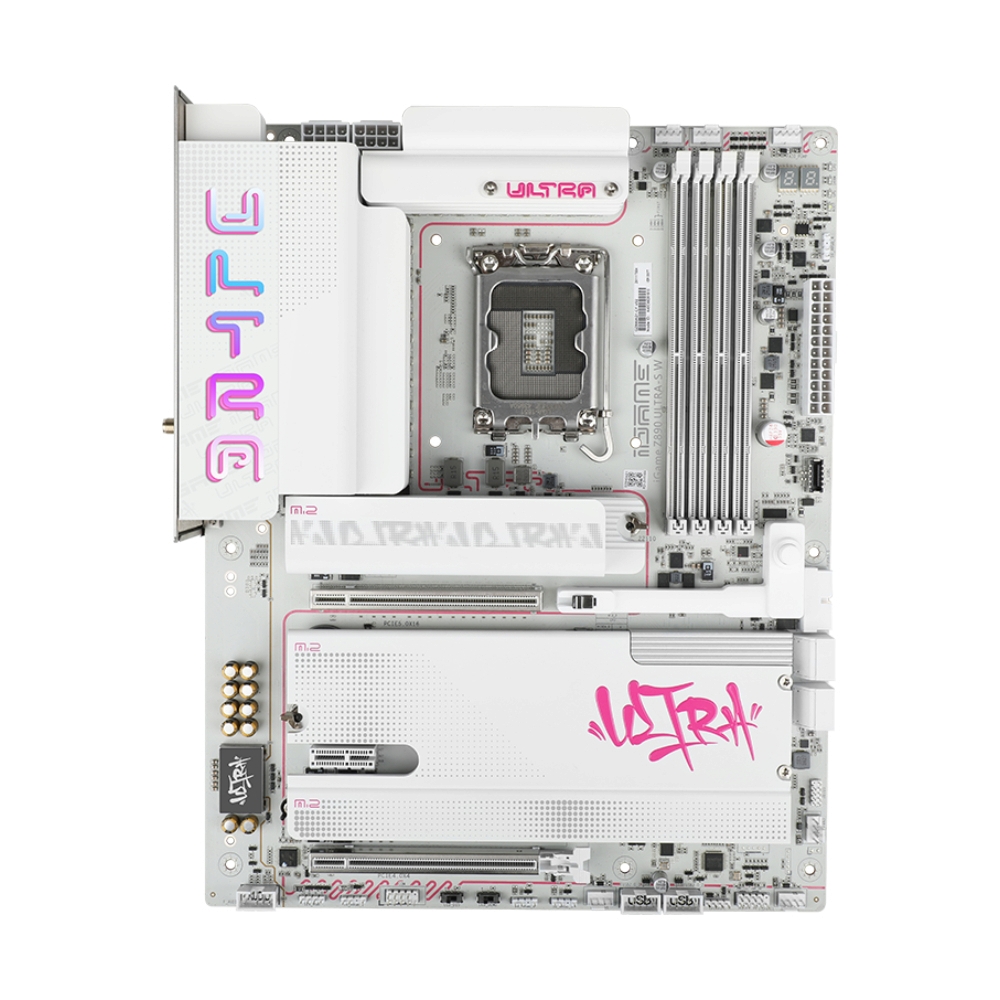

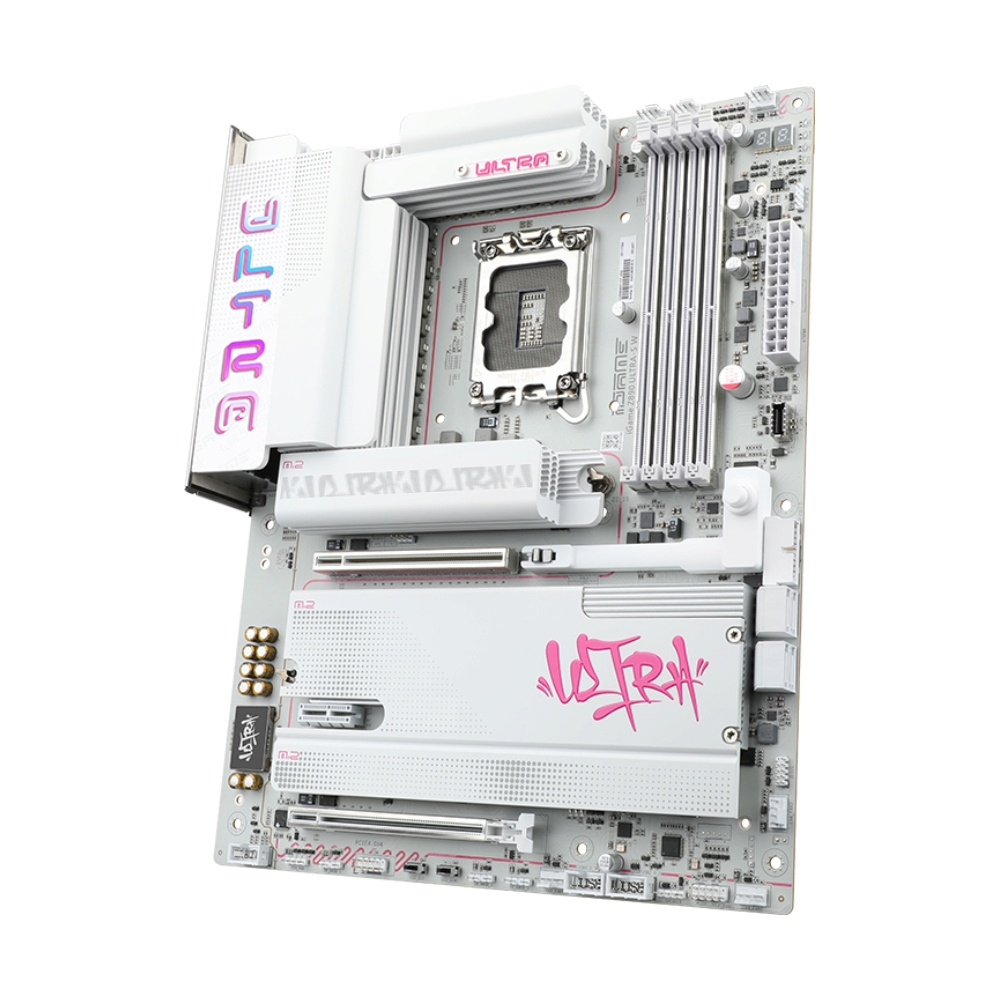

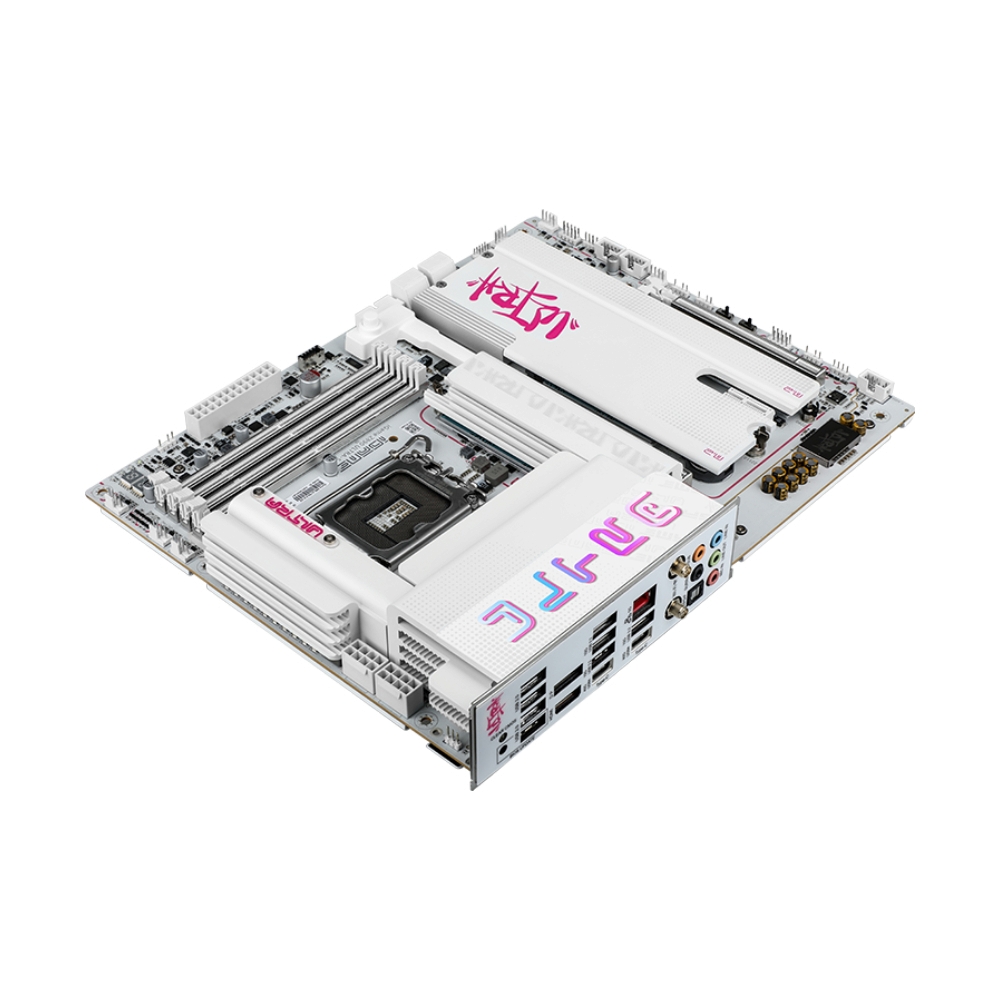

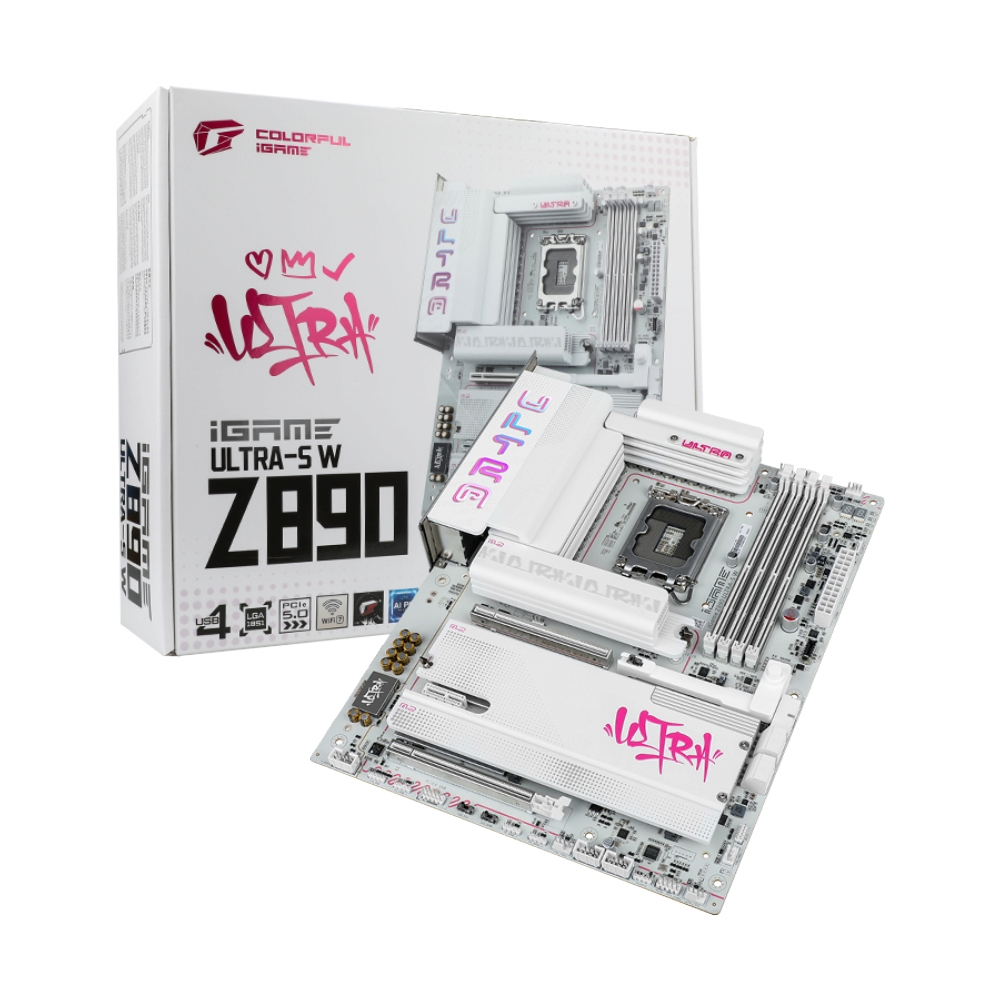

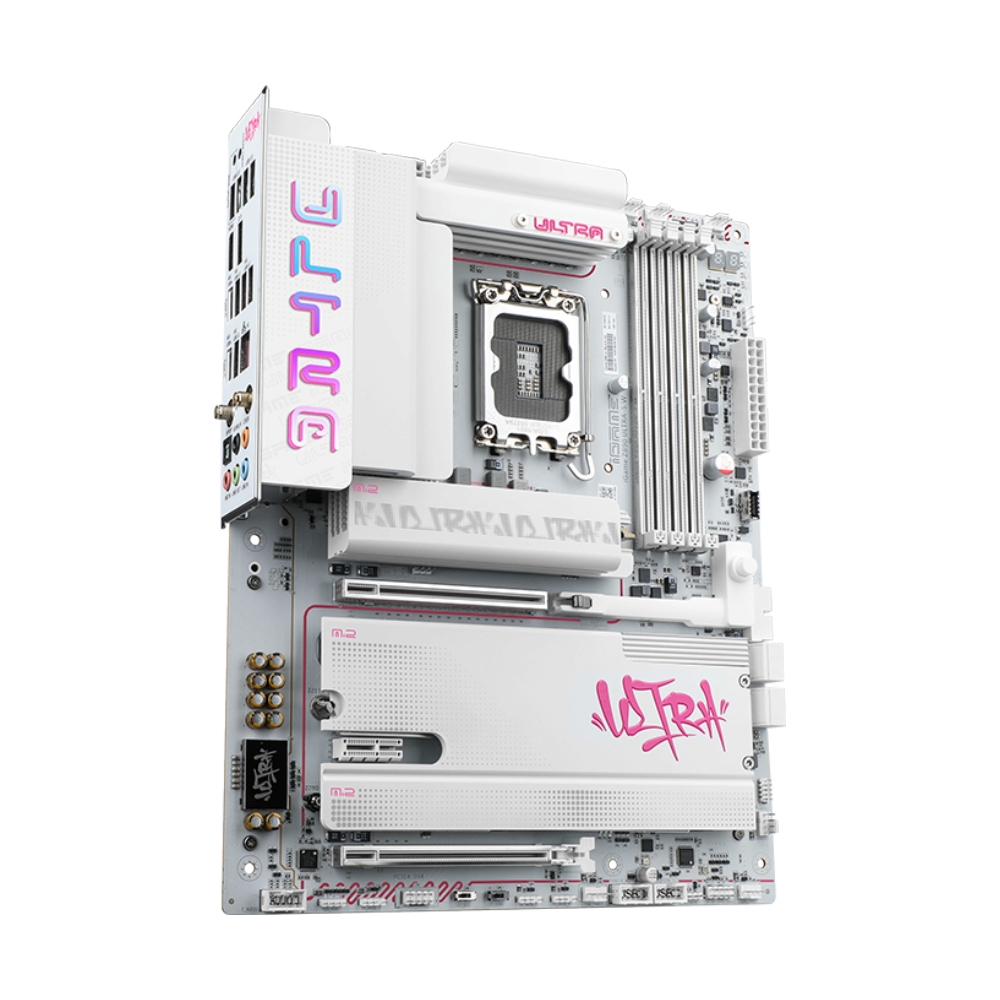

iGame Z890 ULTRA-S W V20

Supports Intel® Core™ Ultra processors that fit the LGA 1851 slot of the motherboard

(* Please visit www.colorful.cn for the latest memory compatibility list)

Intel

1851

Intel Z890

4 x DDR5 memory slots, supporting up to 256 GB of memory (a single slot can support a capacity of up to 64 GB)

- Support DDR5-9600(OC)/9400(OC)/9200(OC)/9000(OC)/8800(OC)/8600(OC)/8400(OC)/8200(OC)/8000(OC)/7800(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400/6200/6000/5800/5600MHz memory

- Support Intel® Extreme Memory Profile (XMP) memory technology
- Support dual channel memory technology

(* Please visit www.colorful.cn for the latest memory compatibility list)

9600

1 x HDMI 2.0 interface, Supports up to 4K 60Hz resolution
1 x DP 1.4 interface, Supports up to 8K 60Hz resolution
2 x USB4 40Gbps Type-C interfaces (Supports video output, up to 4K 60Hz resolution)

N/A

Realtek ALC1220 high fidelity decoding chip, Support up to 7.1 channels

1 x PCIe 5.0 x16 slot
1 x PCIe x16 slot (supports PCIe 4.0 x4 specification)
1 x PCIe 4.0 x1 slot

PCIe 5.0

5 x M.2 slots
4 x SATA 6Gb/s hard disk interfaces
Support the creation of RAID 0, RAID 1, RAID 5, and RAID 10 disk arrays using SATA or M.2 NVMe hard disk devices
- M.2_1 slot: support 2280/22110 M.2 SSD (PCIe 5.0 x4, CPU channel)
- M.2_2 slot: support 2280 M.2 SSD (PCIe 4.0 x4, CPU channel)
- M.2_3 slot: support 2280/22110 M.2 SSD (PCIe 4.0 x4, Chipset channel)
- M.2_4 slot: support 2280 M.2 SSD (PCIe 4.0 x4, Chipset channel)
- M.2_5 slot: support 2280 M.2 SSD (PCIe 4.0 x4/SATA, Chipset channel)

NVMe

5

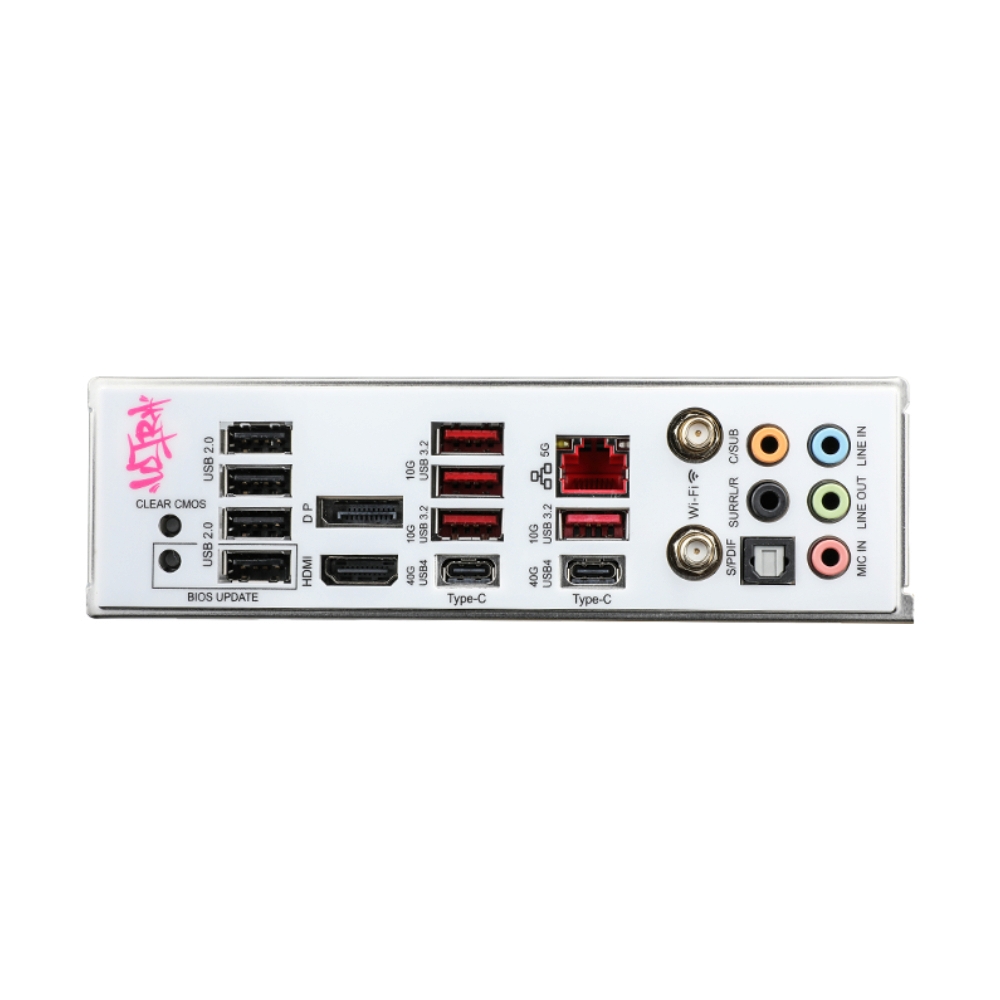

Back Panel
4 x USB 2.0 interfaces
4 x USB 3.2 Gen 2 10Gbps Type-A interfaces
2 x USB4 40Gbps Type-C interfaces (Supports video output, up to 4K 60Hz resolution)

Internal
2 x USB 2.0 pins can expand 4 USB 2.0 Type-A interfaces
1 x USB 3.2 Gen 1 pin can expand 2 USB 3.2 Gen 1 5Gbps Type-A interfaces
1 x USB 3.2 Gen 2x2 Type-C slot can expand 1 USB 3.2 Gen 2x2 20Gbps Type-C interface (support PD3.0 @30W)

2 x USB 2.0 pins can expand 4 USB 2.0 Type-A interfaces
1 x USB 3.2 Gen 1 pin can expand 2 USB 3.2 Gen 1 5Gbps Type-A interfaces
1 x USB 3.2 Gen 2x2 Type-C slot can expand 1 USB 3.2 Gen 2x2 20Gbps Type-C interface (support PD3.0 @30W)
2 x CPU fan pins
3 x System fan pins
1 x Water cooling pump pin
4 x 5V 3-pin ARGB pins
1 x 12V 4-pin RGB pin
1 x Front audio pin
1 x Front panel pin
1 x Speaker pin
1 x COM port pin
1 x BIOS burner pin

4 x USB 2.0 interfaces
4 x USB 3.2 Gen 2 10Gbps Type-A interfaces
2 x USB4 40Gbps Type-C interfaces (Supports video output, up to 4K 60Hz resolution)
1 x DP 1.4 interface, Supports up to 8K 60Hz resolution
1 x HDMI 2.0 interface, Supports up to 4K 60Hz resolution
1 x 5G network interface
2 x Wi-Fi 7 antenna interfaces
5 x Audio interfaces
1 x S/PDIF audio interface
1 x BIOS update button
1 x CMOS clearing key

1 x 5G LAN

RTL8126-CG 5Gbit network card, BE200 WiFi 7 wireless network card, Bluetooth 5.4
- Wi-Fi functionality may vary depending on the operating system.
- For Windows 11, Wi-Fi 7 requires version 24H2 or later for full functionality. Windows 11 21H2/22H2/23H2 only supports Wi-Fi 6E.
- For Windows 10, please note that no drivers are available. For more information, refer to the Wi-Fi chipset vendor's website.
- Wi-Fi 6GHz frequency band and bandwidth regulations may vary by country/region.
- Bluetooth® versions are subject to change; please refer to the Wi-Fi module manufacturer's website for the latest instructions.

ATX

CPU fan speed is controllable, system fan speed is controllable, CPU temperature monitoring, system temperature monitoring, and each group of voltage monitoring

256M UEFI, support multiple languages

Power Management
Support S3/S4 wake-up, network S5 wake-up, support USB wake-up, support timing boot, call boot

N/A

Windows 11

N/A
