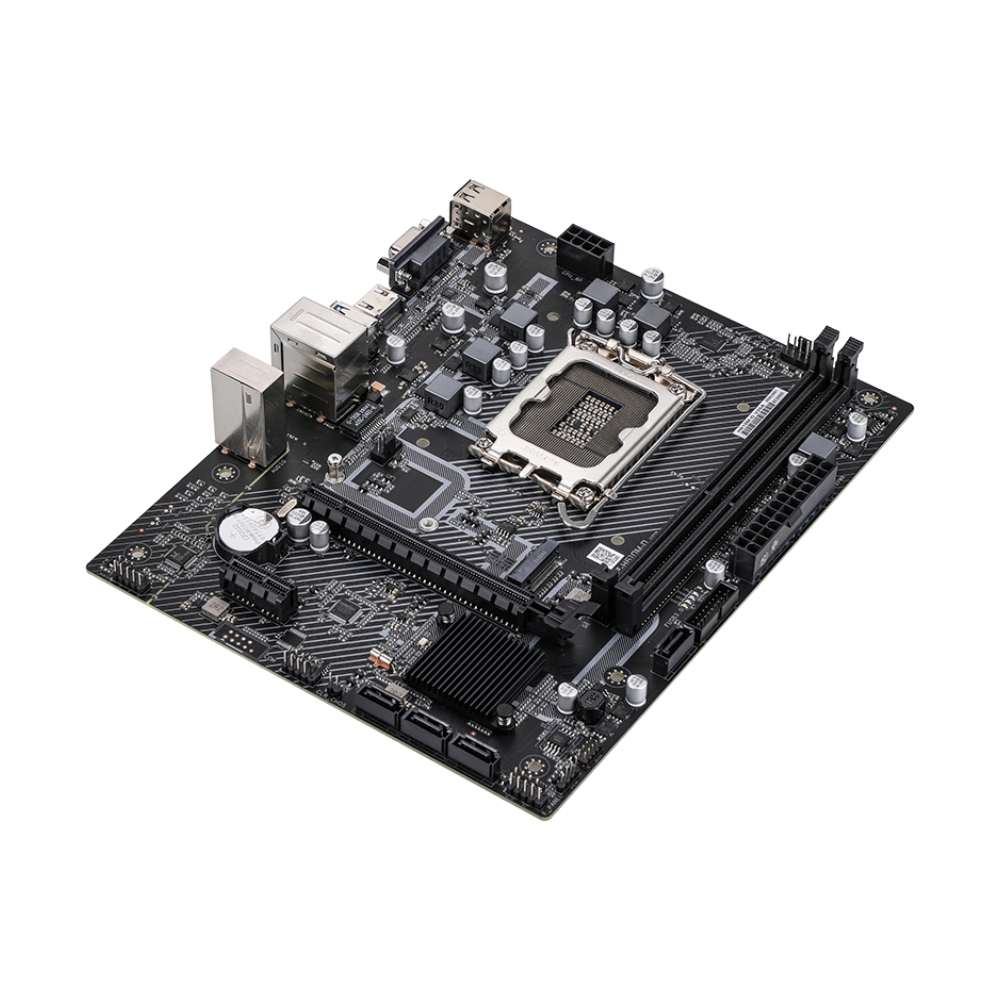

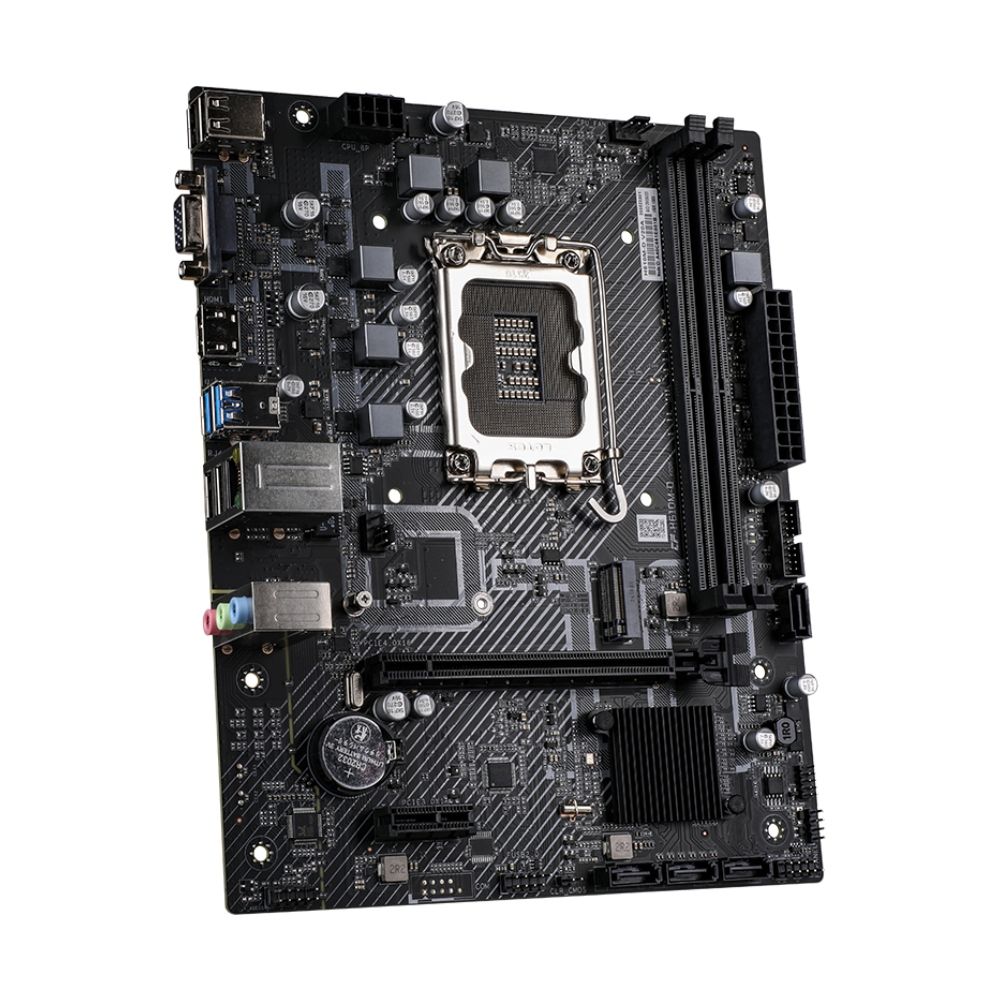

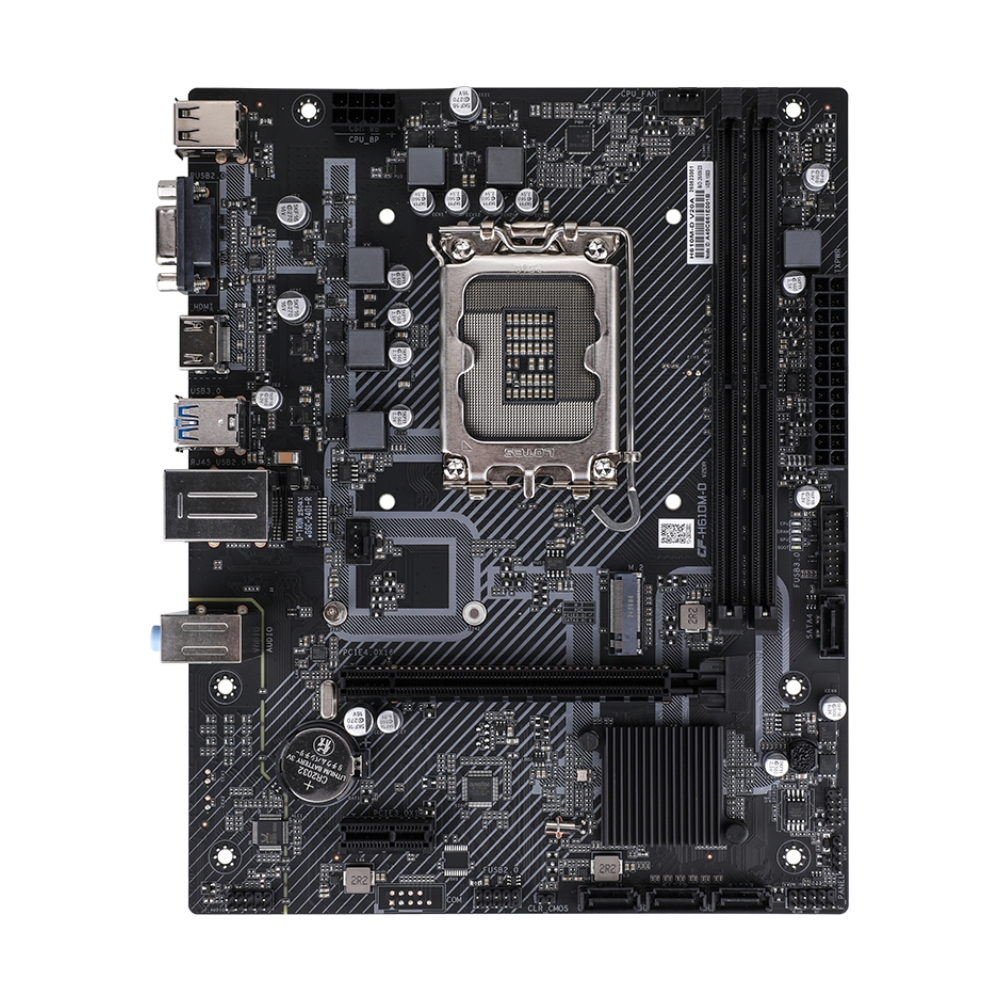

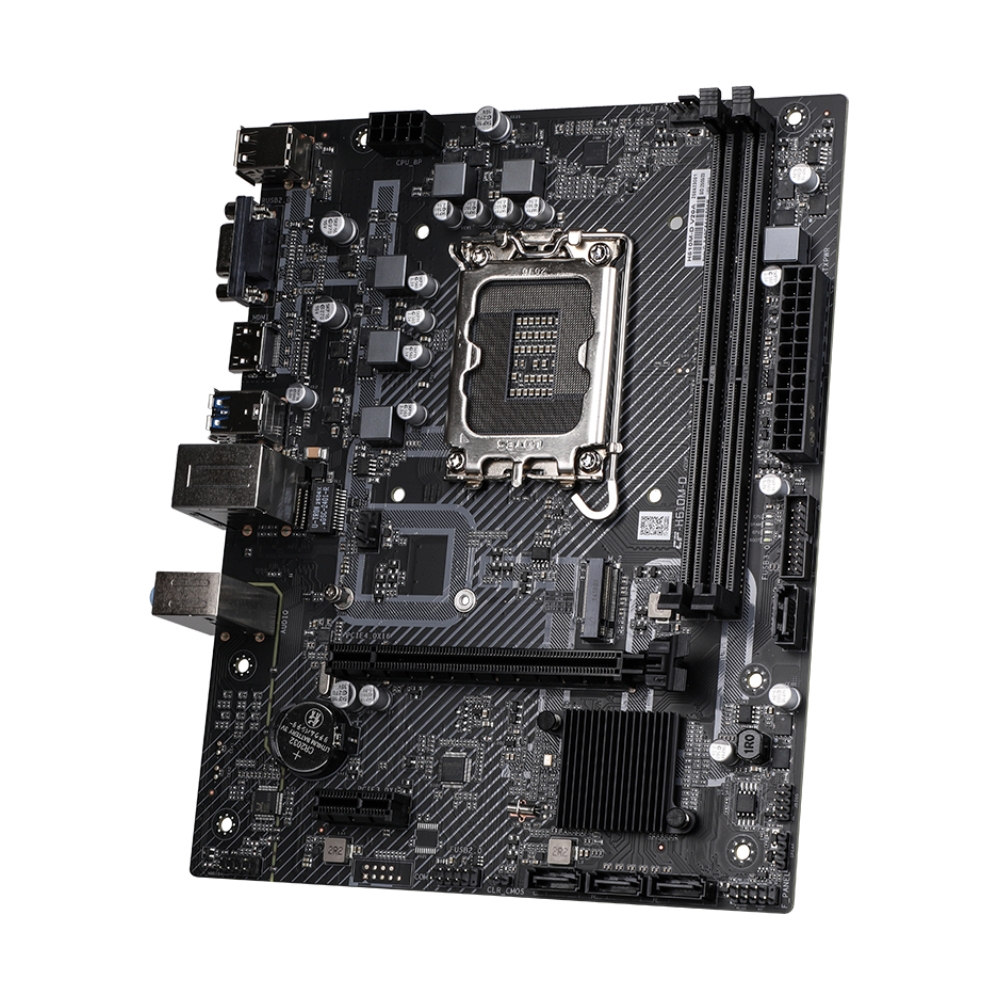

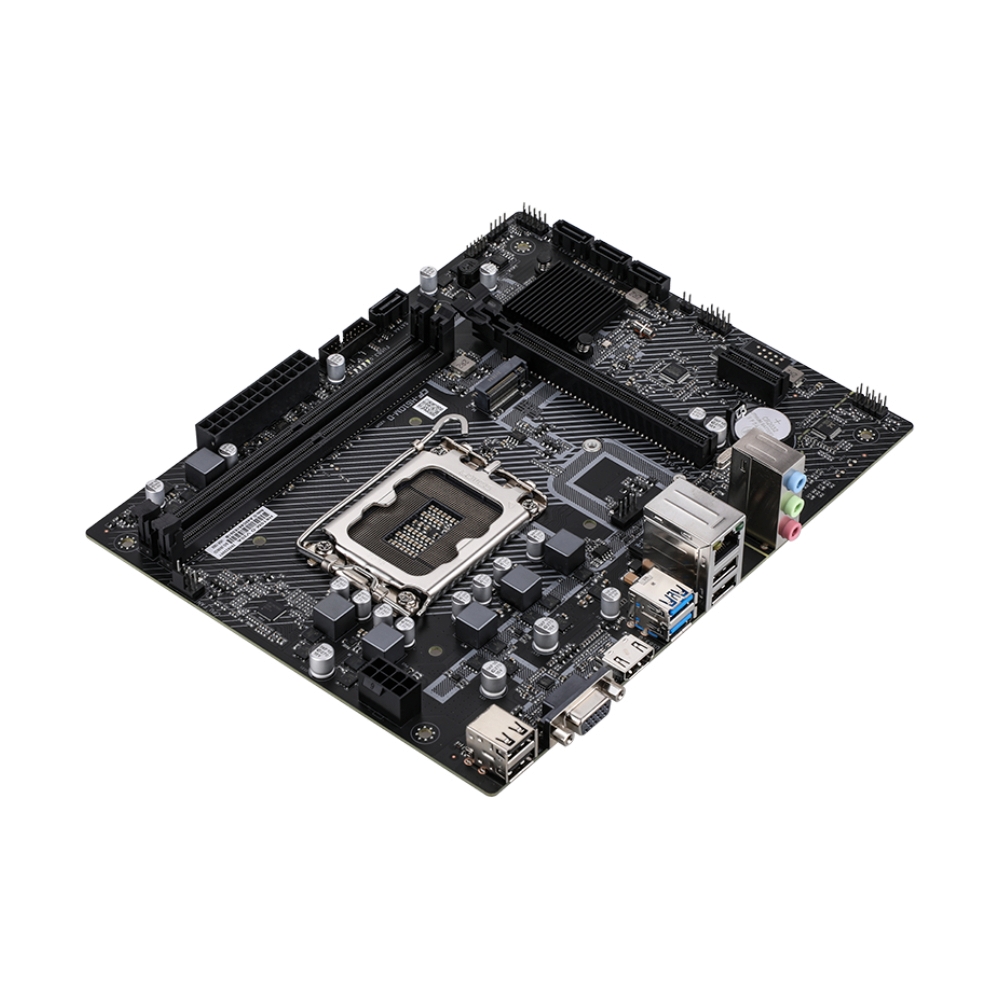

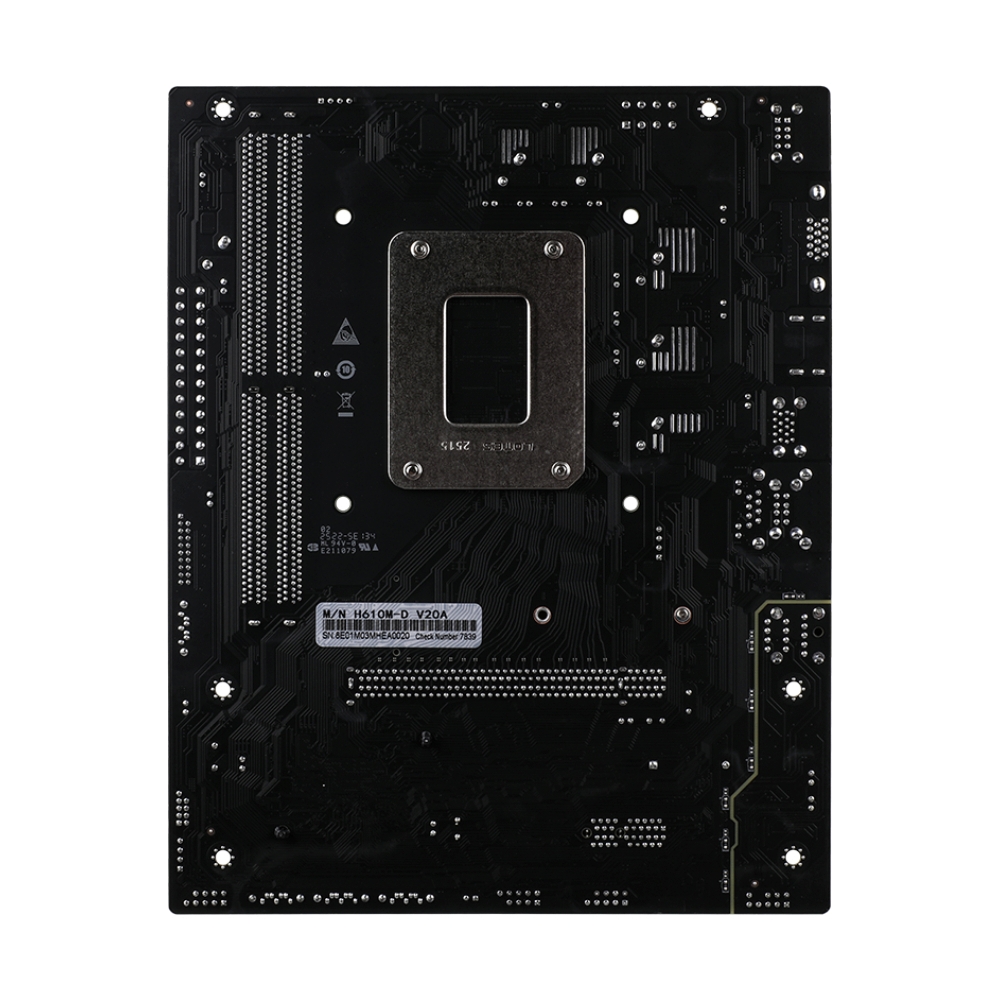

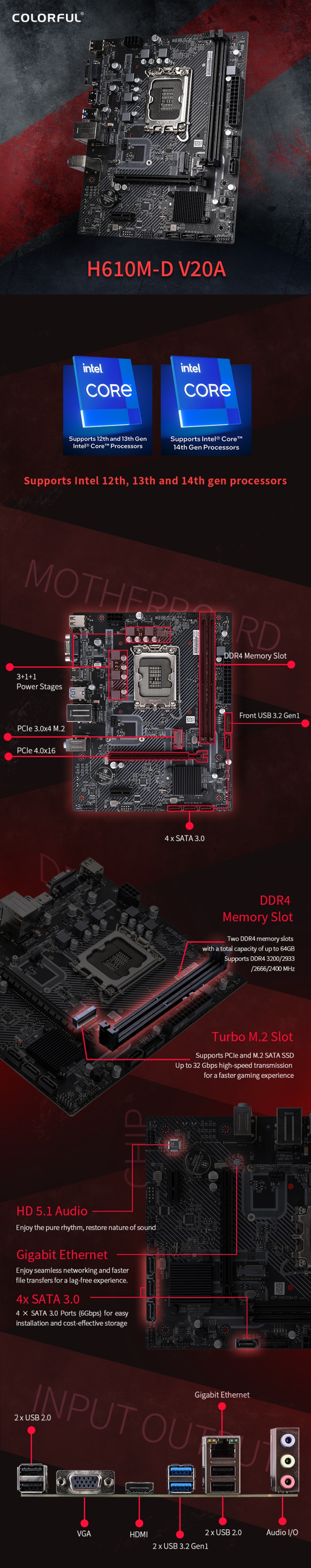

H610M-D V20A DDR4

Support the 14th/13th and 12th generation Intel adapting to the LGA 1700 slot of the motherboard ® Core TM, Pentium ® And Cylon ® processor

(*Please visit the Colorful official website www.colorful.cn for the latest processor support list)

Intel

1700

Intel H610

2 x DDR4 memory slots, supporting up to 64 GB memory (single slot supports up to 32 GB)

- Supports DDR4-3200/2933/2666/2400/2133MHz memory
- Supports dual-channel memory technology

(*Please visit Colorful's official website www.colorful.cn for the latest memory compatibility list)

3200

1 x HDMI 2.0 interface, supporting up to 4K 60Hz resolution
1 x VGA interface

None

Realtek ALC897 high-fidelity decoding chip, supports 7.1 channels

1 x PCIe 4.0 x16 slot
1 x PCIe 3.0 x1 slot

PCIe 4.0

1 x M.2 slot
4 x SATA 6Gb/s hard disk interfaces

-M.2 slot : supports 2242/2280 specification M.2 SSD (PCIe 3.0 x4, PCH channel)

NVMe

1

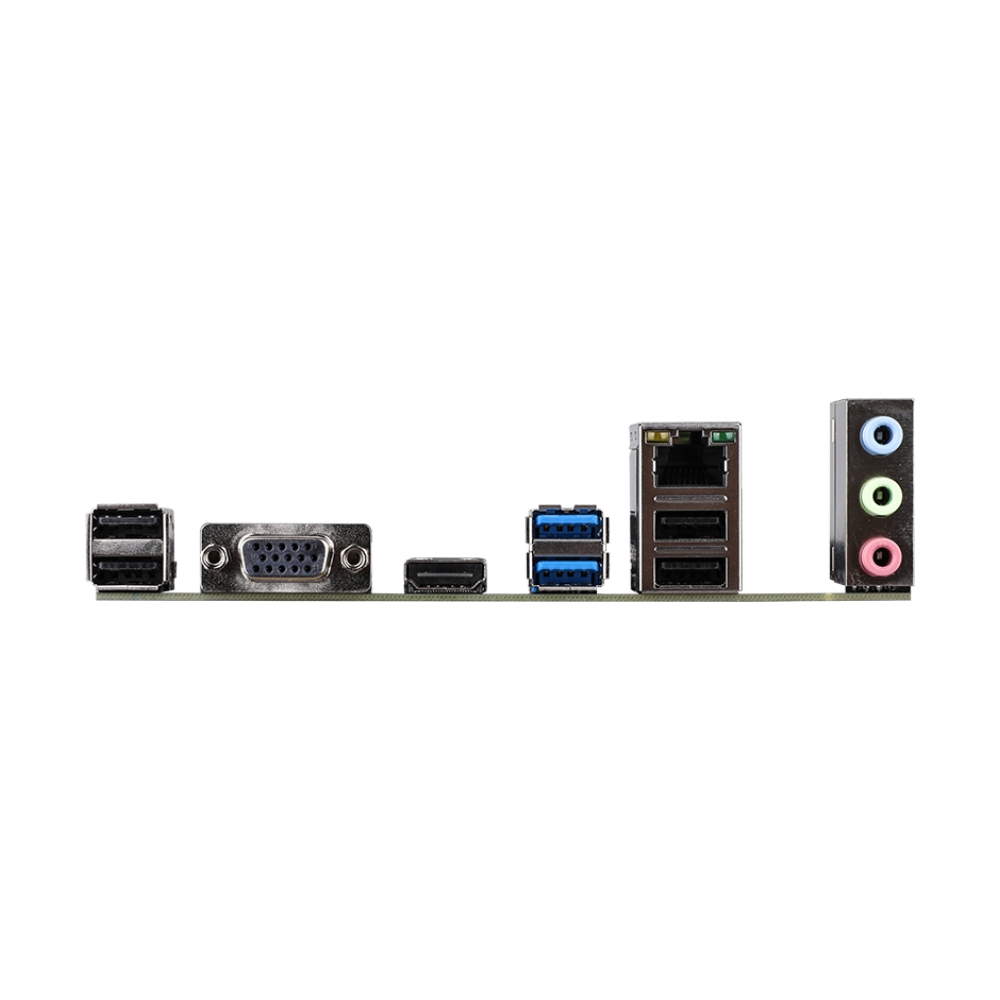

Back Panel
4 x USB 2.0 interfaces
2 x USB 3.2 Gen 1 Type-A interfaces

Internal
1 x USB 2.0 pin can be expanded to 2 USB 2.0 Type-A interfaces
1 x USB 3.2 Gen 1 pin can be expanded to 2 USB 3.2 Gen 1 Type-A interfaces

1 x CPU fan pin
1 x System fan pin
1 x USB 2.0 pin can be expanded to 2 USB 2.0 Type-A interfaces
1 x USB 3.2 Gen 1 pin can be expanded to 2 USB 3.2 Gen 1 Type-A interfaces
1 x Front audio pin
1 x Front panel pin
1 x Speaker pin
1 x Clear CMOS jumper
1 x BIOS burner pin

4 x USB 2.0 interfaces
2 x USB 3.2 Gen 1 Type-A interfaces
1 x HDMI 2.0 interface, supporting up to 4K 60Hz resolution
1 x VGA interface
1 x Gigabit network interface
3 x Audio interfaces (audio input/audio output/microphone)

1 x 1 Gigabit network

None

Micro ATX

CPU fan speed controllable, system fan speed controllable, CPU temperature monitoring, System temperature monitoring, and each group voltage monitoring

128M UEFI, support multiple languages

Power Management
Support S3, S4, network S5 wake-up, support scheduled startup, call startup

N/A

Windows 11

N/A
