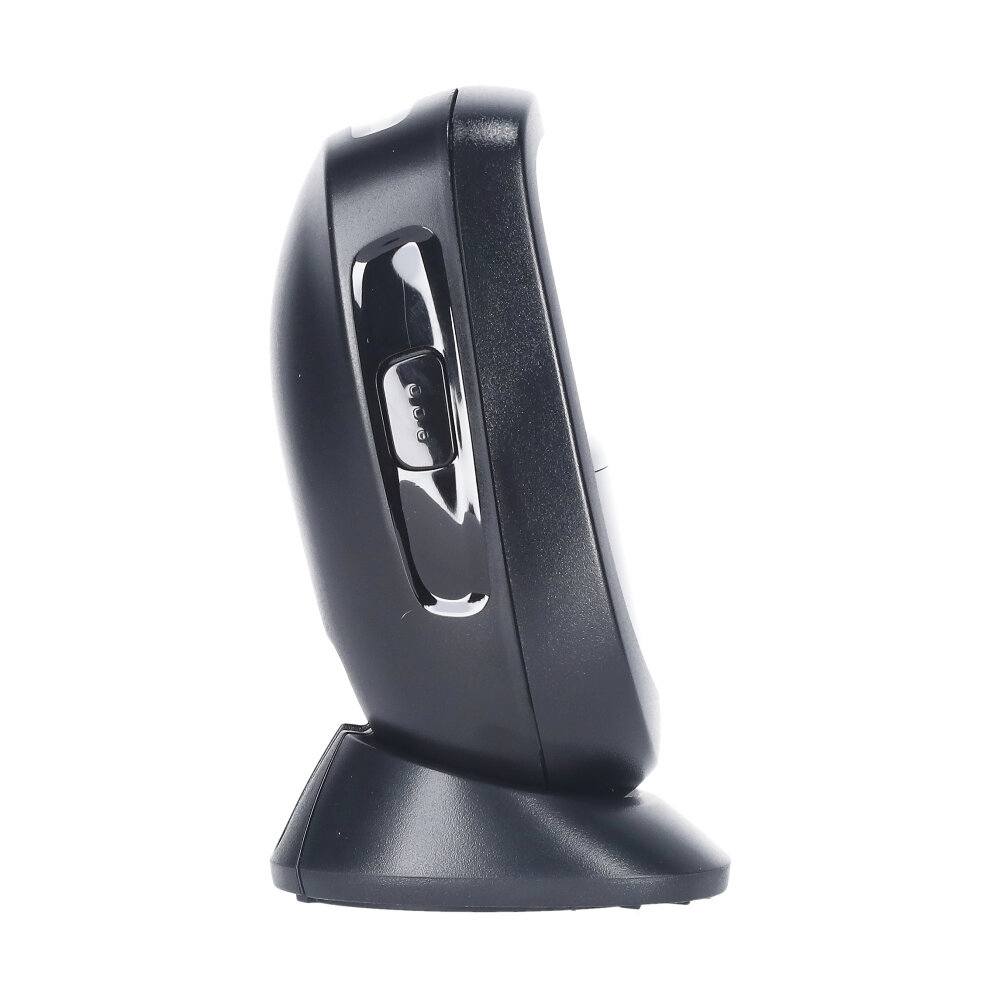

DS-9308 2D

1D, 2D

USB

Aiming pattern: circular 617 nm amber LED
660 nm Hyper Red LED

1280 x 800 pixels

Up to 120 in./305 cm. per second for 13 mil UPC in optimized mode

Skew Tolerance : +/-60°
Pitch Tolerance : +/-60°
Roll Tolerance : 360°

52° H x 33° V nominal

Code 39: 3 mil 0 in./0 cm - 2.5 in./6.35 cm
Code 39: 5 mil 0 in./0 cm - 5.0 in./12.7 cm
Code 39: 20 mil 0 in./0 cm - 11.0 in./27.9 cm
Code 128: 3 mil 0 in./0 cm - 2.0 in./5.1 cm
Code 128: 5 mil 0 in./0 cm - 4.0 in./10.2 cm
PDF 417: 6.7 mil 0 in./0 cm - 4.0 in./10.2 cm
UPC: 13 mil (100%) 0 in./0 cm - 8.8 in./22.4 cm
Data Matrix: 10 mil 0 in./0 cm - 4.5 in. /11.4 cm
QR: 20 mil 0 in./0 cm - 7.5 in./19.1 cm

15%

1D
Code 39, Code 128, Code 93, Codabar/NW7, Code 11, MSI Plessey, UPC/EAN, I 2 of 5, Korean 3 of 5, GS1 DataBar, Base 32 (Italian Pharma)

2D
PDF417, Micro PDF417, Composite Codes, TLC-39, Aztec, DataMatrix, MaxiCode, QR Code, Micro QR, Han Xin, Postal Codes, securPharm, DotCode, Dotted DataMatrix

OCR
OCR-A, OCR-B, MICR, US currency

Digimarc
Available on specific models only

Minimum Element Resolution
Code 39: 3 mil; Code 128: 3 mil; Data Matrix: 5 mil; QR Code: 5 mil

Imaging Characteristics
Graphics Format Support : Images can be exported as bitmap, JPEG or TIFF
Image Quality : 109 PPI on a 4.1 in. x 5.8 in./A6 sized document

Yes

Good decode LEDs, rear view LEDs, beeper (Adjustable tone and volume)

Input Voltage Range : 4.5 to 5.5

Operating Temperature
32.0° F to 122.0° F / 0.0° C to 50.0° C

Storage Temperature
-40.0° F to 158.0° F / -40.0° C to 70.0° C

Humidity
5% to 95% RH, non-condensing

Drop Specification
Designed to withstand multiple drops at 5.0 ft. / 1.5 m to concrete

Tumble Specification
Designed to withstand 1,000 tumbles in 1.5 ft. /0.5 m tumbler

Environmental Sealing
IP52

N/A

Multi-mount bracket, locking-mount bracket
