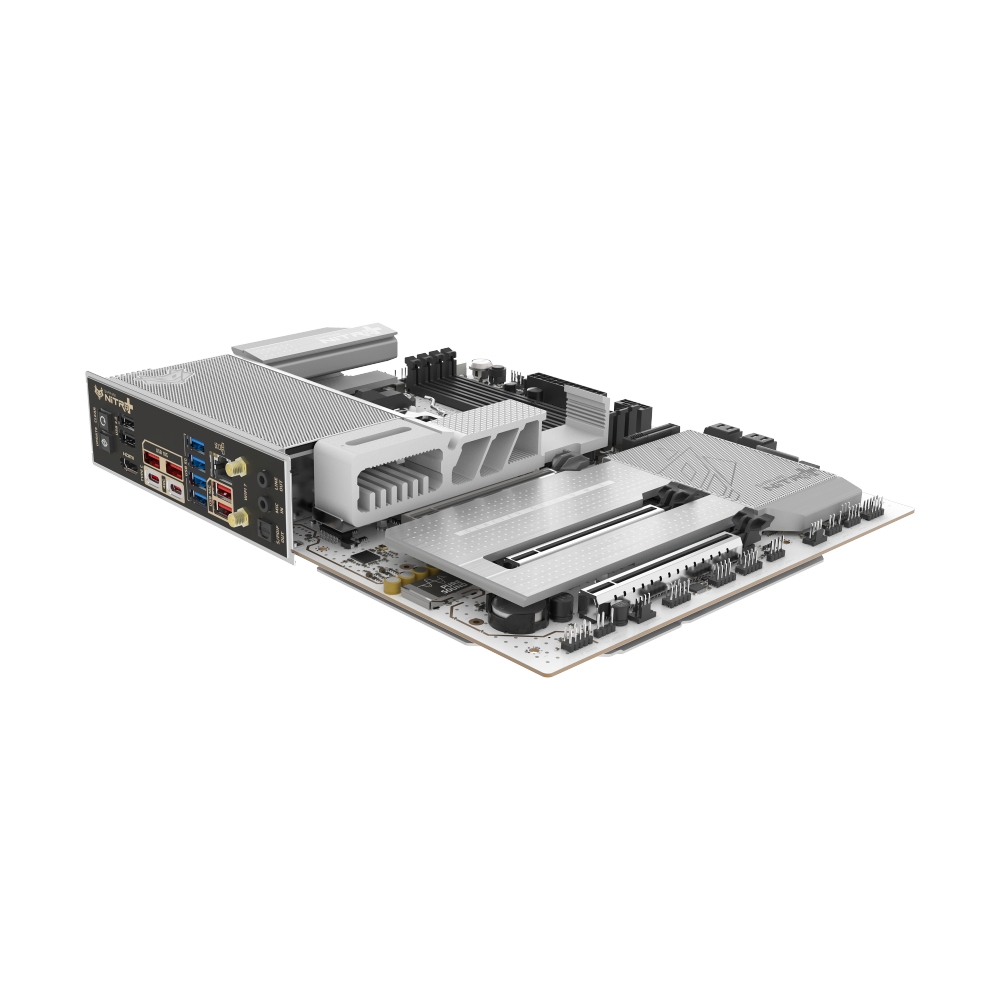

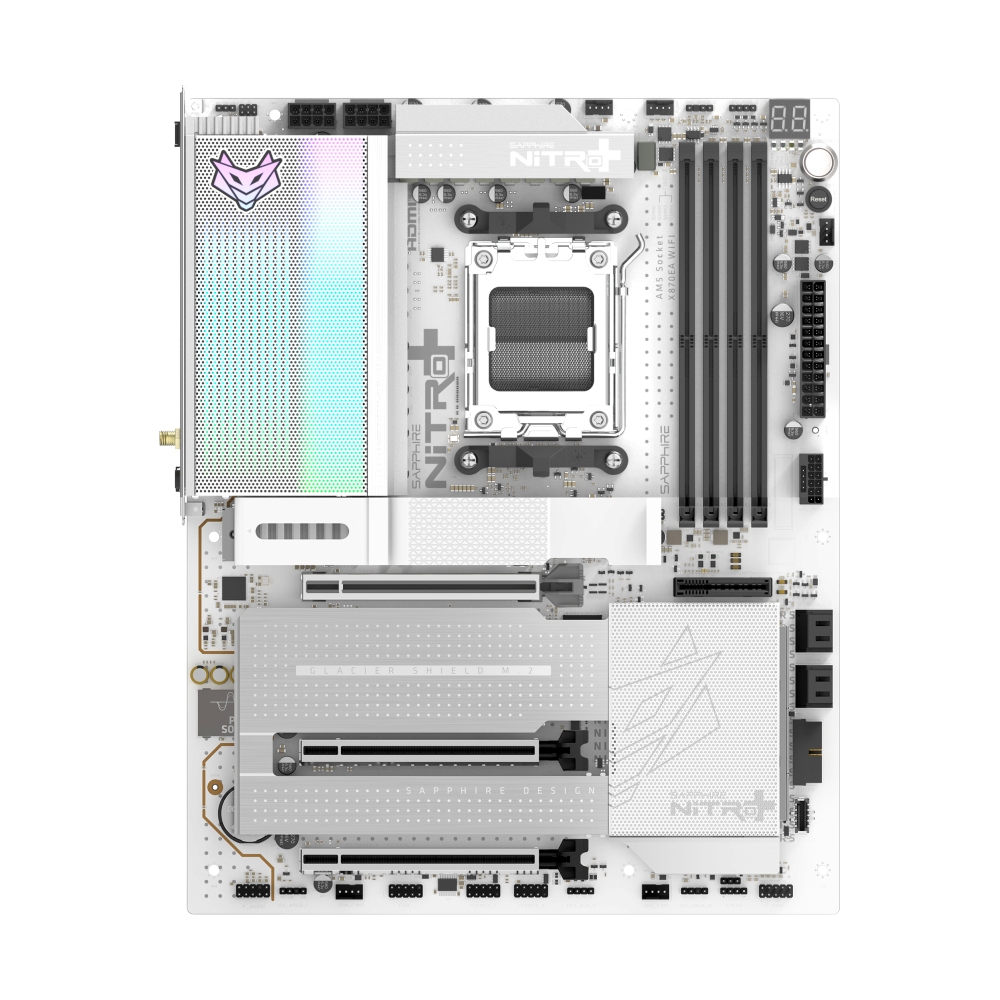

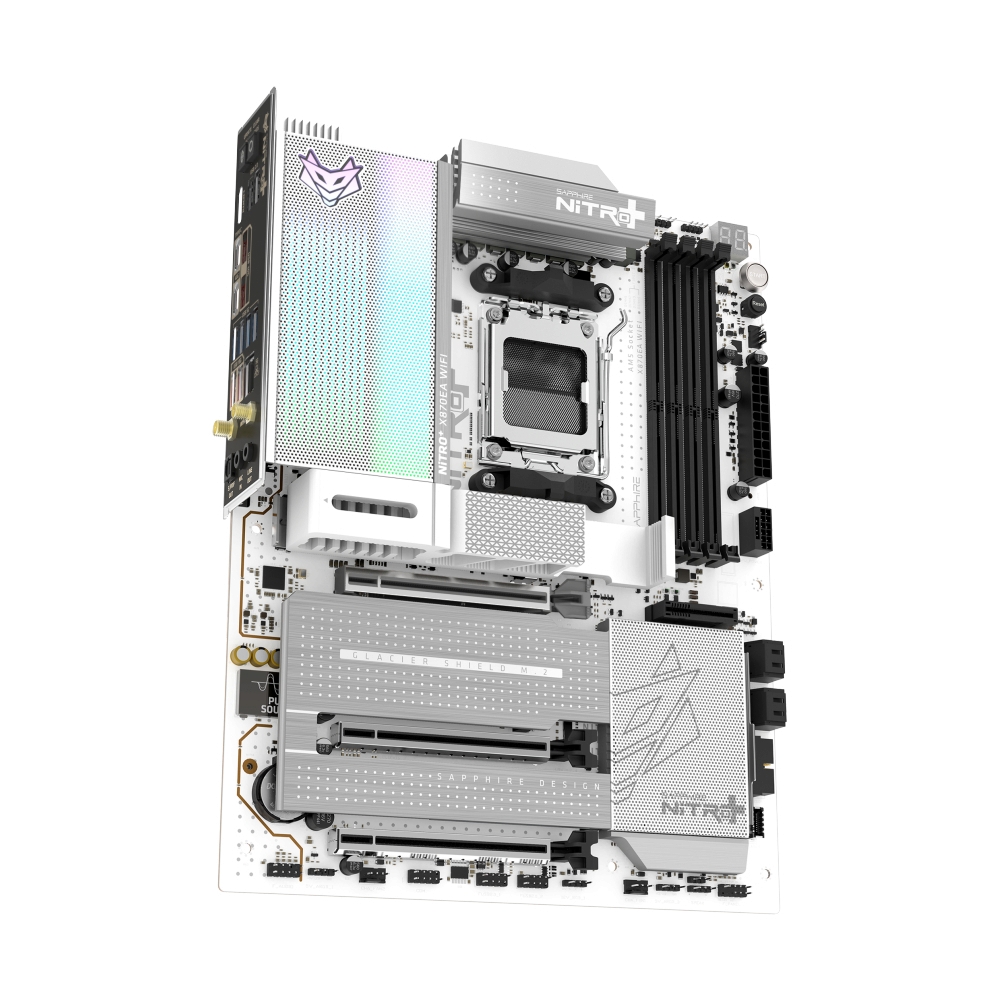

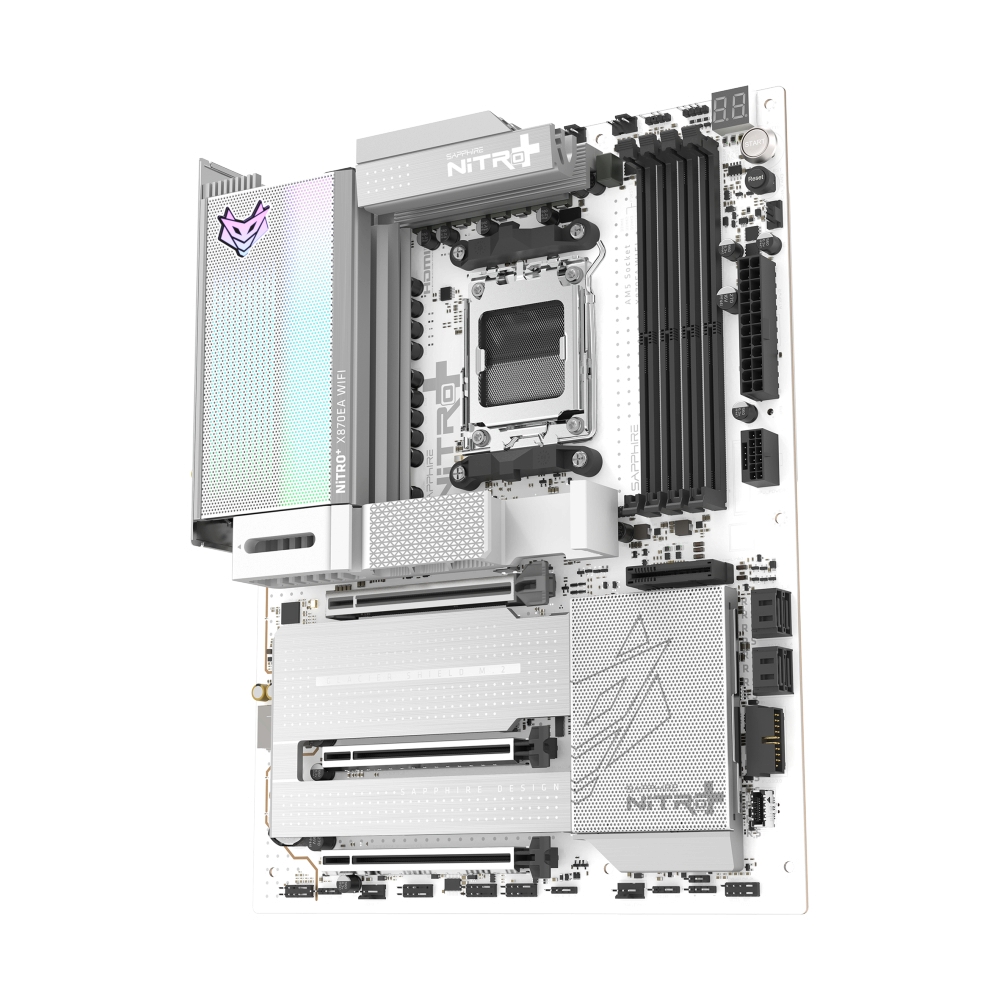

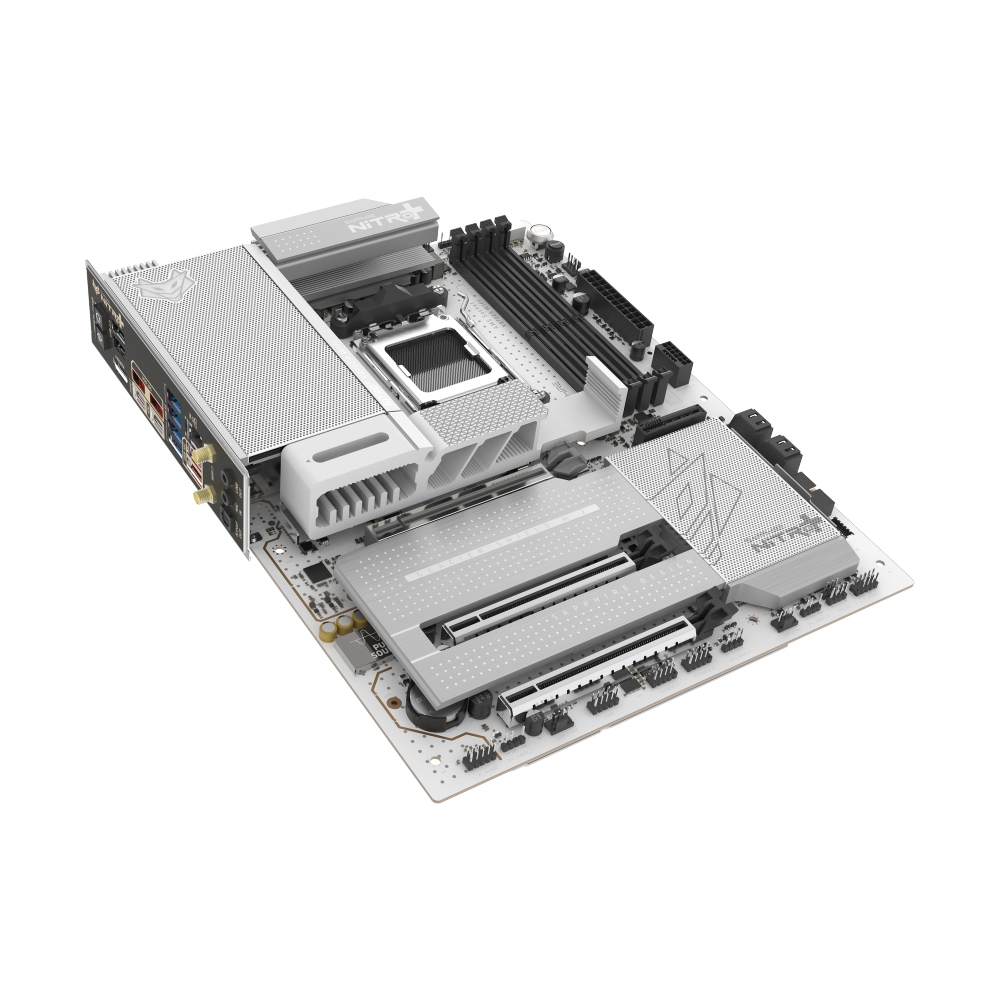

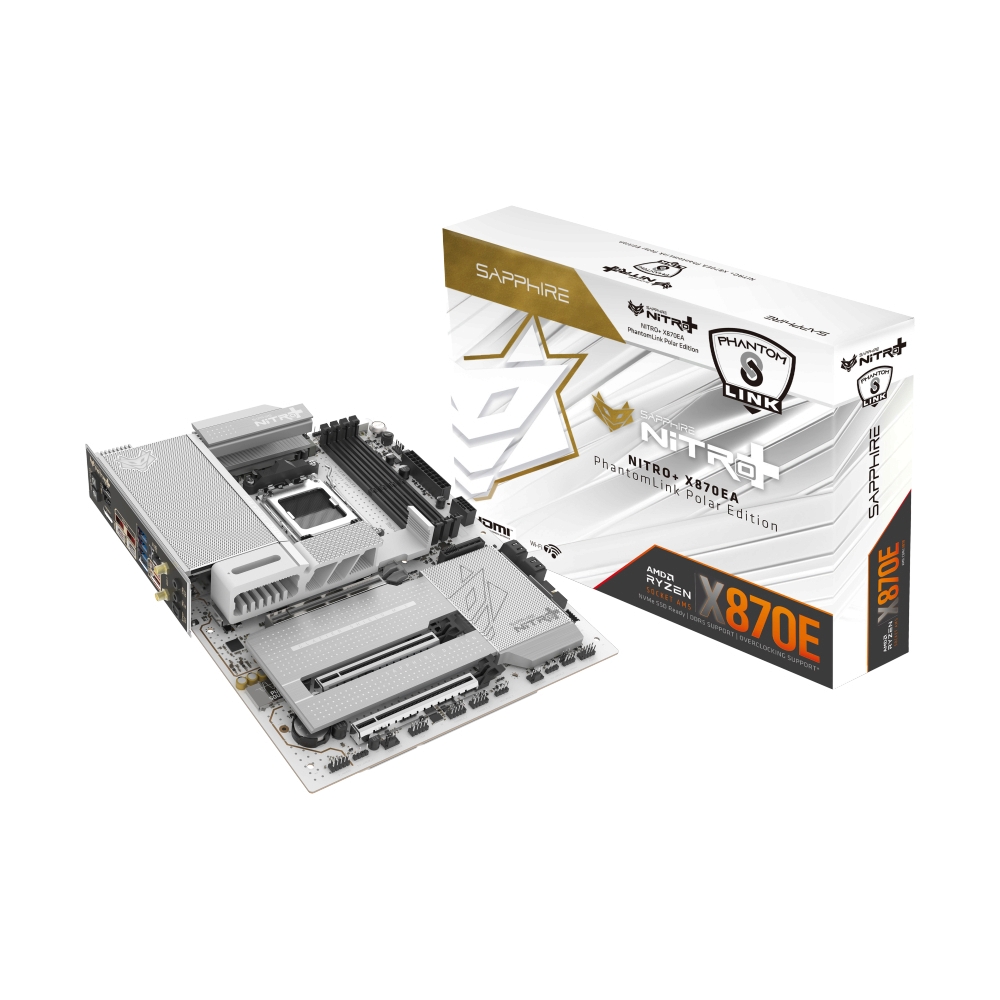

NITRO+ X870EA PHANTOMLINK POLAR EDITION DDR5

Supports AMD® Ryzen™ 7000 Series Desktop Processors
Supports AMD® Ryzen™ 8000 Series Desktop Processors
Supports AMD® Ryzen™ 9000 Series Desktop Processors
- Supports AM5 socket Processors

AMD

AM5

AMD X870E

4 x DDR5 Memory Slots
- Support DDR5 Memory Only
- Maximum Memory Speed: Up to 8400 MT/s (OC)
- Maximum System Memory: 64GB x 4 = 256GB
- Support Dual Channel Memory Technology
- Support Extended Overclock Profile (EXPO) and Extreme Memory Profile (XMP) Modules

8400

1 x HDMI

None

Realtek® ALC897 high-fidelity decoding chip (support up to 5.1 channels)

1 x PCIe 5.0 x16 Slot (CPU)*
2 x PCIe 4.0 x4 Slot (Chipset)**

* PCIex16_1 GEN5x16 will become PCIe GEN5x8 when M.2_1 GEN5x4 is occupied.
**PCIex16_2 GEN4x4 will be Disabled when M.2_3 GEN4x4 is occupied.

# PCIe 5.0 requires AMD 7000 and 9000 desktop series processors.

PCIe 5.0

2 x PCIe 5.0 M.2 Support 2280/2242 (CPU)*
1 x PCIe 4.0 M.2 Supports 2280/2242 (Chipset)**
1 x PCIe 4.0 M.2 Supports 22110/2280 (Chipset)
4 x SATA 3.0 6Gbps

* PCIex16_1 GEN5x16 will become PCIe GEN5x8 when M.2_1 GEN5x4 is occupied.
** PCIex16_2 GEN4x4 will be Disabled when M.2_3 GEN4x4 is occupied.

# PCIe 5.0 requires AMD 7000 and 9000 desktop series processors.
# For maximum operating speed, connect Gen5 device to the M.2_2 slot.
# For maximum operating speed, install the hard drive with the operating system in the M.2_2 slot.

NVMe

4

Front
2 x USB 2.0 Headers - Expandable to 4 x USB 2.0 Interfaces (FUSB2.0_1, FUSB2.0_2)
1 x USB 3.2 Gen1 (5Gbps) Header - Expandable to 2 x USB 3.2 Gen1 (5Gbps) Type-A Interfaces (FUSB3.0)
1 x Type-E (20Gbps) Header - Expandable to 1 x USB (20Gbps) PD30W Type-C Interface (FUSBC)

Back
2 x USB 2.0 Interfaces
4 x USB 3.2 Gen2 (10Gbps) Type-A Interfaces
4 x USB 3.2 Gen1 (5Gbps) Type-A Interfaces
2 x USB4 (40Gbps) Type-C Interfaces

1 x CPU Fan Header (CPU_FAN)
1 x Water Cooling Pump Header (AIO_PUMP)
3 x System Fan Headers (CHA_FAN1, CHA_FAN2, CHA_FAN3)
1 x Front Audio Header (F_AUDIO)
1 x Front Panel Header (F_PANEL)
3 x 5V ARGB Headers (5V_ARGB_1, 5V_ARGB_2, 5V_ARGB_3)
2 x 12V RGB Headers (12V_RGB_1, 12V_RGB_2)
1 x Speaker Header (SPEAK)
1 x Serial Port Header (COM)
1 x Onboard LED Display (LED2)
1 x Onboard Start Button (START)
1 x BIOS Programmer Header (JBIOS)
1 x Onboard Reset Button (RESET)

2 x USB 2.0 Interfaces
4 x USB 3.2 Gen2 (10Gbps) Type-A Interfaces
4 x USB 3.2 Gen1 (5Gbps) Type-A Interfaces
2 x USB4 (40Gbps) Type-C Interfaces
1 x HDMI™ Interface,
1 x Audio Output Jack
1 x Microphone Input Jack
1 x Optical Audio Output Interface
1 x RJ45 5G Network Interface
2 x Wi-Fi 7 Antenna Interfaces
1 x Clear CMOS Button
1 x Update BIOS Button

Realtek® RTL8126 Network Controller
- Supports 5G Wired Network

Wi-Fi 7 Module
- IEEE 802.11 a/b/g/n/ac/ax/be
- Supports 2.4GHz/5GHz/6GHz Wireless Bands
- Supports Bluetooth 5 Wireless Transmission

ATX

N/A

N/A

Debug Indicator Lights
- DRAM Yellow Indicator Light
- CPU Red Indicator Light
- GPU White Indicator Light
- BOOT Green Indicator Light

N/A

Windows 11

N/A
