ThinkStation P2 Tower Gen2 (30JQ00BXTH)

Intel Core Ultra 5 processor 235A (3.4GHz up to 5.0GHz, 14C/14T, 24MB Intel Smart Cache)

Intel AI Boost (Up to 13 TOPS)

Intel W880 Chipset

NVIDIA RTX A400 (4GB GDDR6)

32GB (1x 32GB) DDR5-5600 UDIMM Non-ECC

4x DDR5 UDIMM slots, dual-channel capable

Up to 128GB (4x 32GB DDR5 UDIMM)

512GB (1x 512GB) SSD M.2 2280 PCIe^® 4.0x4 Performance NVMe^® Opal

2x M.2 2280 PCIe 4.0 slots
1x M.2 2280 PCIe 5.0 slot
1x M.2 via PCIe adapter (PCIe 3.0)
2x 3.5" SATA HDD bays

Supports four PCIe^® slots with one PCIe^® 5.0 x16, one PCIe^® 4.0 x16, and two PCIe^® 3.0 x1.
• Slot 1: PCIe^® 5.0 x16, full height, length <= 268mm, 75W, double-width
• Slot 2: PCIe^® 3.0 x1, full height, half length, 25W, open-ended
• Slot 3: PCIe^® 4.0 x16 (x4 lanes), full height, half length, 25W
• Slot 4: PCIe^® 3.0 x1, full height, half length, 25W, open-ended

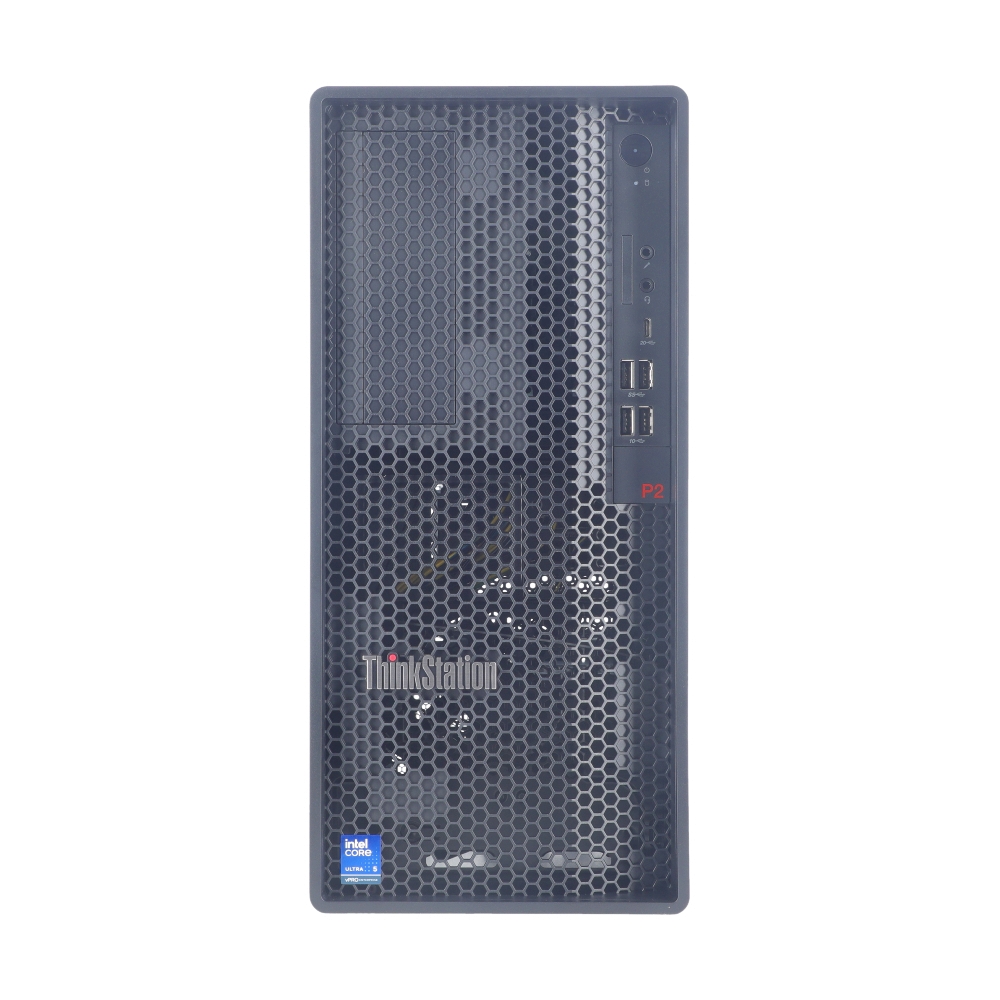

Front Ports
1x USB-C^® (USB 20Gbps / USB 3.2 Gen 2x2)
2x USB-A (USB 5Gbps / USB 3.2 Gen 1)
2x USB-A (USB 10Gbps / USB 3.2 Gen 2)

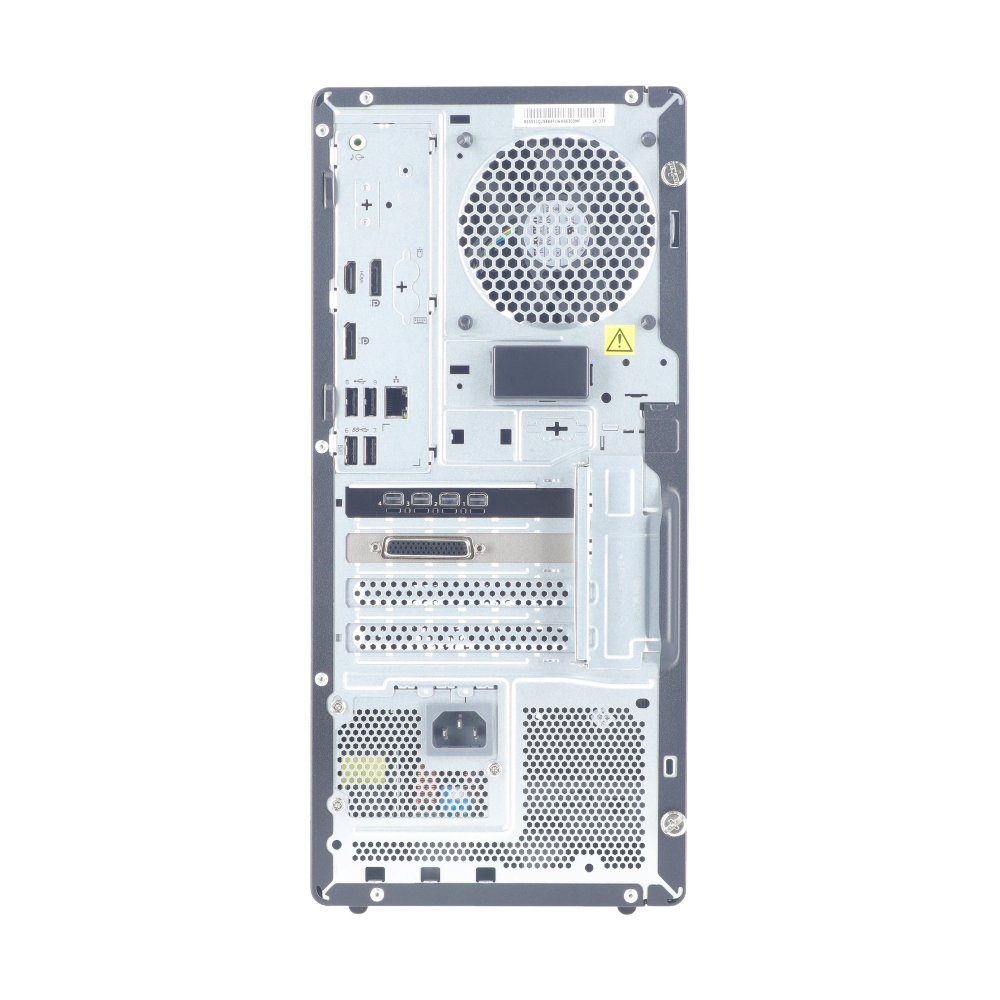

Rear Ports
2x USB-A (Hi-Speed USB / USB 2.0)
2x USB-A (USB 5Gbps / USB 3.2 Gen 1), one supports Smart Power On
1x HDMI^® 2.1 TMDS
2x DisplayPort™ 1.4
1x Ethernet (GbE RJ-45)

None

High Definition (HD) Audio, Realtek^® ALC623-CG codec

Front Ports
1x headphone / microphone combo jack (3.5mm)
1x microphone (3.5mm)

Rear Ports
1x line-out (3.5mm)

Intel^® I219-LM, 1x GbE RJ-45

Intel^® Wi-Fi^® 7 BE200, 802.11be 2x2

Bluetooth 5.4

None

500W Platinum Fixed

Yes

Yes

Windows 11 Pro

N/A
