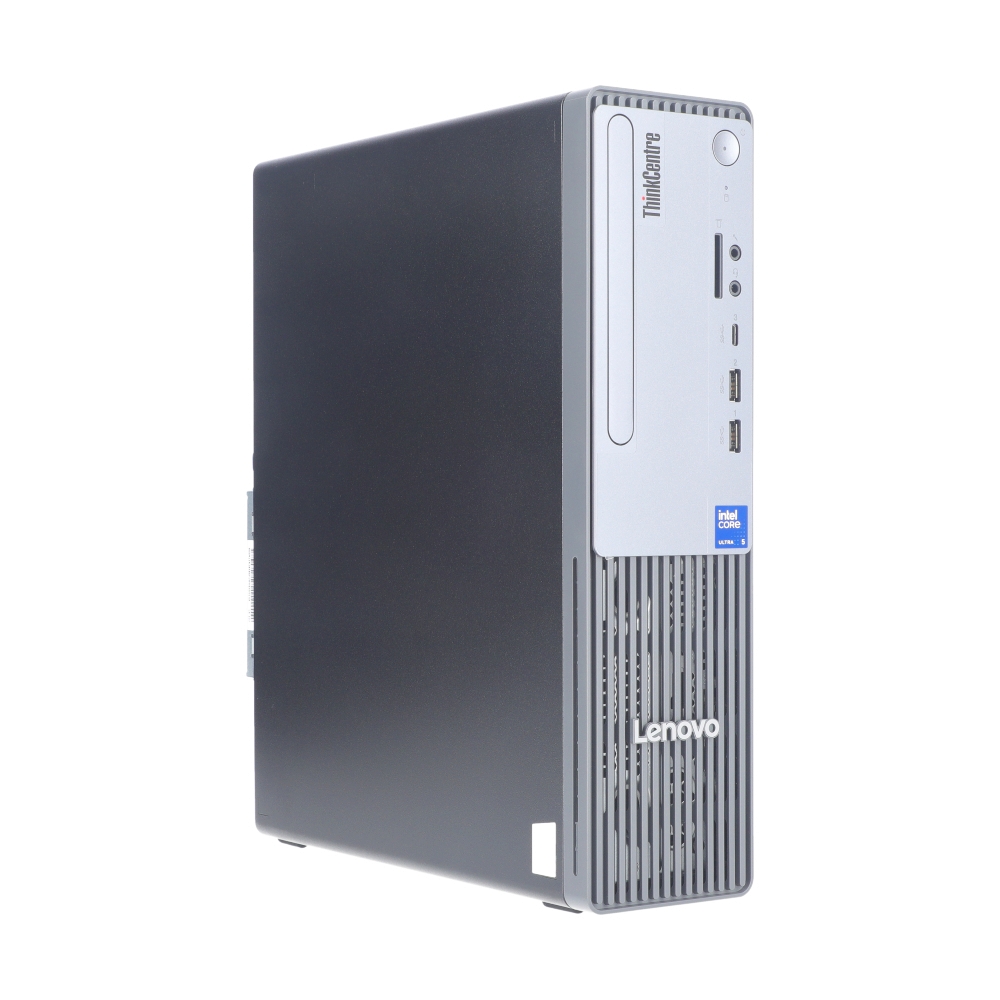

ThinkCentre Neo 50s G6 (13DM0057TB)

Intel Core Ultra 5 processor 225 (3.3GHz up to 4.9GHz, 10C/10T, 20MB Intel Smart Cache)

Intel AI Boost (Up to 13 TOPS)

Intel B860 Chipset

Integrate Graphics : Intel Graphics

16GB (1x 16GB) DDR5-5600 UDIMM

2x DDR5 UDIMM slots, dual-channel capable

Up to 64GB

512GB SSD M.2 2280 PCIe 4.0x4 NVMe

Up to three drives, 1x 3.5" HDD + 2x M.2 SSD
• 3.5" HDD up to 2TB
• M.2 SSD up to 1TB each

To install a HDD storage, 3.5'' HDD screw and grommet kit is needed.

• One PCIe^® 4.0 x16, low-profile, length ≤ 155mm, height ≤ 70mm
• One PCIe^® 3.0 x1, low-profile, length ≤ 155mm, height ≤ 70mm
• One M.2 slots for WLAN (Occupied)

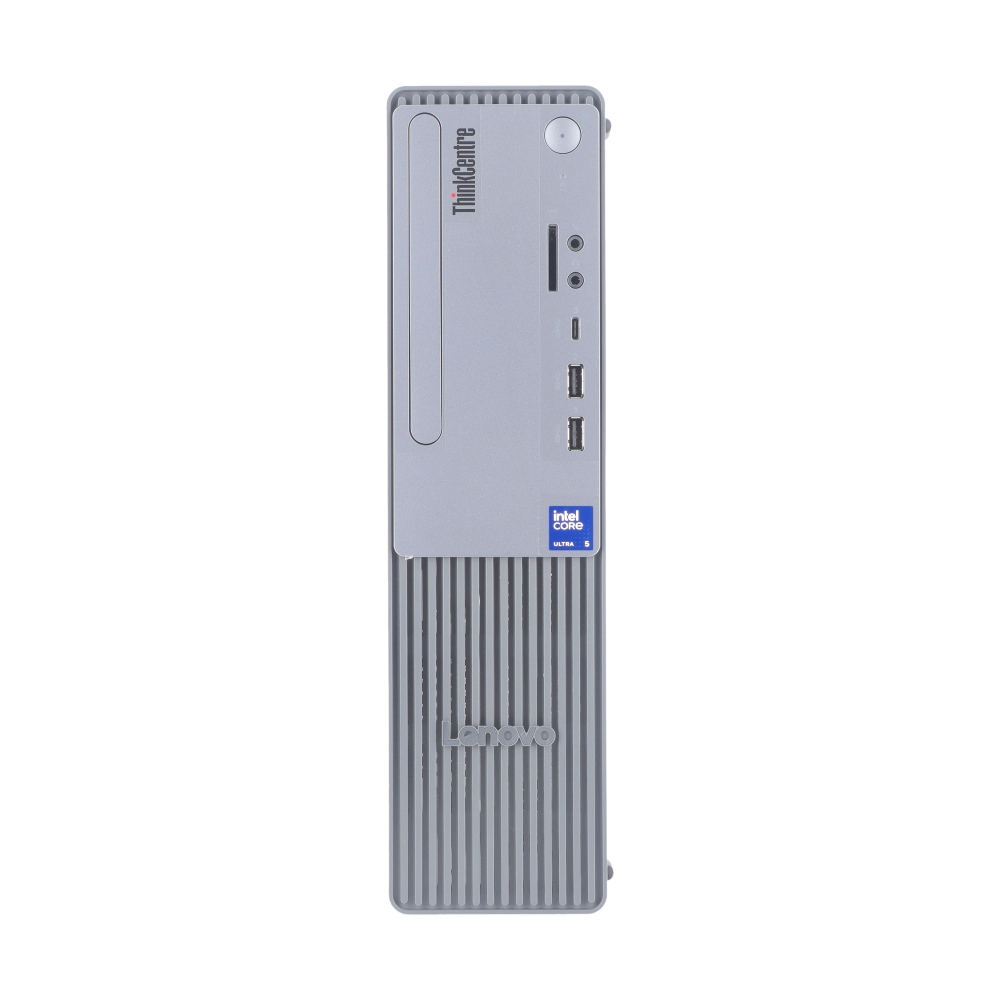

Front Ports
1x USB-C^® (USB 5Gbps / USB 3.2 Gen 1), with 15W charging
2x USB-A (USB 5Gbps / USB 3.2 Gen 1)

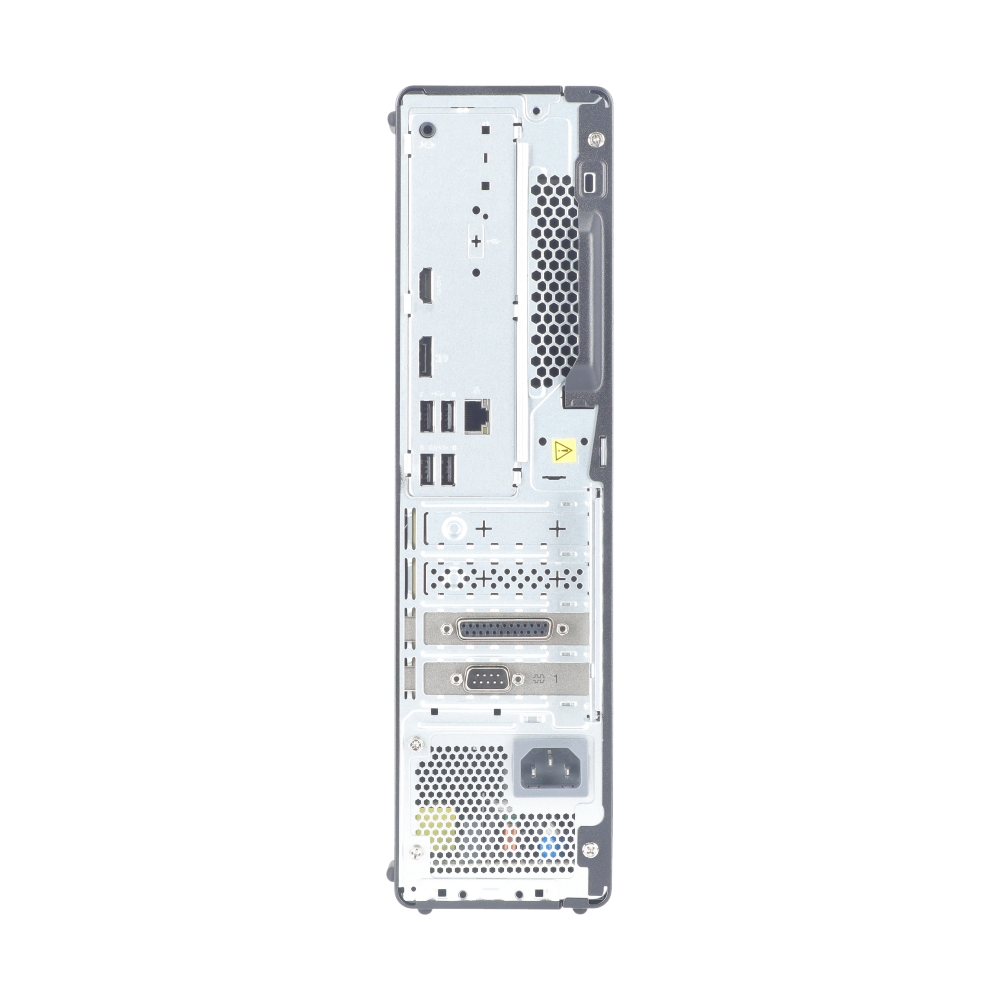

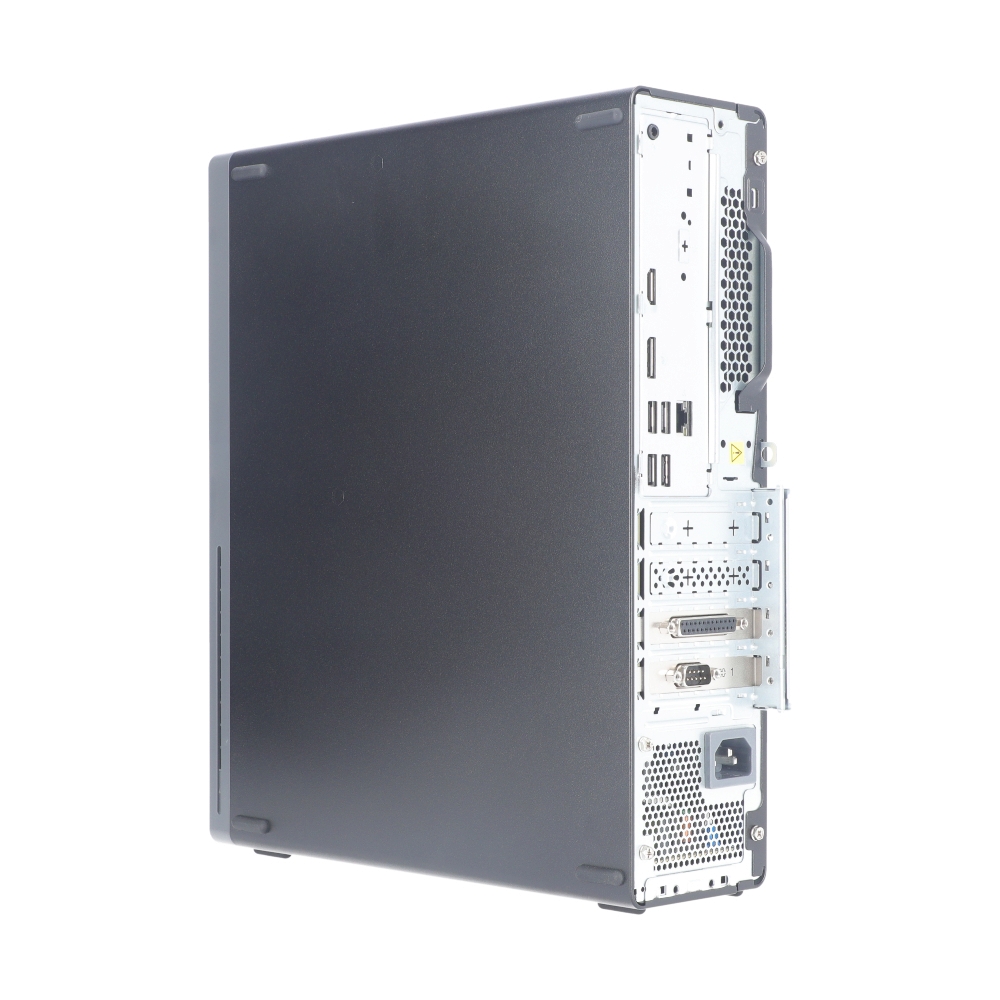

Rear Ports
2x USB-A (Hi-Speed USB / USB 2.0)
2x USB-A (USB 5Gbps / USB 3.2 Gen 1), one supports Smart Power On
1x HDMI^® 2.1 TMDS
1x DisplayPort™ 1.4
1x Parallel (Configured)
1x Serial (Configured)

None

• High Definition (HD) Audio, Realtek^® ALC623-CG codec
• 24-bit DAC supports 44.1K/48K/96K sample rate, 2 channel DAC supports 16/20/24-bit PCM format for independent two stereo channel or 2.1 audio playback
• 24-bit ADC supports 44.1K/48K/96K sample rate, 2 channel ADC supports 16/20/24-bit PCM format for independent two stereo channel audio inputs

Front Ports
1x headphone / microphone combo jack (3.5mm)
1x microphone (3.5mm)

Rear Ports
1x line-out (3.5mm)

10/100/1000 LAN

Wi-Fi 6 (802.11ax)

Bluetooth 5.2

3-in-1 Card Reader

200W 90%

Yes

Yes

Windows 11 Pro

• Chassis Intrusion Switch
