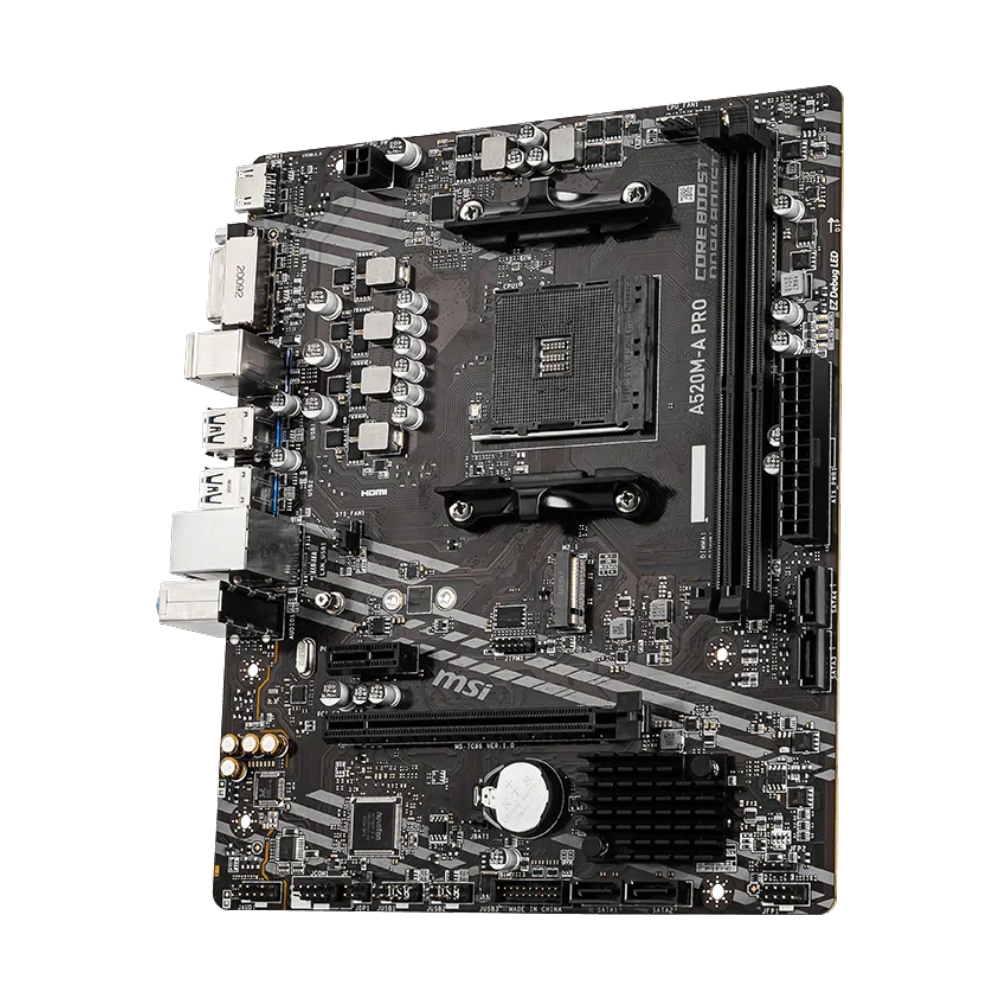

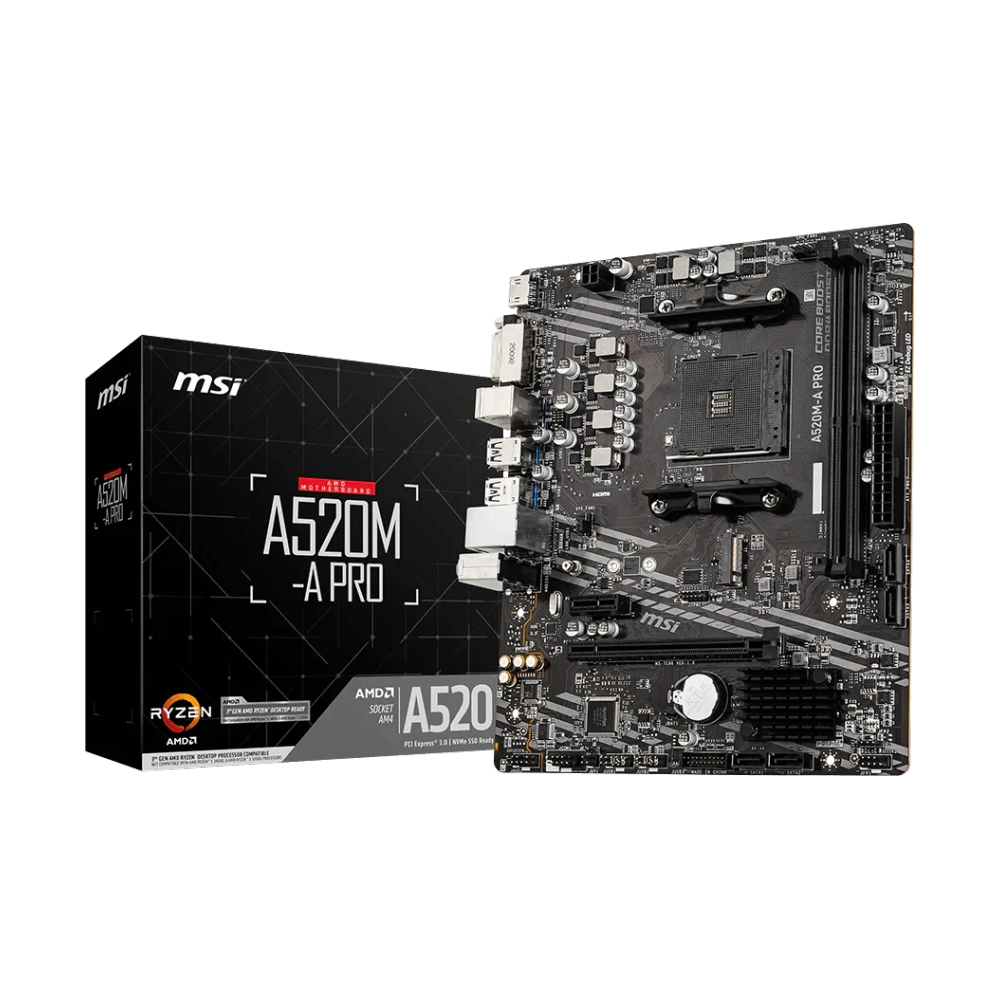

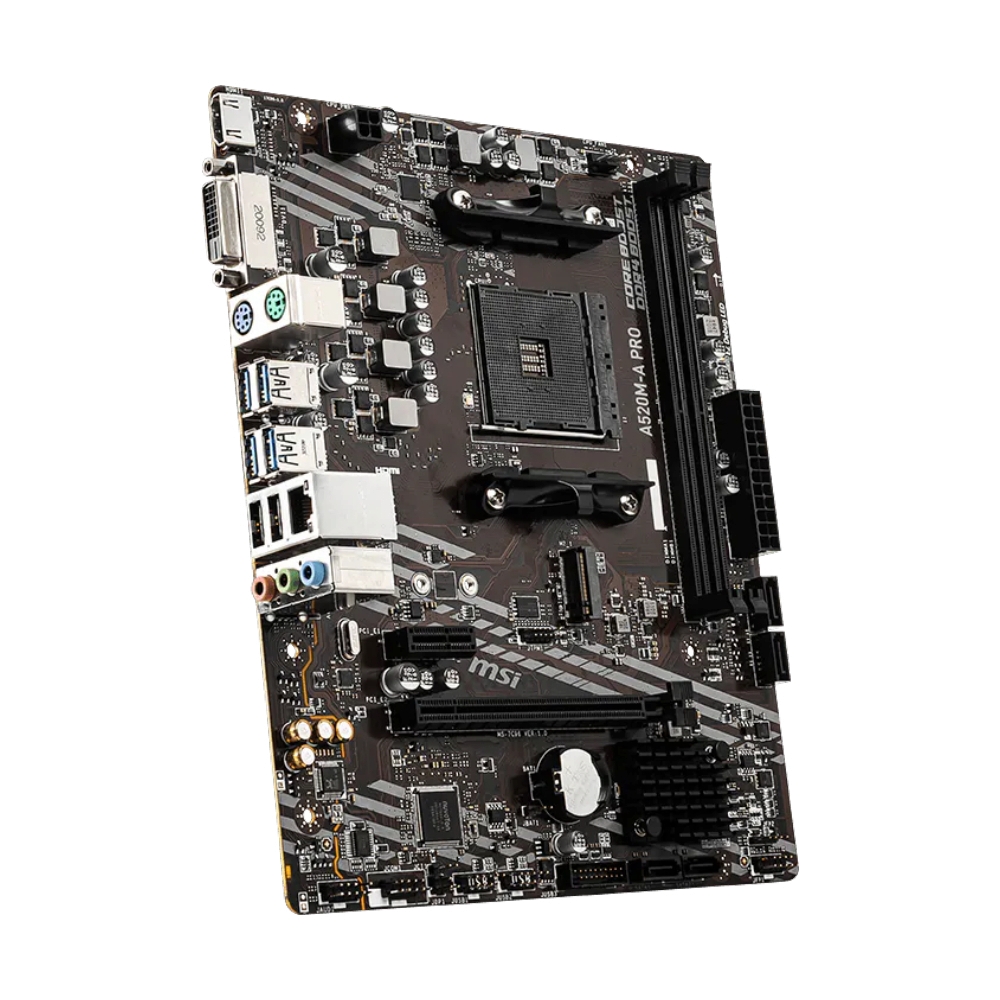

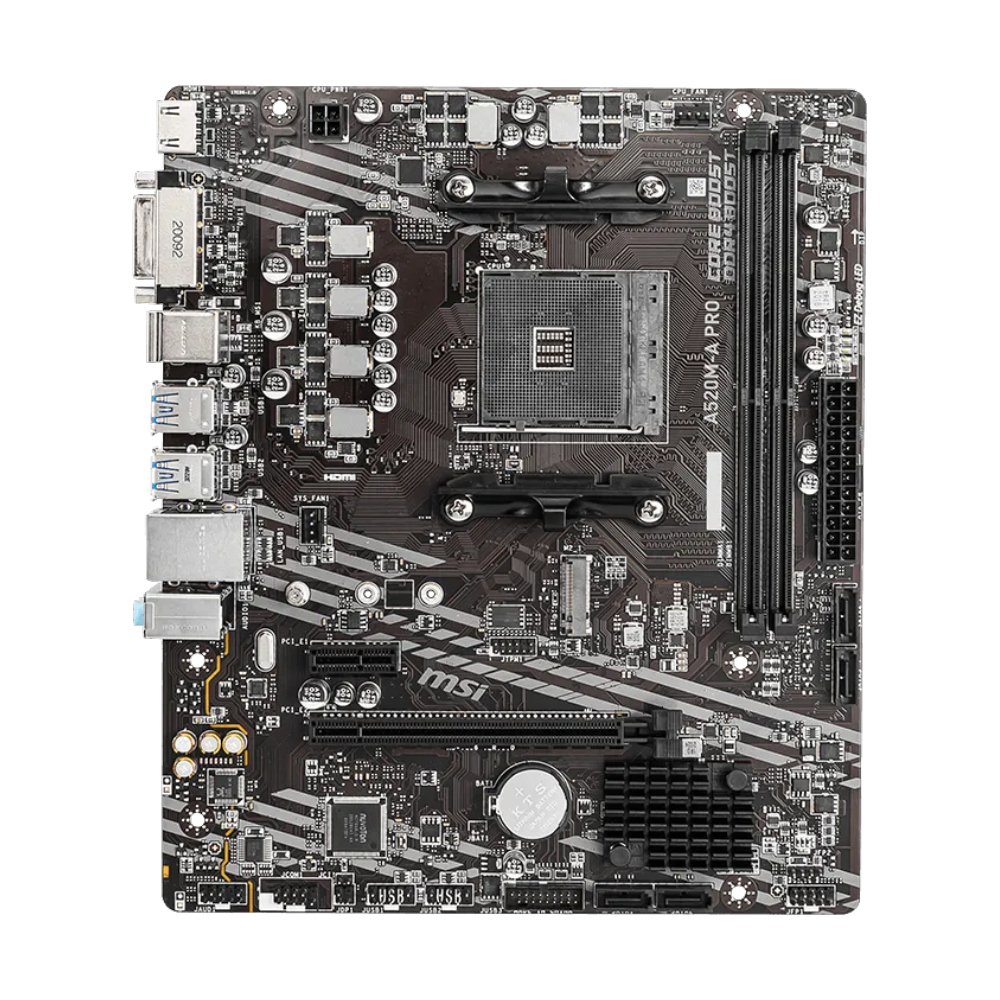

A520M-A PRO (DDR4)

Supports AMD Ryzen™ 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series and 3000 G-Series processors

AMD

AM4

AMD A520

2 x DDR4 memory slots, support up to 64GB

Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC
Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400/ 4600+ MHz by A-XMP OC MODE

- 1DPC 1R max speed 4600 MHz
- 1DPC 2R max speed 3866 MHz

Dual channel memory architecture
Supports non-ECC UDIMM memory
Supports ECC UDIMM memory (non-ECC mode)
Supports un-buffered memory

* Please refer www.msi.com for more information on compatible memory.

4600

1 x HDMI™ 2.1 port, supports a maximum resolution of 4096x2160 @60Hz, Support HDCP 1.4 & 2.3
1 x DVI-D port, supports a maximum resolution of 1920x1200@60Hz1
Maximum shared memory of 16 GB

* Available for the processor with integrated graphics.Graphics * specifications may vary depending on the CPU installed.

None

Realtek® ALC892/ALC897 Codec
7.1-Channel High Definition Audio

1 x PCIe 3.0 x16 slot (from AMD processor)1
- Supports x16 speed with Ryzen™ 5000, 5000G, 4000G and 3000 processors
- Supports x8 speed with Ryzen™ 3000G processors
- Supports x4 speed with AMD® Athlon™ with Radeon Graphics processors

1 x PCIe 3.0 x1 slot

* The supported specification depends on installed processor.

PCIe 3.0

AMD A520 Chipset
4 x SATA 6Gb/s ports
1 x M.2 slot (Key M) (from AMD Processor)
- Supports PCIe 3.0 x4 & SATA 6G/s with Ryzen™ 5000, 5000G, 4000G, 3000 and 3000G processors
- Supports SATA 6Gb/s with Athlon™ with Radeon™ Vega Graphics processors
- Supports 2242/ 2260/ 2280 storage devices

RAID
Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices

NVMe, SATA

1

AMD A520 Chipset
2 x USB 3.2 Gen 1 5Gbps ports are available through the internal USB 3.2 Gen 1 5Gbps connector
6 x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)

AMD Processor
4 x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel

1 x 24-pin ATX main power connector
1 x 4-pin ATX 12V power connector
4 x SATA 6Gb/s connectors
1 x M.2 slots (M-Key)
1 x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
1 x 4-pin CPU fan connector
1 x 4-pin system fan connectors
1 x Front panel audio connector
2 x System panel connectors
1 x Chassis Intrusion connector
1 xTPM module connector
1 x Clear CMOS jumper

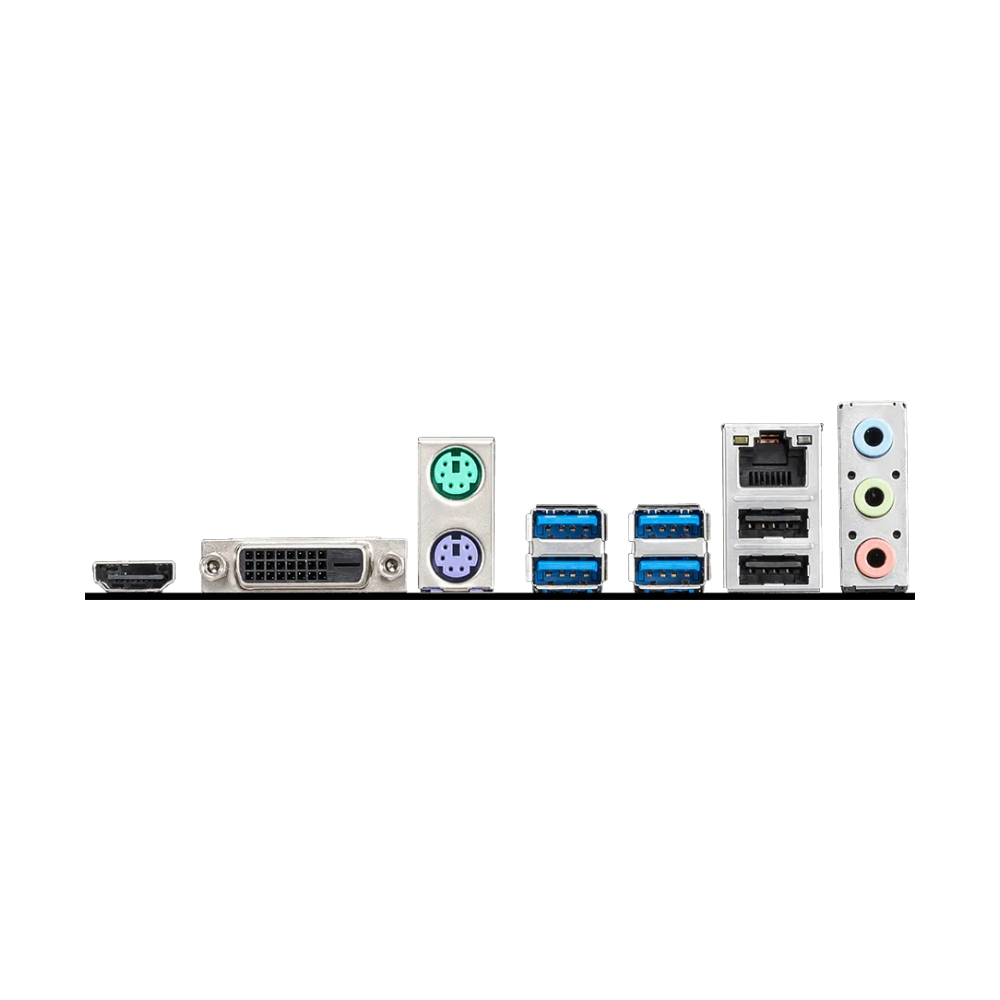

2 x USB 2.0 Ports
4 x USB 3.2 Gen 1 5Gbps Type-A
1 x HDMI™
1 x DVI-D
Keyboard / Mouse
LAN port
Audio Connectors

1 x Realtek® RTL8111H Gigabit LAN controller

None

Micro ATX

N/A

N/A

N/A

N/A

Windows 10 / 11

N/A
