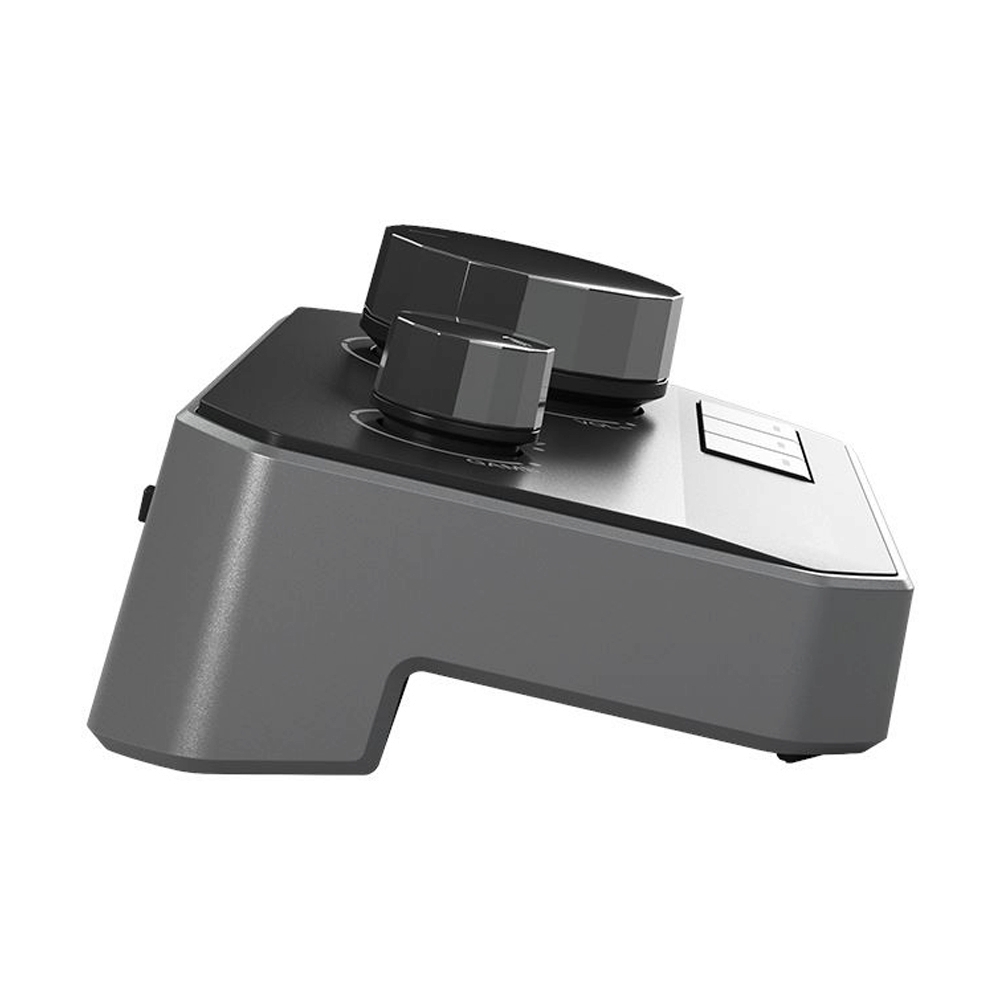

SOUND CARD CREATIVE USB BLASTER G8
- Hi-Res Gaming DUAL USB DAC and Amp
- The Sound Blaster G8 delivers the sweet sound of victory
- With dual USB audio input and mixing
- Best-in-class ultra high-resolution 32-bit playback
- Proprietary Xamp discrete headphone amplifier.
- Sound Blaster Acoustic Engine
- Scout Mode
- Vast Connectivity Options
ข้อมูลผลิตภัณฑ์
Sound Blaster G8
Platform
USB 2.0, USB 3.0

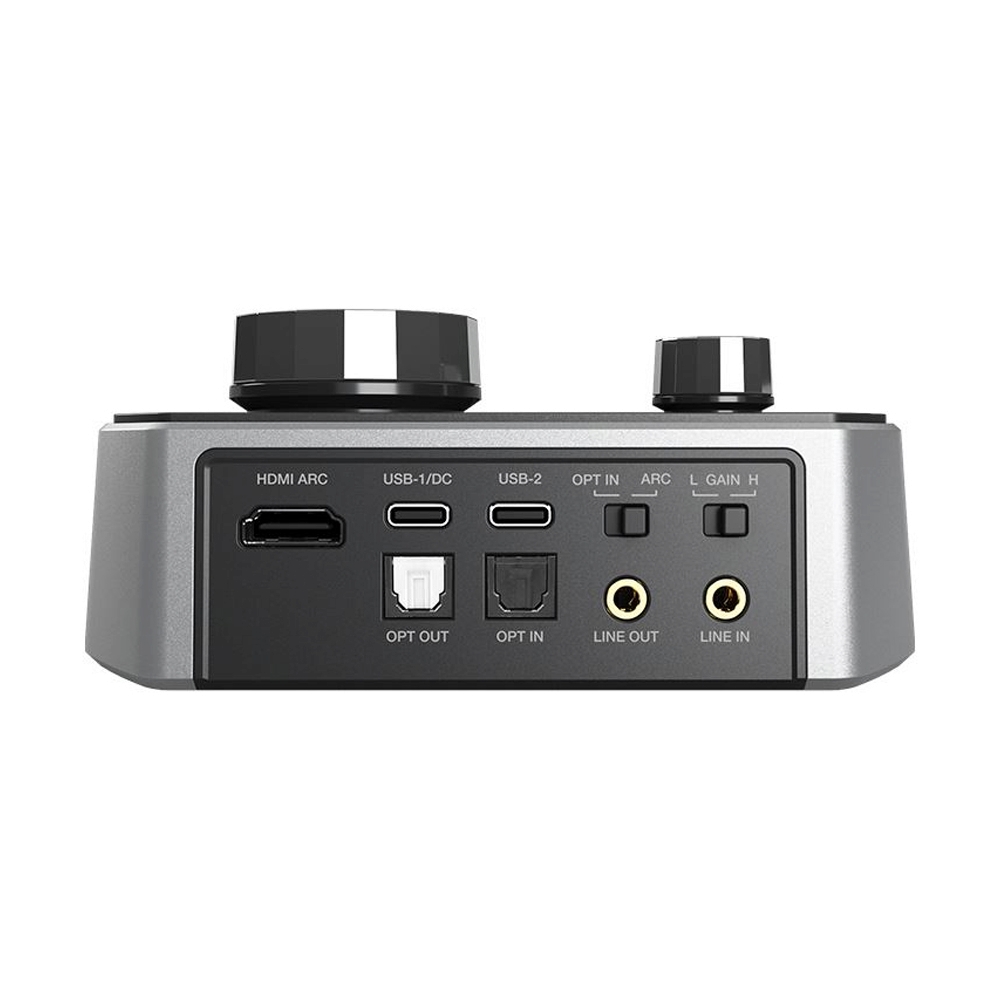

Connectivity Options (Main)
1 x TOSLINK Optical In
1 x TOSLINK Optical Out
1 x 3.5 mm Line-in
1 x 3.5mm Line-out
1 x 3.5 mm Mic-in
1 x 4-pole Headset jack (3.5mm, CTIA)
1 x HDMI ARC
1 x USB C (USB-1) power/data jack for PC/Mac/Consoles
1 x USB C (USB-2) power/data jack for Consoles and mobile devices
GameVoice Mix
PS4 and PS5 (PS5 requires optional HDMI to SPDIF converter)
Controls
SBX button, Mode Button, HP / SPK Button, Opt-In / HDMI ARC mode switch, Master volume dial, GameVoice Mix dial, Headphone gain switch
Headphone Amp
Output Impedance: 1Ω
Audio Technology
CrystalVoice, Sound Blaster Acoustic Engine, GameVoice Mix, Discrete Xamp Bi-amplifier, Dolby Audio
Max. Playback Quality
Direct Mode:
Playback (Stereo): Up to 16/24/32-bit, 44.1 kHz, 48.0 kHz, 88.2 kHz, 96.0 kHz, 176.4 kHz, 192.0 kHz, 352.8 kHz, 384.0 kHz
Playback (5.1/7.1): Up to 16/24/32-bit, 44.1 kHz, 48.0 kHz, 88.2 kHz, 96.0 kHz,
DSP Mode:
Playback (Stereo): Up to 16/24/32-bit, 44.1 kHz, 48.0 kHz, 88.2 kHz, 96.0 kHz, 176.4 kHz, 192.0 kHz, 352.8 kHz, 384.0 kHz
Playback (5.1/7.1): Up to 16/24/32-bit, 44.1 kHz, 48.0 kHz, 88.2 kHz, 96.0 kHz
Recording Resolution
What-U-Hear: Up to 16/24/32-bit, 44.1 kHz, 48.0 kHz, 88.2 kHz, 96.0 kHz, 176.4 kHz, 192.0 kHz
Mic-in: Up to 16/24/32-bit, 44.1 kHz, 48.0 kHz, 88.2 kHz, 96.0 kHz, 176.4 kHz, 192.0 kHz
Optical In: Up to 192.0 kHz
Line-in: Up to 16/24/32-bit, 44.1 kHz, 48.0 kHz, 88.2 kHz, 96.0 kHz, 176.4 kHz, 192.0 kHz
Headphone Amp
Output Impedance: 1Ω
Included Accessories
2 x USB-C to USB-C Cable
DAC
THD+N : 0.00018%, Dynamic Range (A-Weighted) : 130dB
ADC
Dynamic Range (A-Weighted) : 114dB, THD+N : 0.00056%
Power
USB 2.0 / 3.0, USB Bus Powered
Recommended Usage
Gaming
Package Contents
1 x Sound Blaster G8
1 x QSG/Warranty/Compliance Leaflet
2 x USB-C to C cable (1.5m)
Max Channel Output
Stereo
Windows® 11, Windows® 10
macOS 10.15 and above
Android 13.0 or later
PS4 (Firmware Ver 5.0 or later)
PS5 (Firmware Version 20.02-2.26.00.00-00.00.00.0.1 or later)
Xbox Series X/S (System OS 10.0.19041.5496 or later)
Nintendo Switch (Switch OS 5.0 or later)
