ข้อมูลสินค้าPOWER SUPPLY (80+ PLATINUM) 1600W MSI MEG AI1600T PCIE5
MSI

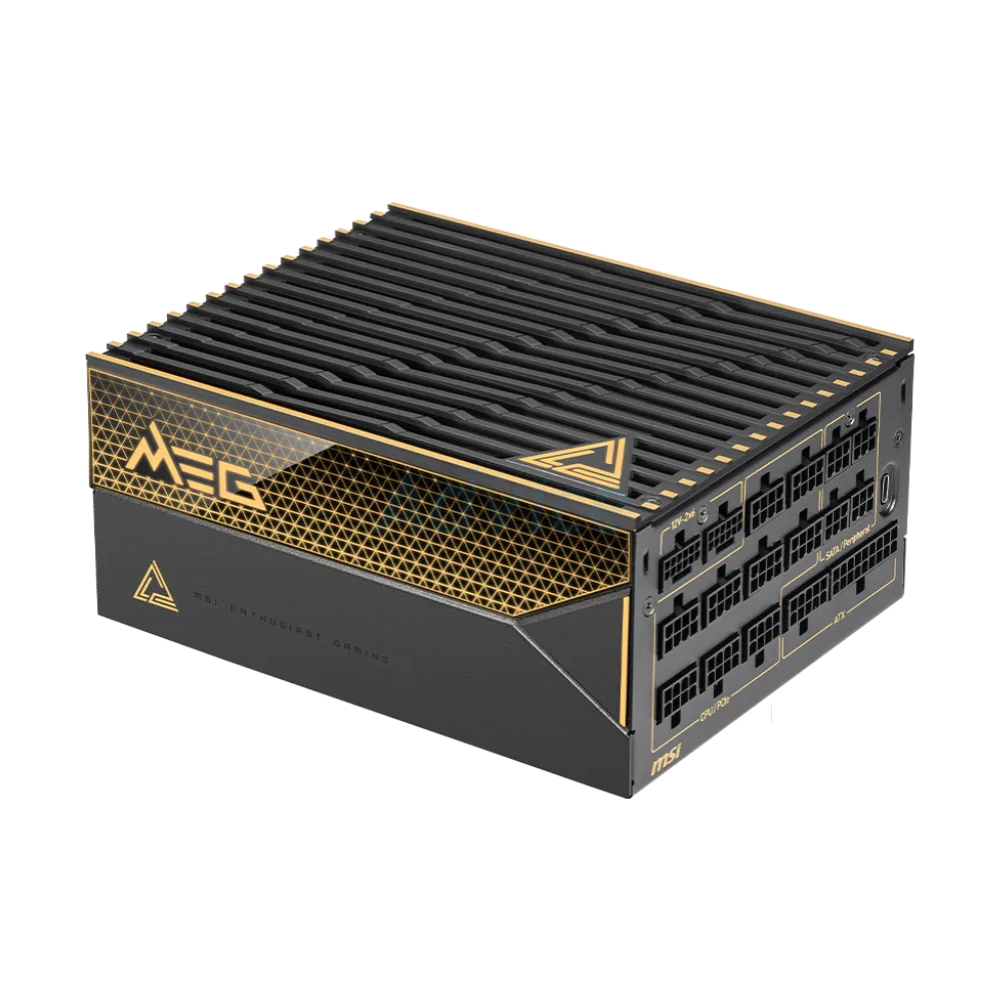

POWER SUPPLY (80+ PLATINUM) 1600W MSI MEG AI1600T PCIE5
ประกัน 10 ปี
รหัสสินค้า: A0179926
- Maximum Power : 1600W
- Energy Efficient : 80 Plus PLATINUM
- Type : FULL Modular
- PCIe Connector : (6+2 Pin) x9 Connectors
- PCIe Connector : (12VHPWR) 12+4 pin x2 Connectors
- PFC Type : Interleaved PFC
- Power Excursion : 3840W (*up to 240% of the PSU's rated power for 100μs)
- Supports Nvidia® GeForce RTXTM 50 Series graphics cards
- Dual-native 12V-2x6 Connectors
- Server-grade materials, SiC interleaved PFC MOSFET
- Tri-certified Titanium certification (80 PLUS / Cybenetics / PPLP)
- PCIe 5.1 and ATX 3.1 Ready
- Dual-color 12V-2x6 cables
- 100% all Japanese 105°C capacitor
- Full digital design with control MCU
- Industrial level protection with OCP/ OTP/ OPP/ SCP/ OVP/ UVP/ SIP/ NLO
ราคาหน้าร้าน ฿14,900
รายละเอียดสินค้า
อ้างอิงจาก : www.msi.com
ข้อมูลผลิตภัณฑ์
BrandMSI
Model
MEG Ai1600T PCIE5
ATX Standard
ATX 3.1
Power Capacity
1600W
Certification
80 PLUS / Cybenetics / PPLP
Input Voltage
100-240V
Input Current
10-15A
Input Frequency Range
50~60 Hz
Efficiency
80 PLUS Titanium (up to 94%)

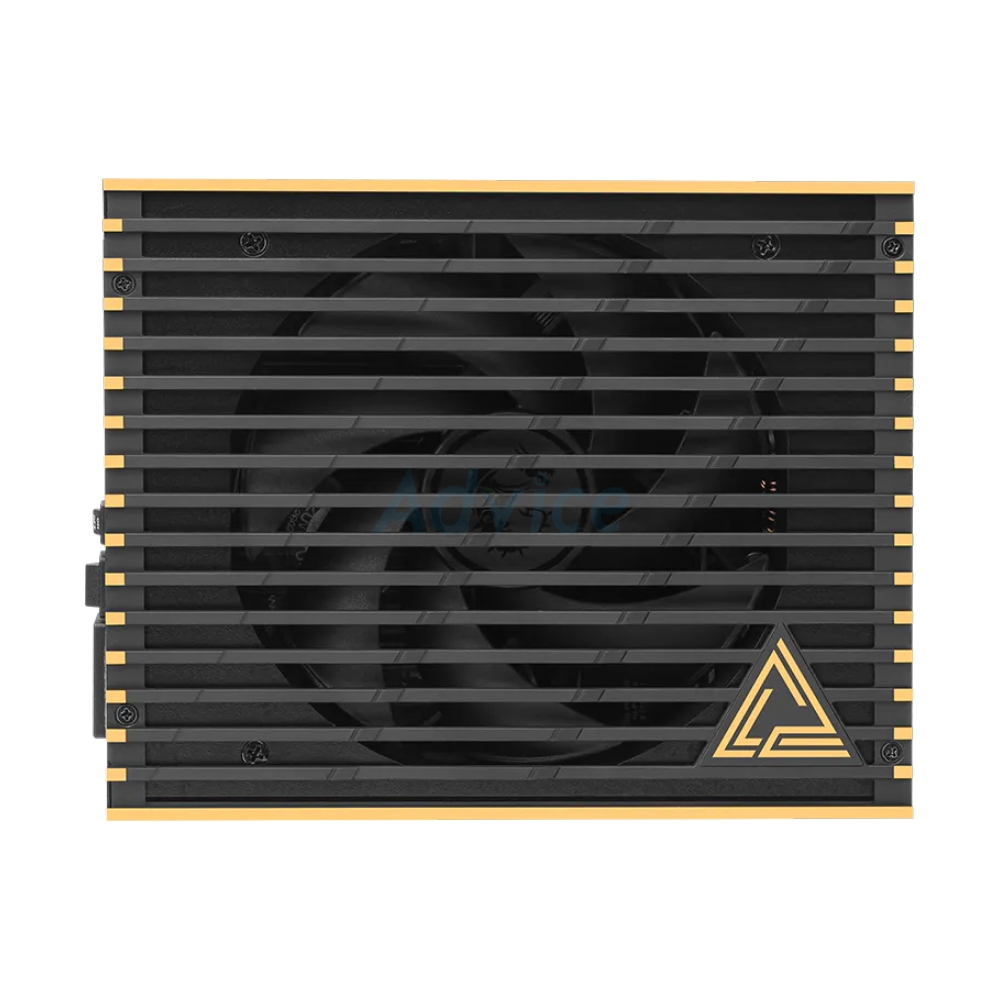

Fan Size
135 mm (Double Ball Bearing)
MTBF
N/A
Operating Temperature
N/A
Protection (วงจรป้องกัน)
OCP / OTP / OPP / SCP / OVP / UVP / SIP / NLO
Safety Regulation (มาตรฐานรับรอง)
N/A
Modular
Full Modular

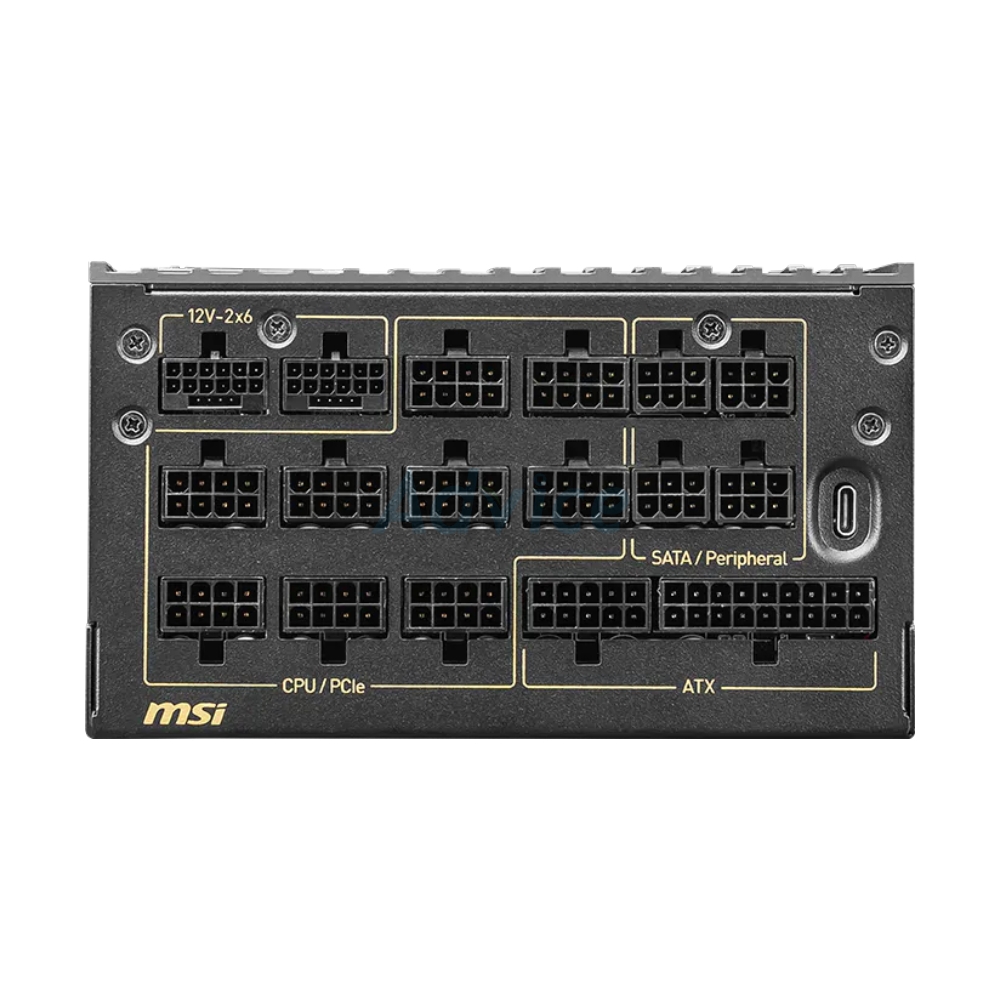

ATX Main Connector
(20+4 Pin) x 1 Connector (600mm)
CPU Power Connector
(4+4 Pin) x 2 Connectors (750mm)
PCIe Power Connector
(6+2 Pin) x 9 Connectors (600mm)
(16 pin) PCIe5.0 x2 Connectors (600W) (600mm)
SATA Power Connector
8 x Connectors (500mm)
Peripheral Power Connector
8 x Connectors (500mm)
Floppy Power Connector
None
RGB Power Connector
None
PSU Length
150 mm

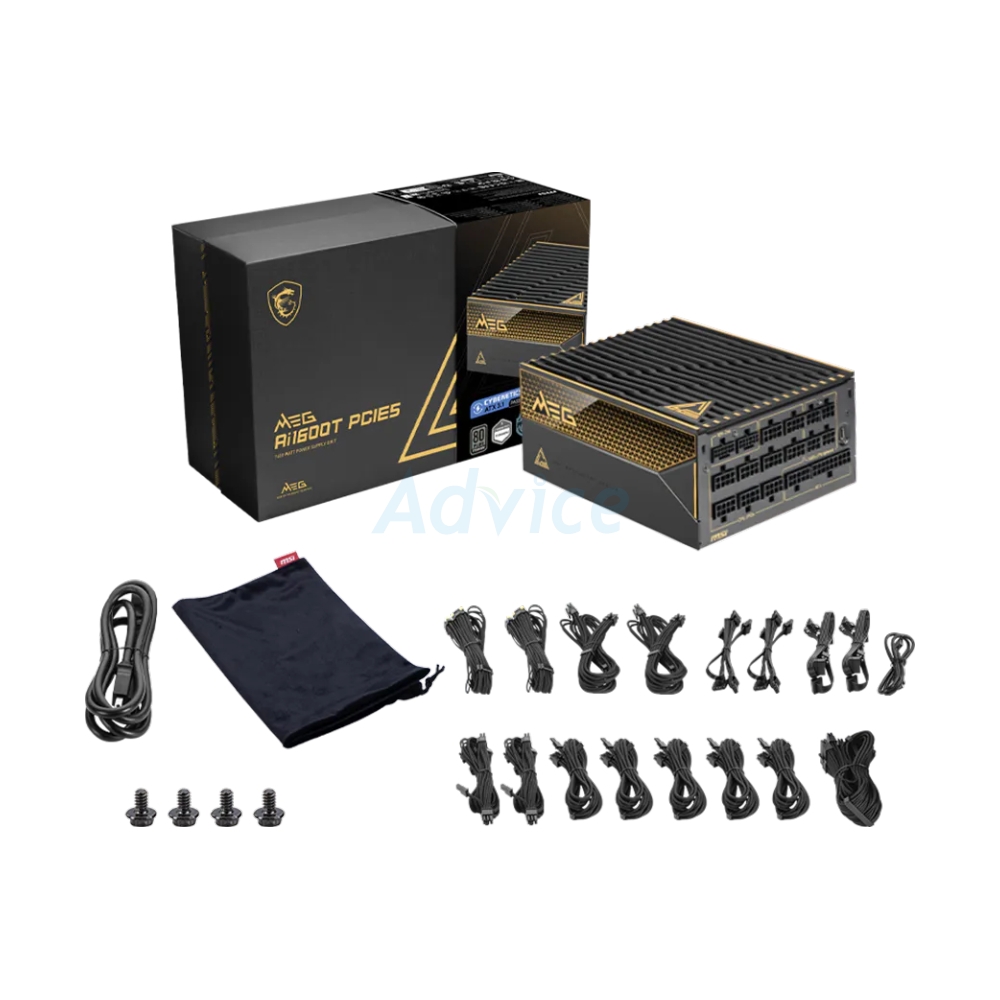

Package Contents
N/A
