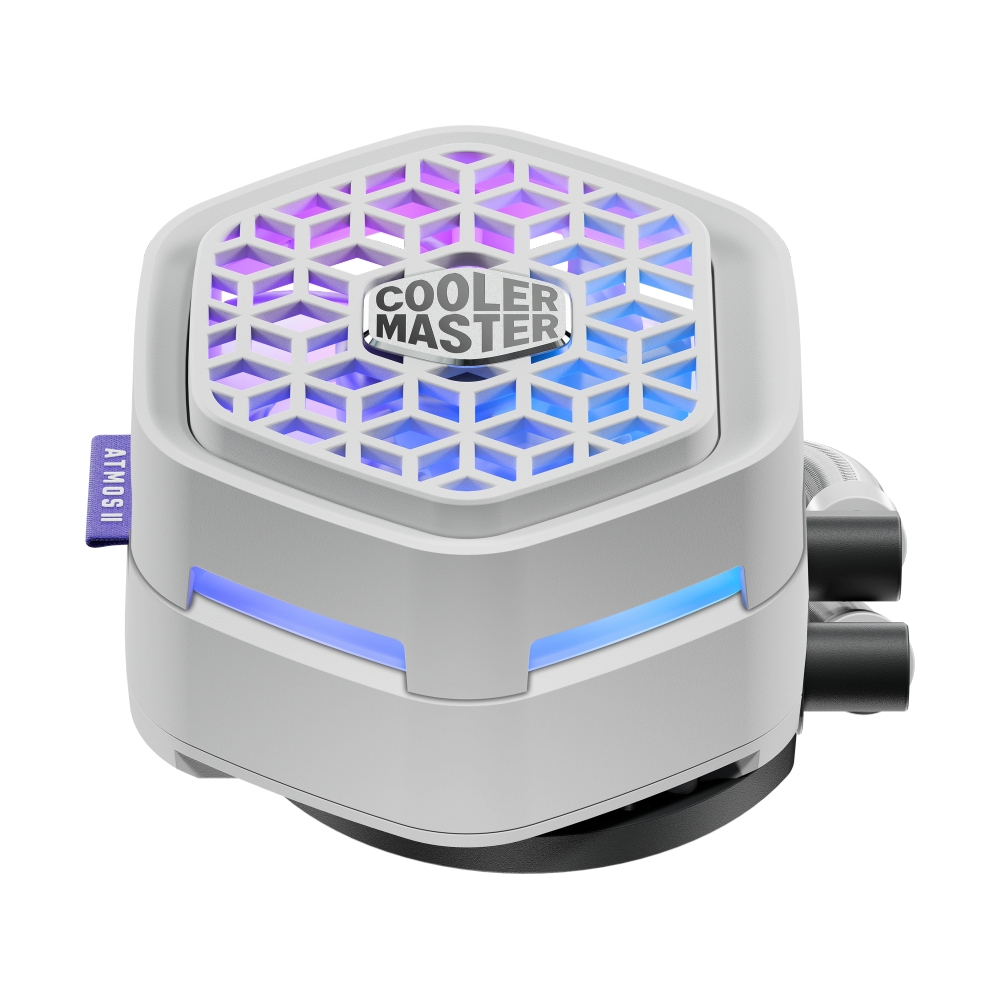

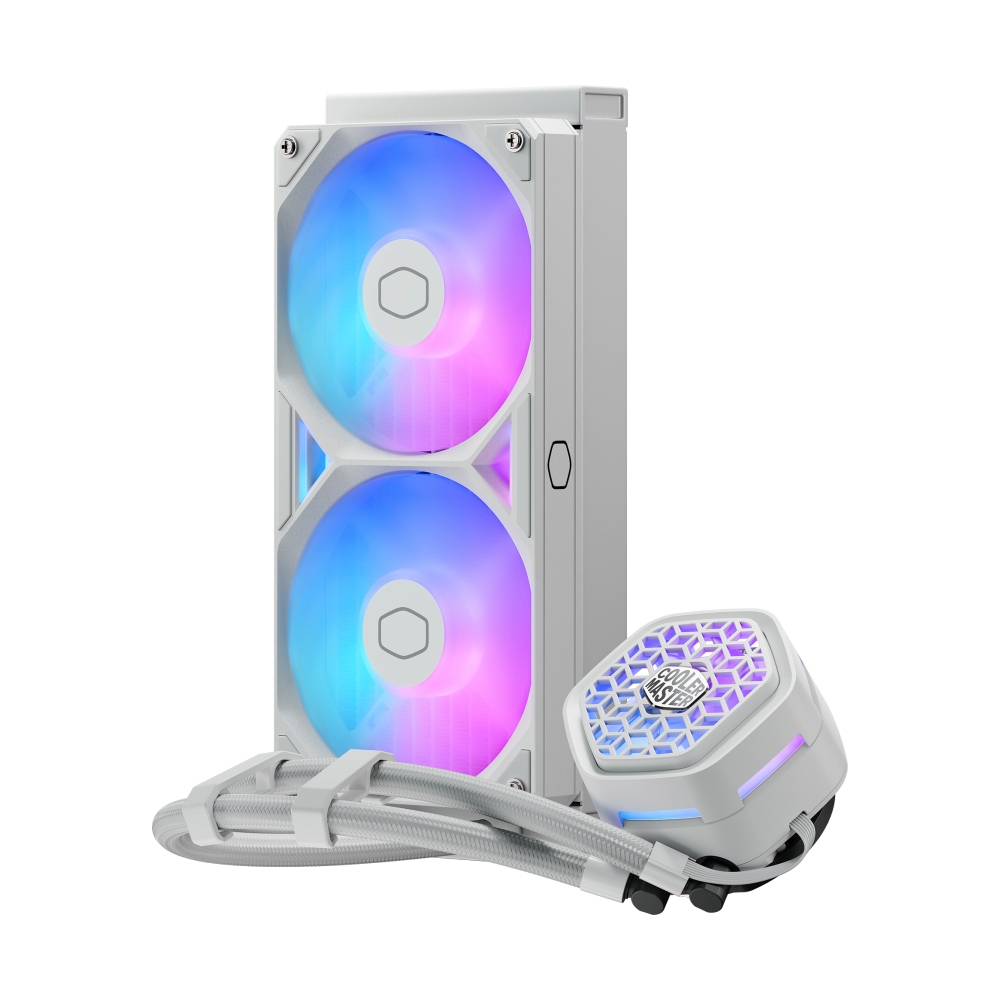

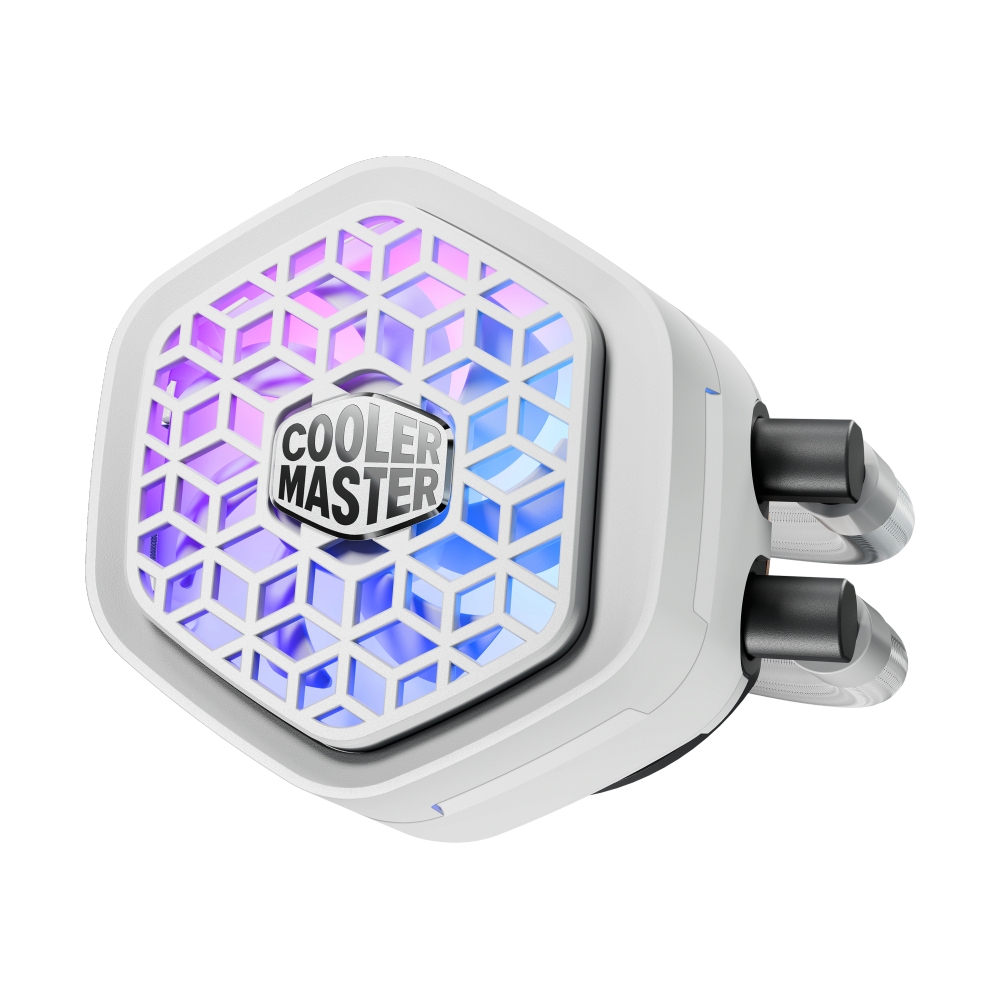

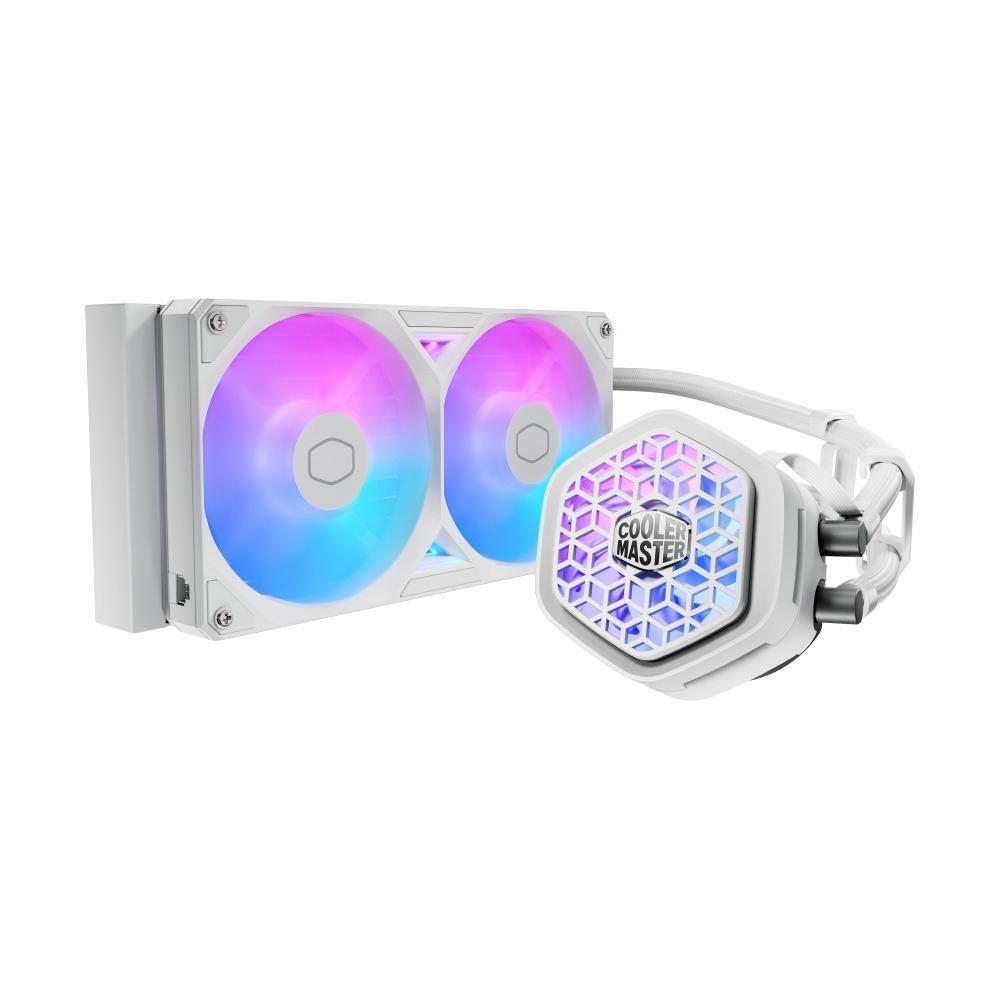

LIQUID COOLING COOLER MASTER MASTERLIQUID 240 ATMOS II VRM FAN ARGB WHITE

MASTERLIQUID 240 ATMOS II VRM FAN

Intel : 1851, 1700, 1200, 1150, 1151, 1155, 1156
AMD : AM4, AM5

Radiator : 277 x 119.2 x 27 mm (10.9 x 4.7 x 1.1 inch)
Pump : 92.5 x 87 x 38.5 mm (3.6 x 3.4 x 1.5 inch)Tube Length : 350 mm
Fan Dimensions (L x W x H) : 241 x 122 x 26.5 mm (9.5 x 4.8 x 1 inch)
VRM Fan Dimensions : 85 x 78.5 x 25.5 mm (3.4 x 3.1 x 1 inch)
VRM Fan Wire Length : 1000 mm

240

Radiator
Radiator Material : Aluminum
Radiator Size : 240

PUMP
Pump Speed : 3400 ± 300 RPM
Pump MTTF : >210,000 Hours
Pump Noise Level : 25 dBA (Max)
Pump Rated Voltage : 12 VDC
Pump Power Consumption : 3.84 W
Pump Connector : 3-Pin ARGB + 4-Pin PWM

FAN
Fan Speed : 690 ~ 2500 RPM ± 15%
Fan Airflow : 240.35 m³/h (141.4 CFM)
Fan Air Pressure : 3.61 mmH2O
Fan MTTF : >160,000 Hours
Fan Noise Level : 36 dB(A)
Fan Bearing Type : Loop Dynamic Bearing
Fan Connector : 7-Pin PWM + ARGB
Fan Rated Voltage : 12 VDC
Fan Rated Current : 0.5 A
Fan Safety Current : 0.8 A
Fan Power Consumption : 6 W

VRM Fan
VRM Fan Fan Speed : 450~4000 RPM ±10%
VRM Fan Fan Airflow : 15.8 m³/h (9.3 CFM)
VRM Fan Fan Air Pressure : 2.8 mmH?O
VRM Fan Fan Noise Level : 36 dB (A)
VRM Fan Fan MTTF : >50,000 Hours
VRM Fan Fan Bearing Type : Loop Dynamic Bearing
VRM Fan Fan Connector : 4-Pin PWM
VRM Fan Fan Rated Voltage : 12 VDC
VRM Fan Fan Rated Current : 0.15 A
VRM Fan Fan Safety Current : 0.25 A
VRM Fan Power Consumption : 1.8 W

Profile
Addressable Gen 2 RGB
