ข้อมูลสินค้าATX CASE (NP) COOLER MASTER HAF II 500 BLACK
COOLER MASTER

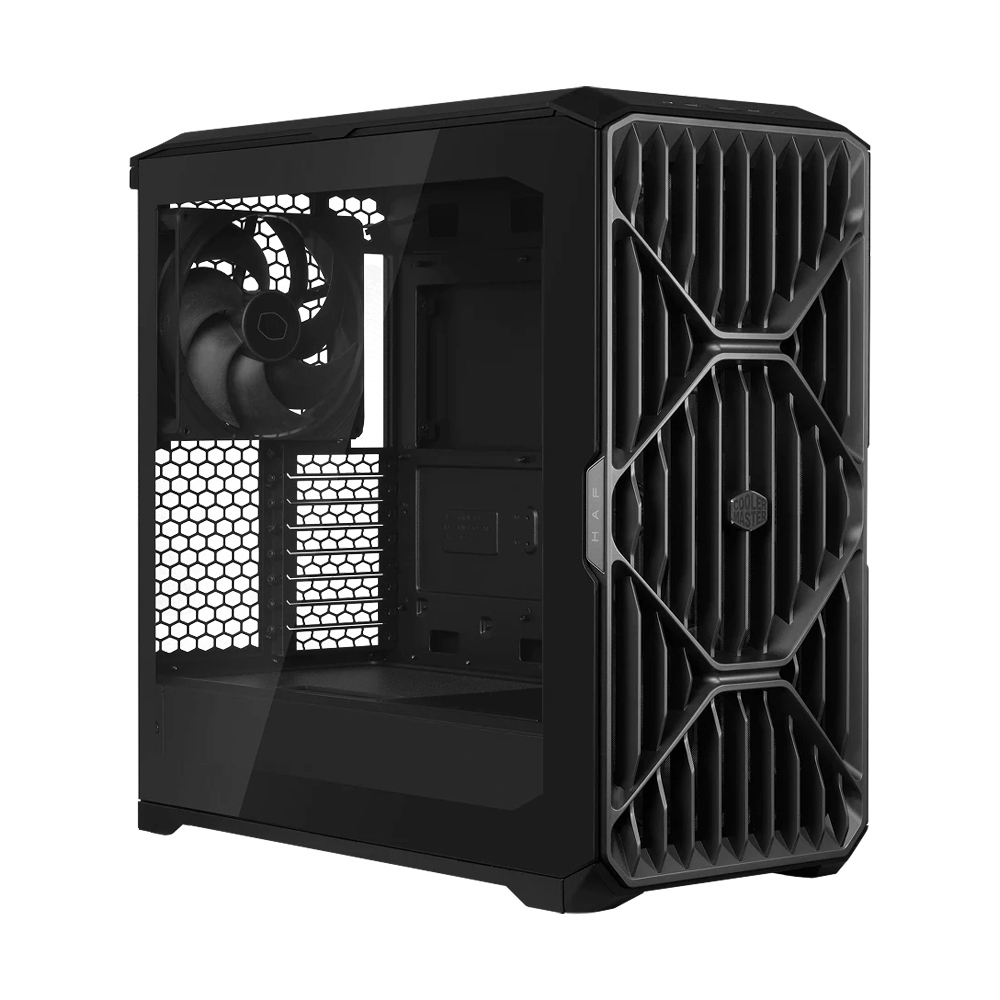

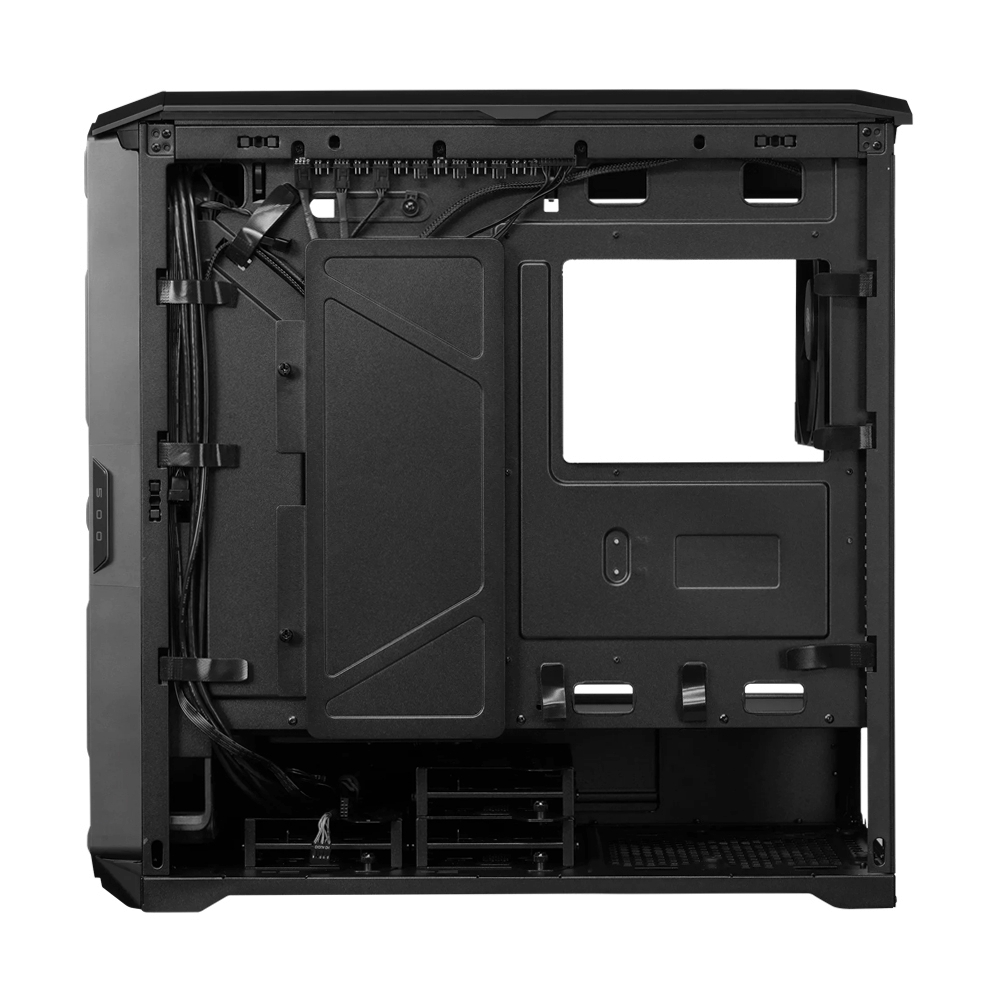

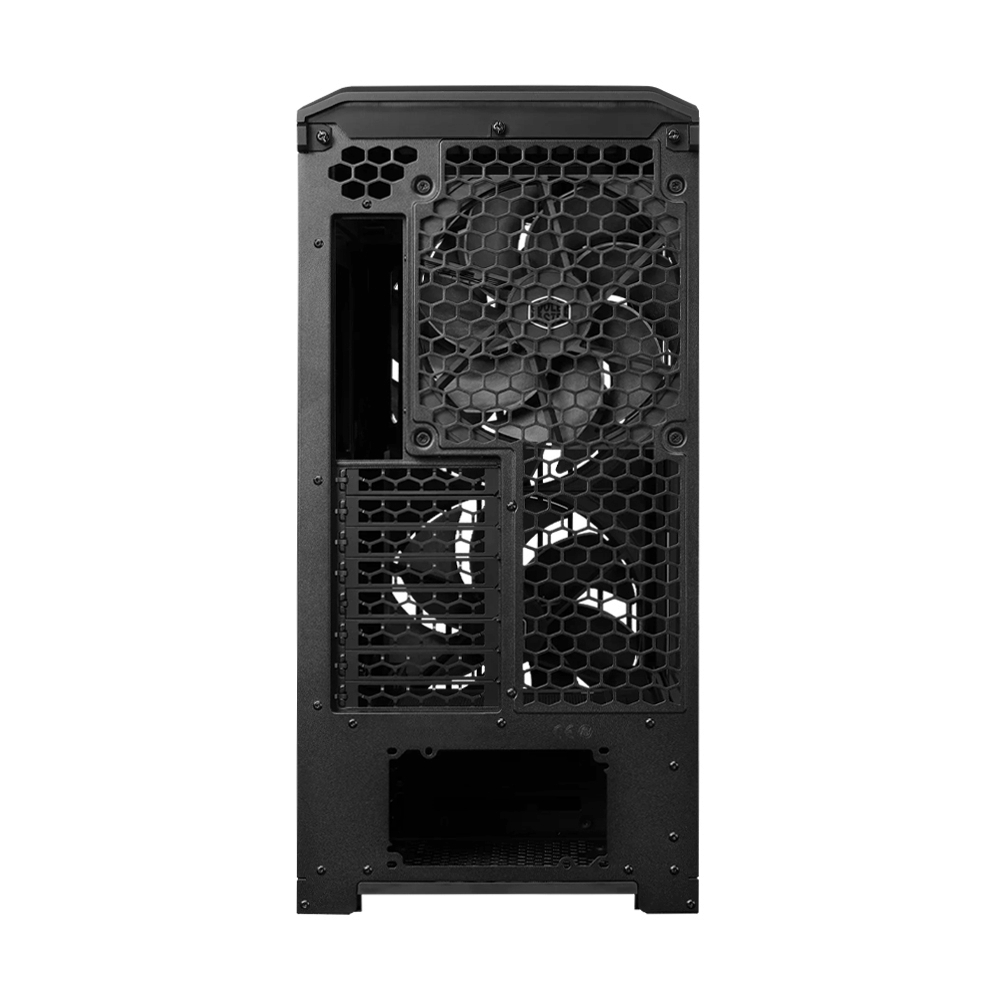

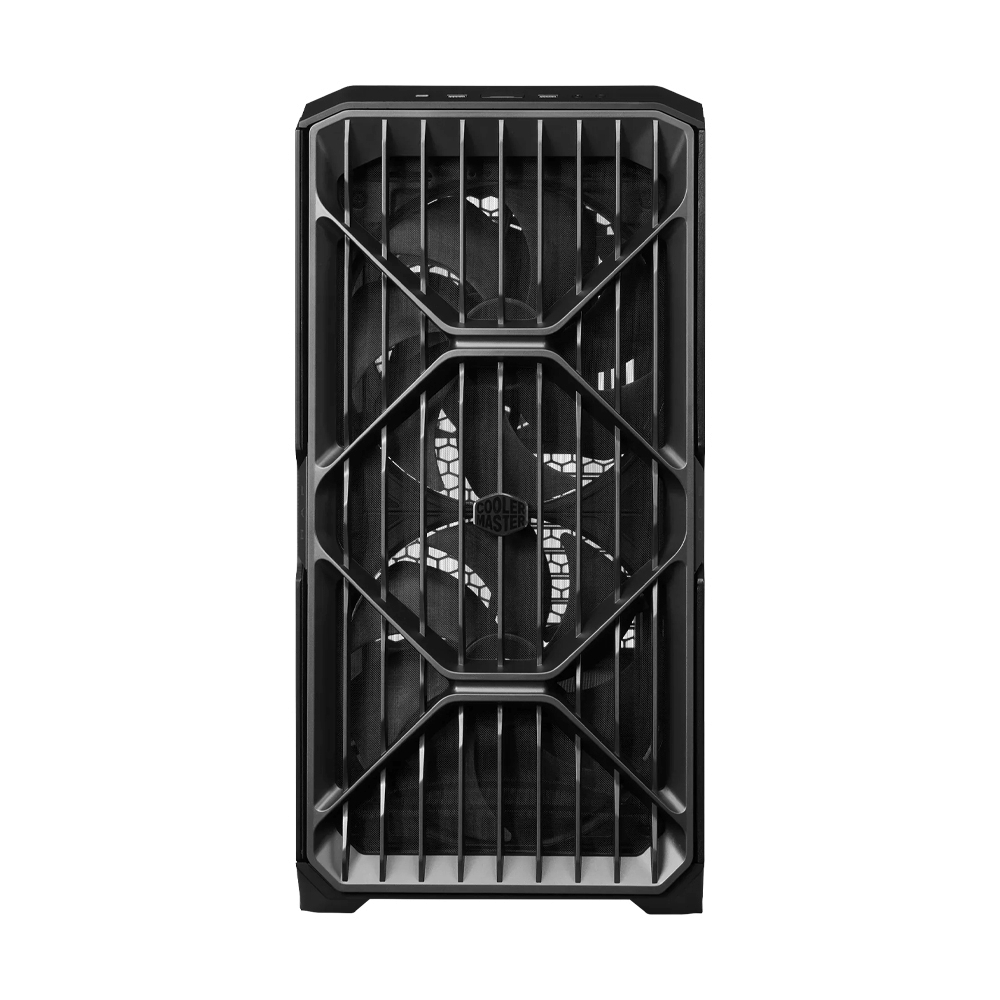

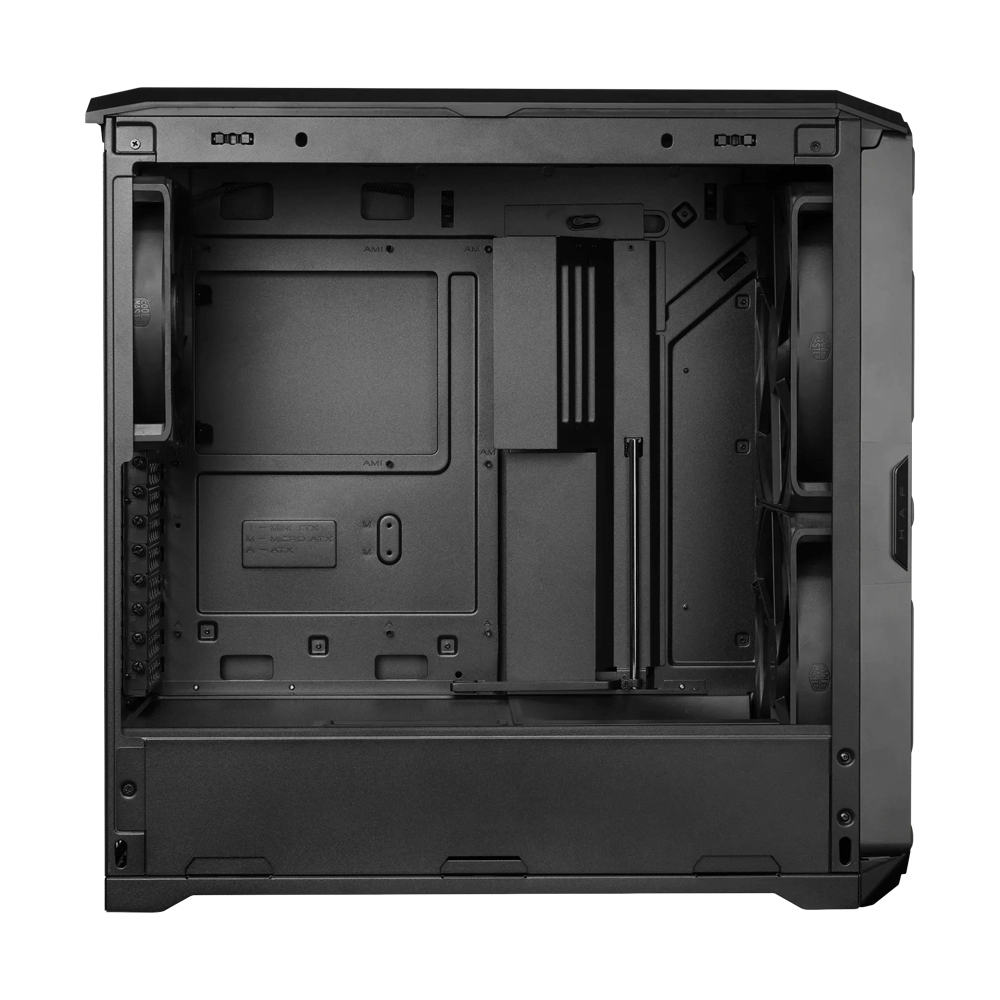

ATX CASE (NP) COOLER MASTER HAF II 500 BLACK
ประกัน 2 ปี
รหัสสินค้า: A0185455
- Dimension : 557mm (L) x 262mm (W) x 548mm (H)
- Power Supply : No Power
- Mainboard Support : ATX / Micro ATX / Mini ITX
- Fan Suppport : Rear 180mm (x1) / Top 120mm (x3) / Front 120mm (x2)
- VGA Length Support : 430mm
- Front Panel I/O : USB 3.2 Gen 2x2 Type-C (x1), USB 3.2 Gen 1 Type-A (x2), Headset Audio Jack (x1), Power Button (x1), Reset Switch (x1)
ราคาหน้าร้าน ฿5,390
รายละเอียดสินค้า
ข้อมูลผลิตภัณฑ์
BrandCOOLER MASTER
Model
HAF II 500
Form Factor
ATX
Mainboard Support
ATX, Micro ATX, Mini ITX
Material
SGCC ,Tempered Glass ,ABS
Power Supply
None
Front I/O Port
• 1x Power Button
• 1x Reset Switch
• 1x Headset Audio Jack
• 2x USB 3.2 Gen 1 Type-A
• 1x USB 3.2 Gen 2x2 Type-C
Fan
Pre-Install
Front : 2x 220mm ( Mighty40 F220 )
Rear : 1x 180mm ( Mighty40 V180 )
Cooling Support
Fan Support
Rear : 1x 120mm
Top : 3x 120mm
Bottom (Fan Bracket) : 2x 120mm
Side : 2x 120mm
Radiator Support
Rear : 120mm ( Max )
Front : 360mm ( Max )**
Top : 360mm ( Max )*
* Maximum combined fan and radiator thickness: 58 mm
**Maximum combined fan and radiator thickness: 72 mm. Thermally Prioritized Airflow divider must be removed
Expansion Slot
8
Drive Bay
3.5'' x3
2.5'' x6
Maximum CPU Cooler Height
221mm ( Intel ) / 220mm ( AMD )
Maximum Liquid Cooling
360mm
Maximum VGA Length
430mm
Maximum PSU Length
150mm
