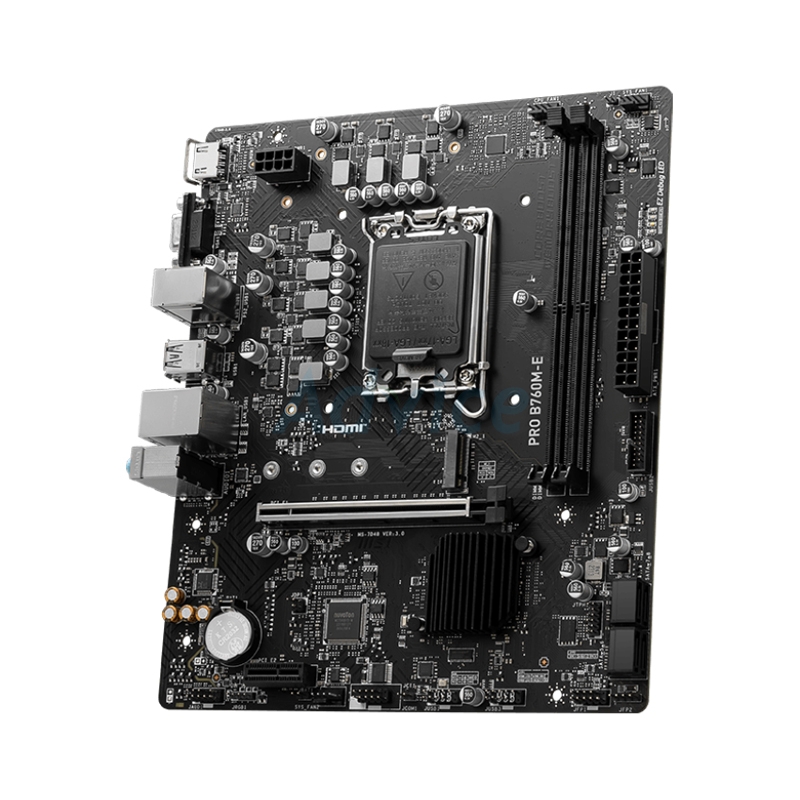

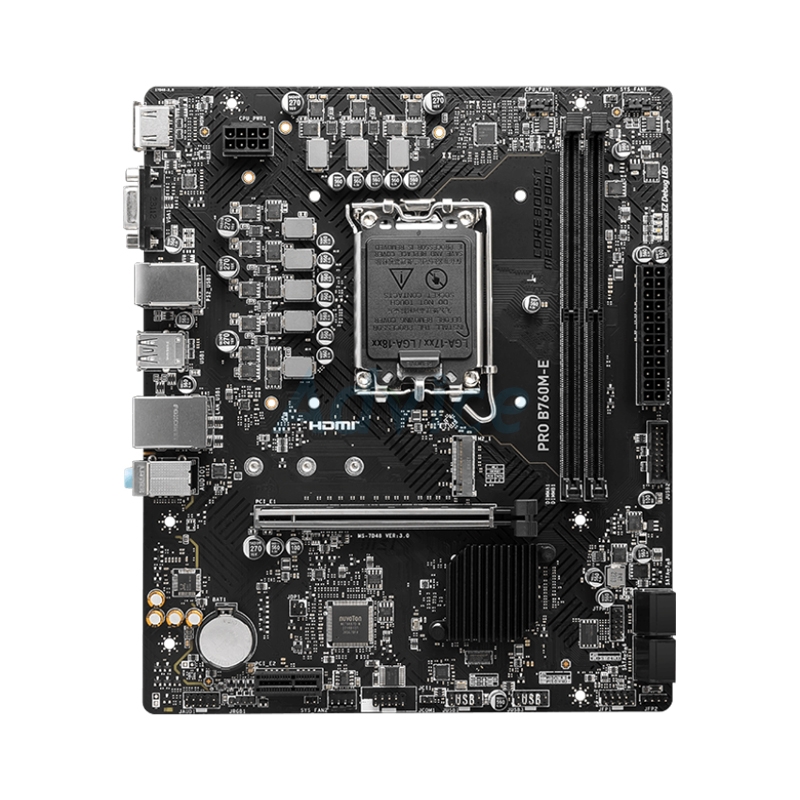

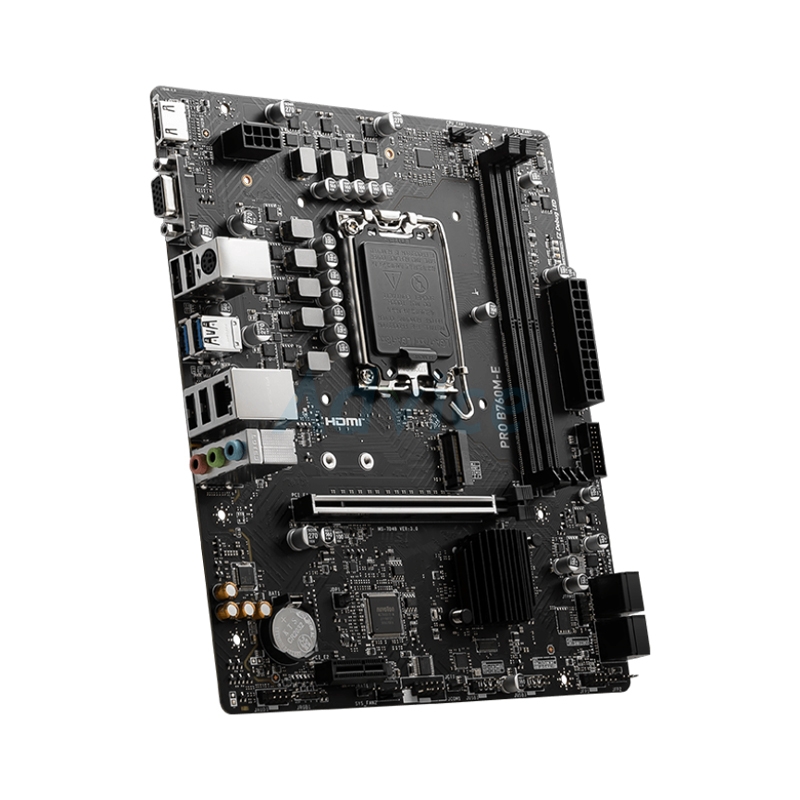

MAINBOARD (1700) MSI PRO B760M-E DDR5
- Support CPU : 12th/13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors
- From Factor : Micro ATX
- Memory Channel : Dual Channel DDR5 2DIMM
- Memory Support : up to 6400(O.C.)
- Memory MAX : 96GB
- M.2 Slot : 1 slot
- SATA III 6G : 4 ports
- PCIe 4.0x16 : 1 slot
- Lan Port : 1 Gigabit LAN
- Core Boost : With premium layout and digital power design to support more cores and provide better performance
- Memory Boost : Advanced technology to deliver pure data signals for the best performance, stability and compatibility
- AUDIO BOOST : Reward your ears with studio grade sound quality for the most immersive gaming experience
- Steel Armor : Protecting VGA cards against bending and EMI for better performance, stability and strength
รายละเอียดสินค้า
อ้างอิงจาก : www.msi.com
ข้อมูลผลิตภัณฑ์
PRO B760M-E DDR5
Supports 12th/13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors
LGA 1700
1700
Intel B760
2 x DDR5, Maximum Memory Capacity 96GB
Memory Support DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC)
Max. overclocking frequency:
• 1DPC 1R Max speed up to 6400+ MHz
• 1DPC 2R Max speed up to 5600+ MHz
Supports Intel® XMP 3.0 OC
Supports Dual-Controller Dual-Channel mode
Supports non-ECC, un-buffered memory
6400
1x HDMI™
Support HDMI™ 1.4 with HDR, maximum resolution of 4K 30Hz*
1x VGA
Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
N/A
Realtek® ALC897 Codec
7.1-Channel High Definition Audio
1 x PCI-E x16 slot
1 x PCI-E x1 slot
PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCIe 4.0
1 x M.2
M.2_1 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
4 x SATA 6G
* SATA5 will be unavailable when installing M.2 SATA SSD in the M2_1 slot.
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
NVMe
1
4 x USB 2.0 (Rear)
4 x USB 2.0 (Front)
2 x USB 3.2 Gen1 Type A (Rear)
2 x USB 3.2 Gen1 Type A (Front)
1 x Power Connector(ATX_PWR)
1 x Power Connector(CPU_PWR)
1 x CPU Fan
2 x System Fan
2 x Front Panel (JFP)
1 x Chassis Intrusion (JCI)
1 x Front Audio (JAUD)
1 x Com Port (JCOM)
1 x RGB LED connector(JRGB)
1 x TPM pin header(Support TPM 2.0)
4 x USB 2.0 ports
2 x USB 3.2 Gen1 Type A ports

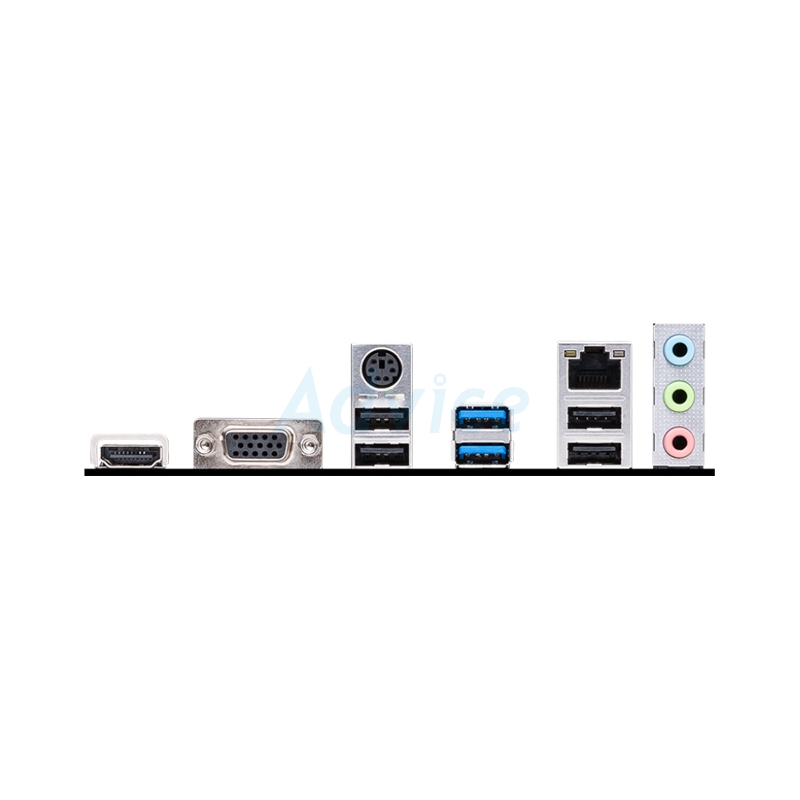

4 x USB 2.0
2 x USB 3.2 Gen 1 5Gbps (Type-A)
1 x HDMI™
1 x VGA
1 x Keyboard / Mouse
1 x LAN port
Audio Connectors
Realtek® RTL8111H Gigabit LAN
None
Micro ATX
N/A
N/A
N/A
N/A
Support for Windows® 11 64-bit, Windows® 10 64-bit
N/A
