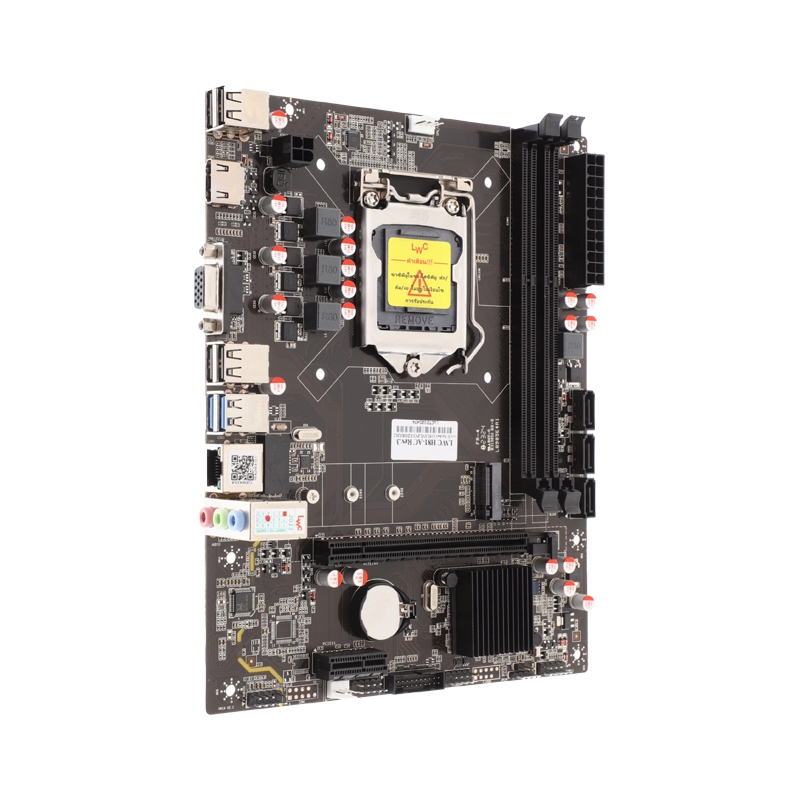

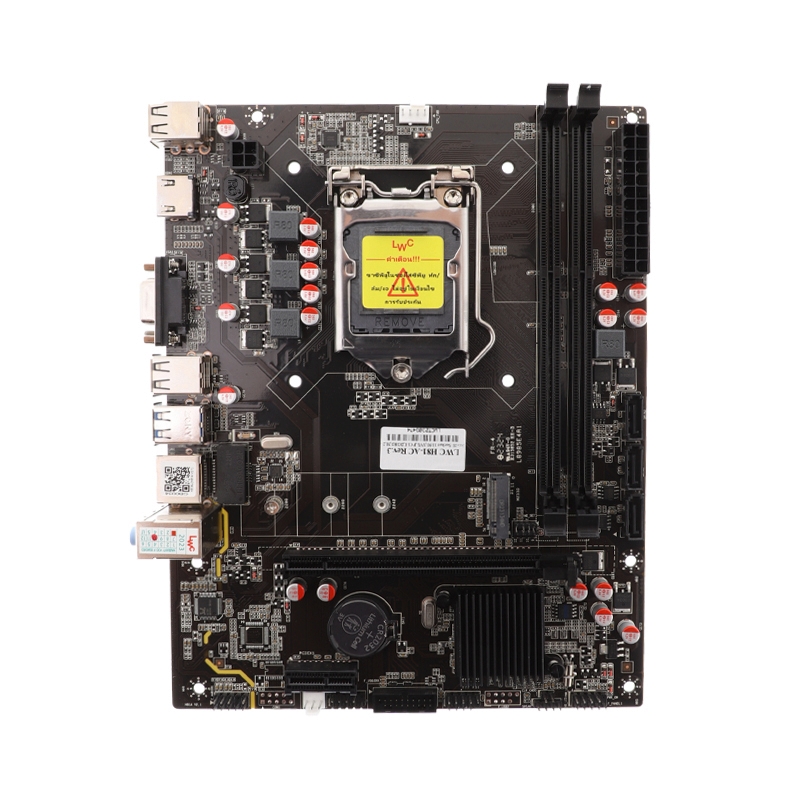

(1150) LONGWELL H81-AC Rev3.0
- Support CPU : 4th Gen Intel® Core i7 / Core i5 / Core i3 / Pentium / Celeron
- From Factor : Micro ATX
- Chipset : Intel H81 Chipset
- Memory Channel : Dual Channel DDR3 2DIMM
- Memory Support : up to 1600
- Memory MAX : 16GB
- M.2 Slot : 1 slot
- SATA III 6G : 3 ports
- PCIe 2.0x16 : 1 slot
- Lan Port : 10/100 Mbps LAN
ข้อมูลผลิตภัณฑ์
H81-AC Rev3.0
Supports 4th generation Intel® Core™ i7 / Core™ i5 / Core™ i3 / Pentium® / Celeron® / Xeon® processors
Intel
1150
Intel H81
Support DDR3 1600/1333/1066 MHz Non-ECC, UnBuffered Memory
2 x DIMM Max 16GB
1600
Integrated Graphics Processor
None
Realtek® ALC 662 Channel High Definition Audio CODEC
1 x PCI Express 2.0 x16 (x16 mode)
1 x PCI Express 2.0 x1
PCIe 2.0
1 x NVME M.2 Type 2242/2260/2280 SSD
3 x SATA III 6.0Gb/s Connector
NVMe
1
4 x USB 2.0 Ports
2 x USB 3.0 Ports
1 x F USB 3.0 Gen1 connectors
2 x F USB 2.0 Connector
1 x 24-pin EATX Power Connector
1 x 4-pin ATX 12V Power Connector
1 x CPU Fan Connector
1 x F USB 3.0 Gen1 connectors
2 x F USB 2.0 Connector
1 x Debug
1 x Front Panel Audio Connector (AAFP)
1 x Speaker Connector
1 x System Panel Connecto

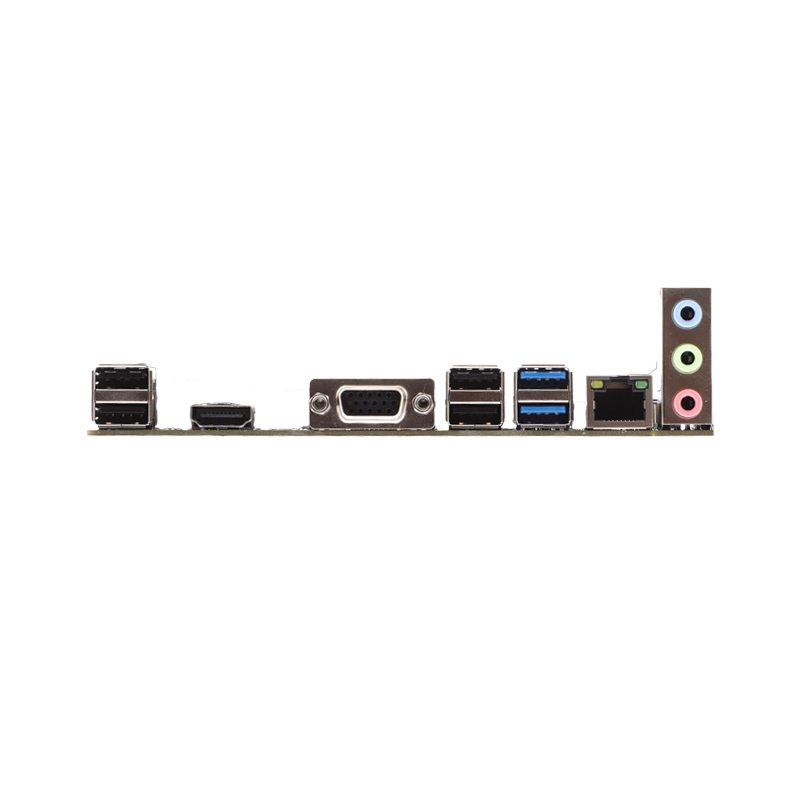

4 x USB 2.0 Ports
2 x USB 3.0 Ports
1 x HDMI Port
1 x VGA (D-Sub) Port
1 x RJ-45 LAN port
3 x Audio Jacks: Line in / Speaker / Microphone
10/100 Mb/s auto negotiation Half/Full duplex capability
Realtek® RTL8105E
None
Micro ATX
N/A
N/A
N/A
N/A
Microsoft® Window® 7-11
1 x SATA cable
1 x I/O Rear Panel
1 x User Manual
1 x CD Driver
