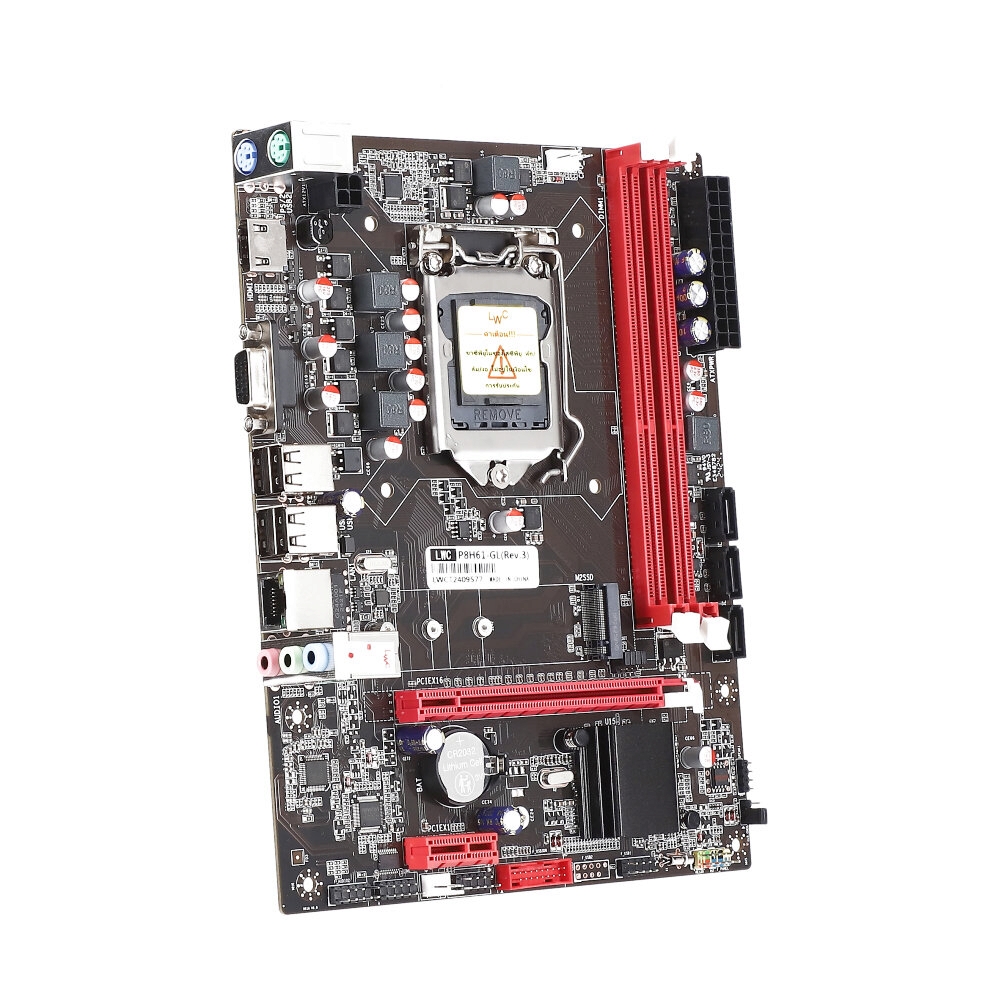

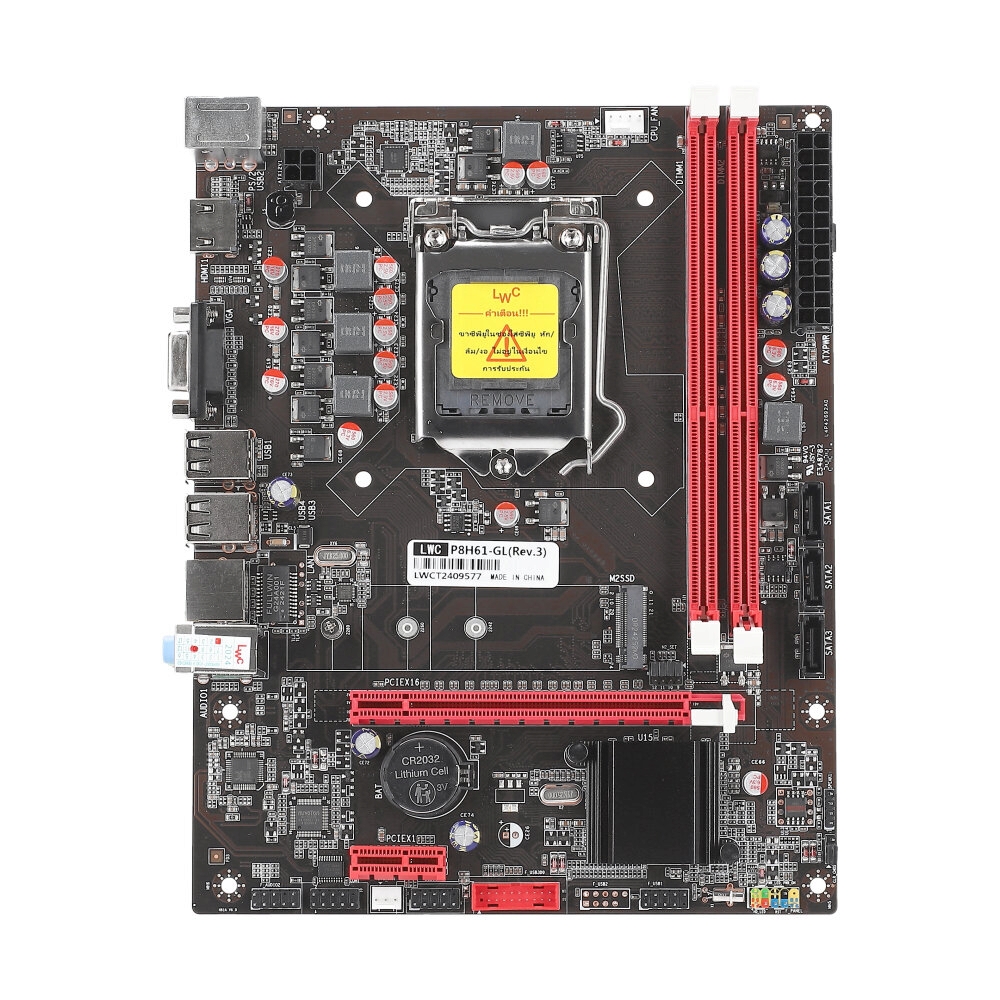

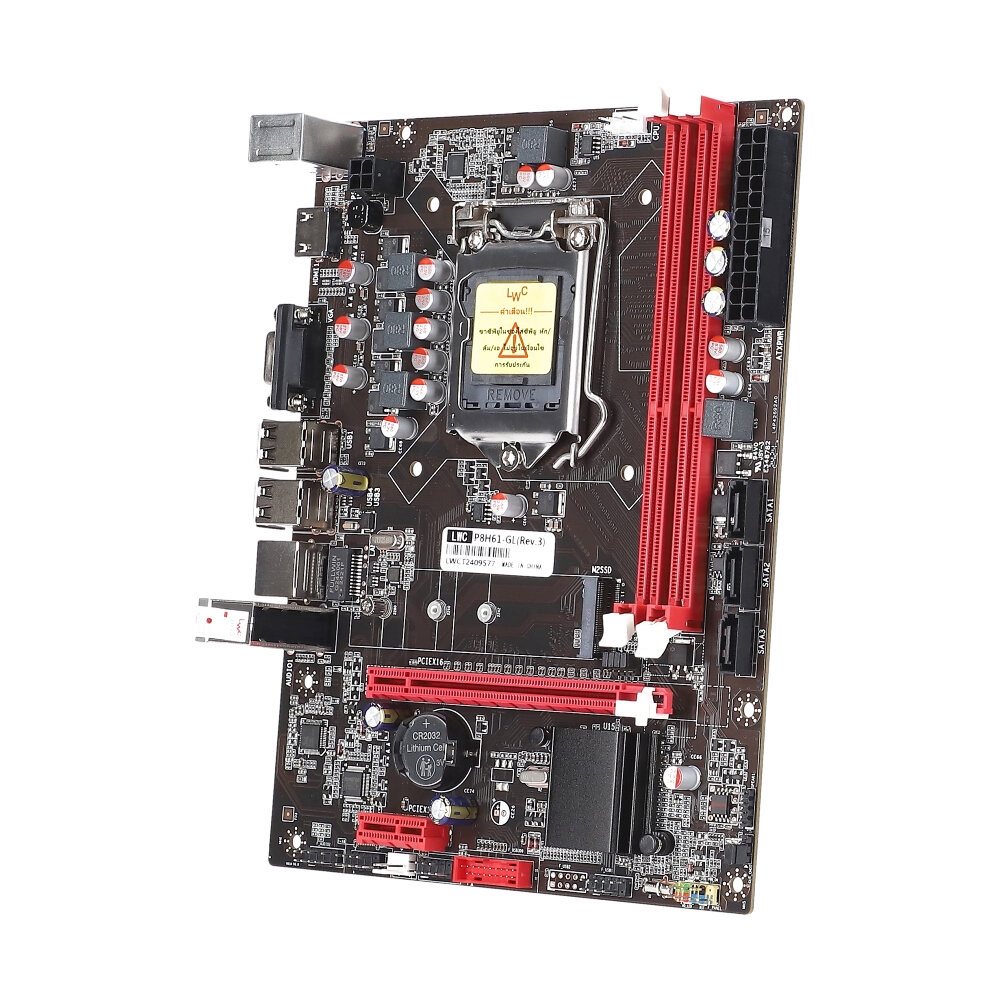

(1155) LONGWELL P8H61-GL Rev3.0 (DDR3)

P8H61-GL Rev3.0

CPU Support Intel® 2nd/3rd Generation Core™ i3/i5/i7/Pentium®/Celeron® Processors

1155

Intel H61

Memory Dual Channel DDR3 Memory Technology
2 x DDR3 DIMM Slots
Support DDR3 1600/1333 MHz Non-ECC, Un-Buffered
Max.capacity up to 16GB Memory

1600

N/A

None

Audio Realtek® ALC 661,662 Channel High Definition Audio CODEC

1 x PCI Express 2.0 x16 (x16 mode)
1 x PCI Express 2.0 x1

PCIe 2.0

3 x SATA II 3.0Gb/s Connector
1 x M.2 NVME

NVMe

1

4 x USB 2.0 Port

1 x 24-pin ATX Power Connector
1 x 4-pin ATX 12V Power Connector
1 x CPU Fan Connector
1 x System Fan Connector
1 x USB 3.0 Connector
1 x USB 2.0 Connector
1 x Front Panel Audio Connector
1 x Speaker Connector

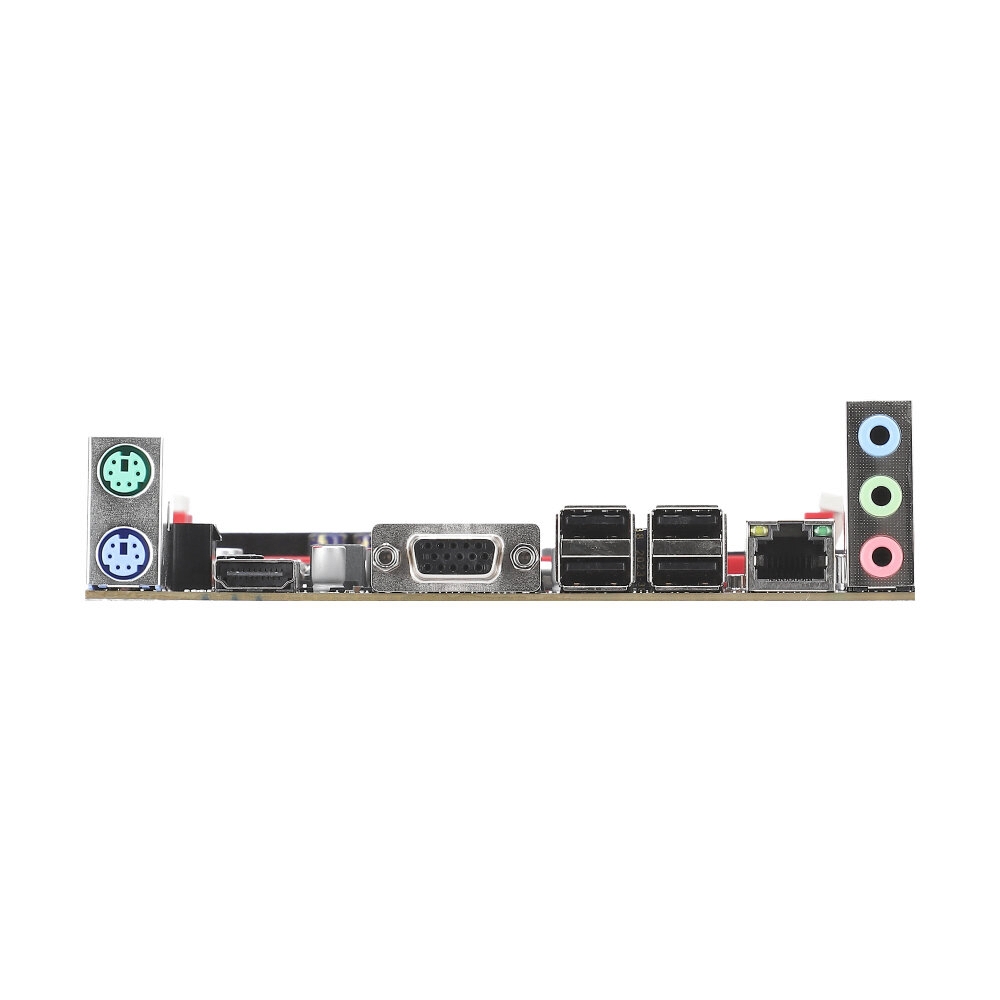

1 x HDMI Port
1 x VGA (D-Sub) Port
4 x USB 2.0 Port
1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
3 x Audio Jacks: Line in / Speaker / Microphone

LAN 10/100/1000 Mb/s auto negotiation Half/Full duplex capability
Realtek® RTL8111E

None

Micro ATX

N/A

N/A

N/A

N/A

Microsoft Window XP / Vista / 7 / 8 / 10

1 x SATA cable
1 x I/O Rear Panel
1 x User Manual
1 x CD Driver
