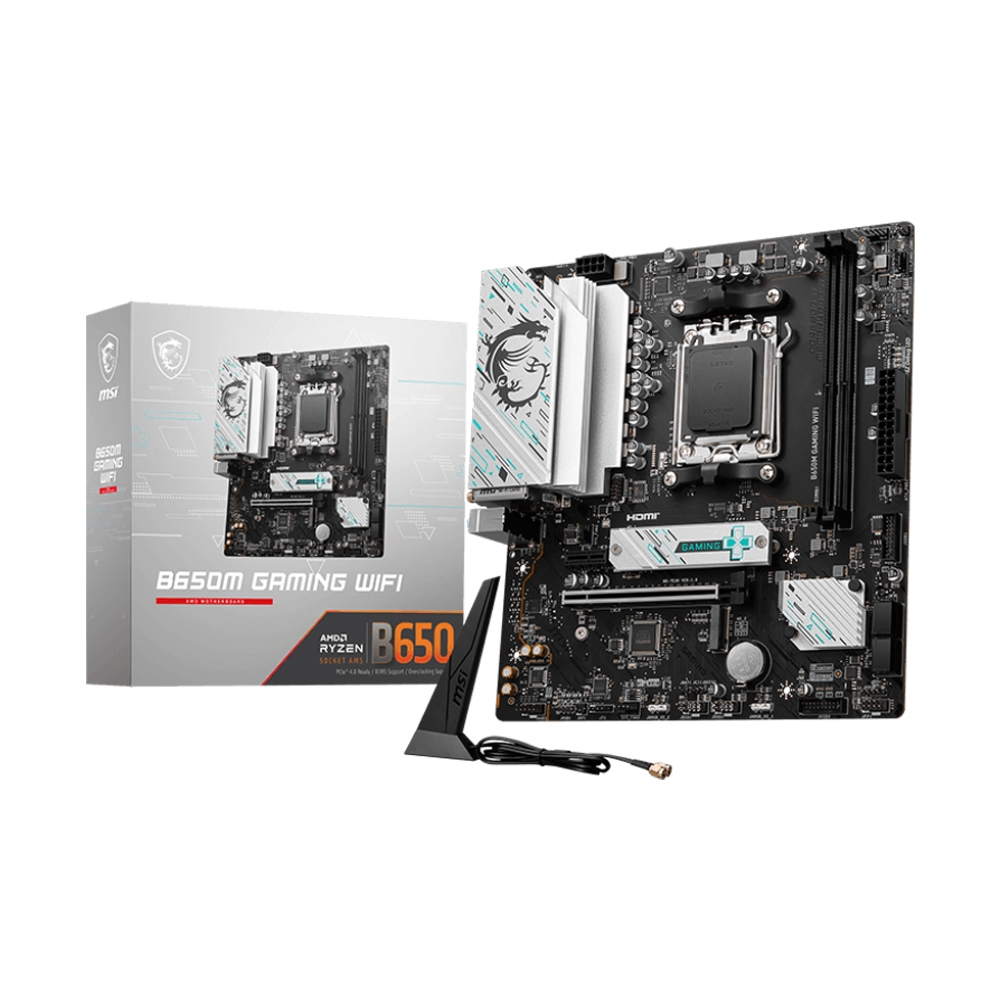

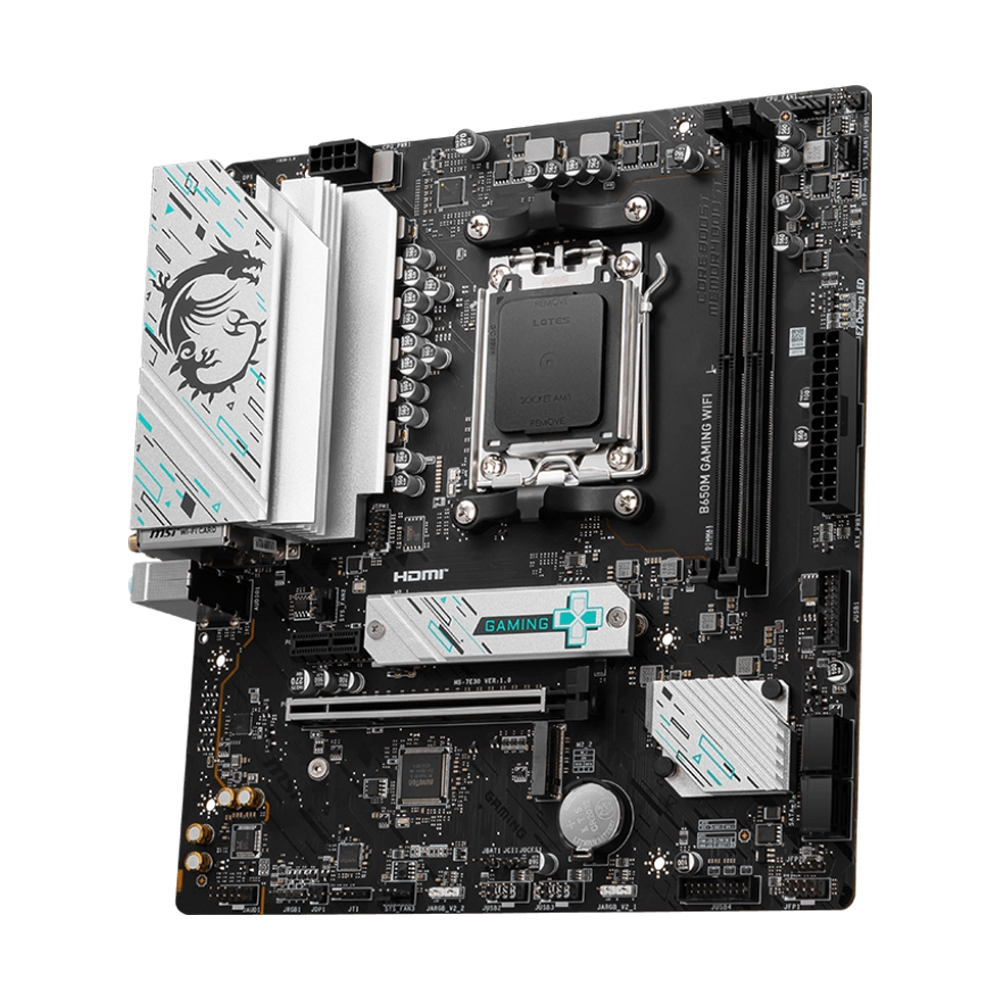

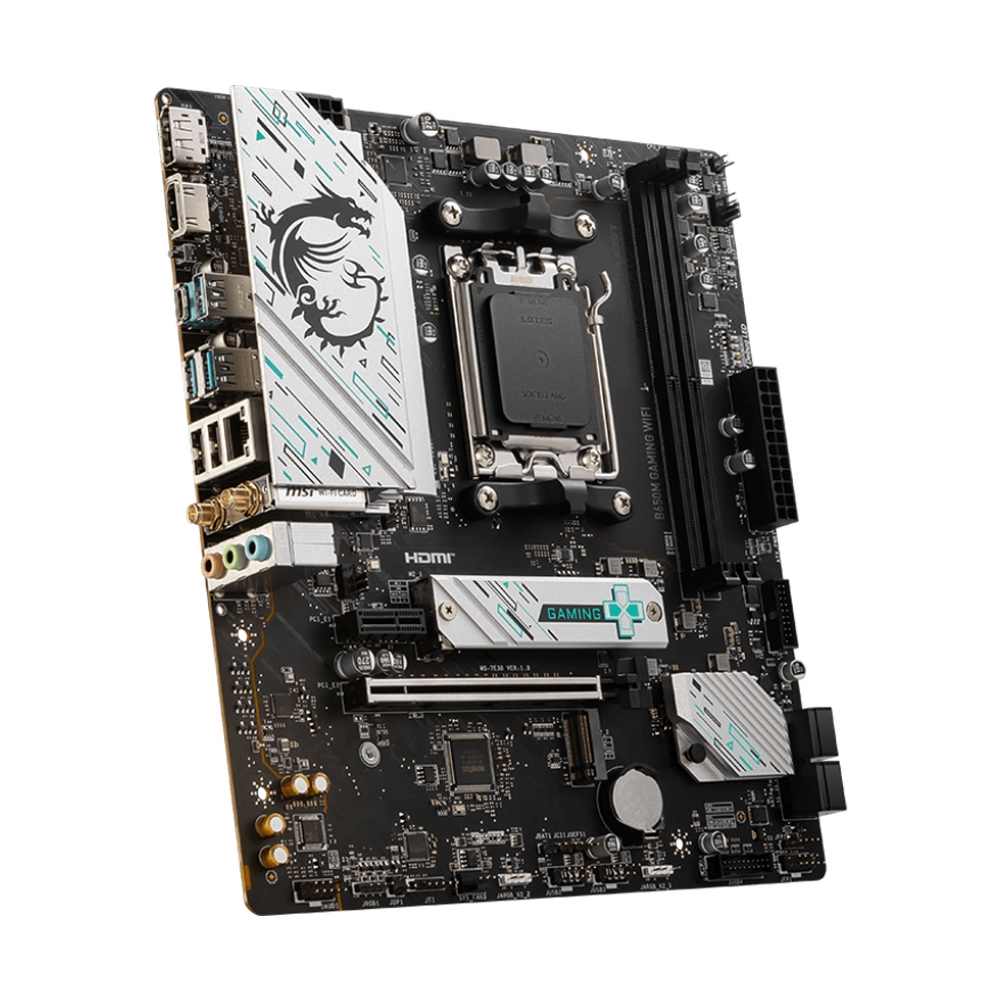

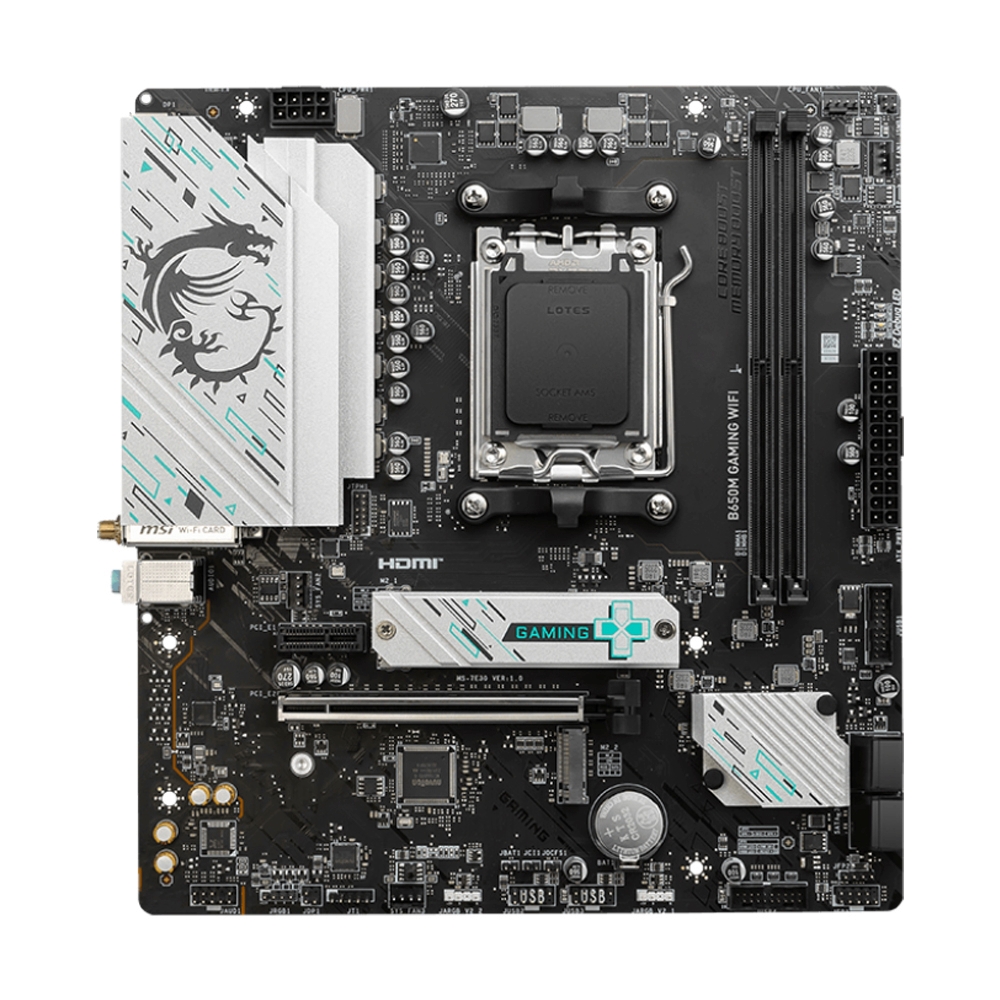

MAINBOARD (AM5) MSI B650M GAMING WIFI DDR5
- Support CPU : AMD Ryzen 9000 / 8000 / 7000 Series Desktop Processors
- Form Factor : Micro ATX
- Chipset : AMD B650 Chipset
- Memory Channel : Dual Channel DDR5 2DIMM
- Memory Support : up to 7800(O.C.)
- Memory MAX : 128GB
- M.2 Slot : 2 slots
- SATA III 6G : 4 ports
- PCIe 4.0x16 : 1 slot
- Lan Port : 2.5 Gigabit LAN
- Wireless : Wi-Fi 6E

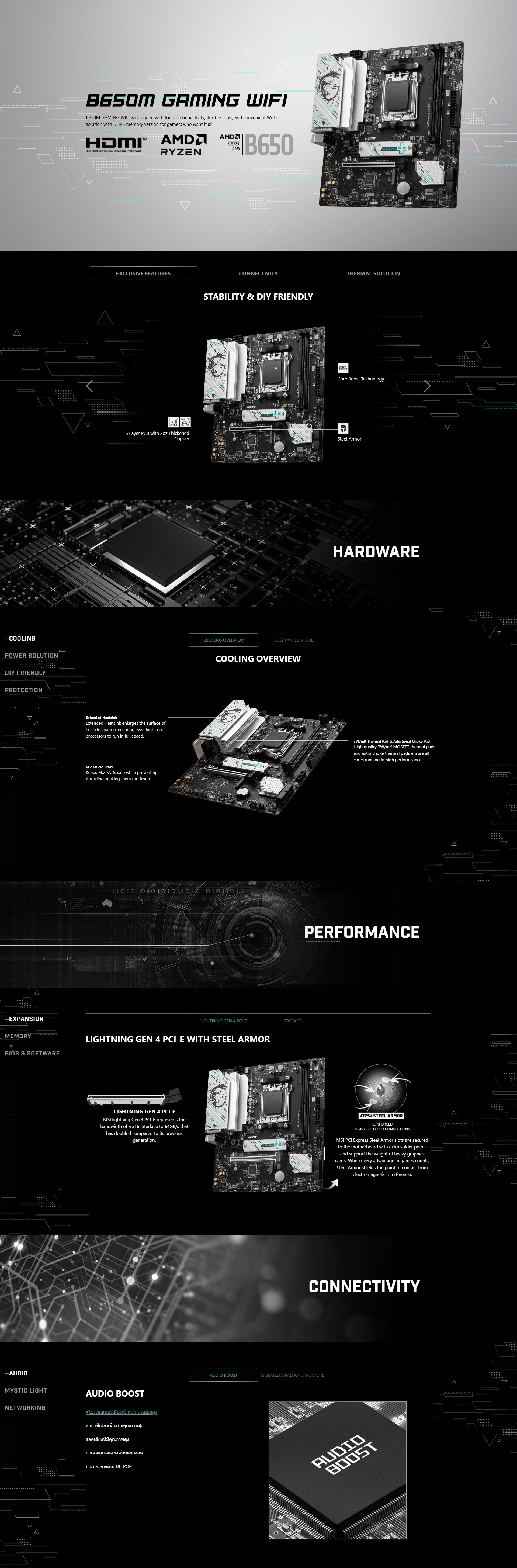

- Core Boost : With premium layout and digital power design to support more cores and provide better performance
- Memory Boost : Advanced technology to deliver pure data signals for the best performance, stability and compatibility
- Steel Armor : Protecting VGA cards against bending and EMI for better performance, stability and strength
- AUDIO BOOST : Reward your ears with studio grade sound quality for the most immersive gaming experience
- High Quality PCB : 6-layer PCB made by 2oz thickened copper
รายละเอียดสินค้า
อ้างอิงจาก : www.msi.com
ข้อมูลผลิตภัณฑ์
B650M GAMING WIFI (DDR5)
Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors
Socket AM5
AMD
AM5
AMD B650
2x DDR5, Maximum Memory Capacity 128GB
Memory Support DDR5 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz
Max. overclocking frequency:
• 1DPC 1R Max speed up to 7800+ MHz
• 1DPC 2R Max speed up to 6400+ MHz
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports AMD EXPO™
7800
1x HDMI™
Support HDMI™ 2.1, maximum resolution of 4K 60Hz*
1x DisplayPort
Support DP 1.4, maximum resolution of 4K 60Hz*
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
N/A
Realtek® ALC897 Codec
7.1-Channel High Definition Audio
1x PCI-E x16 slot (Qty)
Supports x16/x1
• Supports x16/x4 (For Ryzen™ 9000/ 7000 Series processors)
• Supports x8/x4 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
• Supports x4/x4 (For Ryzen™ 8500/ 8300 Series processors)
1x PCI-E x1 slot (Qty)
PCI_E1 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E2 Gen PCIe 4.0 supports up to x16 (From CPU)
PCIe 4.0
2 x M.2 (Qty)
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280 devices
M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280 devices
4 x SATA 6G (Qty)
• The M2_2 slot will be unavailable when using Ryzen™ 8500/ 8300 Series processor
RAID
Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices
Supports RAID 0, RAID 1, and RAID 10 for M.2 NVMe storage devices
NVMe
2
2 x USB 2.0 (Rear)
4 x USB 2.0 (Front)
3 x USB 5Gbps Type A (Rear)
1 x USB 5Gbps Type C (Rear)
4 x USB 5Gbps Type A (Front)
1 x Power Connector(ATX_PWR)
1 x Power Connector(CPU_PWR)
1 x CPU Fan
3 x System Fan
2 x Front Panel (JFP)
1 x Chassis Intrusion (JCI)
1 x Front Audio (JAUD)
2 x Addressable V2 RGB LED connector (JARGB_V2)
1 x RGB LED connector(JRGB)
1 x TPM pin header(Support TPM 2.0)
4 x USB 2.0 ports
4 x USB 5Gbps Type A ports

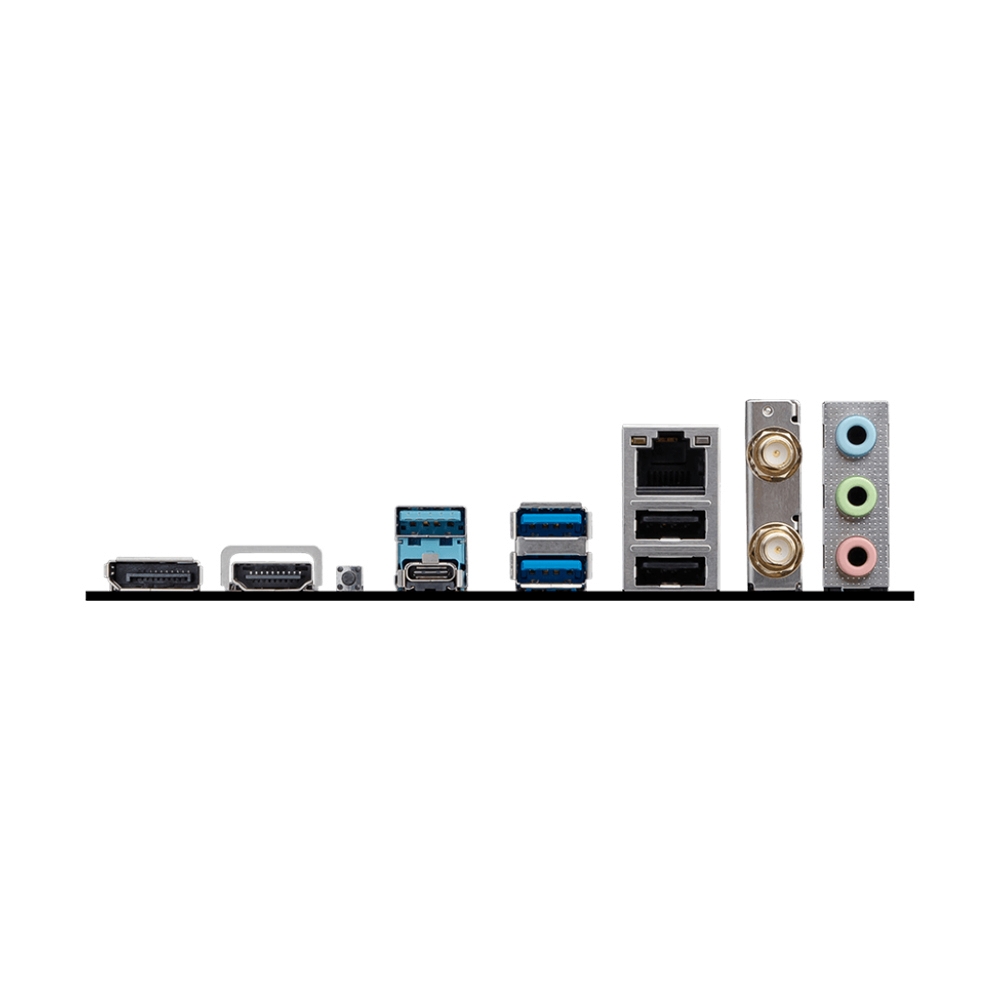

2 x USB 2.0
3 x USB 3.2 Gen 1 5Gbps (Type-A)
1 x USB 3.2 Gen 1 5Gbps (Type-C)
1 x DisplayPort
1 x HDMI™
Audio connectors
2.5G LAN
Wi-Fi / Bluetooth
Flash BIOS Button
Realtek® RTL8125BG 2.5Gbps LAN
Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX
Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands
Supports 802.11 a/ b/ g/ n/ ac/ ax
Supports Bluetooth® 5.3**
* Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.
** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.
Micro ATX
N/A
N/A
LED FEATURE : 4x EZ Debug LED
N/A
Support for Windows® 11 64-bit, Windows® 10 64-bit
N/A
