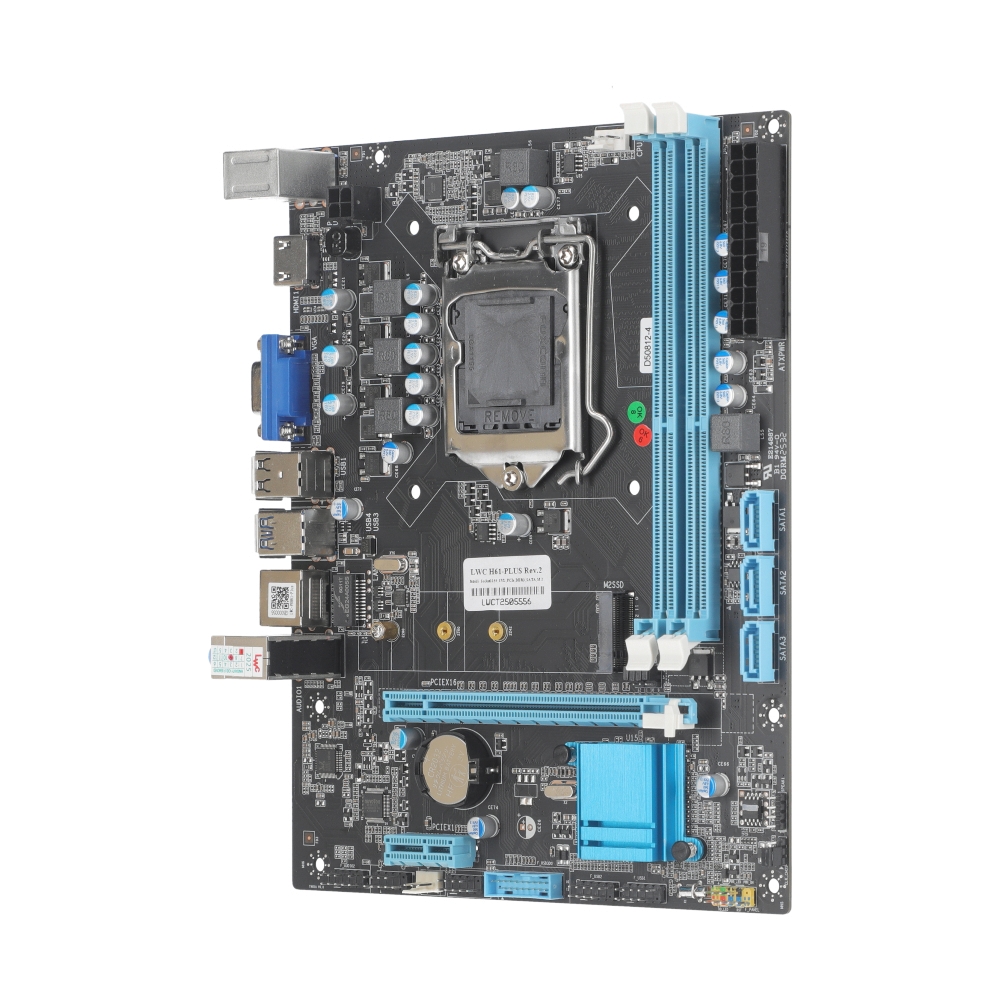

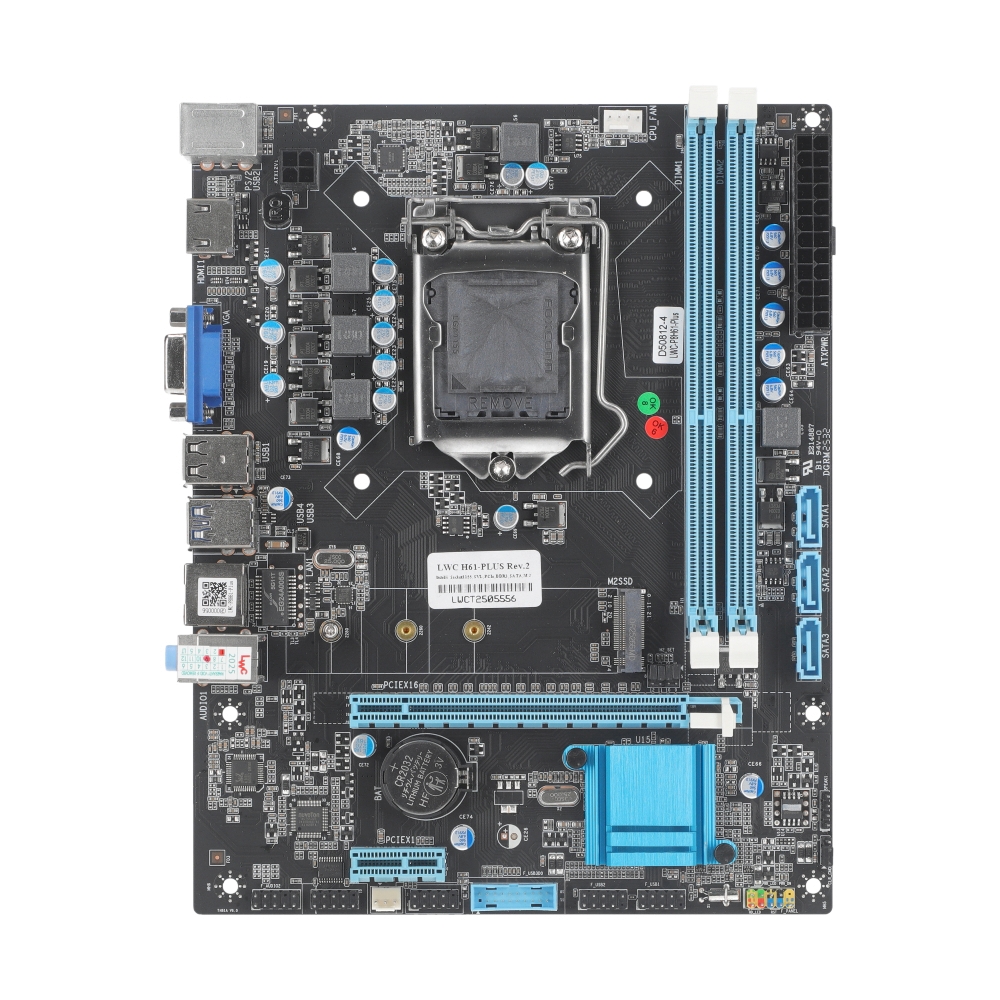

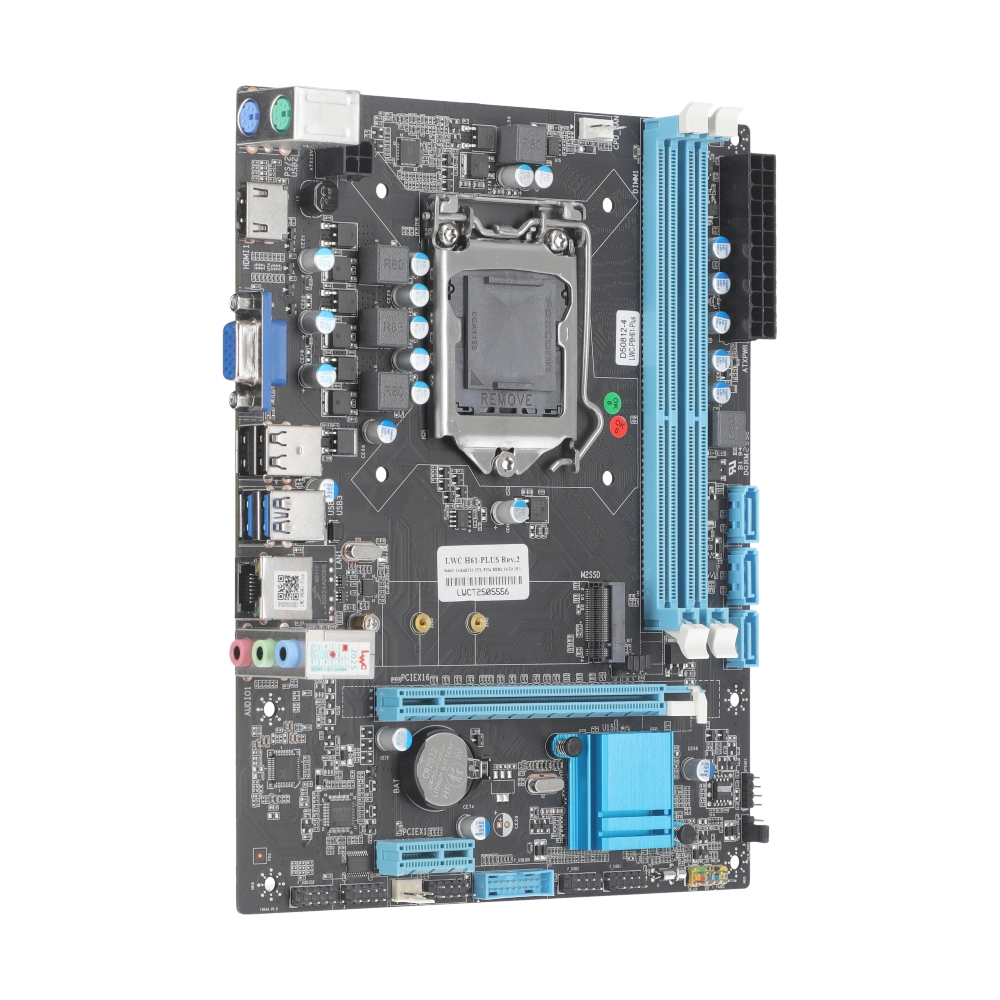

MAINBOARD (1155) LONGWELL H61-PLUS DDR3 (REV.2)

H61-PLUS DDR3 REV.2

Intel 2nd/3rd Generation Core i3/i5/i7/Pentium/Celeron Processors

Intel

1155

Intel H61

Dual Channel DDR3 Memory Technology
2 x DDR3 DIMM Slots
Support DDR3 1600/1333/1066 MHz Non-ECC, Un-Buffered
Max.capacity up to 16GB Memory

1600

1 x HDMI Port
1 x VGA (D-Sub) Port

N/A

Reatek ALC 662 Channel High Definition Audio CODEC

1 x PCI Express 2.0 x16 (x16 mode)
1 x PCI Express 2.0 x1

PCIe 2.0

3 x SATA II 3.0Gb/s Connector
1 x M.2

NVMe

1

2 x USB 2.0 Ports
2 x USB 3.0 Ports
2 x F USB 2.0 Connector (Internal)
1 x F USB 3.0 Connectors (Internal)

1 x 24-pin EATX Power Connector
1 x 4-pin ATX 12V Power Connector
1 x CPU Fan Connector
1 x System Fan Connector
2 x F USB 2.0 Connector
1 x F USB 3.0 Connectors
1 x CMOS
1 x Front Panel Audio Connector (AAFP)
1 x Speaker Connector
1 x System Panel Connector

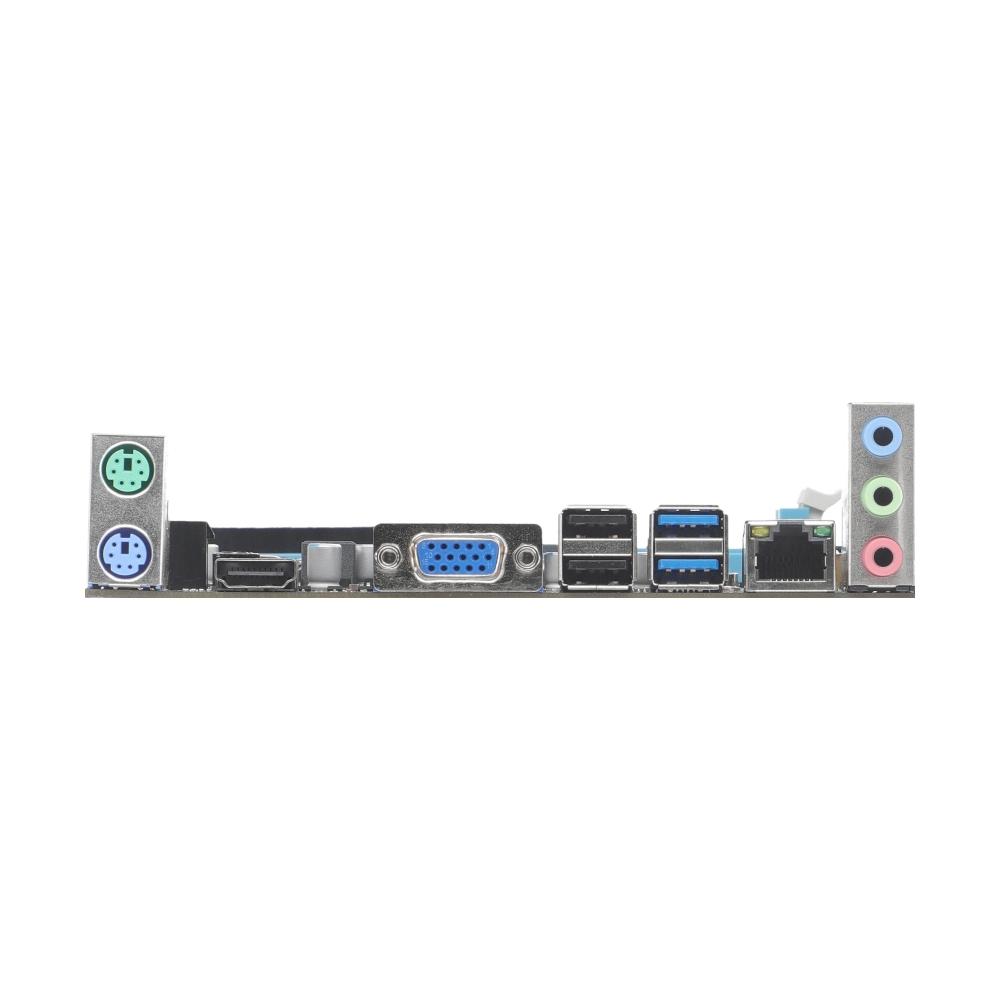

1 x PS/2 Mouse/Keyboard Port
1 x HDMI Port
1 x VGA (D-Sub) Port
2 x USB 2.0 Ports
2 x USB 3.0 Ports
1 x RJ-45 LAN Port
3 x Audio Jacks: Line in / Speaker / Microphone

10/100/1000 Mb/s auto negotiation Half/Full duplex capabity
Realtek@ RTL8111E

None

Micro ATX

N/A

N/A

N/A

N/A

Support for Windows XP/7/8/10 32bit &

N/A
