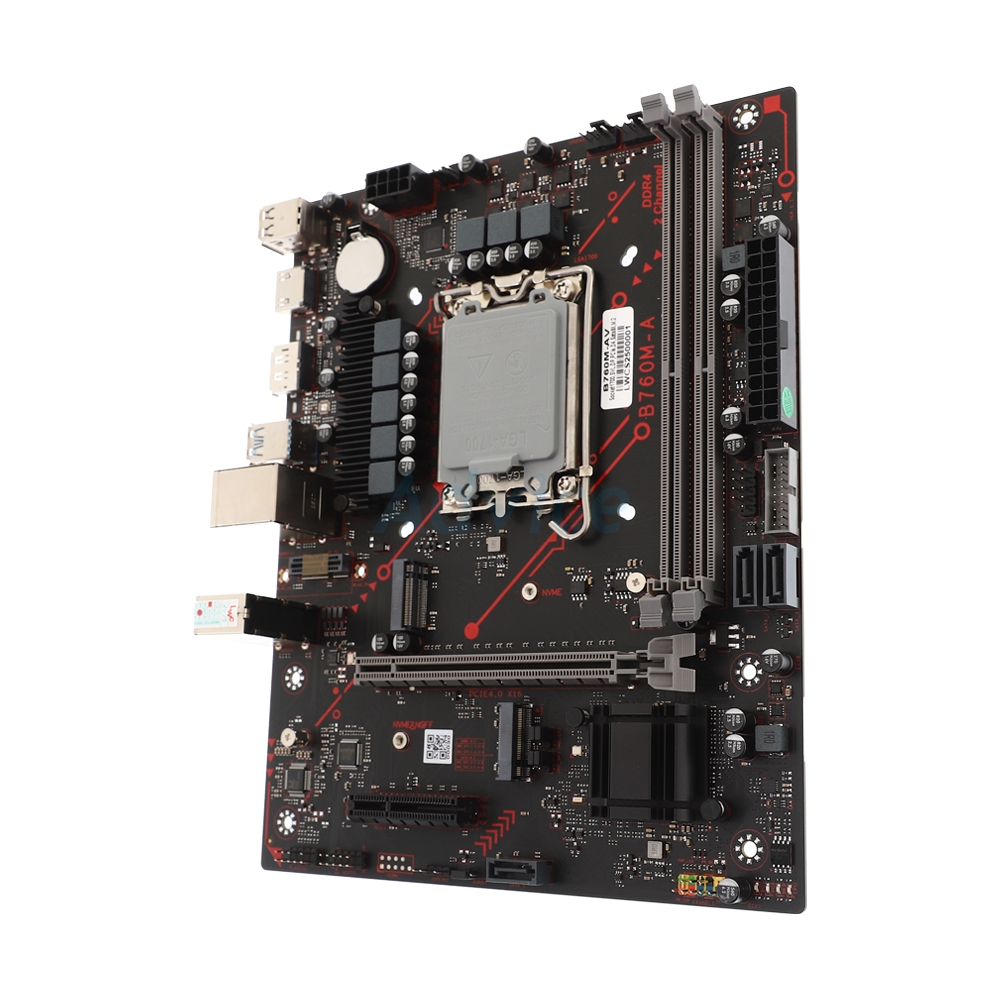

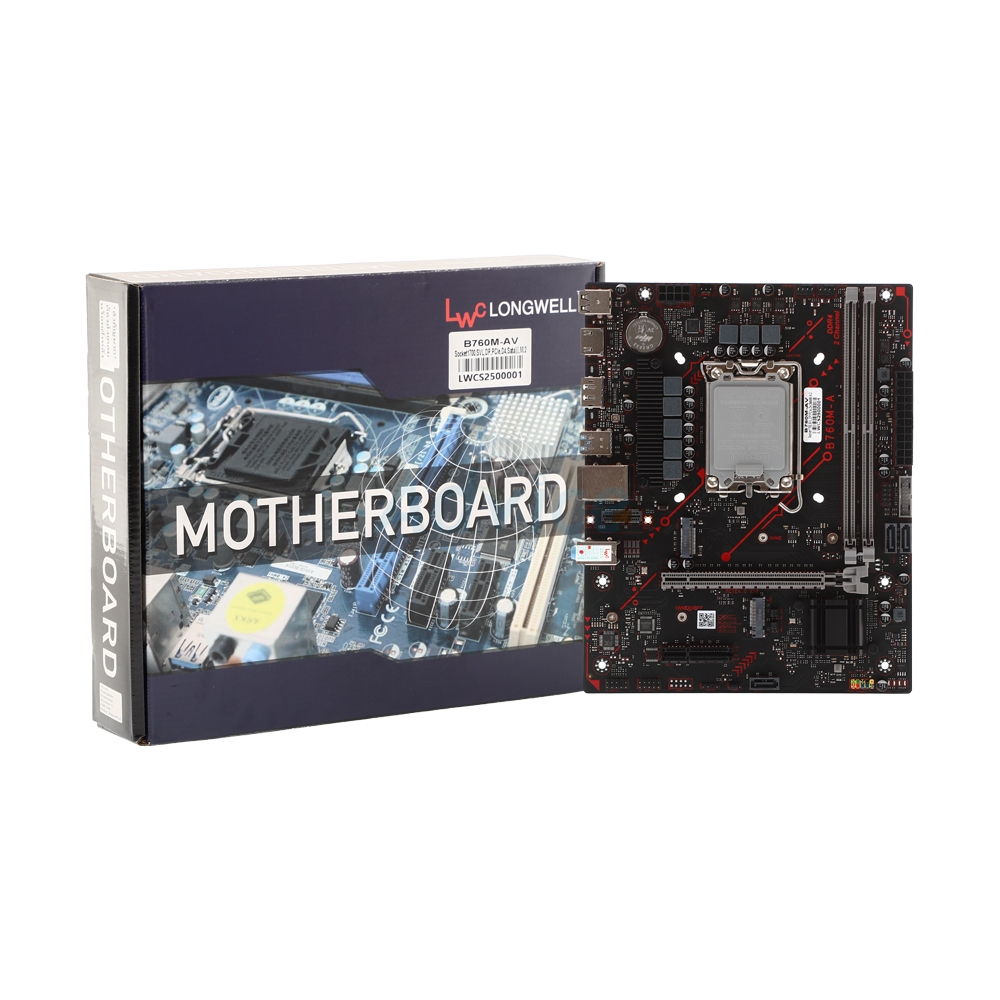

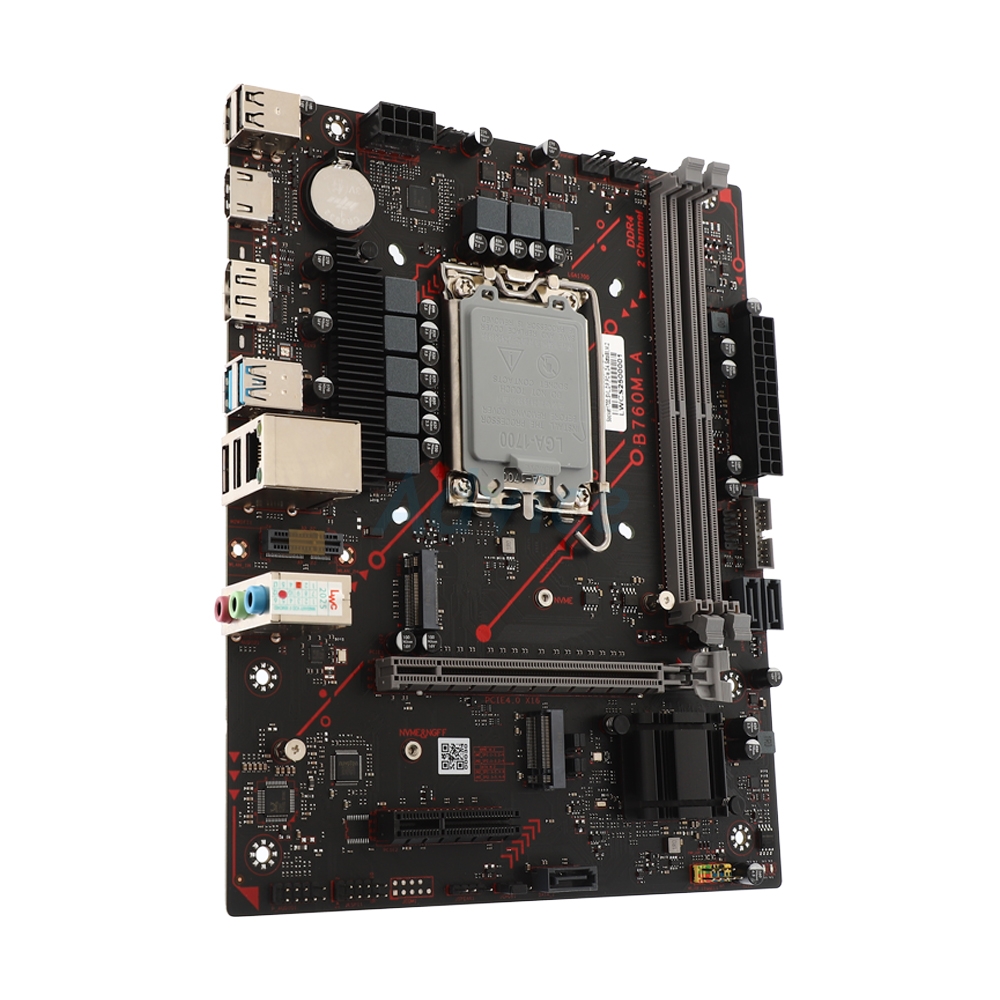

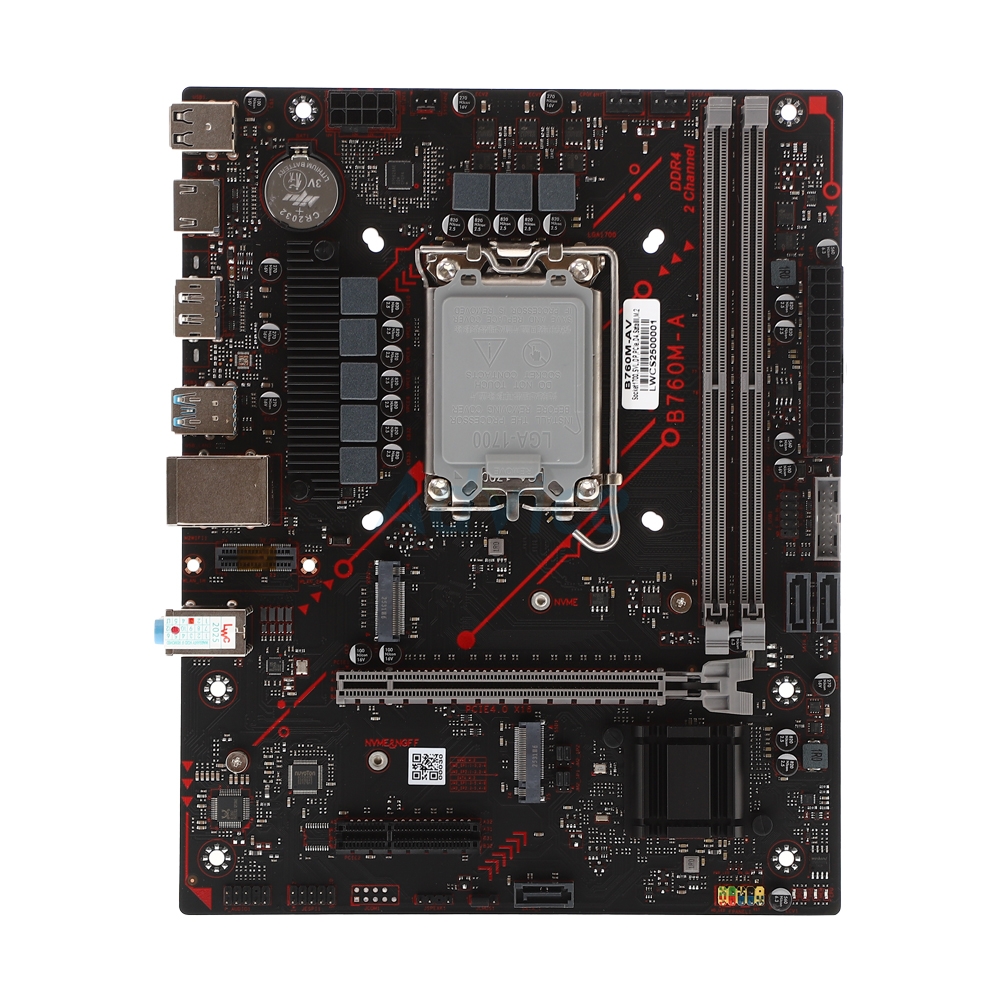

MAINBOARD (1700) LONGWELL B760M-AV DDR4
- Support CPU : 14th / 13th / 12th Gen Intel Core Processors, Pentium Gold and Celeron Processors
- Form Factor : Micro ATX
- Chipset : Intel B760 Chipset
- Memory Channel : Dual Channel DDR4 2DIMM
- Memory Support : up to 3600(O.C.)
- Memory MAX : 64GB
- M.2 Slot : 2 slots
- SATA III 6G : 3 ports
- PCIe 4.0x16 : 1 slot
- Lan Port : 1 Gigabit LAN
ข้อมูลผลิตภัณฑ์
B760M-AV DDR4
Support for 12th ,13th and 14th Generation Intel® Core™ i9 processors
Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors
Intel® Pentium® processors/Intel® Celeron® processors in the LGA1700 package
Intel
1700
Intel B760
Memory Support 2 x DDR4 DIMM sockets supporting up to 64 GB of system memory
Dual channel memory architecture
Support for DDR4 3600(OC)/3200/2933/2666/2400/2133 MHz memory modules
3600
N/A
None
Audio Realtek® ALC897 codec
High Definition Audio
1 x PCI Express 4.0 x16 slot
1 x PCI Express 4.0 x4 slot
PCIe 4.0
Total supports 2x M.2 NVME socket and 3 x SATA III (6Gb/s) ports
3 x SATA III Connector (6Gb/s)
2 x M.2 Socket Supports PCI-E 4.0 x4
NVMe
2
2 x USB 3.2 ports
4 x USB 2.0 ports
1 x USB 3.0 header (Internal)
1 x USB 2.0 header (Internal)
1 x M.2 WIFI
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
3 x SATA 6Gb/s connectors
1 x CPU fan header
1 x system fan header
1 x front panel header
1 x front panel audio header
1 x USB 3.0 header
1 x USB 2.0 header
1 x Clear CMOS jumper
1 x Speaker Connector

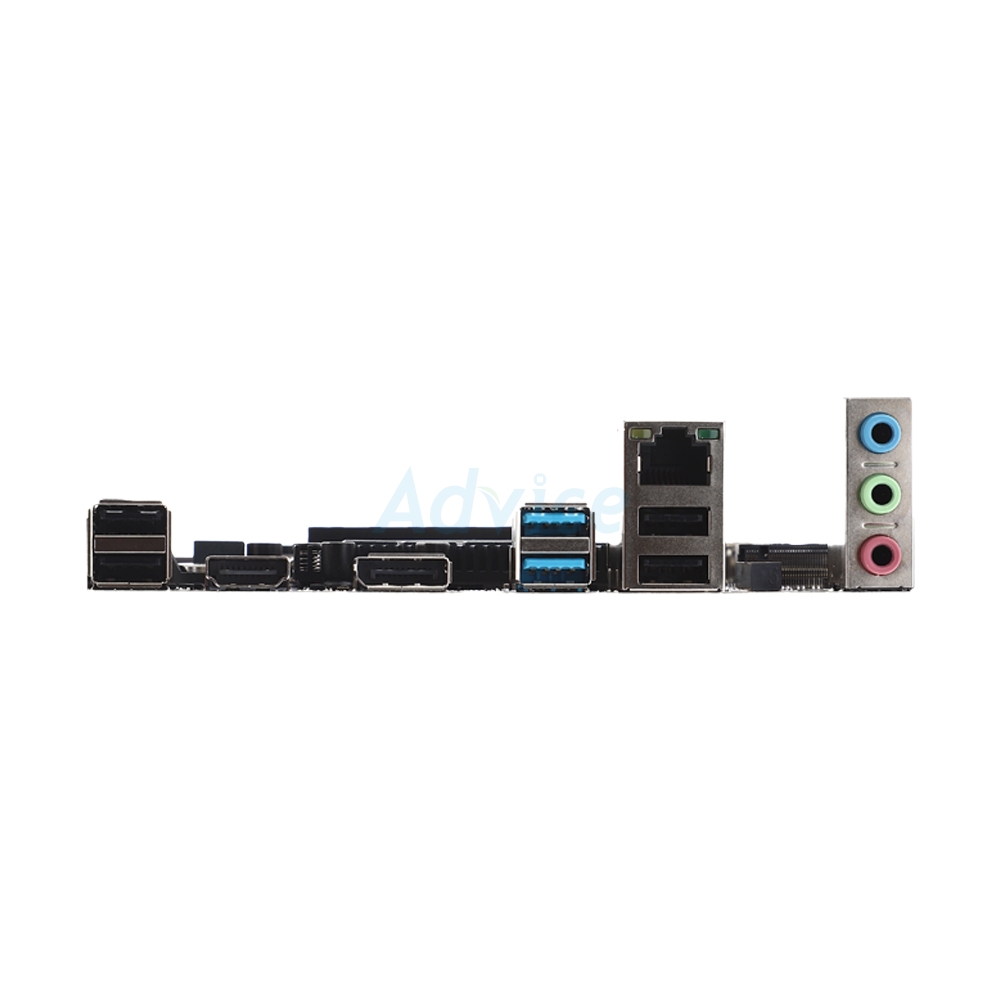

1 x HDMI port
1 x DISPLAY port
2 x USB 3.2 ports
4 x USB 2.0 ports
1 x Lan port
3 x audio connector
10/100/1000 Mb/s auto negotiation Half/Full duplex capability
Realtek® RTL8111H
None
Micro ATX
N/A
N/A
N/A
N/A
Win 10-11
Support UEFI mode
not Support windows 10 lagacy
1 x SATA cable
1 x I/O Rear Panel
1 x User Manual
